Scott Axis eRIDE 10 Lady Electric Hybrid Bike
Color:
Color
Size:
Size
Model:
Model
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

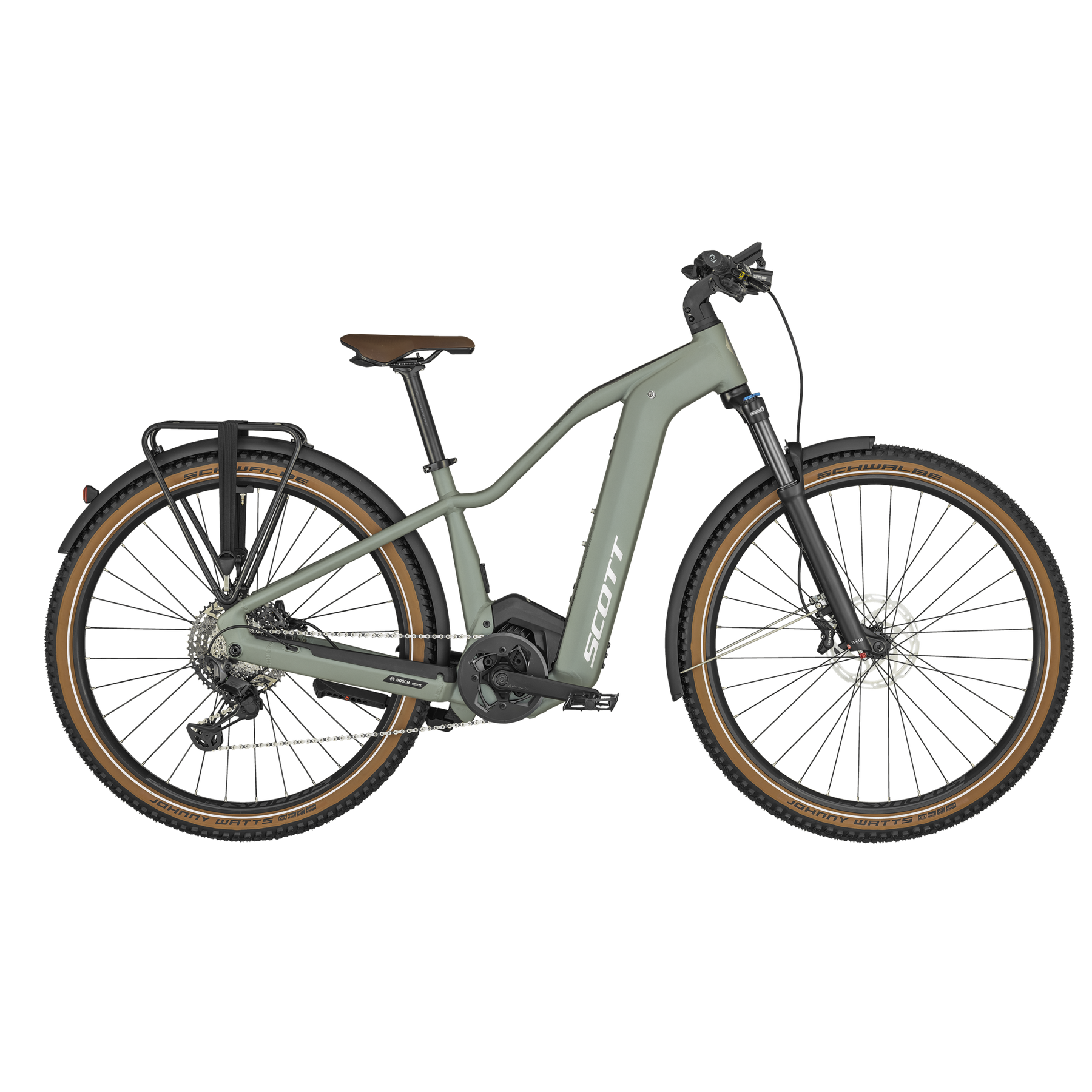

Scott Axis eRIDE 10 Lady Electric Hybrid Bike
Highland Green / S / BG
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The SCOTT Axis eRIDE 10 Lady comes now with a women's specific frame. Charge up the battery, set your course or activity, head out and don't look back. Want to take some extra kit with you? No problem, load up the rack for the ride and you're good to go explore.
Please note that bike specifications are subject to change without prior notice.
Specifications
| frame | 6061 Alloy custom butted tubing, Bosch Integr. removable Battery, internal cable routing |
|---|---|
| fork | SR Suntour XCR34 Air / Tapered / XS-L 29" / 120mm Travel / 15x110 bolt Axle / Remote Lock Out |
| rear-shock | |
| derailleur | Shimano RD M8130SGS Linkgilde / 11 Speed |
| shift-levers | Shimano XT RD M8130SGS Linkgilde / 11 Speed |
| front-derailleur | |
| brake-front | Tektro HD-M745 4 Piston |
| brake-rear | Tektro HD-M745 4 Piston |
| brake-disc-front | TR180-35 CL 180mm |
| brake-disc-rear | TR180-35 CL 180mm |
| wheelset | |
| rims | Syncros X18 Disc |
| tire-front | Schwalbe Johnny Watts 29x2.35" Wired |
| tire-rear | Schwalbe Johnny Watts 29x2.35" Wired |
| hub-front | Shimano HB-MT400 / 15x110mm |
| hub-rear | Shimano FH-MT400 / Boost 12x148mm |
| spokes | Black Spokes |
| handlebar | Syncros 3.0 720mm / 31.8mm / 8° / 20mm rise |
| stem | Syncros with front Light mount and Kiox 300 mount |
| headset | Acros / 1.5"- 1.5", semi integ. OD 50/61mm / ID 44/55mm |
| grips | Syncros Lock On Grip |
| saddle | Syncros Capilano |
| seat-post | Syncros M3.0 / 31.6 |
| crankset | Miranda 172,5mm |
| bottom-bracket | |
| Chain | KMC E11S |
| Cassette | Shimano CS-LG600-11 11-50T 11S |
| Pedals | VP VPE-506 |
| motor | Bosch Performance CX BES3 |
| battery | PowerTube 750Wh |
| display | Kiox 300 Display |
| charger | 4A Charger |
Specifications
| stack | 644 |
|---|---|
| reach | 396 |
| seat-tube-length | 420 |
| seat-tube-angle | 74 |
| top-tube-length | 580 |
| head-tube-length | 120 |
| head-tube-angle | 68 |
| stem-length | 70 |
| handlebar-width | 720 |
| wheelbase | 1176 |
| standover | 781 |
| chainstay-length | 500 |
| fork-rake | 47 |
| bottom-bracket-height | 312 |
| bottom-bracket-drop | 65 |
