Scott
Scott Axis 40 Electric Mountain Bike
Color:
Color
Size:
Size
Model:
Model
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

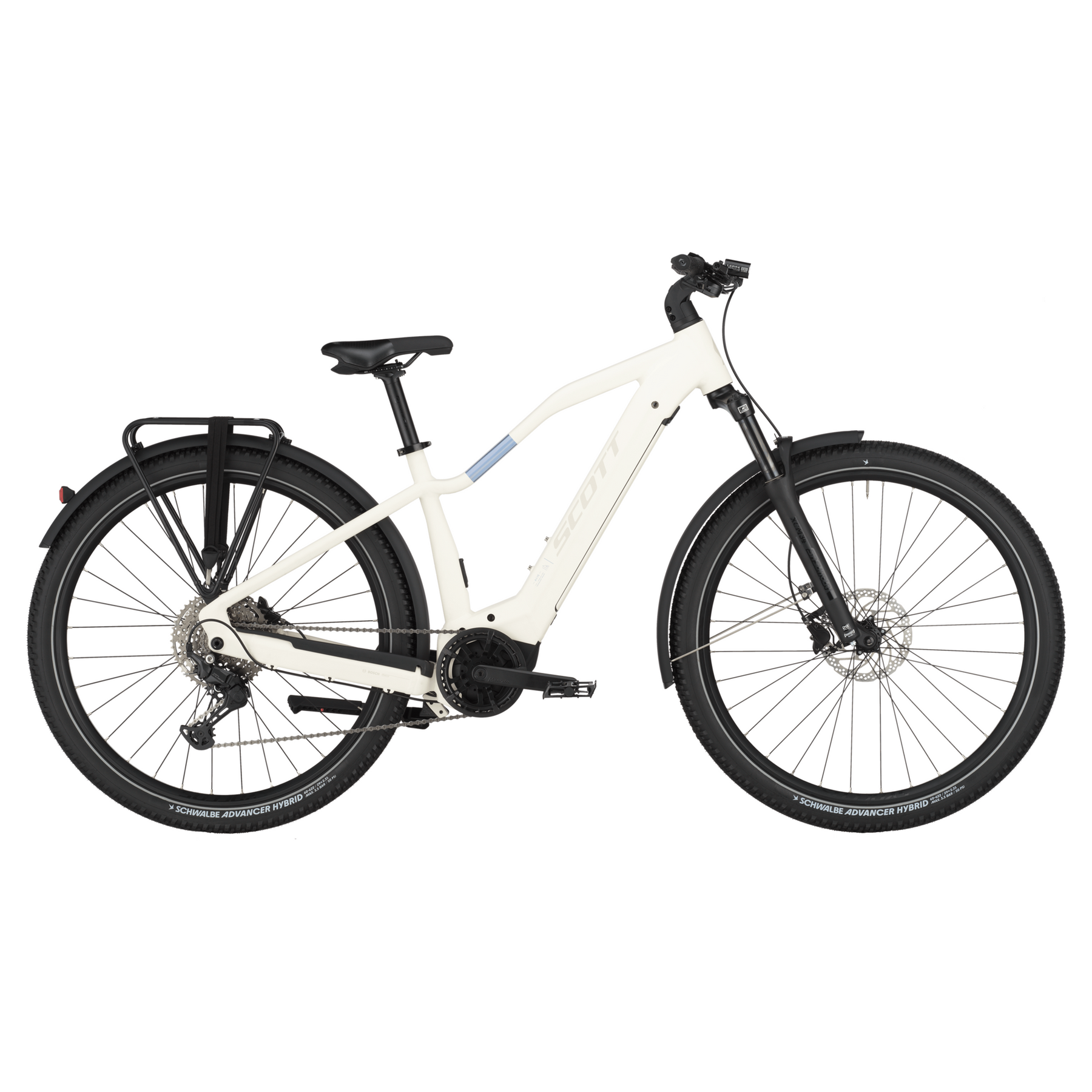

Scott Axis 40 Electric Mountain Bike
Cotton White / S / BG
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609With the SCOTT Axis eRIDE 40, charge up the battery, set your course or activity, head out and don't look back. The Bosch Smart System allows you to explore for hours. Want to take some extra kit with you? No problem, load up the rack for the ride and you're good to go explore
Specifications
| Frame | Alloy S-XL=29" / 6061 Alloy custom butted tubing, Bottom extraction battery, internal cable routing |
|---|---|
| Fork | SR Suntour XCM34 Coil / Tapered / 15x110 bolt Axle / 120mm Travel |
| Rear Derailleur |
Shimano CUES RD-U6000GS 10 Speed
|
| Shifter | Shimano SL-U600010RC |
| Front Brake | Shimano BR-MT200 Disc Brakes |
| Rear Brake | Shimano BR-MT200 Disc Brakes |
| Rotors | front: Shimano SM-RT30 CL 180mmRear: Shimano RT-EM300 CL 180mm |
| Rims | Syncros X18 Disc |
| Front Hub | Shimano HBTC50015BB / 15x110mm |
| Rear Hub | Shimano FHTC500HMBB / 148x12mm |
| Spokes | Stainless Black |
| Front Tyre | Schwalbe Advancer 60-622 Wired |
| Rear Tyre | Schwalbe Advancer 60-622 Wired |
| Handlebars | Syncros 3.0 720mm / 31.8mm / Backsweep 9° / 12mm rise |
| Stem | Syncros with front Light mount |
| Grips | Syncros Lock On Grip |
| Headset | Acros / 1.5"- 1.5", semi integ. OD 50/61mm / ID 44/55mm |
| Saddle | Syncros Capilano |
| Seatpost | Syncros 3.0 / 31.6mm |
| Crankset | Miranda, 170mm |
| Chain | Shimano LG500 |
| Cassette | Shimano CS-LG40010 11-48T 10 Speed |
| Motor | Bosch PerformanceEU: 25kmh |
| Battery | PowerTube 625Wh |
| Display | Bosch Purion 200 |
| Charger | 2A Charger |
| Lights | Front Lezyne Hecto E65 Rear Lezyne Tail Light |
| Rack | Racktime SnapIt 2.0 25KG |
| Extras | Curana alloy profile Fender / Ursus Kickstand |
| Weight (KG) | 27,5 |
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 663 | 663 | 668.6 | 677.8 | 687 |
| Reach | 412.2 | 412.2 | 430.8 | 448.5 | 466.2 |
| Headtube Angle | 66 | 66 | 67 | 67 | 67 |
| Headtube Length | 130 | 130 | 130 | 140 | 150 |
| Seattube Angle | 75.8 | 75.8 | 75.8 | 75.8 | 75.8 |
| Seattube Length | 370 | 400 | 440 | 490 | 540 |
| Toptube (Horizontal) | 580 | 580 | 600 | 620 | 640 |
| Chainstay Length | 482 | 482 | 482 | 482 | 482 |
| Wheelbase | 1213.1 | 1213.1 | 1221.1 | 1242.7 | 1264.3 |
| BB Height | 312 | 312 | 312 | 312 | 312 |
| BB Drop | 63 | 63 | 63 | 63 | 63 |
| Standover | 773.1 | 788.2 | 789.3 | 826.6 | 861.4 |
| Trail | 111.1 | 111.1 | 103.8 | 103.8 | 103.8 |
| Stem Length | 70 | 70 | 70 | 70 | 70 |
