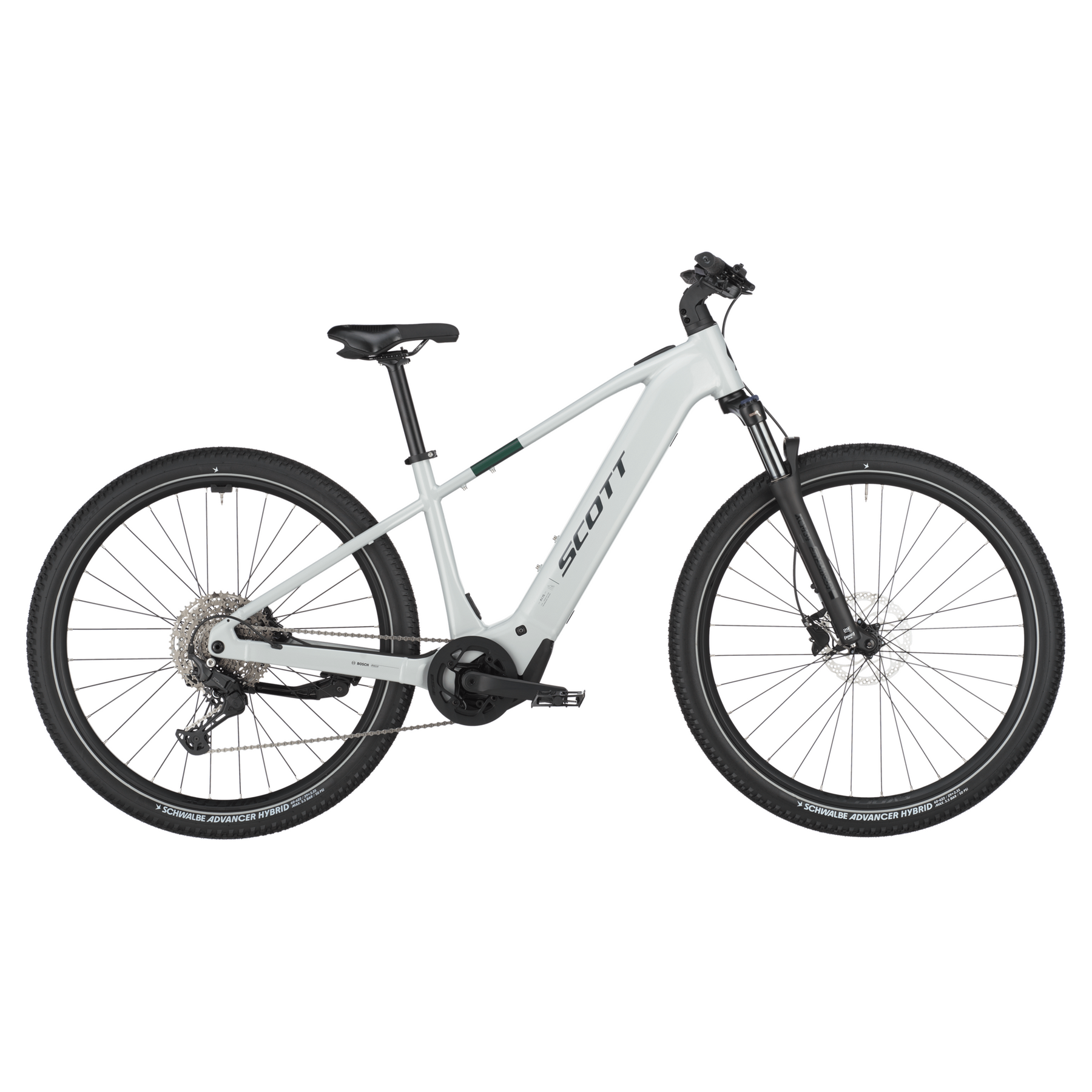

Scott Axis 30 Electric Mountain Bike
Color
Size
Model
Click & Collect
Scott Axis 30 Electric Mountain Bike
Rhino Grey / S / BG
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The perfect bridge between urban cruising and mountain biking.
The ALL-NEW SCOTT AXIS eRIDE is equipped with the latest Bosch Performance CX motor and 600Wh battery, perfect for weekend explorations in the outdoors. Wanna bring the kids and dogs with you? No problem. Thanks to the new Syncros Thru-Axle enabling you to tow cargo trailers, you can load up the Axis with everything you need to make the most of your rides.
Axis comes in two sleek frame shapes, with the Wave allowing for a lower standover height to make mounting and dismounting a breeze. With the same features and handling characteristics, you can simply pick the one that fits you best.
As comfy as you& 39-d like. Ride Axis.
Specifications
| Frame | Alloy S-XL=29" / 6061 Alloy custom butted tubing, Side extraction battery, UDH Interface / 12x148mm with 52mm Chainline |
|---|---|
| Fork | SR Suntour XCM34 LO Coil / Tapered / 15x110 bolt Axle / Lock Out / 120mm Travel |
| Rear Derailleur | Shimano CUES RD-U6000GS 11 Speed |
| Shifter | Shimano SL-U600011RC |
| Front Brake | Shimano BR-MT200 Disc Brakes |
| Rear Brake | Shimano BR-MT200 Disc Brakes |
| Rotors | front: Shimano SM-RT30 CL 180mmRear: Shimano SM-RT30 CL 180mm |
| Rims | Syncros X18 Disc |
| Front Hub | Shimano HB-TC50015BB CL / 15x110mm |
| Rear Hub | Shimano FH-TC500HMBB CL / Boost 12x148mm |
| Spokes | Black Spokes |
| Front Tyre | Schwalbe Advancer 60-622 Wired |
| Rear Tyre | Schwalbe Advancer 60-622 Wired |
| Handlebars | Syncros 3.0 720mm / 31.8mm / Backsweep 9° / 12mm rise |
| Stem | Syncros |
| Grips | Syncros Lock On Grip |
| Headset | Acros / 1.5"- 1.5", semi integ. OD 50/61mm / ID 44/55mm |
| Saddle | Syncros Capilano |
| Seatpost | Syncros M3.0 / 31.6 |
| Crankset | FSA CK-220 165mm |
| Chain | Shimano LG500 |
| Cassette | Shimano CS-LG40011 11-50T 11 Speed |
| Motor | Bosch Performance CX, EU: 25kmh |
| Battery | PowerTube 600Wh |
| Display | Bosch Purion 200 |
| Charger | 2A Charger |
| Extras | Ursus Kickstand |
| Weight (KG) | 27 |
Geometry
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 663 | 663 | 668.6 | 677.8 | 687 |
| Reach | 412.2 | 412.2 | 430.8 | 448.5 | 466.2 |
| Headtube Angle | 66 | 66 | 67 | 67 | 67 |
| Headtube Length | 130 | 130 | 130 | 140 | 150 |
| Seattube Angle | 75.8 | 75.8 | 75.8 | 75.8 | 75.8 |
| Seattube Length | 370 | 400 | 440 | 490 | 540 |
| Toptube (Horizontal) | 580 | 580 | 600 | 620 | 640 |
| Chainstay Length | 482 | 482 | 482 | 482 | 482 |
| Wheelbase | 1213.1 | 1213.1 | 1221.1 | 1242.7 | 1264.3 |
| BB Height | 312 | 312 | 312 | 312 | 312 |
| BB Drop | 63 | 63 | 63 | 63 | 63 |
| Standover | 773.1 | 788.2 | 789.3 | 826.6 | 861.4 |
| Trail | 111.1 | 111.1 | 103.8 | 103.8 | 103.8 |
| Stem Length | 70 | 70 | 70 | 70 | 70 |
