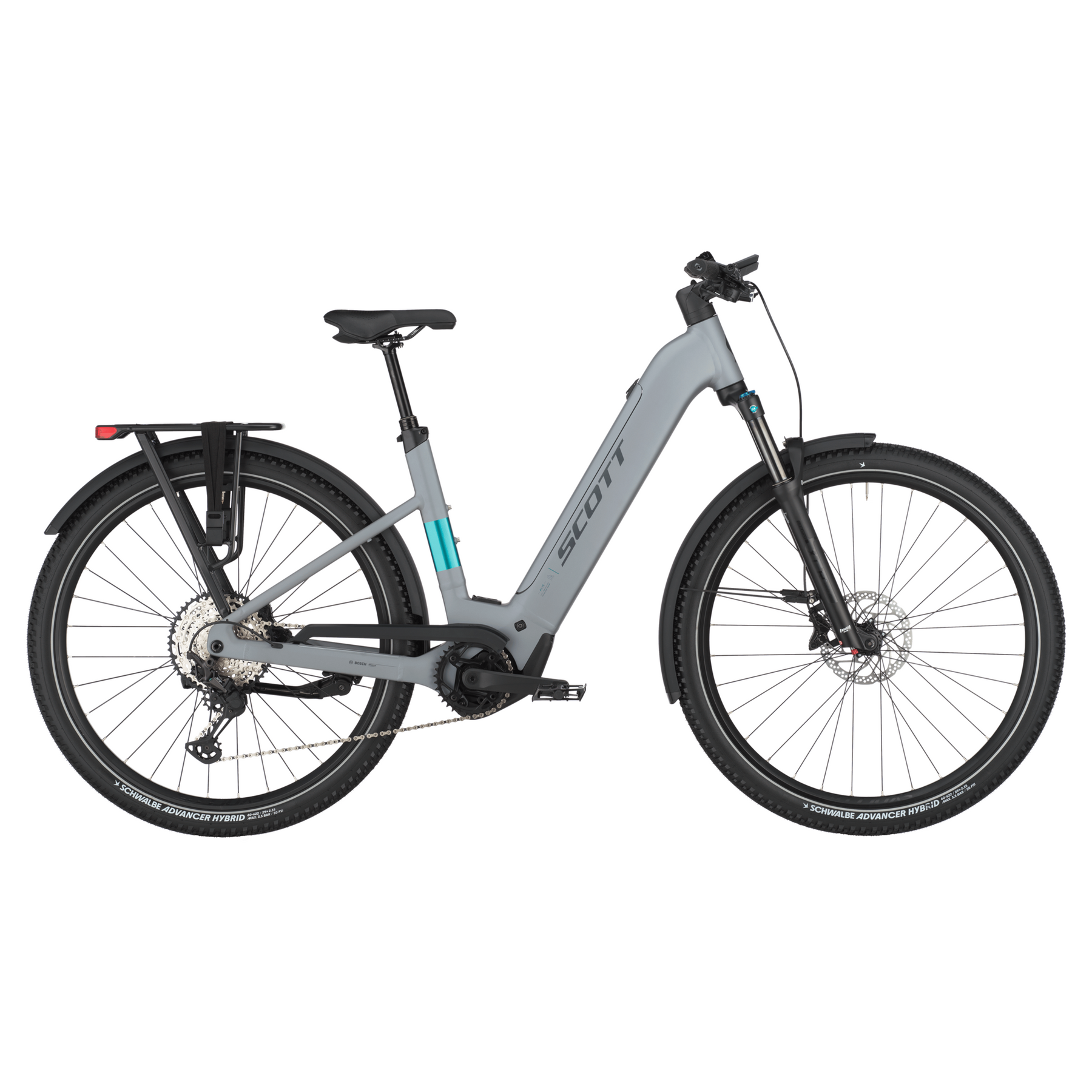

Scott Axis 10 Wave Electric Mountain Bike
Color
Size
Model
Click & Collect
Scott Axis 10 Wave Electric Mountain Bike
Bird Grey / S / BG
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The perfect bridge between urban cruising and mountain biking.
The ALL-NEW SCOTT AXIS eRIDE is equipped with the latest Bosch Performance CX motor and 800Wh battery, perfect for weekend explorations in the outdoors. Wanna bring the kids and dogs with you? No problem. Thanks to the new Syncros Heavy Duty rack that can carry up to 27kg, and the new Syncros Thru-Axle enabling you to tow cargo trailers, you can load up the Axis with everything you need to make the most of your rides.
Axis comes in two sleek frame shapes, with the Wave allowing for a lower standover height to make mounting and dismounting a breeze. With the same features and handling characteristics, you can simply pick the one that fits you best.
As comfy as you'd like. Ride Axis.
Specifications
| Frame | Alloy S-XL=29" / 6061 Alloy custom butted tubing, Top extraction battery, UDH Interface / 12x148mm with 52mm Chainline |
|---|---|
| Fork | SR Suntour XCR34X Air / Tapered / 15x110 bolt Axle / Remote Lock Out / 120mm Travel |
| Rear Derailleur | Shimano XT RD M8100SGS 12 Speed |
| Shifter | Shimano Deore SL-M6100RA |
| Front Brake | Shimano BR-MT420 Disc Brakes |
| Rear Brake | Shimano BR-MT420 Disc Brakes |
| Rotors | front: Shimano SM-RT30 CL 180mmRear: Shimano SM-RT30 CL 180mm |
| Rims | Syncros X18 Disc |
| Front Hub | Shimano HB-TC50015BB CL / 15x110mm |
| Rear Hub | Shimano FH-TC500HMSBB CL / Boost 12x148mm |
| Spokes | Black Spokes |
| Front Tyre | Schwalbe Advancer 60-622 Wired |
| Rear Tyre | Schwalbe Advancer 60-622 Wired |
| Handlebars | Syncros Forged Alloy Combo 680mm / Backsweep 9° / Upsweep 8° / 70mm / with front Light mount and Kiox 300 mount |
| Headset | Acros / 1.5"- 1.5", semi integ. OD 50/61mm / ID 44/55mm |
| Saddle | Syncros Capilano |
| Seatpost | Syncros Duncan Dropper Post 2.5, 31.6mm / S&M 361mm / L&XL 403mm |
| Crankset | FSA CK-220 165mm |
| Chain | KMC E12S |
| Cassette | Shimano CS-M7100-12 10-51T 12 Speed |
| Motor | Bosch Performance CX, EU: 25kmh |
| Battery | PowerTube 800Wh |
| Display | Bosch LED Remote & Kiox 300 |
| Charger | 4A Charger |
| Lights | Lezyne Fusion E550SM front lightRear Lezyne Rack |
| Rack | Racktime Micro Rack SnapIt 2.0 27KG |
| Extras | Curana alloy profile FenderUrsus Kickstand |
| Weight (KG) | 29,1 |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 696 | 688 | 705 | 705 |
| Reach | 413 | 433 | 450 | 450 |
| Headtube Angle | 68.2 | 68.2 | 68.2 | 68.2 |
| Headtube Length | 160 | 160 | 170 | 170 |
| Seattube Angle | 76.9 | 76.9 | 76.9 | 76.9 |
| Seattube Length | 440 | 480 | 520 | 560 |
| Toptube (Horizontal) | 575 | 595 | 615 | 615 |
| Chainstay Length | 482 | 482 | 482 | 482 |
| Wheelbase | 1190 | 1210 | 1232 | 1232 |
| BB Height | 299.5 | 299.5 | 299.5 | 299.5 |
| BB Drop | 75.5 | 75.5 | 75.5 | 75.5 |
| Standover | 638 | 633 | 630 | 630 |
| Trail | 100 | 100 | 100 | 100 |
| Stem Length | 90 | 90 | 90 | 90 |
