Scott

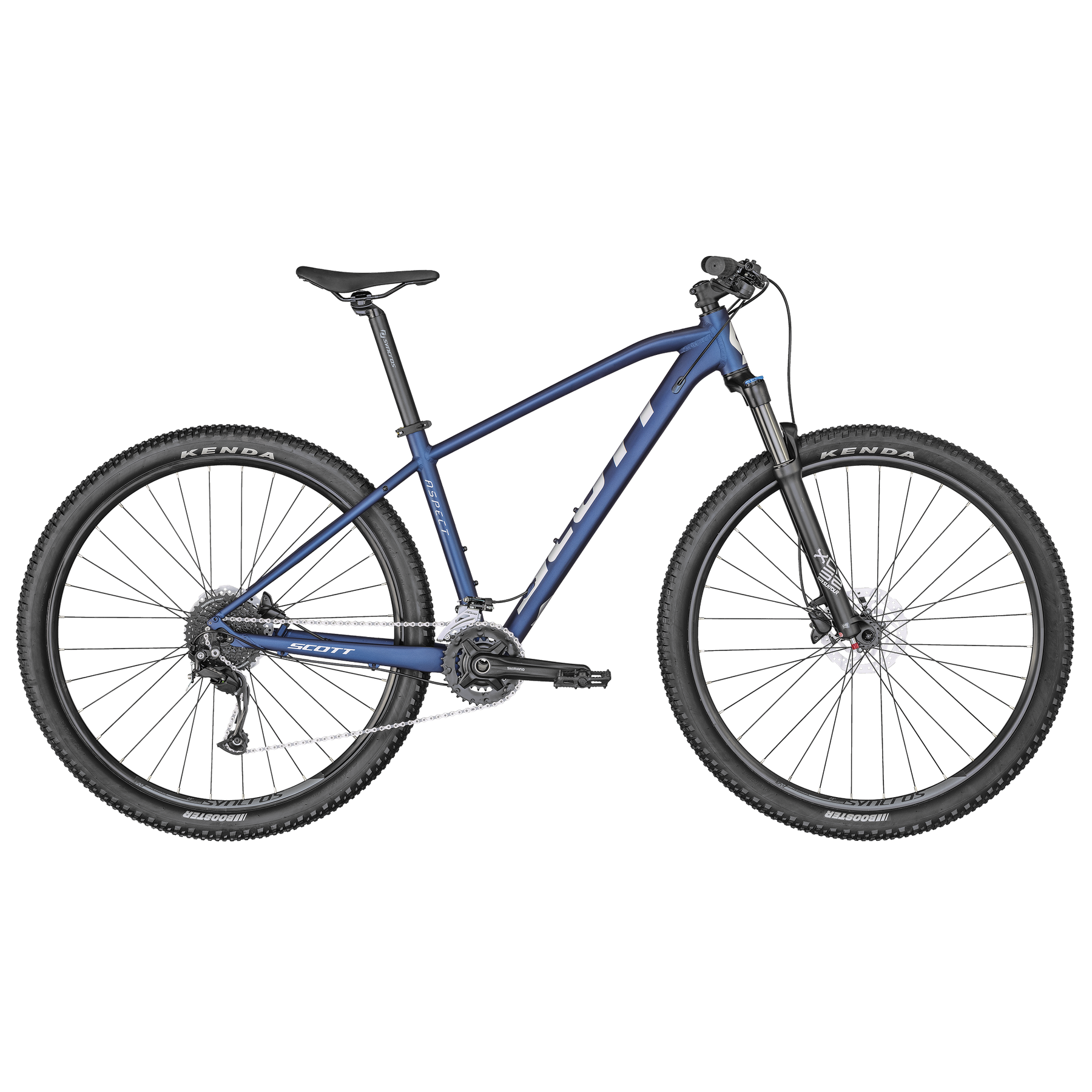

Scott Aspect 940 Hardtail Mountain Bike
Color:
Color
Size:
Size
Model:
Model
Quantity:
Click & Collect
Pickup available at Warehouse
Usually ready in 5+ days
Scott Aspect 940 Hardtail Mountain Bike
Ultramarine Blue / XS / KH
Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The SCOTT Aspect 940 is a hardtail mountain bike that is designed to be light, efficient and reasonably priced. Featuring a lockout mechanism for the fork, disc brakes and Syncros components, this is the perfect bike for the novice or budget conscious mountain biker.
Please note that bike specifications are subject to change without prior notice
Specifications
| frame | Aspect 900-700 series / Alloy 6061 Custom Butted Tubing, BSA73 / Internal Cable Routing / replaceable hanger |
|---|---|
| fork | Suntour XCR32/X1-RL-R / Hyd. Lockout / Reb. Adj., 100mm travel |
| rear-shock | |
| derailleur | Shimano Alivio RD-M3100, 18 Speed |
| shift-levers | Shimano SL-M3100, R-fire plus / 2 way release, w/gear indicator |
| front-derailleur | Shimano FD-M3120 Side Swing / 31.8mm |
| brake-front | Shimano MT200 / Hydr. Disc |
| brake-rear | Shimano MT200 / Hydr. Disc |
| brake-disc-front | Shimano SM-RT10 CL rotor / 160mm |
| brake-disc-rear | Shimano SM-RT10 CL rotor / 160mm |
| wheelset | |
| rims | Syncros X-20 Disc, 32H / black |
| tire-front | Kenda Booster, 2.4" / 30TPI |
| tire-rear | Kenda Booster, 2.4" / 30TPI |
| hub-front | Shimano HB TX505 |
| hub-rear | Shimano FH-TX5058 |
| spokes | 14 G / stainless / black |
| handlebar | Syncros 3.0 / 720mm, black / 31.8mm / 12mm rise / 9° BS |
| stem | Syncros 3.0 / 7° / Black |
| headset | Syncros OE Press Fit / 1 1/8", OD 50mm / ID 44mm |
| grips | Syncros Pro Grip |
| saddle | Syncros 3.0 |
| seat-post | Syncros 3.0, 31.6mm / 350mm / Black |
| crankset | Shimano FC-MT2102, 2-piece Design / 36X22 |
| bottom-bracket | Shimano BB-MT500, Hollowtech II / threaded |
| Chain | KMC X9 |
| Cassette | Shimano CS-HG200-9 / 11-36T |
| Pedals | VP VP-536 |
| motor | |
| battery | |
| display | |
| charger |
Specifications
| stack | 580 |
|---|---|
| reach | 388 |
| seat-tube-length | 355 |
| seat-tube-angle | 73,5 |
| top-tube-length | 560 |
| head-tube-length | 95 |
| head-tube-angle | 68,5 |
| stem-length | 50 |
| handlebar-width | 720 |
| wheelbase | 1102 |
| standover | 743 |
| chainstay-length | 450 |
| fork-rake | 51 |
| bottom-bracket-height | 316 |
| bottom-bracket-drop | 60 |
