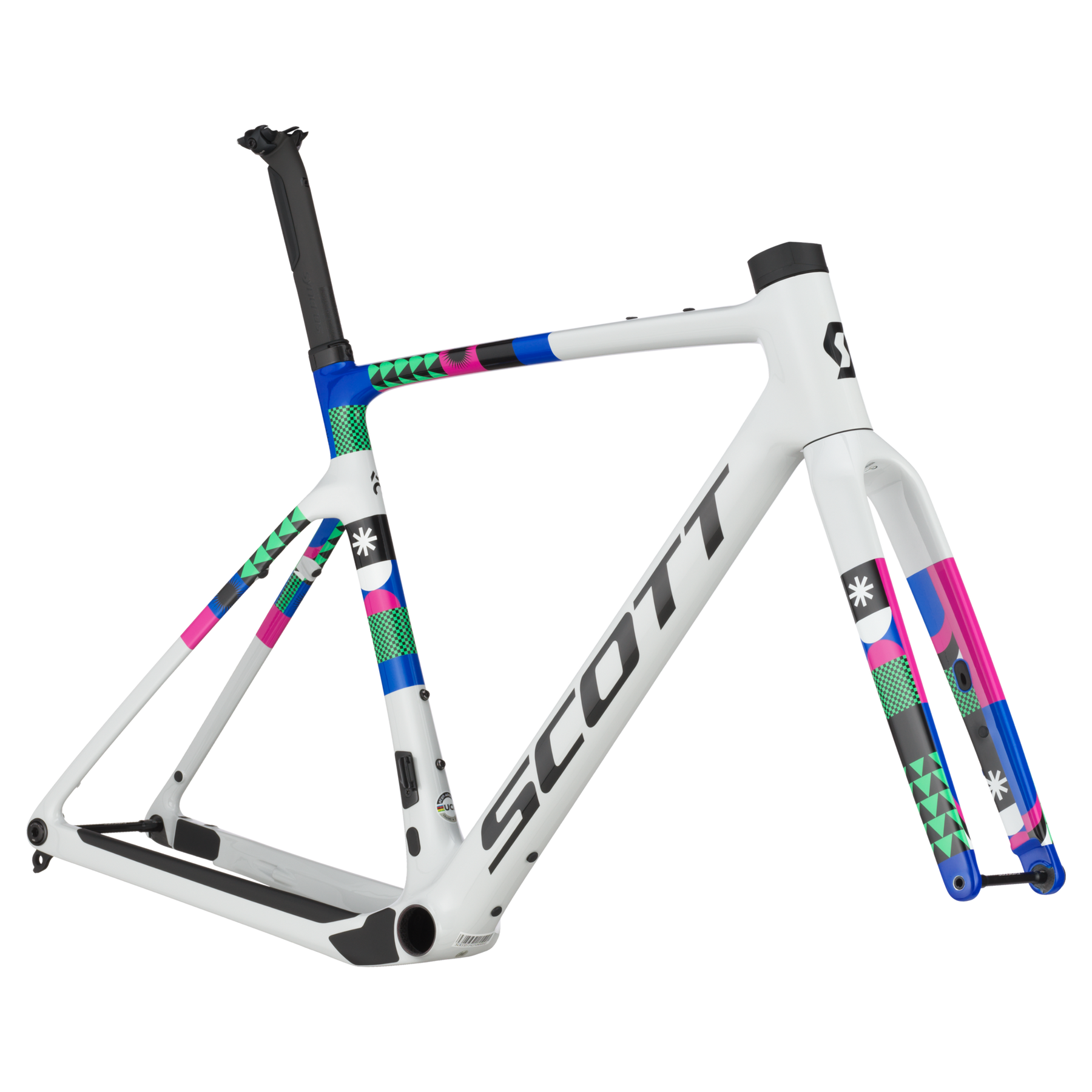

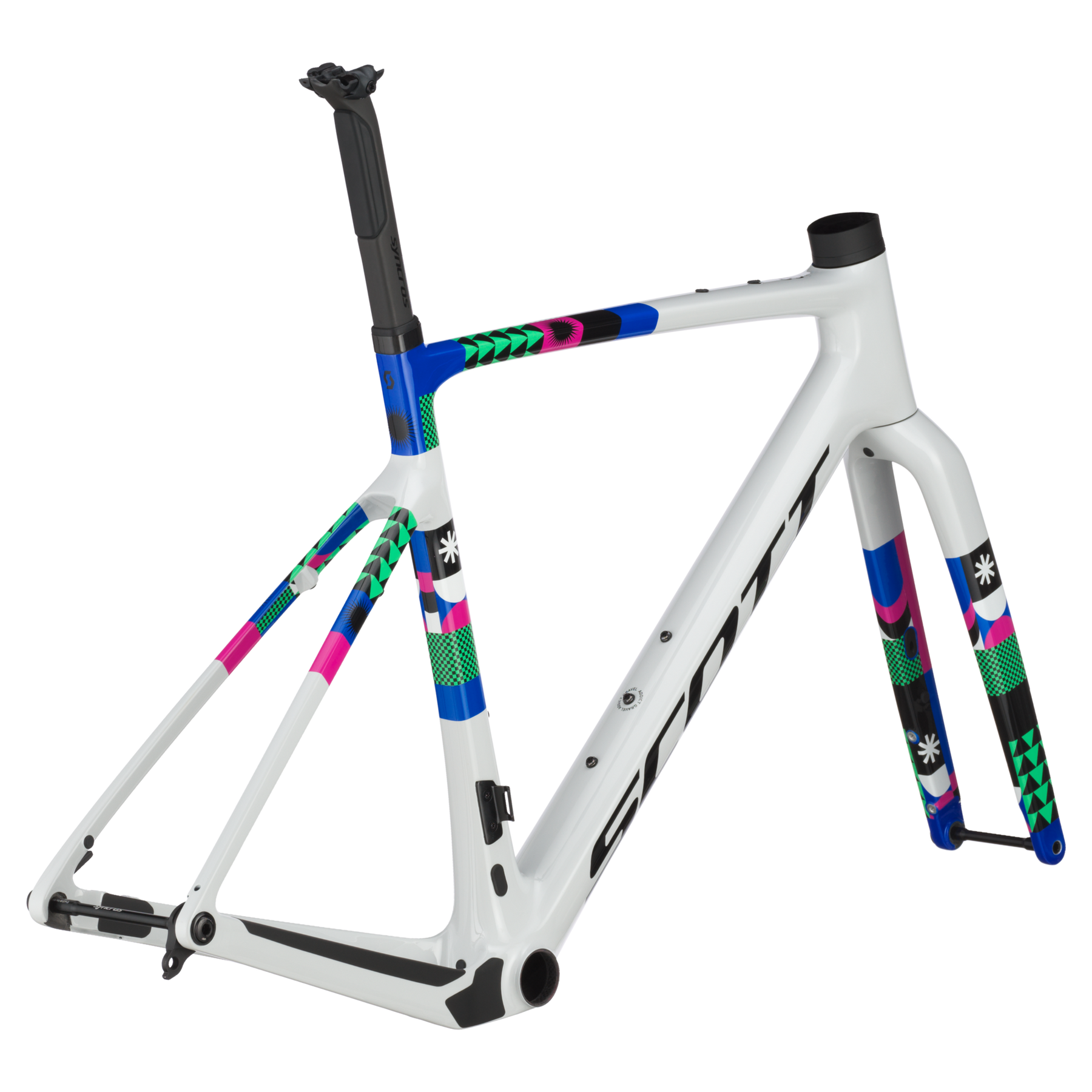

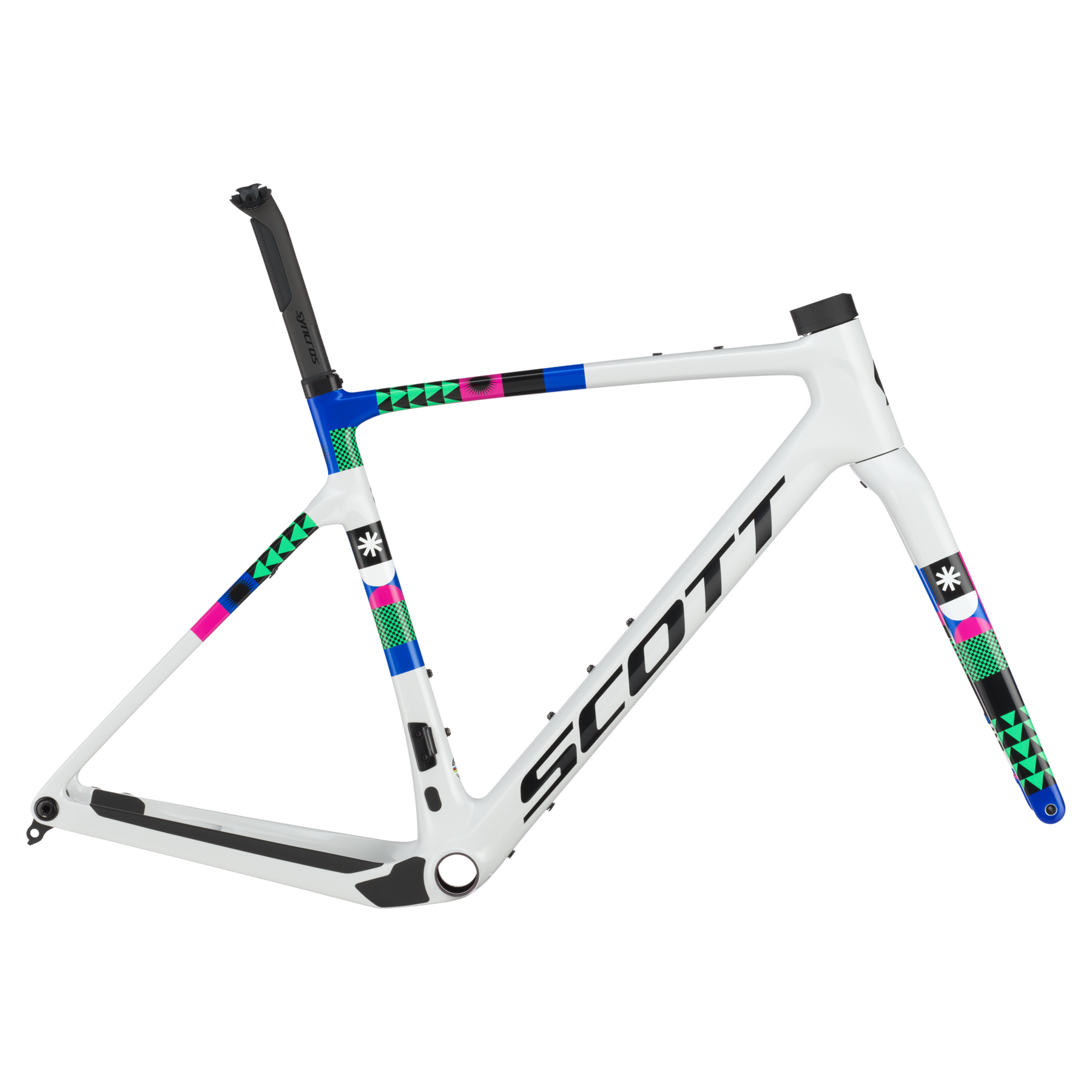

Scott Addict Gravel RC HMX Frameset
Color
Size
Availability
Click & Collect
Scott Addict Gravel RC HMX Frameset
Beluga Grey / XS
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The Scott Addict Gravel RC will get you wherever you’re going, no matter what the trail throws at you. More progressive, more control and more mounts mean this adventure-ready machine is your ticket to getting out there. Find yourself, get lost.
Specifications
Frame:
HMX Carbon Disc Mainframe with UDH hangercompatible for eletr. and mech. Shifting
Fork:
HMX Carbon fork for Disc Brake
Accessories:
ACROS AIF-1135 HeadsetExpander for Carbon Steertube and TopcapSyncros SP-R101-CF seatpostSyncros SL ROAD plug-in thru axle
Approx Weight:
Frame 930g / Fork 395g
| XS | S | M | L | XL | |
|---|---|---|---|---|---|
| Stack | 519 | 544.4 | 565.3 | 589.9 | 609.7 |
| Reach | 374.1 | 378.4 | 387.1 | 398.2 | 406.1 |
| Headtube Angle | 70 | 70 | 71 | 71 | 71 |
| Headtube Length | 95 | 122 | 140 | 166 | 187 |
| Seattube Angle | 74.5 | 74 | 73.5 | 73 | 73 |
| Seattube Length | 477 | 507 | 528 | 546 | 566 |
| Toptube (Effective) | 518 | 534.5 | 554.5 | 578.5 | 592.5 |
| Chainstay Length | 425 | 425 | 425 | 425 | 425 |
| Wheelbase | 1009.4 | 1022.9 | 1029.2 | 1048.7 | 1063.5 |
| BB Height | 283 | 283 | 283 | 283 | 283 |
| BB Drop | 71 | 71 | 71 | 71 | 71 |
| Standover | 759 | 786 | 807 | 828 | 847 |
| Stem Length | 83 | 93 | 103 | 103 | 113 |
