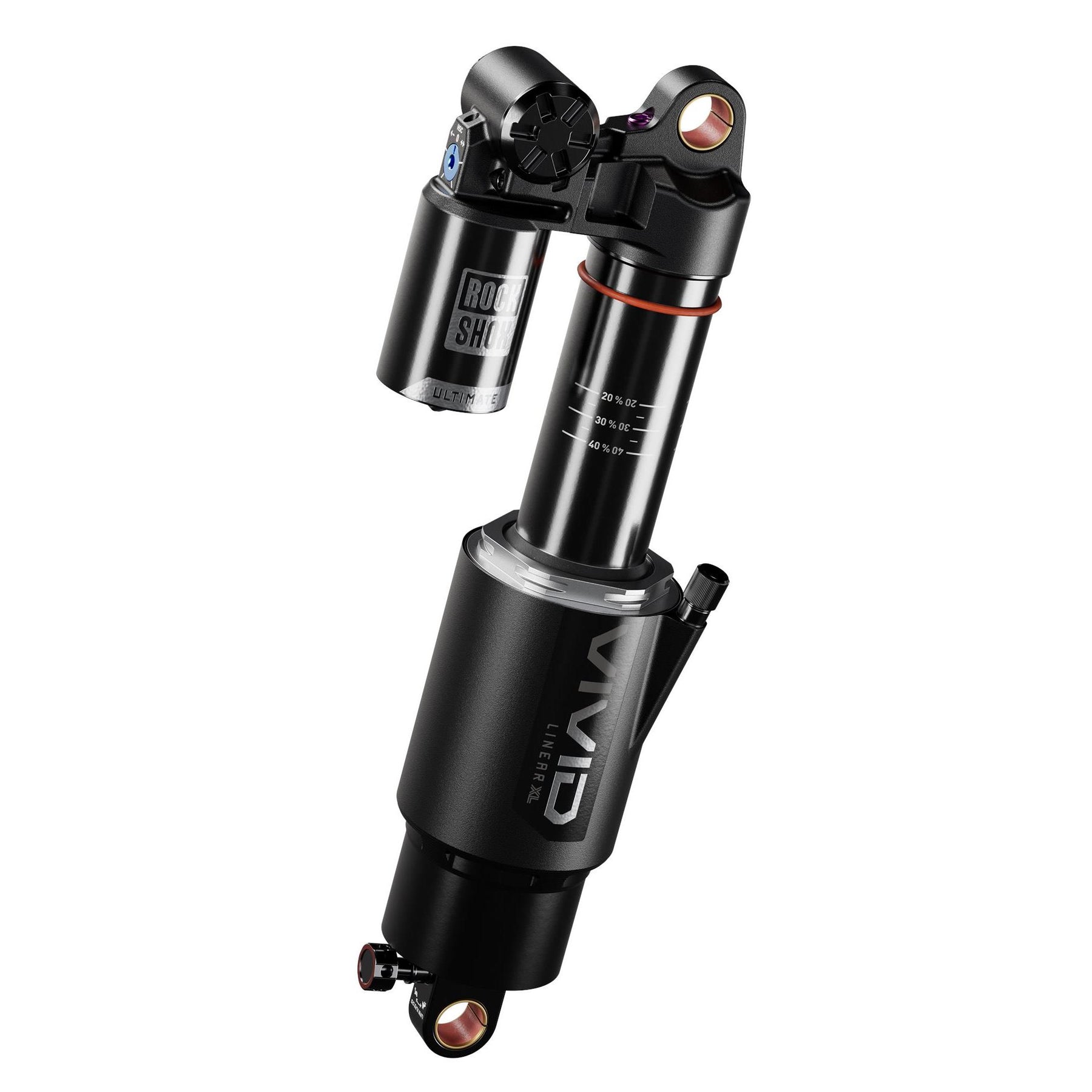

RockShox Vivid Ultimate DH RC2 Rear Shock (D1)

Vivid Ultimate DH is built for pure downhill performance, delivering World Cup-proven control and consistency for the most aggressive tracks. Designed to work in harmony with BoXXer forks, it provides the stability, traction, and tuning precision required to stay composed at high speed on the roughest terrain.

The LinearXL air spring delivers a coil-like ride feel with sensitivity off the top and strong mid-stroke support, while Adjustable Bottom Out allows riders to fine-tune end-stroke performance for controlled landings. The RC2 damper features independent high- and low-speed compression adjustment, with updated main piston tuning to improve mid-stroke support and maintain composure under heavy loads.

Features
• LinearXL air spring delivers consistent ride feel with adjustable progression using bottomless tokens
• RC2 damper provides independent low- and high-speed compression adjustment without cross-talk
• Numbered compression adjuster enables quick and intuitive setup changes
• Base valve reduces IFP forces for improved small-bump sensitivity and traction
• Main piston compression tuning enhances mid-stroke support
• Adjustable Bottom Out provides five settings to control end-stroke behaviour
• Removable rebound knob doubles as high-speed compression and bottom-out adjuster
• Wide rebound adjustment range with 20 clicks for consistent control
• Optional bearing adapter available for standard eyelets

Specifications
Eye to eye / Stroke: 225×70 (TR), 225×72.5 (TR), 225×75 (TR), 230×65, 250×70, 250×72.5, 250×75
Damper type: RC2 Adjustable Hydraulic Bottom Out
Rebound tune: R25, R55
Compression tune: C30, C34, C37
Lockout force: N/A
Shaft eyelet: Standard
Body eyelet: No bushing, Standard, Trunnion
E-bike approved: Yes
Bottom out: Externally Adjustable Bottom Out
