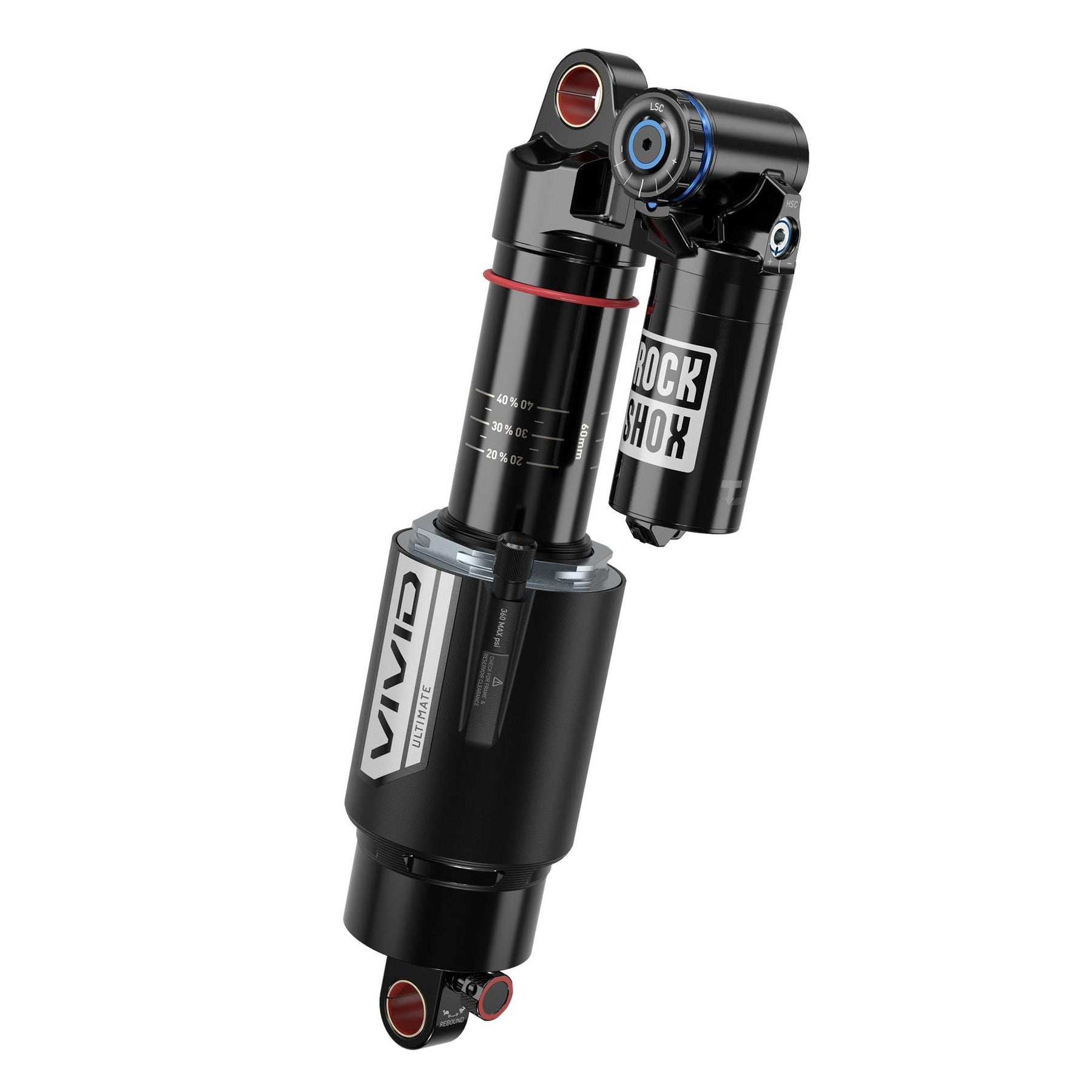

So much performance, we’ve surprised ourselves with this one. Meeting the heavy demands of the best gravity fed racers out on course, Vivid Ultimate is unmatched in performance and fine-tunability with the external independent High and Low Speed Compression adjustments. Easily dial in the perfect ride feel thanks to the all-new TouchDown RC2 position sensitive damper providing unreal sensitivity off-the-top, support and control in the mid-stroke, and adjustable hydraulic bottom-out to provide the cushion you can’t wait to land on. Completing the ultimate performance package with the confidence inspiring coil-like air spring system, Vivid Ultimate is back on course and offers it all.
- NEW TouchDown RC2 damper features unreal sensitivity (or suppleness) off the top, remains stable and supportive through mid-travel, and has added adjustable hydraulic bottom out to resist any harsh hits. This position sensitive damper offers reliable performance and tunability with unreal sensitivity and response at every position throughout the travel.
- TouchDown RC2 damper offers Rebound adjustment and independent High and Low Speed Compression adjustment.
- Reduced High-Speed Compression eliminates the hang-up and allows the wheel to easily get out of the way on hard impacts.
- The most “coil-like” air spring we’ve dreamt up. This latest air spring maximizes fine-tuning potential, allowing you to tune positive air volume to perfectly match your bike. With increased mid-stroke support, and off the top suppleness to create a more desirable ride feel for the trail ahead.
- Adjustable Hydraulic Bottom Out offers a convenient dial with five different compression settings to customize the cushioning you experience in the last 20% of travel when facing potential bottom out.
- Maxima Plush Dynamic Suspension Lube reduces friction, lasts longer, and enhances suspension performance ride after ride.
- 20 clicks of rebound adjustment offer a wide range of tunability and accommodate more rider types.
- 3mm removable rebound adjuster to adjust HSC and Hydraulic Bottom Out
Eye to eye / Stroke: 250x67.5, 250x70, 250x72.5, 250x75
Air volume: Vivid - 1:00 Air Valve Orientation
Hose length/Cable Exit: n/a
Model designator (SR): Ultimate
Damper Type: RC2 Adj. Hydraulic Bottom Out
Rebound tune: R25
Compression tune: C34
Pedal tune: n/a
Lockout force: n/a
Color (Shock body): Black
Color (Decal): Pearl White
Decal orientation: A
Shaft Eyelet: Standard
Body Eyelet: Standard
Damping adjustments: Extl rebnd, Low & High speed comp, Hydraulic Bottom Out
Volume reducer: 1 Token
Check Tune: 0 - Light
E-Bike Approved: E-bike Approved
Rebound Clicks: 20
Max Air Pressure (PSI): n/a
