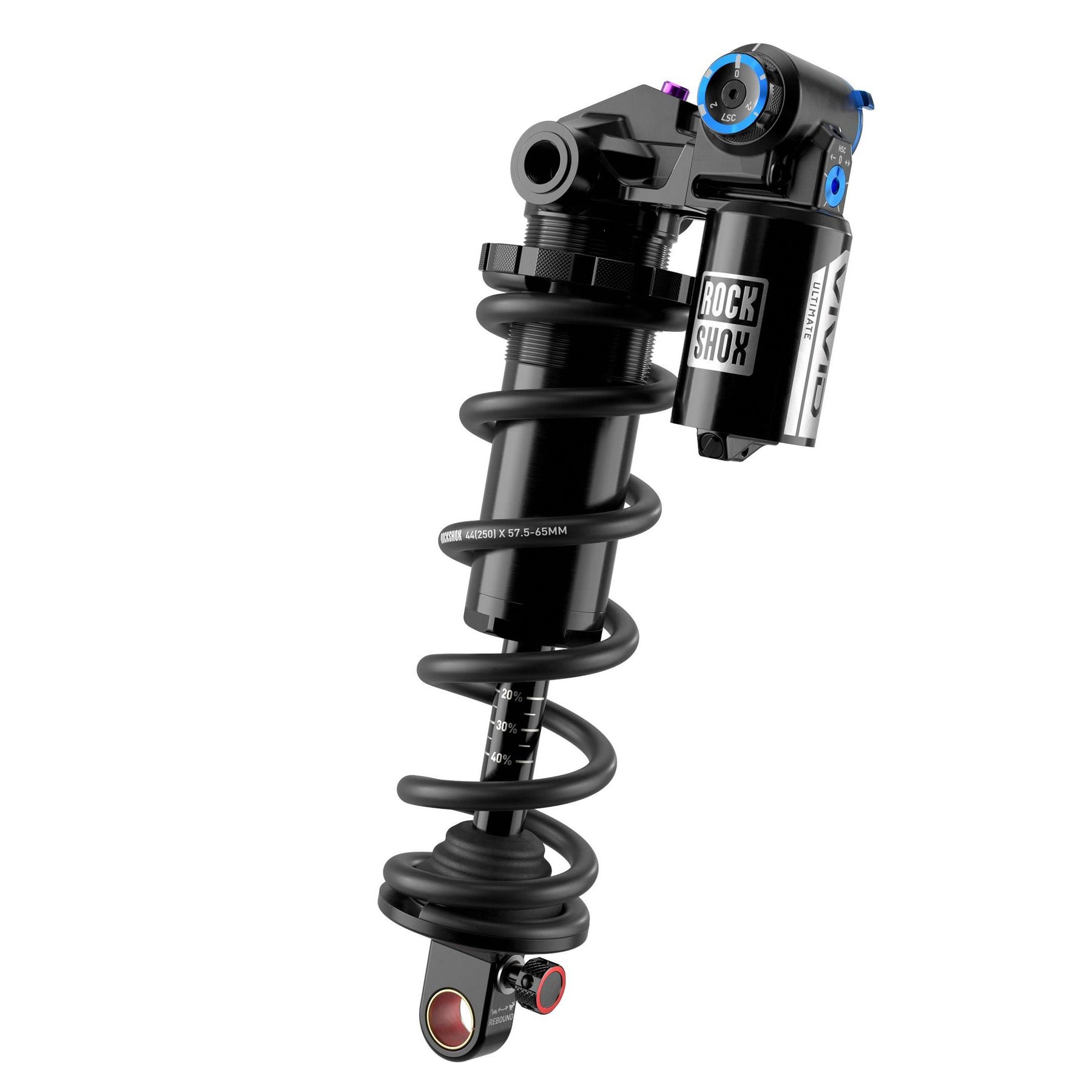

RockShox Vivid Coil Ultimate RCT2 - Bearing Rear Shock (D1)

There’s a reason everyone loves coil—the feel is unmistakable. Supple off the top, supportive through the mid-stroke and backed by Adjustable Bottom-Out for confident end-stroke control, it delivers unwavering consistency and predictability. Engineered to work as a system with your fork and Charger 3.2 damper, the RCT2 damper introduces new main-piston compression tunes for confident mid-stroke support, while intuitive HSC/LSC adjusters make setup fast, clear and easy to communicate. Distilling decades of coil dominance into a shock built for today’s enduro, E-MTB and downhill bikes, Vivid Coil Ultimate brings the heritage of coil into a new era of performance.

Features
• RCT2 damper with a wide, usable range of LSC and HSC adjustments without cross-talk
• Numbered Compression adjuster for intuitive setup starting at “0”
• Base valve with 40% reduced IFP forces for maximum suppleness and traction
• Main-piston compression tunes matched to Charger 3.2 for strong mid-stroke support
• Adjustable Bottom-Out (ABO) with five settings for tuning the last 20% of travel
• Removable Rebound knob doubling as HSC and ABO adjuster
• 20 clicks of Rebound adjustment with consistent curves across a wide rider-weight range
• 8×30 bearing adapter available for all standard eyelets (upgrade kit)

Specifications

Damper type: RC2T adjustable hydraulic bottom-out
Rebound tune: R25, R55
Compression tune: C26, C34, C37
Lockout force: X25, X45
Shaft eyelet: No Bushing, Standard, Standard – 180° rotation
Body eyelet: Standard, Trunnion
E-bike approved: Yes
Bottom-out system: Externally Adjustable Bottom-Out
