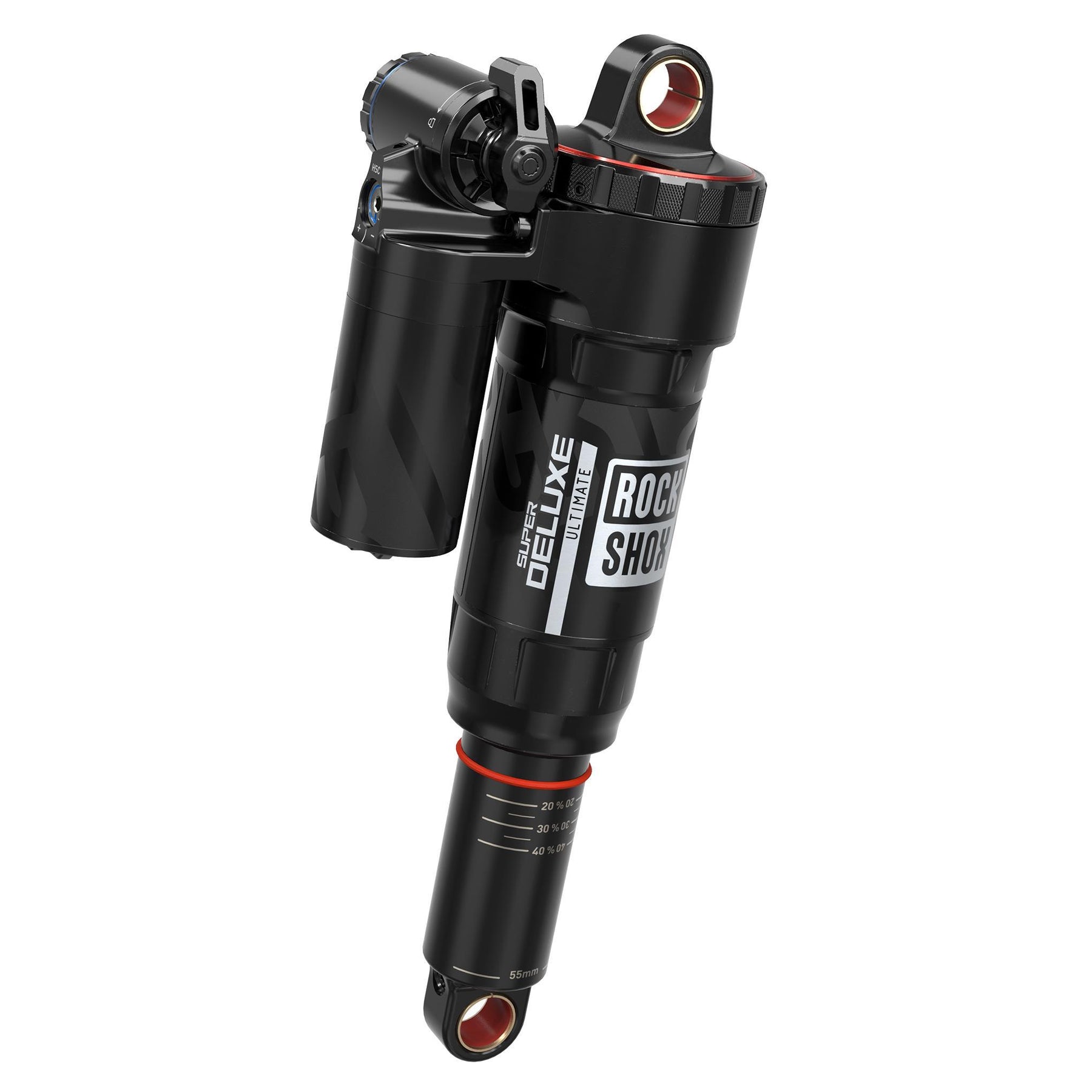

In it to win it? Super Deluxe Ultimate is the smart bet for the podium. Packed to the hilt with fine-tuning adjustments that meaningfully improve suspension performance, it’s the most advanced shock we’ve ever made. Pioneering one of the most impactful innovations in damper history, the new RC2T damper allows for 100% independent High Speed and Low Speed Compression adjustments. The arsenal of elite technology rounding out Super Deluxe Ultimate is grounded in the philosophy that, at the highest level of capability, the extra ounce of performance and customization is what it takes to capture the crown.??
- RC2T Damper, the most tunable shock damper we’ve ever made, offers completely independent High Speed and Low Speed Compression adjustments, eliminating “cross-talk” so you can tune your shock to exactly how you want it to perform.
- DebonAir+ air spring maximizes fine-tuning potential, allowing you to tune both the negative and positive air volume to perfectly match your bike, desired ride feel, and the trail ahead.
- The optional Hydraulic Bottom Out kicks in to restrict the flow of oil within the last 20% of travel, offering a soft hydraulic cushion that reduces harsh bottom out.
- 15 clicks of Rebound adjustment offer a wider range of tunability and accommodate more rider types.
- Castled bottom out bumper reduces harsh bottom-out, leaving extra room for the bold to go big.
- Increased bushing overlap maximizes small bump performance and grip.
- Separate and independent Open and Threshold pistons tuned exactly for your ride.
- Fresh new premium graphics package to flash on the podium or as you blaze past your buddies on the doubletrack.
- Top-of-the-line Maxima Plush Dynamic Suspension Lube reduces friction to help maintain traction.
Eye to eye / Stroke 230x65
Air volume DebonAir Linear
Hose length/Cable Exit n/a
Model designator (SR) Ultimate
Damper Type RC2T
Rebound tune Linear
Compression tune L1
Pedal tune n/a
Lockout force 380
Color (Shock body) Black
Color (Decal) Matte Polar Foil
Decal orientation A
Shaft Eyelet Standard
Body Eyelet Standard
Damping adjustments Extl rebnd, 2 pos (open/firm), Hi & Low Speed comp adj
Volume reducer 0 Neg 1 Pos
Check Tune 0 - Light
E-Bike Approved E-bike Approved
Rebound Clicks 15
Max Air Pressure (PSI) 360
