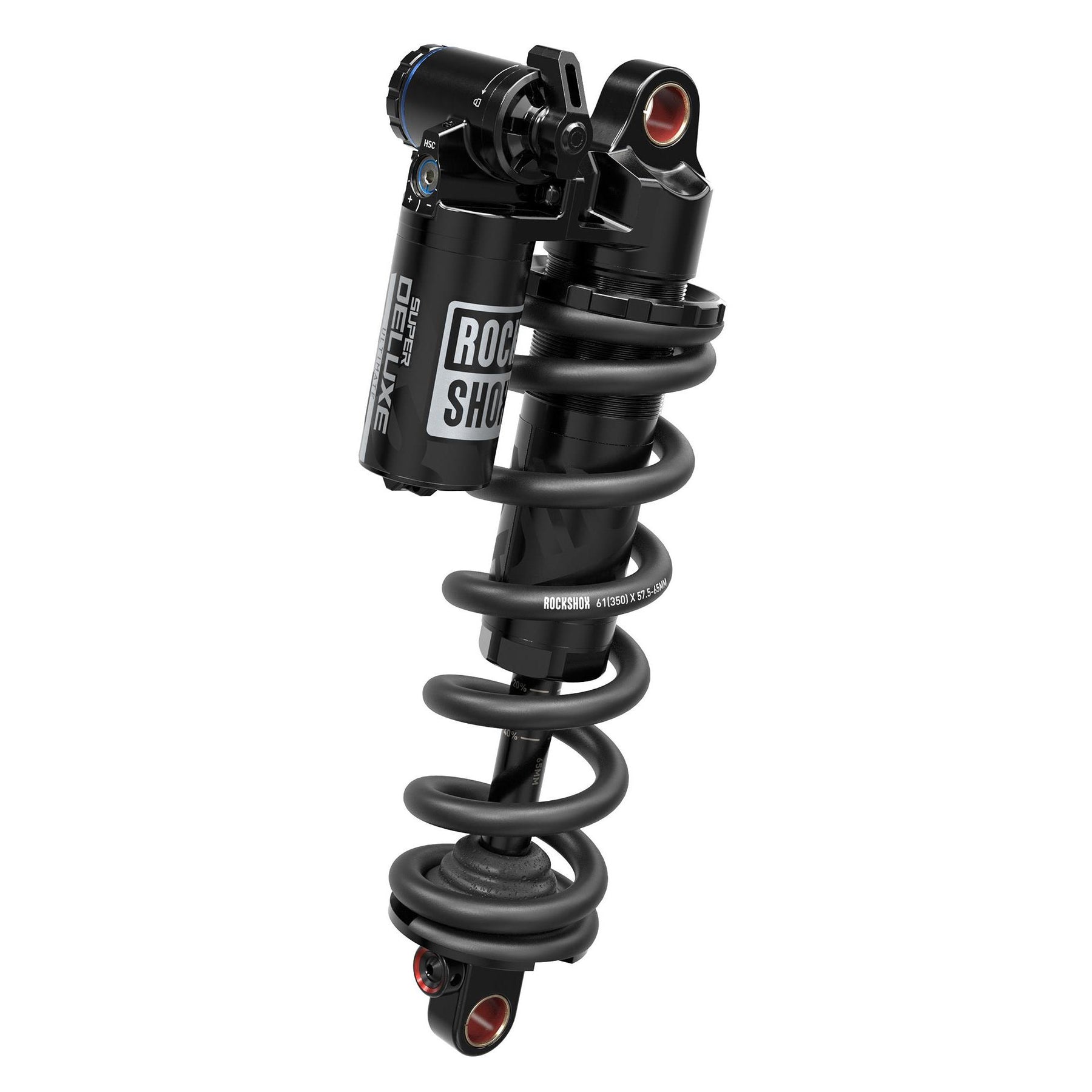

Performance to match the most demanding riders out there. The ground up, all-new Super Deluxe Coil Ultimate is a work of art with no feature spared. Equipped with an entirely new chassis, 100% independent High Speed and Low Speed Compression adjustment, increased bushing overlap for improved small bump performance, and optional Adjustable Hydraulic Bottom Out to tailor that bottomless feel. It’s the unmistakable feel of coil, evolved. A coil shock packed full of premium technology that gives you a hand in painting the experience of how you ride.?
- RC2T Damper, the most tunable shock damper we’ve ever made, offers completely independent High Speed and Low Speed Compression adjustments, eliminating “cross-talk” so you can tune your shock to exactly how you want it to perform.
- The optional Adjustable Hydraulic Bottom Out offers a convenient dial with five different compression settings to customize the cushioning you experience in the last 20% of travel when facing potential bottom out.
- Redesigned rough-ready chassis is 21% stronger and primed to get rowdy.
- Increased bushing overlap maximizes small bump performance and grip.
- 20 clicks of Rebound adjustment offer wider range of tunability and accommodate more rider types.
- Separate and independent Open and Threshold pistons tuned exactly for your ride.
- External adjustments allow for no-fuss tuning on the fly.
- Fresh signature graphics package to flash on the podium or as you blaze past your buddies on the doubletrack.
- Red hot “BoXXer Red” Signature Coil colorway and Signature Color matching decal options available.
- Maxima plush damping fluid reduces friction and silences damper noise.
Eye to eye / Stroke: 205x62.5(TR)
Air volume: Coil
Hose length/Cable Exit: n/a
Model designator (SR): Ultimate
Damper Type: RC2T Adj. Hydraulic Bottom Out
Rebound tune: Linear
Compression tune: L
Pedal tune: n/a
Lockout force: 320
Color (Shock body): Black
Color (Decal): Matte Polar Foil
Decal orientation: A
Shaft Eyelet: Standard
Body Eyelet: Trunnion
Damping adjustments: Ext reb, 2pos (open/firm), HS&LS comp, Hydraulic Bottom Out
Volume reducer: n/a
Check Tune: 0 - Light
E-Bike Approved: E-bike Approved
Rebound Clicks: 20
Max Air Pressure (PSI): n/a
