ROCKSHOX

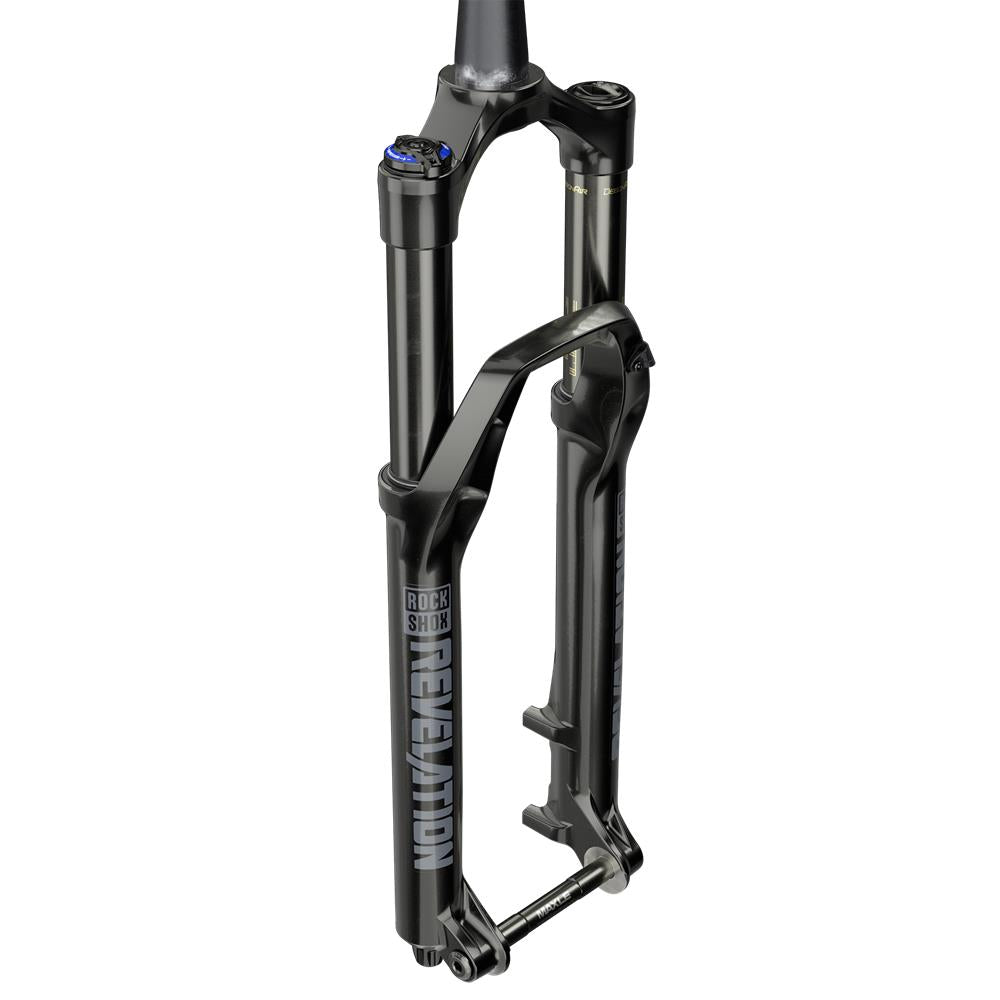

ROCKSHOX Fork Revelation Rc - Crown 27.5" Boost 15X110
color
travel
offset
Availability
Click & Collect
ROCKSHOX Fork Revelation Rc - Crown 27.5" Boost 15X110
GLOSS BLACK / 120MM / 46
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Revelation is all grown up and ready to explore wherever the trail may turn. Value packed, the Revelation features the updated DebonAir air spring paired with the Motion Control damper and 35mm Fast Black upper tubes.
FEATURES
- Updated highly tunable DebonAir™ air spring offers a buttery smooth feel off the top and maintains a higher ride height for increased confidence in steep terrain
- New graphic package for a fresh, premium look
- Motion Control™ damping featuring low speed compression adjustment to firm
- 35mm Fast Black upper tubes
- Chassis derived from Pike
SPECIFICATIONS
Model designator (SF): RC
Wheel size: 27.5"
Travel (mm): 120mm, 130mm, 140mm, 150mm, 160mm
Damper Type: Motion Control
Fork offset: 46mm (27.5")
Maxle included: Maxle Stealth
Color (FS): Gloss Black
E-MTB Decal: No
Steerer: 1.5" Tapered
Axle: 15x110mm BOOST™
Axle to Crown (mm): 512, 522, 532, 542, 552
Brake type (FD): Disc
Crown Material: Forged, hollow aluminum
Upper crown type: n/a
Lower leg material: Magnesium
Upper Tube Finish: Fast Black
Upper tube type: 35mm tapered wall aluminum
Damper adjust: Crown
Damping adjustments: Extl rebnd, low speed comp
Volume reducer: 4/6 Tokens
SpringDebon: Air
Spring rate: n/a
Max Tire Diameter (mm): 732
Max Tire Width (mm): 81
Maximum Rotor Size: 220mm
Minimum Rotor Size: 180mm
Fender Compatibility: n/a
Crown OD (mm): 58
Part Weight (g): 1895
