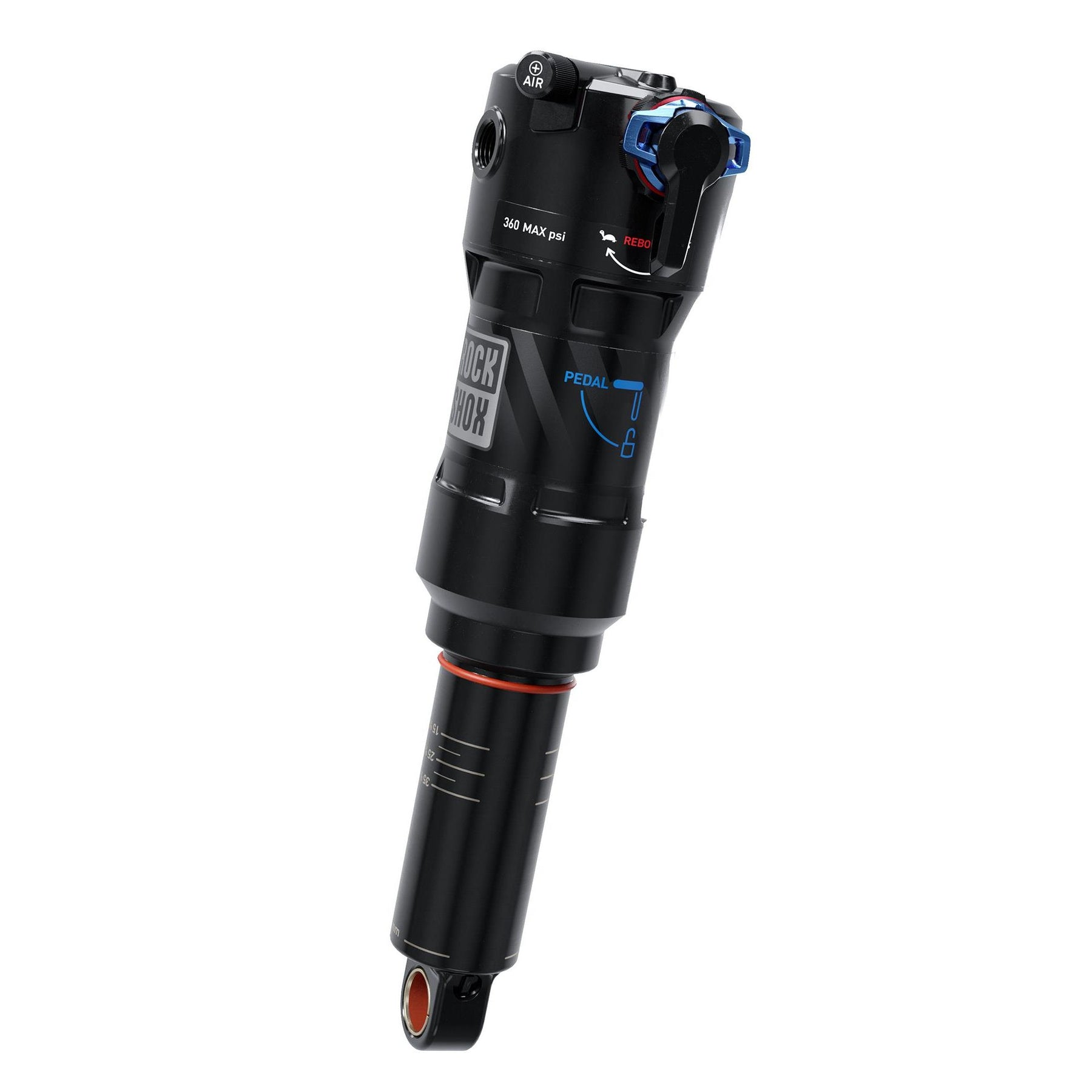

Light on ounces and heavy on capability, Deluxe Ultimate adds a touch of luxury to the latest uber-capable trail bikes. From the new DebonAir+ air spring that offers more volume tunability than ever to the damper’s independent Low Speed Compression and Rebound adjustments—every aspect was carefully designed to maximize tunability into a streamlined, minimalist package. The power is in your hands to dial in the perfect-for-you, perfect-for-the-trail-ahead settings. A custom-tailored ride, every time.?
- DebonAir+ air spring maximizes fine-tuning potential, allowing you to tune both the negative and positive air volume to perfectly match your bike, desired ride feel, and the trail ahead.
- Castled bottom out bumper reduces harsh bottom out, leaving extra room for the bold to go big.
- Independent Low Speed Compression and Rebound adjustments give riders the ability to define exactly how the rear shock responds to the trail.
- Wider range of Rebound adjustment to accommodate more rider types.
- Increased bushing overlap maximizes small bump performance and grip.
- Easy access lever to intuitively go between two compression positions—Open or Threshold (firm or lock).
- Fresh premium graphics package so your bike looks as dialed it feels.
- Top-of-the-line Maxima Plush Dynamic Suspension Lube reduces friction to help maintain traction.
Eye to eye / Stroke: 185x55(TR)
Air volume: DebonAir Linear
Hose length/Cable Exit: n/a
Model designator (SR): Ultimate
Damper Type: RCT
Rebound tune: Linear
Compression tune: L
Pedal tune: n/a
Lockout force: 380
Color (Shock body): Black
Color (Decal): Matte Polar Foil
Decal orientation: A
Shaft Eyelet: Trunnion
Body Eyelet: Standard
Damping adjustments: Extl rebnd, 2 pos (open/firm) w/ compression adjust
Volume reducer: 0 Neg 1 Pos
Check Tune: 0 - Light
E-Bike Approved: E-bike Approved
Rebound Clicks: 10
Max Air Pressure (PSI): 360
