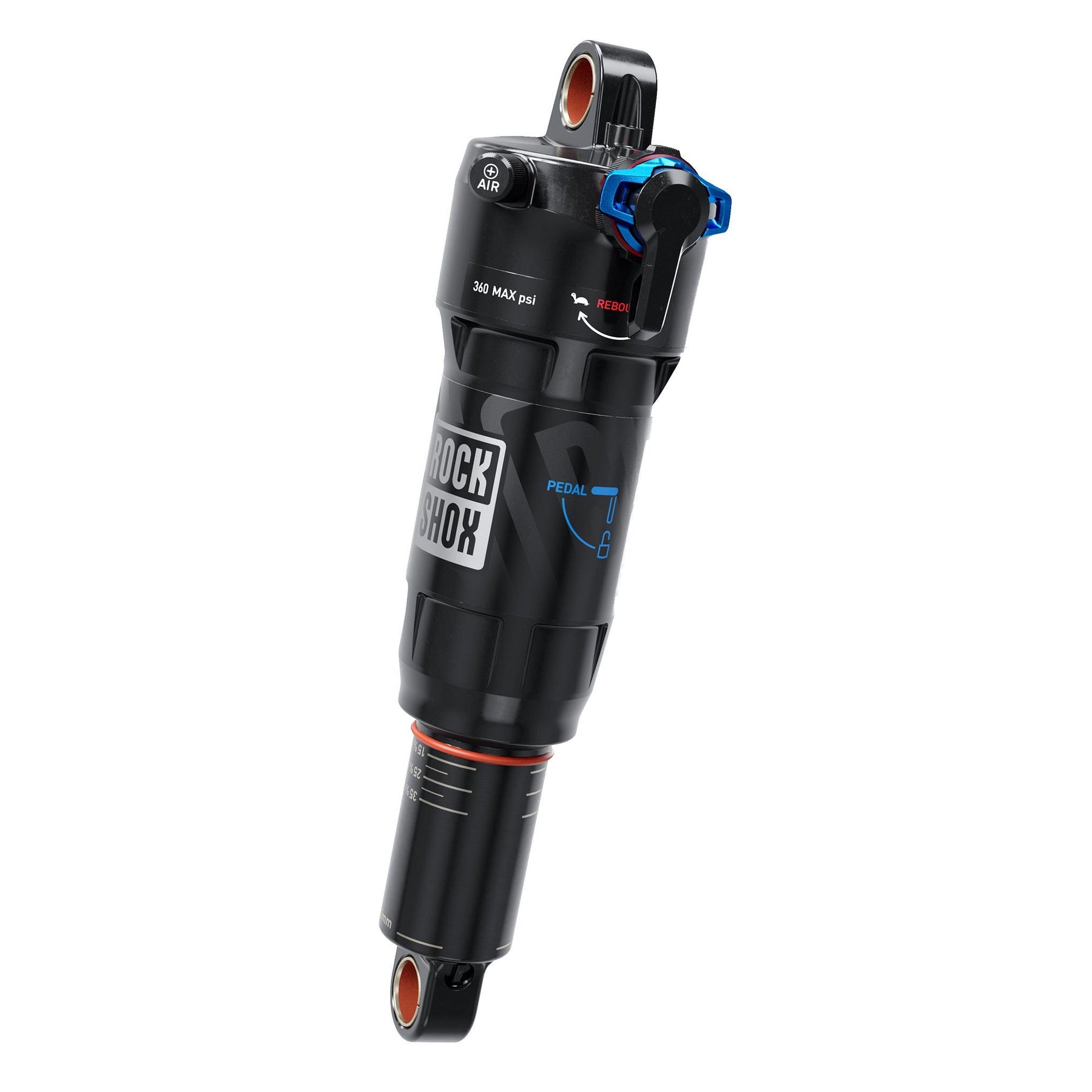

Light on ounces and heavy on capability, Deluxe Ultimate adds a touch of luxury to the latest uber-capable trail bikes. From the new DebonAir+ air spring that offers more volume tunability than ever to the damper’s independent Low Speed Compression and Rebound adjustments—every aspect was carefully designed to maximize tunability into a streamlined, minimalist package. The power is in your hands to dial in the perfect-for-you, perfect-for-the-trail-ahead settings. A custom-tailored ride, every time.?
- DebonAir+ air spring maximizes fine-tuning potential, allowing you to tune both the negative and positive air volume to perfectly match your bike, desired ride feel, and the trail ahead.
- Castled bottom out bumper reduces harsh bottom out, leaving extra room for the bold to go big.
- Independent Low Speed Compression and Rebound adjustments give riders the ability to define exactly how the rear shock responds to the trail.
- Wider range of Rebound adjustment to accommodate more rider types.
- Increased bushing overlap maximizes small bump performance and grip.
- Easy access lever to intuitively go between two compression positions—Open or Threshold (firm or lock).
- Fresh premium graphics package so your bike looks as dialed it feels.
- Top-of-the-line Maxima Plush Dynamic Suspension Lube reduces friction to help maintain traction.
Eye to eye / Stroke 210x50
Air volume DebonAir Linear
Hose length/Cable Exit n/a
Model designator (SR) Ultimate
Damper Type RCT
Rebound tune Linear
Compression tune L
Pedal tune n/a
Lockout force 380
Colour (Shock body) Black
Colour (Decal) Matte Polar Foil
Decal orientation A
Shaft Eyelet Standard
Body Eyelet No Bushing
Damping adjustments Extl rebnd, 2 pos (open/firm) w/ compression adjust
Volume reducer 0 Neg 2 Pos
Check Tune 0 - Light
E-Bike Approved E-bike Approved
Rebound Clicks 10
Max Air Pressure (PSI) 360
