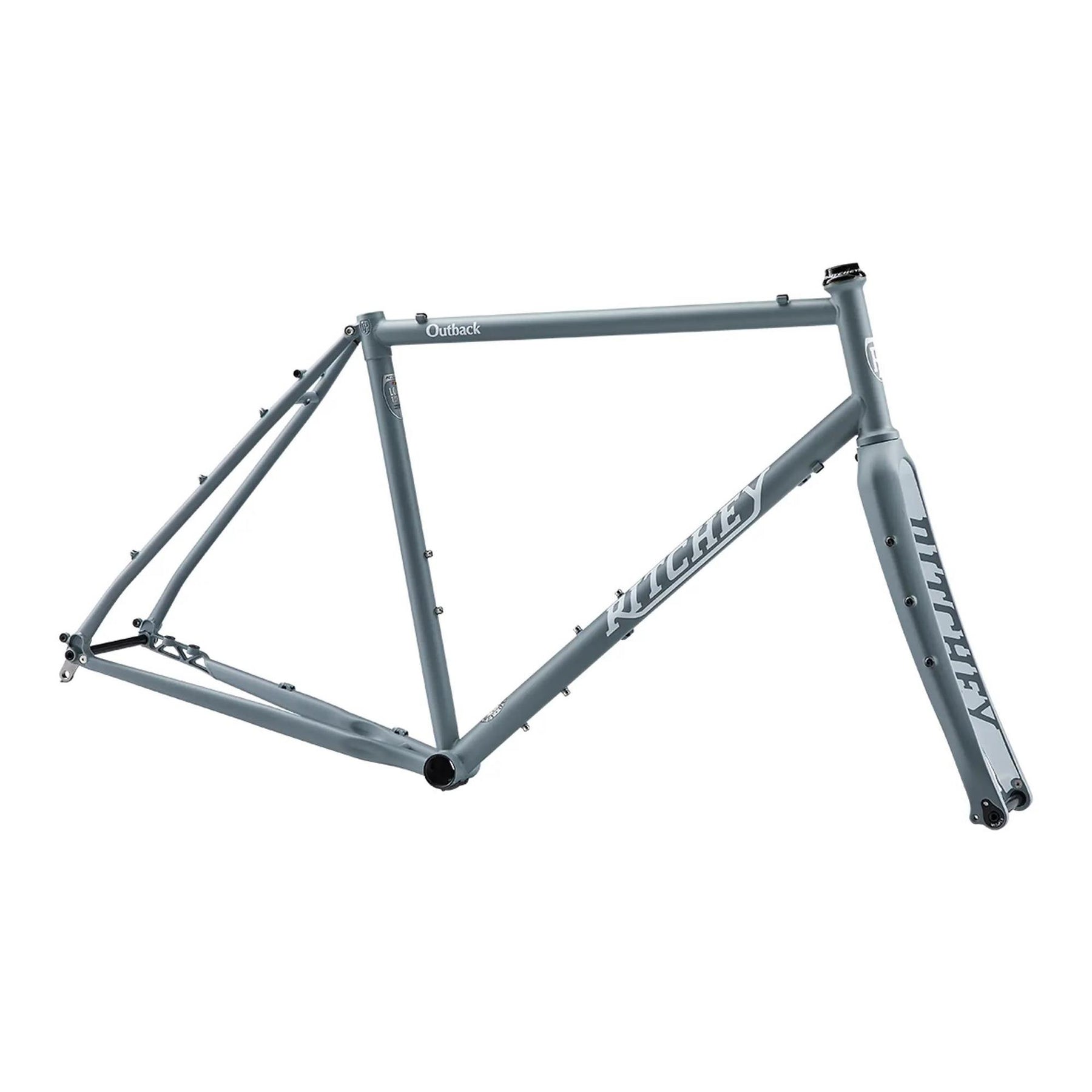

Ritchey Outback Frameset

The Outback sports practical and adaptable features that offer riders the ability to chase epic ride experiences beyond the end of the road and the end of the day. Rack and fender mounts help to keep things dry and expand the load-carrying capacity for longer bikepacking adventures, while clearance for 700c x 48mm or 650b x 2.0in tires opens up a whole new world of possibilities. Doubling down on the Outback’s practical performance, an all-carbon fiber Ritchey Adventure Fork with multi-purpose mounts on the legs gives you more places to stow the supplies you gather at the last café.

The Outback is painstakingly TIG-welded with proprietary triple-butted Ritchey Logic steel tubing.

Our ’24 Granite & Snow model also sports an updated one-piece truss design for flat mount brakes - providing as much stiffness and strength of previous mounts while significantly reducing chainstay weight – and stealth wire routing for semi-wireless Di2 groupsets.

Bikepacking, road, off-road, trail, expedition, you name it…the Ritchey Outback is designed to do it all.

Includes Ritchey Adventure Fork with multipurpose mounts
Accepts 700c x 48mm or 650b x 2.0in tires
Features rack and fender mounts

Tech Specs
Frame

• Material heat-treated, triple-butted Ritchey Logic steel tubing - TIG welded
• Ultra-light forged and machined straight 1-1/8" headtube
• Electrophoretic Deposition (ED Coat) treated for corrosion resistance
• Seat tube clamp size28.6mm (2.5Nm max for derailleur clamps and chain guides)
• 27.2mm seat tube with integrated seat collar (max torque setting: 6Nm)
• Bottom bracket 68mm - English threaded
• 142mm spacing (12mm alloy thru-axle included)
• Crankset min/max ring size - single 36 to 46t / double: 46/30t to 50/34t
• Can accommodate 1x or 2x chainrings
• Chainline 49mm
• Not compatible with Direct Mount standard and related components (T-Type derailleurs and cassettes)
• Bottle cage mounts 3
• Rack and fender mounts
• Granite & Snow features stealth wire routing for semi-wireless Di2 groupsets
• External cable routing
• WCS headset included (upper IS42/28.6 - 16mm stack height | lower IS42/30)
• Replaceable stainless-steel derailleur hanger

Fork

• New Ritchey Carbon Adventure Fork with multi-purpose, rack and fender mounts
• 1-1/8" straight steerer with integrated 45-degree crown race
• Steerer length 300mm
• Fork length 390mm
• Axle-crown 393mm
• Rake/Offset 50mm
• 100mm spacing (12mm alloy thru-axle included)
• Fork max payload 3kg per side
• 30mm maximum spacers below stem

Tire Compatibility

• Wheel and tire compatibility 700 x 48mm or 650 x 2.0in (depending on tire/rim manufacturer)
• Frame spacing 58mm
• Fork spacing 60mm

Brake Compatibility

• Flat-mount brakes front and rear 140mm (160mm max - adaptors available separately)
• Frame flat-mount bracket height 10mm

Details

• Sizes XS / S / M / L / XL
• Frame weight 2,175g (size L - w/o thru-axle)
• Fork weight 445g (with uncut steerer / not including axle)
• Colour Granite & Snow
