Ridgeback Arcus 3 Electric Hybrid Bike
Color
Size
Click & Collect
Ridgeback Arcus 3 Electric Hybrid Bike
Grey / M
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin

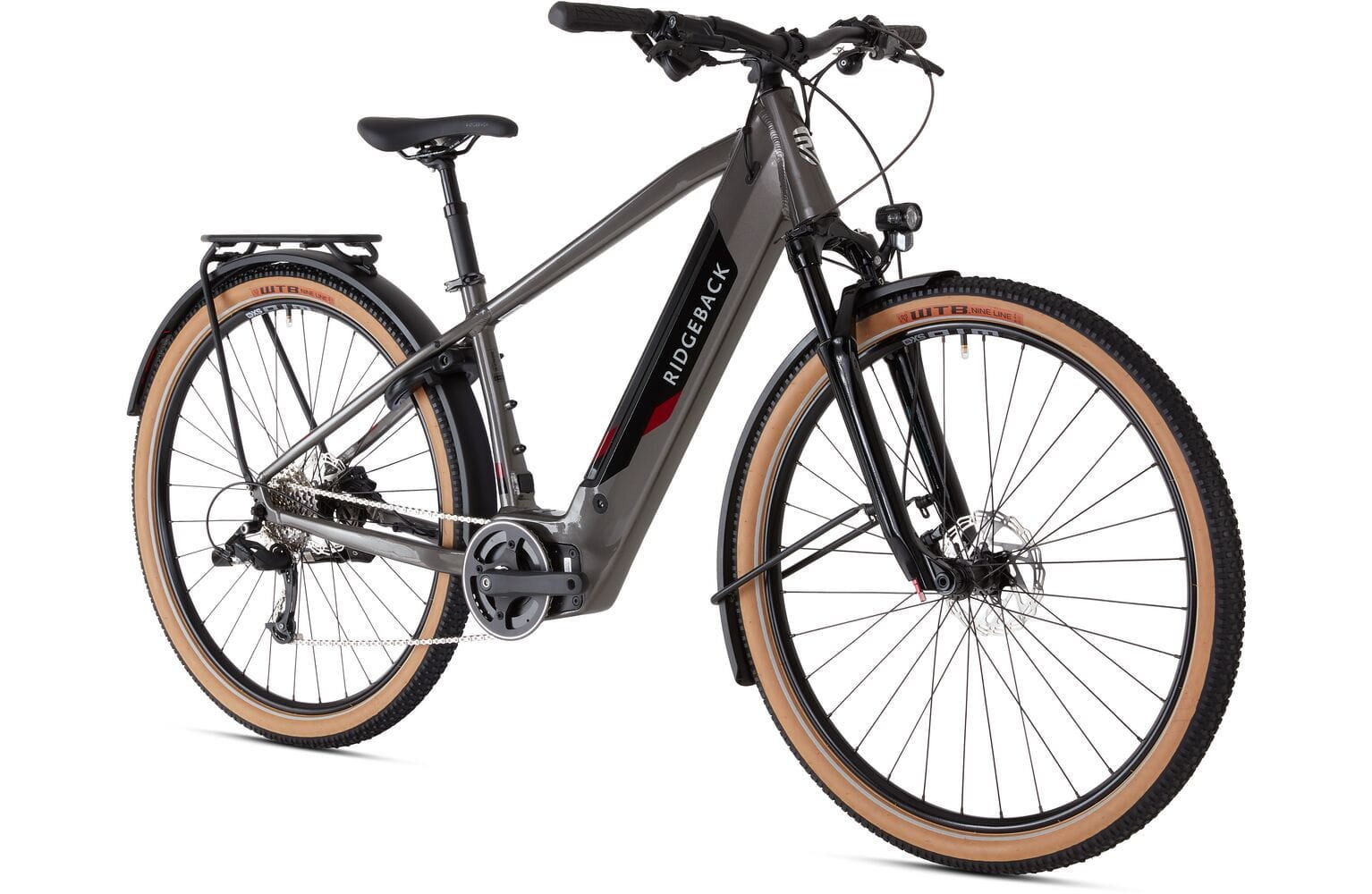

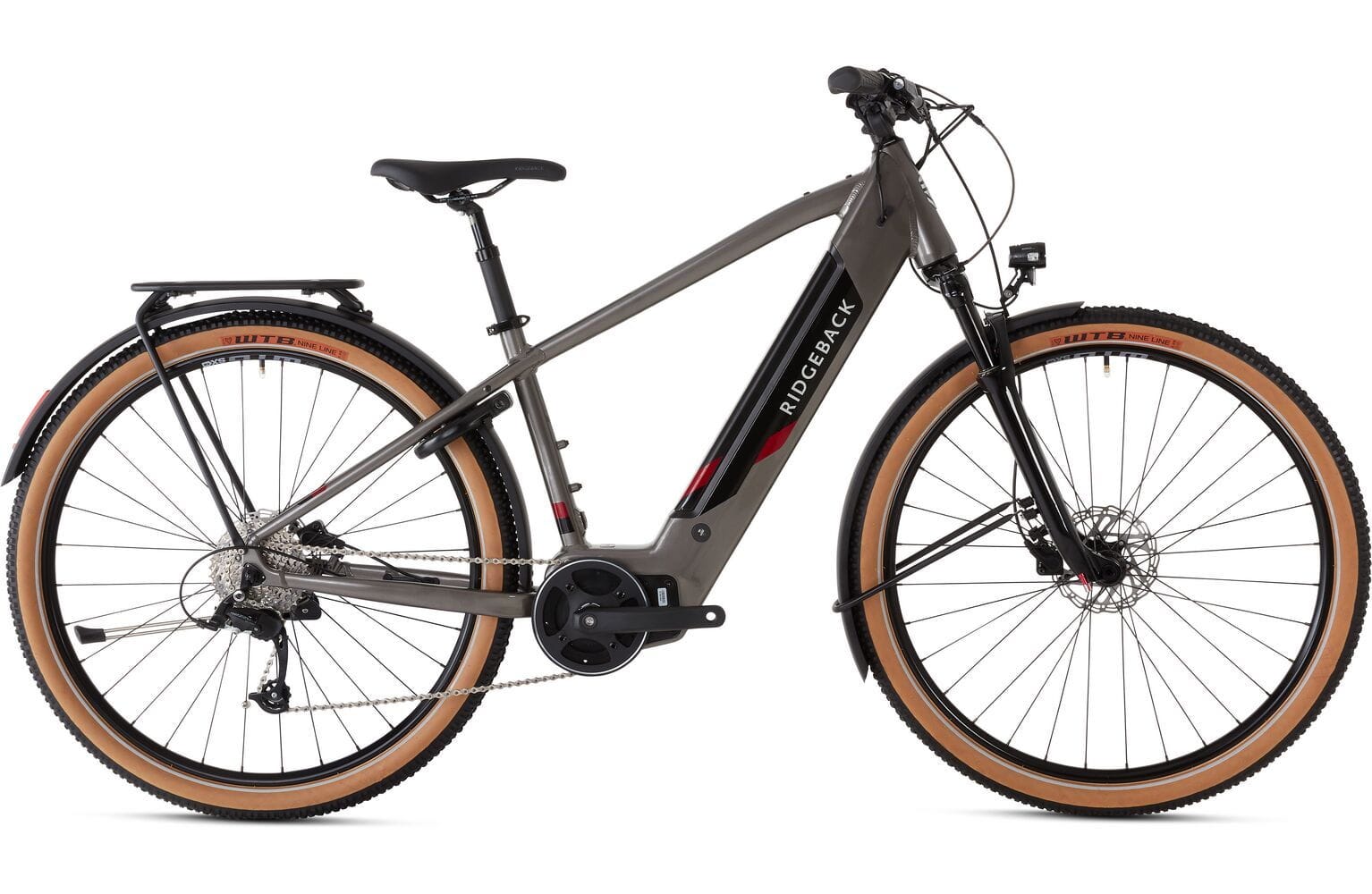

+3532840609Meet the Arcus 3, our premium SportDrive equipped E-bike.
A true do it all bike that's at home on woodland trails as well as on the morning commute.

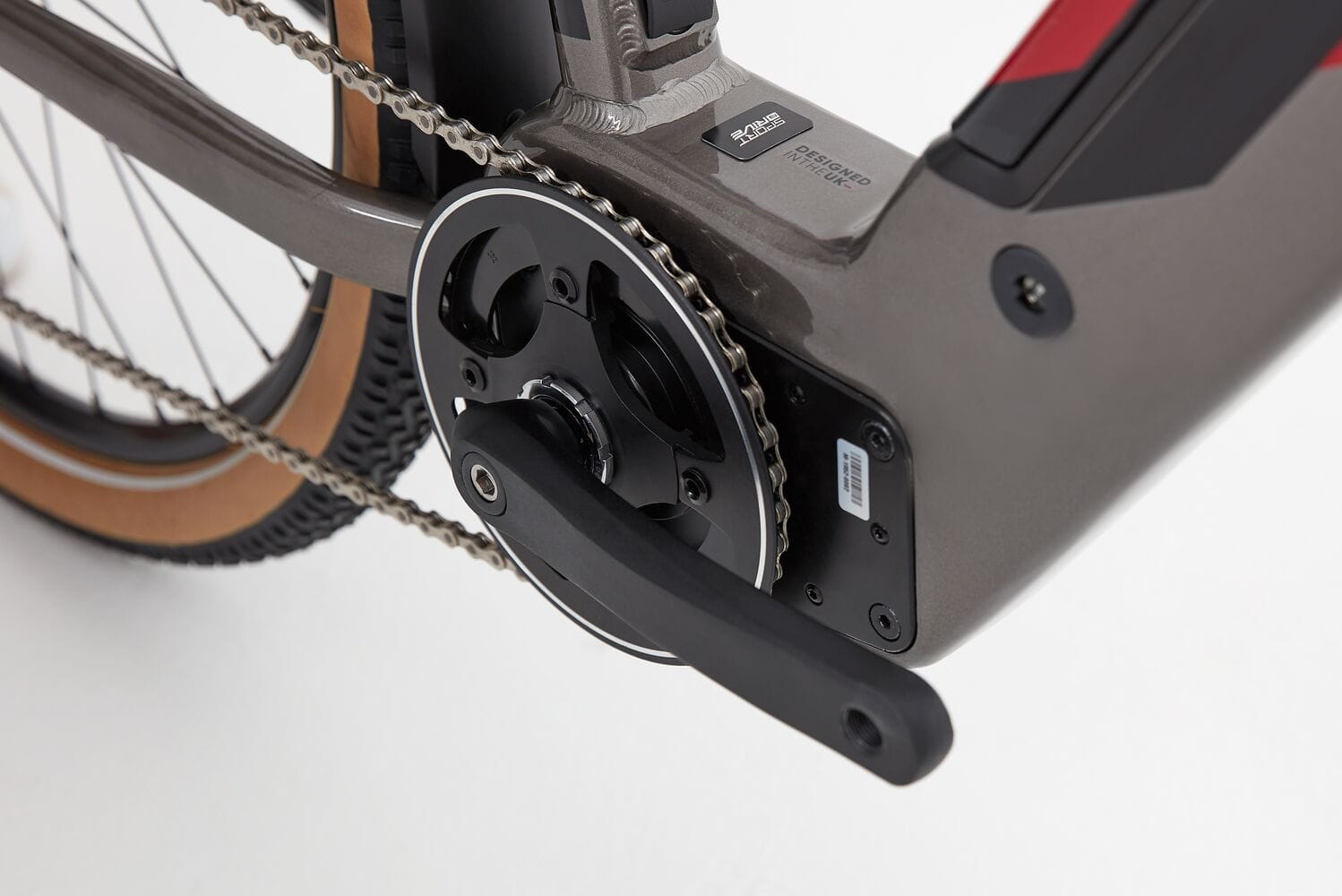

Hills? What hills? With the SportDrive MDS250S drive unit boasting 95Nm of torque you will never have to worry about another climb again.
The Arcus 3 can be tuned to exactly how you want to ride it whether that be increased torque for pulling away from traffic lights or a gentler start for a more leisurely ride with increased range.

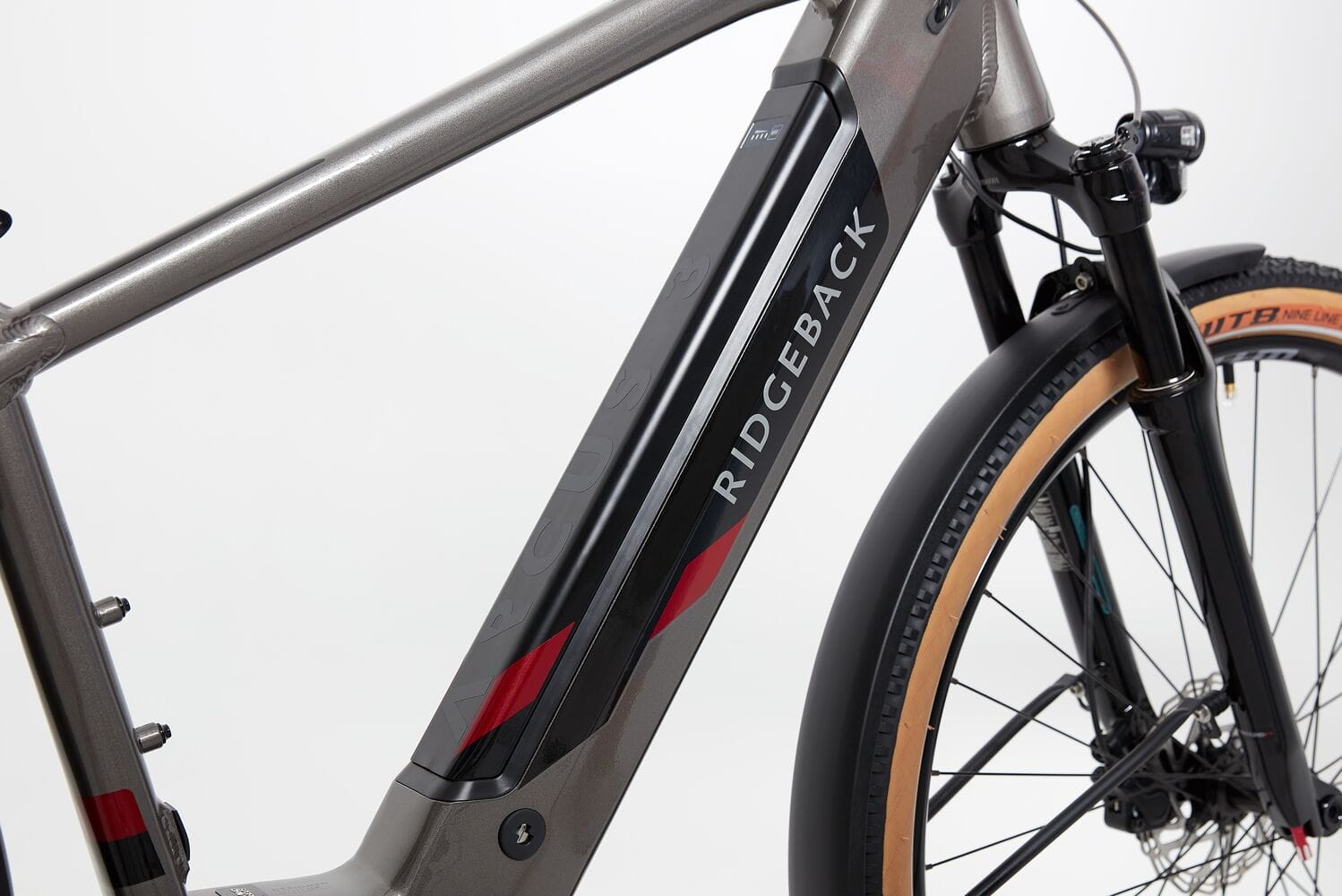

With a 500Wh internally mounted battery you can enjoy up to 100 of assisted pedalling, plenty of range for a weekend of exploring.

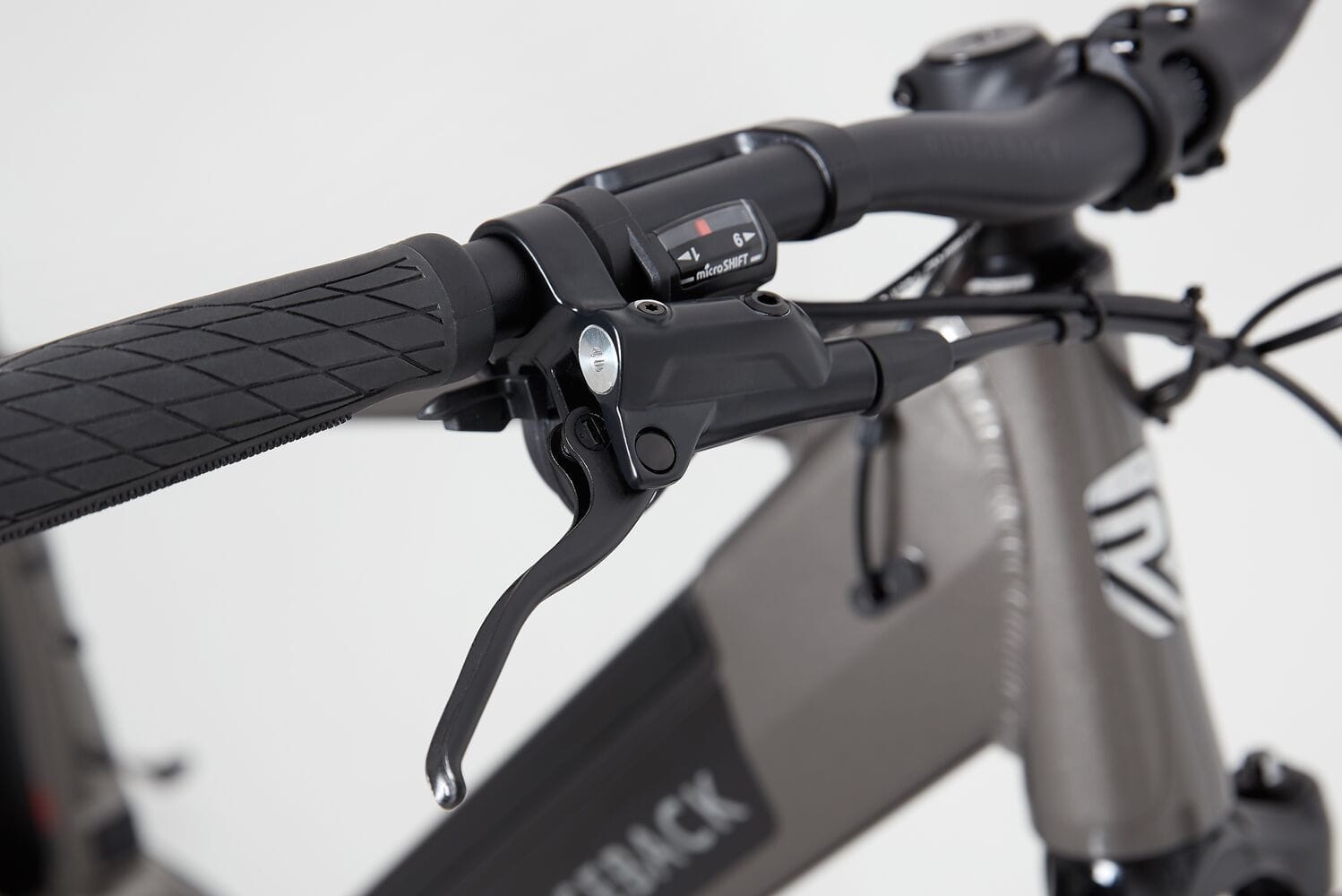

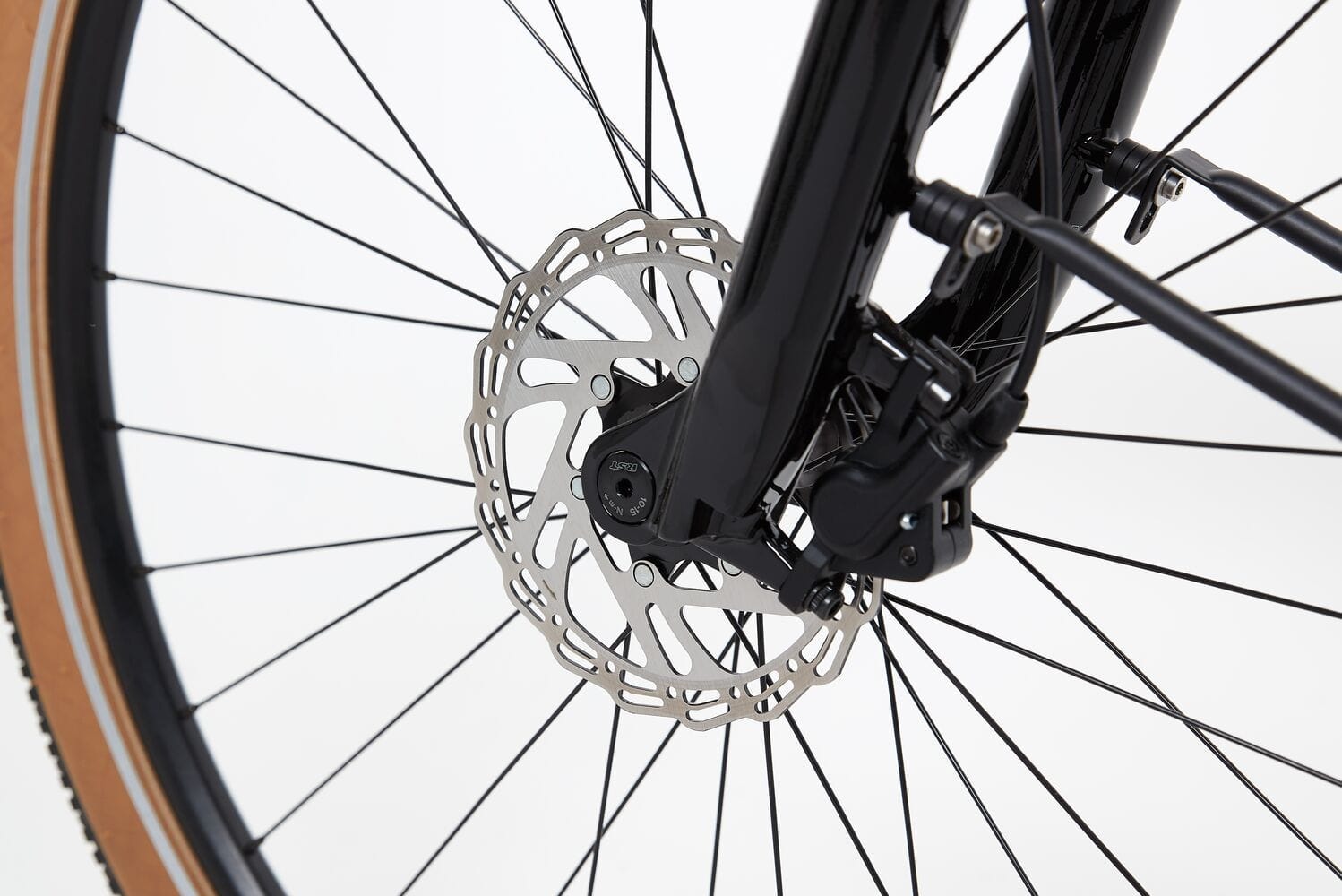

The Arcus 3 comes fully equipped with a microSHIFT Mezzo 9–speed drivetrain and powerful hydraulic disc brakes.
The RST Air sprung suspension forks with remote lock out give you the adaptability to handle any terrain in comfort whilst bespoke alloy mudguards, AXA Blue line lights and the excellent AtranVelo rear rack system complete the build making a truly versatile package.
Specifications
| Fork | RST Air Sprung with lockout 80mm |
|---|---|
| Headset | FSA Orbit 1.5E No.57B Zero Stack |
| Stem | Ridgeback Alloy 45mm x 3 degrees |
| Grips | Ridgeback Lock On |
| Rims | WTB SX19 32h |
| Spokes | Steel 14g |
| Hubs | Front: Shimano HB-M6010 32h 15mm / Rear: Shiamno FH-M4050 32h QR |
| Tyres | WTB Nineline 29x2.25" |
| Shifter | microSHIFT Mezzo TS39 9-speed |
| Rear Derailleur | microSHIFT Mezzo RD-M36L 9-speed |
| Crankset | SportDrive 170mm 38t |
| Cassette | Microshift CS-H092 11-36t 9-speed |
| Chain | KMC X9EPT |
| Brakes | ALHONGA AHJ-OD07 Hydraulic Disc Brake |
| Seatpost | ONE1 Alloy SPS 405 Suspension 30.9mm x 350mm |
| Extras | Alloy Mudguards, Rear Rack, Axa Blueline Lights |
| Motor | SportDrive MDS250S 95NM |
| Battery | 500Wh internally mounted battery |
| Charger | SportDrive 2Ah |
Sizing
| Size | Rider Height (cm) |
|---|---|
| Medium: | 160 - 185cm |
| Large: | 175 - 195cm |
