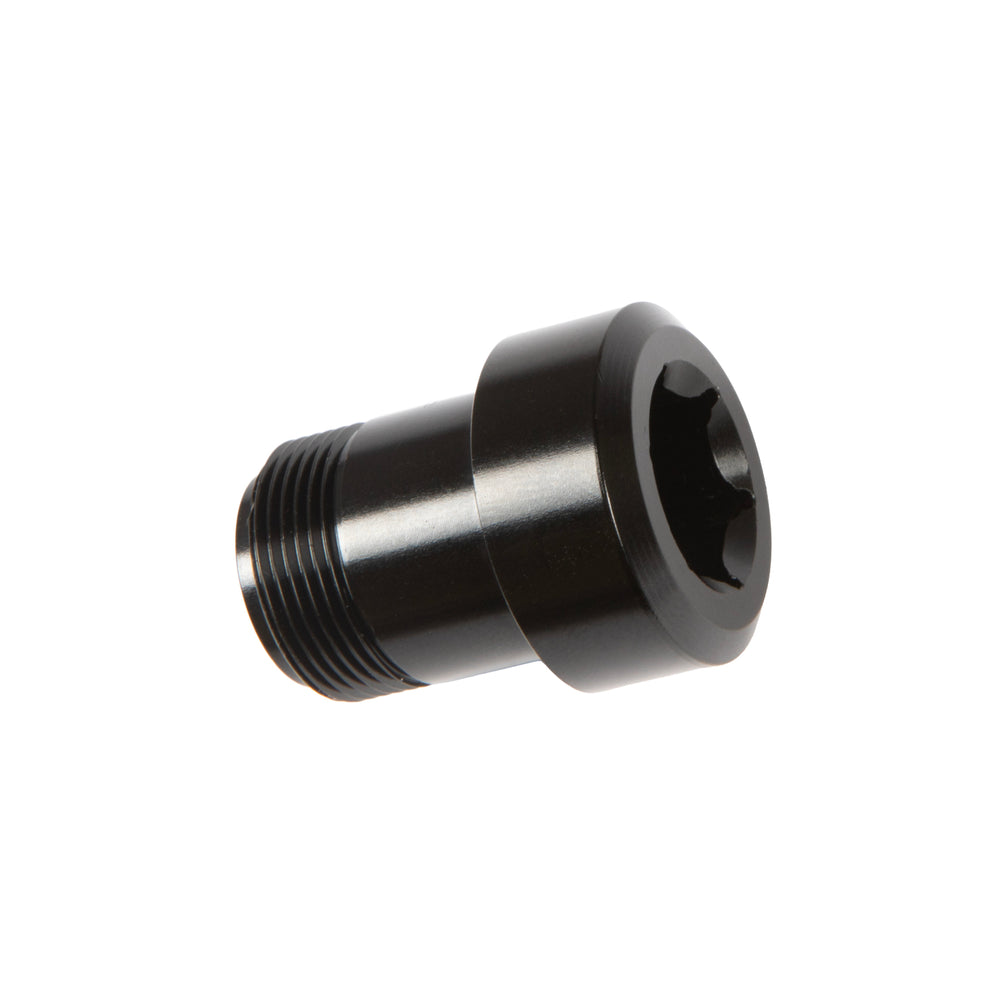

Restrap Switch Full Mount Adapter
Size
Click & Collect
Restrap Switch Full Mount Adapter
FM23
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609A direct replacement for SRAM’s Full Mount Bolt Kit, designed to enable compatibility with Restrap’s Switch Axle and Switch Rack System on GX, XX, and X0 T-Type transmissions.
Available in two variations.
Determining what bolt kit you need:

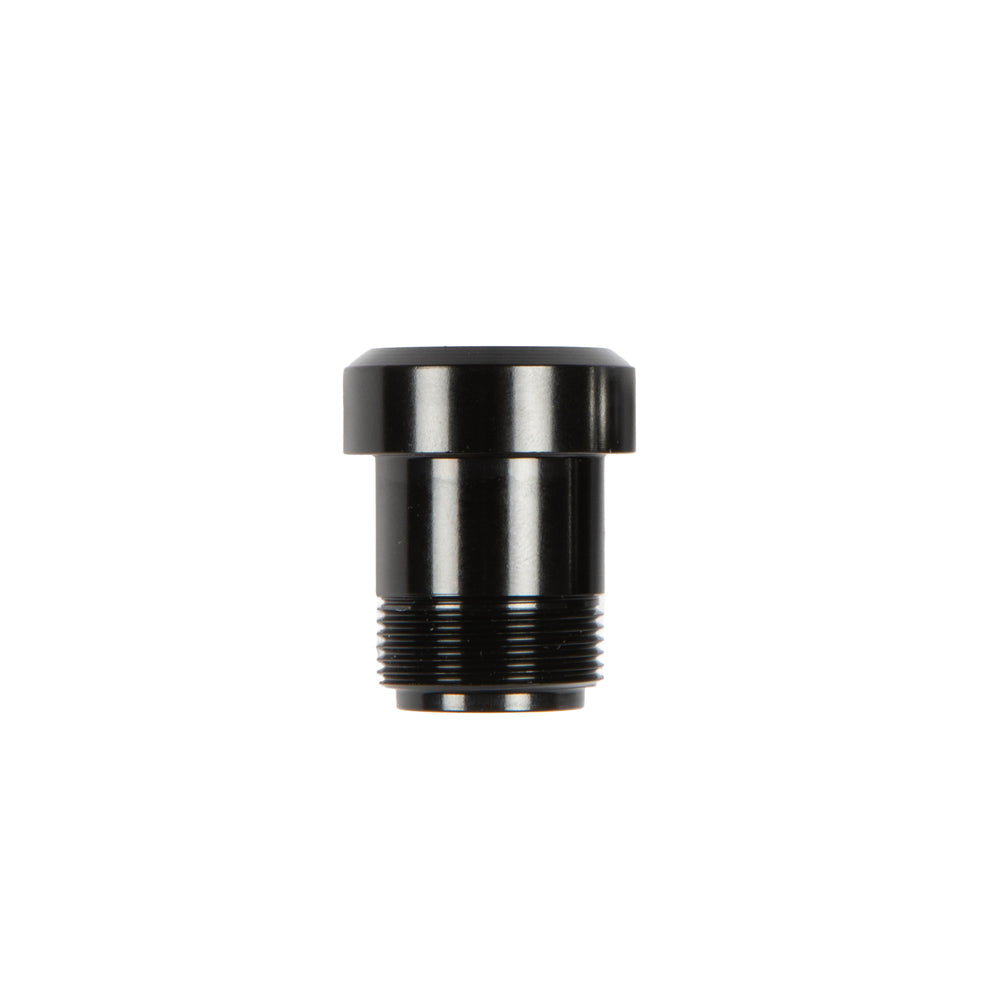

Full Mount Adaptor FM23 (GX):
-
GX Eagle Transmission: RD-GX-E-B1
-
Force XPLR AXS Transmission: RD-FRC-1E-E1
-
Rival XPLR AXS Transmission: RD-RIV-1E-E1
-
Eagle 70 Transmission: RD-70-A1
-
Eagle 90 Transmission: RD-90-A
-
S1000 Eagle Transmission: RD-S1000-E-A1

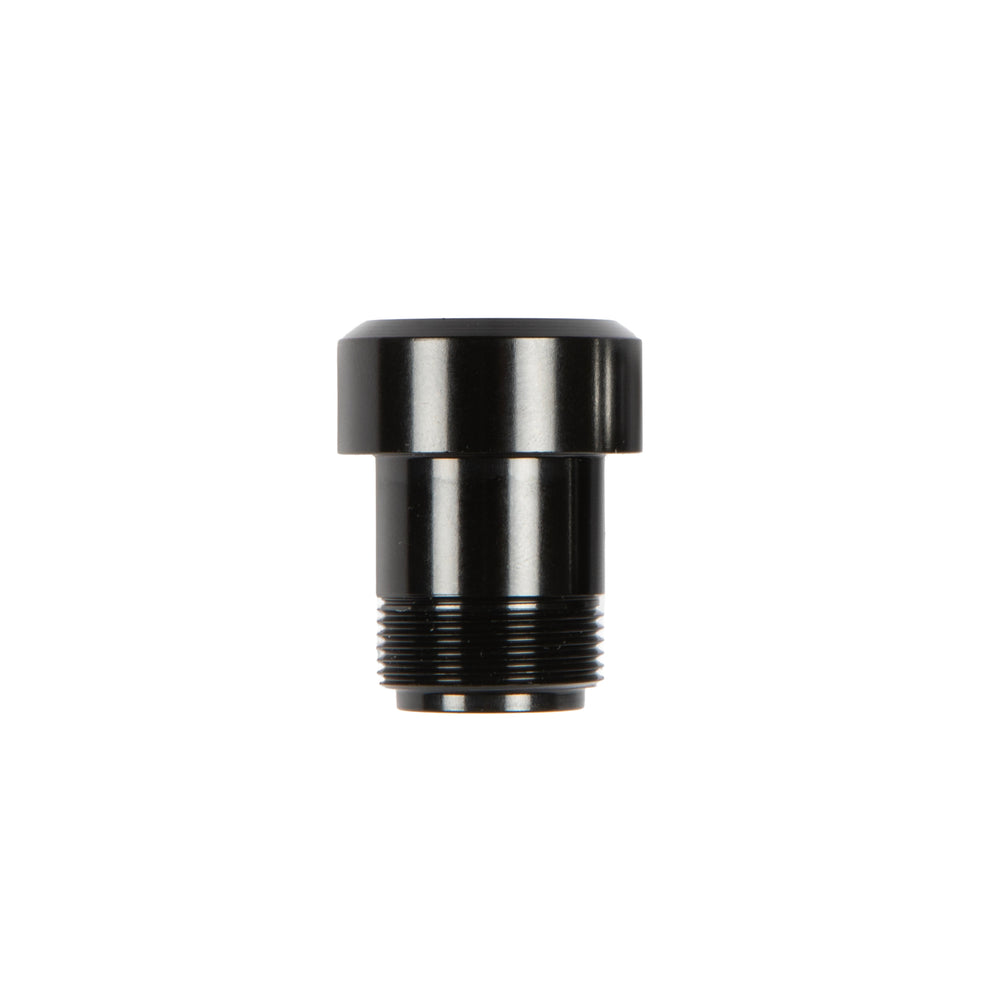

Full Mount Adaptor FM24 (XX/XO):
-
XX SL Eagle Transmission: RD-XX-SLE-B1
-
XX Eagle Transmission: RD-XX-E-B1
-
X0 Eagle Transmission: RD-XO-E-B1
-
RED XPLR AXS Transmission: RD-RED-1E-E1
Fitting:
-
Put your bike into the red setting gear on the cassette and engage the clutch release
-
Partially remove your current thru-axle
-
Undo and remove the bolt derailleur with an 8mm hex key
-
Replace with the Restrap bolt, using the supplier adaptor if you do not have a 12mm hex key
-
Swap in the Switch Axle and tighten
Compatibility:
Designed for use with Restrap Switch Axle, 1mm thread pitch
Dimensions:
FM23 (GX): Ø23mm x H:28.80mm
Weight: 13.8g
Torque: 35Nm
FM24 (XX/XO): Ø24mm x H:30.30mm
Weight: 16.6g
Torque: 35Nm
