Polygon

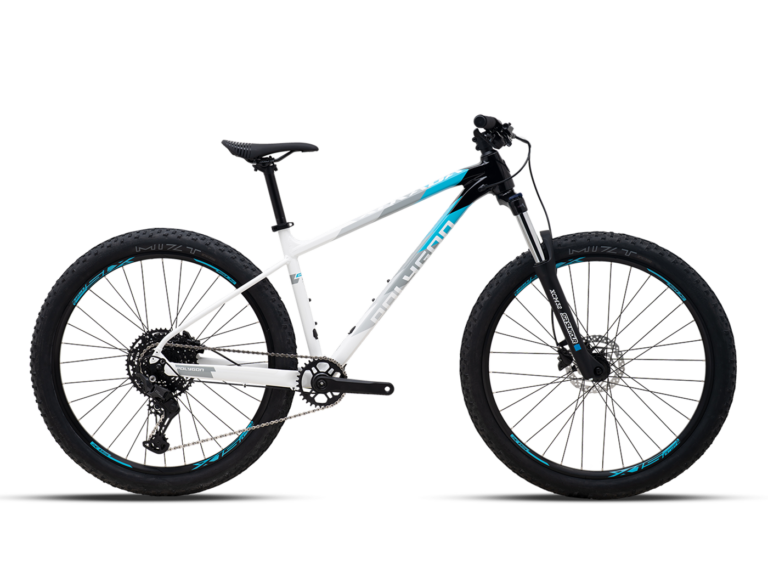

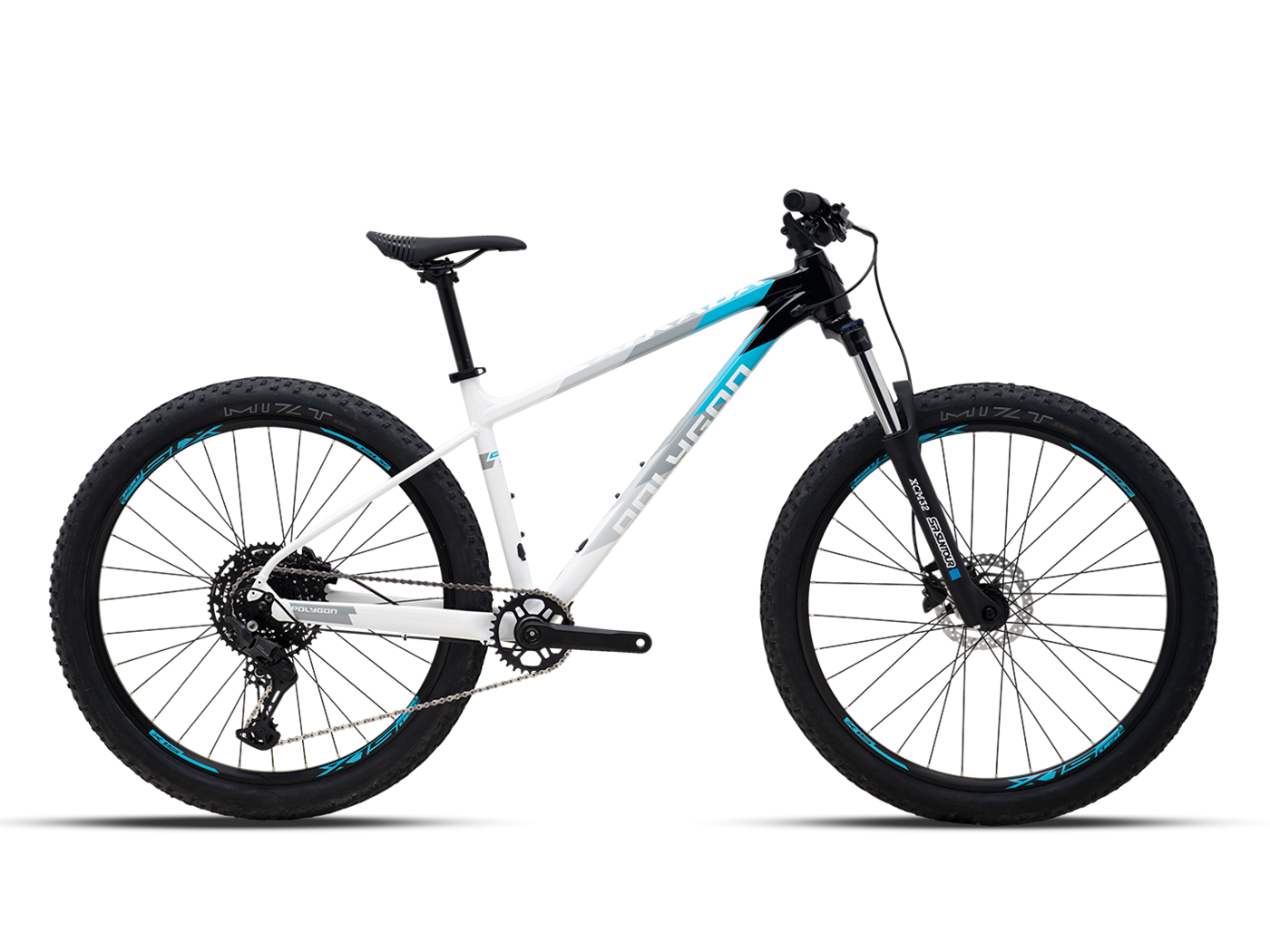

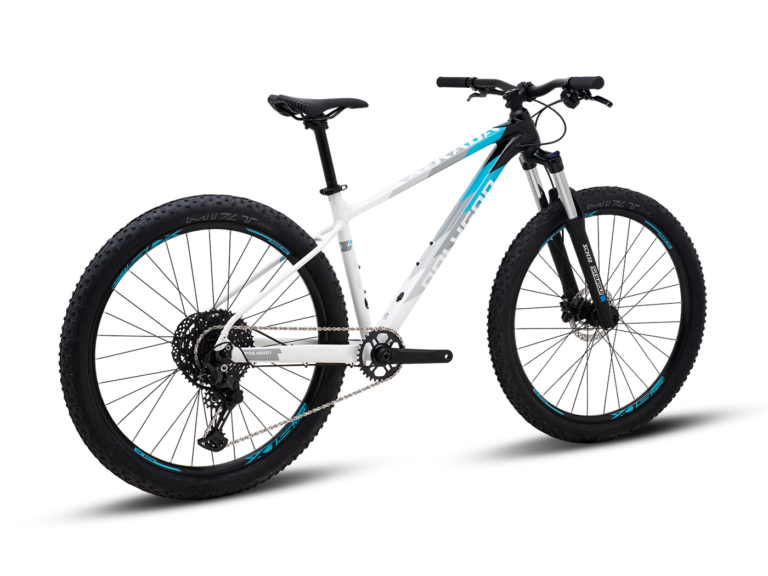

Polygon XTRADA 5 Hardtail Mountain Bike
Color:
Color
Size:
Size
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Polygon XTRADA 5 Hardtail Mountain Bike
White/Black / S - 27.5"
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609ADVENTURE STARTS HERE
Created for chasing endless tracks.
"Riding with Xtrada, feels like running as a wolf," they said. As an XC bike should be, Xtrada is born to run the game with you. Impeccably versatile, effortlessly fast, and obsessively comfortable. The Xtrada is a true cross country mountain bike with a geometry built for speed and stability coupled with tough, trail-ready components. It is perfect for hitting the local single track or an all-day mountain adventure.
Specifications
| Frame | ALX XC TRAIL |
|---|---|
| Fork | SR SUNTOUR XCM-HLO 120mm (27.5" & 29") TRAVEL |
| Headset | ZERO STACK (ZS) SEALED BEARING FOR TAPER HEAD TUBE, ZS 44/28.6 | ZS 56/40 |
| Stem | POLYGON SPORT ALLOY, EXT: 45mm, BAR BORE: 31.8mm, RISE/DROP: 3degree |
| Handlebars | POLYGON SPORT ALLOY, W: 760mm, BAR BORE: 31.8mm, RISE/DROP: 12mm, BEND: 6degree |
| Wheels | ALLOY WHEELS |
| Rims | ALLOY DOUBLE WALL H:19mm W: 23mm 584 32H FOR TYRE 584-68/622-68 |
| Tyres | PERFORMANCE TIRE 27.5"X2.25" / 29"X2.25" |
| Shifter | SHIMANO 10 SPEED TRIGGER |
| Rear Derailleur | SHIMANO 10 SPEED, DIRECT ATTACH |
| Crankset | PROWHEEL 32T 170mm |
| Cassette | SHIMANO 10 SPEED |
| Chain | KMC CHAIN |
| Bottom Bracket | SHIMANO 2-PIECE CRANKSET BSA THREADED 73mm |
| Brakes | HYDRAULIC DISC BRAKES |
| Rotors | 160mm |
| Seatpost | POLYGON XPERT ALLOY, DXL: 27.2 x 350mm, OFFSET: 15mm, SEAT CLAMP: 31.8mm W/ QR |
| Saddle | POLYGON, STEEL ø 7mm |
| Pedals | PP FLAT PEDAL W/ REFLECTOR |
Geometry
| S - 27.5" | M - 27.5" | L - 27.5" | M - 29" | L - 29" | XL - 29" | |
|---|---|---|---|---|---|---|
| Stack | 593.8 | 599.3 | 603 | 629.3 | 633.2 | 637.8 |
| Reach | 410 | 430 | 450 | 430 | 450 | 470 |
| Headtube Angle | 67 | 67 | 67 | 67 | 67 | 67 |
| Headtube Length | 95 | 100 | 105 | 95 | 100 | 105 |
| Seattube Angle | 75 | 75 | 75 | 75 | 75 | 75 |
| Seattube Length | 385 | 425 | 460 | 425 | 460 | 500 |
| Toptube (Effective) | 569 | 590 | 612 | 598 | 619 | 640 |
| Chainstay Length | 425 | 425 | 425 | 435 | 435 | 435 |
| Wheelbase | 1106 | 1128 | 1150 | 1147 | 1169 | 1191 |
| BB Height | 310 | 310 | 310 | 309 | 309 | 309 |
| BB Drop | 45 | 45 | 45 | 65 | 65 | 65 |
| Standover | 663 | 697 | 726 | 693 | 715 | 751 |
| Rider Height (cm) | 152-165 | 162-175 | 172-185 | 162-175 | 172-185 | 182-195 |
