Polygon

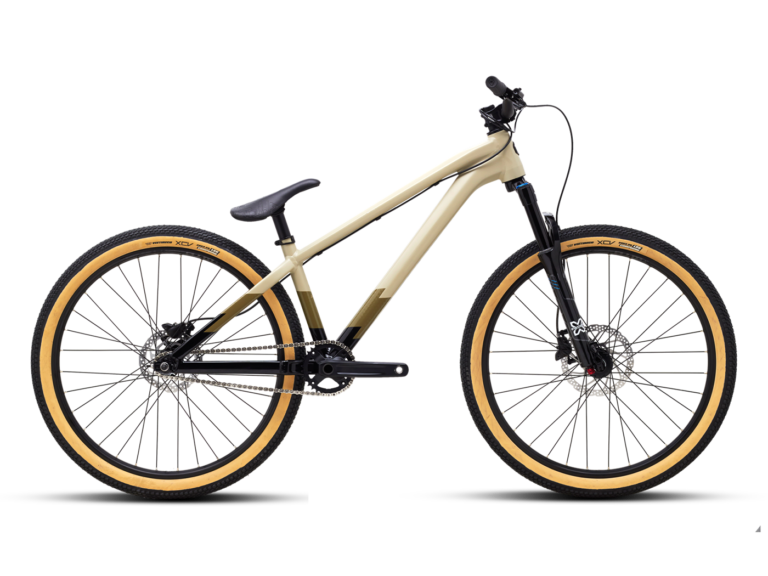

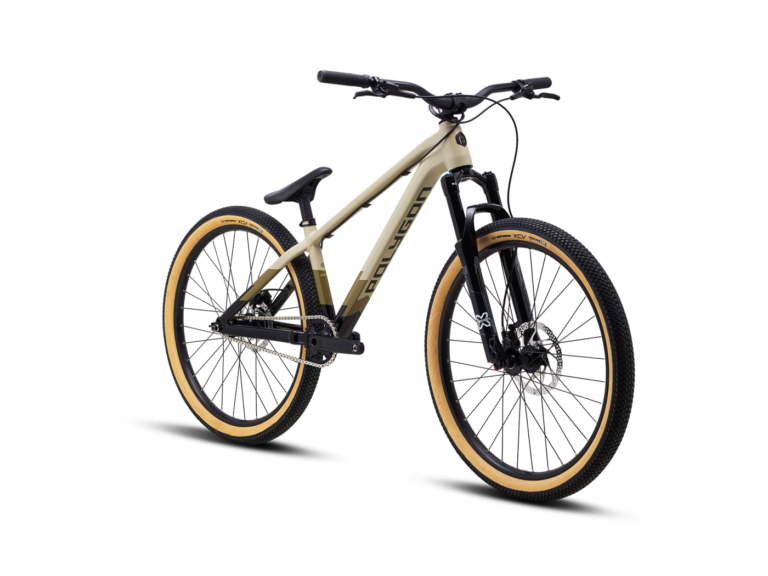

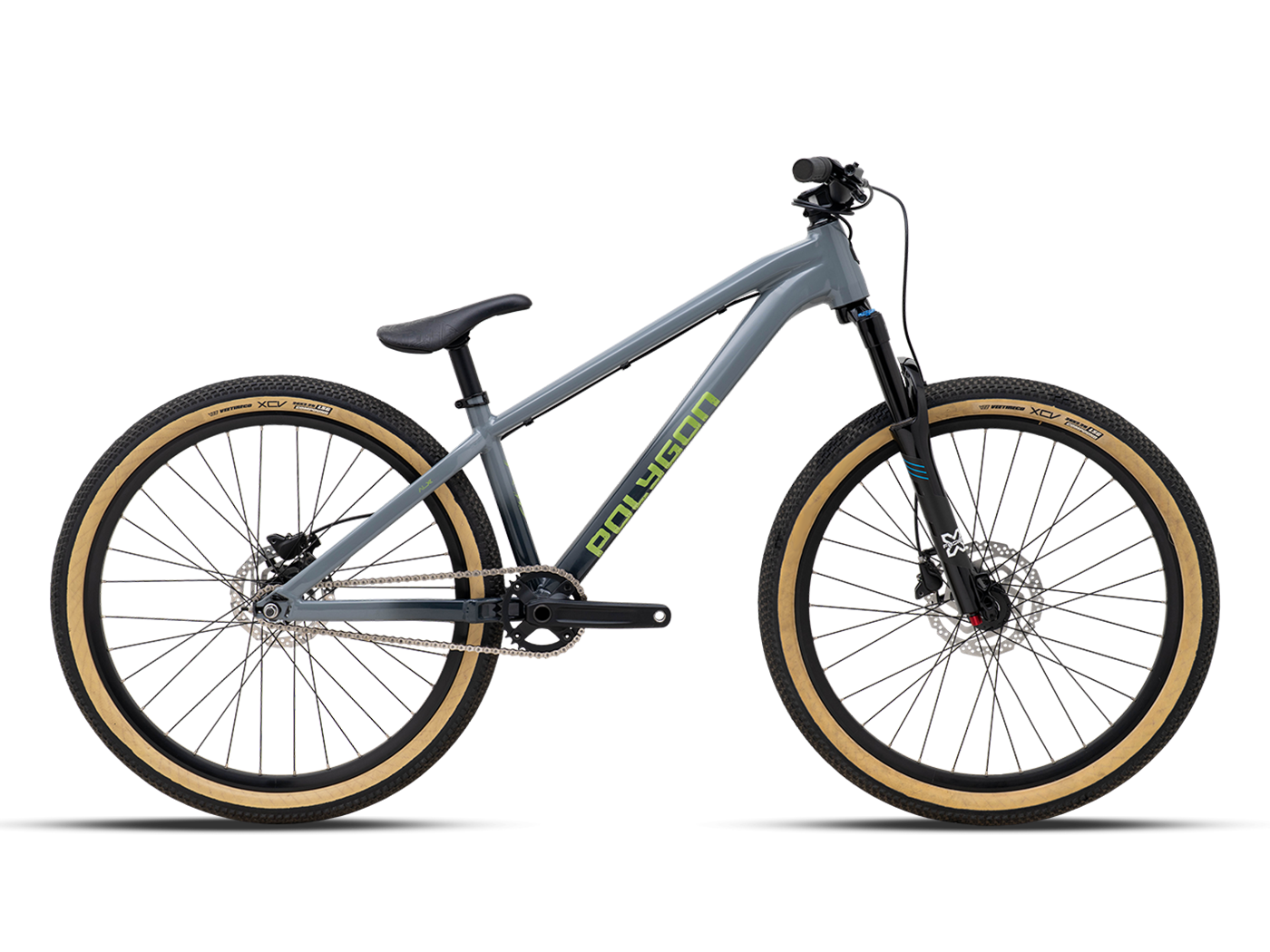

Polygon Trid Dirt Jump Bike
Color:
Color
Size:
Size
Availability
In Store: Out of stock
Warehouse: Out of stock
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Polygon Trid Dirt Jump Bike
Cream / One Size
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609JUMP HIGHER: A WORLD CLASS PARTNER THAT MATCHES YOUR STYLE
The ultimate happiness is at the top.
Developed, tested and tweaked by Sam Reynolds himself, the new 2018 Polygon Trid continues its successful formula combining a bomb proof alloy frame with a spec sheet you can depend on. At its core, the proven AL6 Alloy frame is equipped with all the technology and features you expect from a top of the line Dirt Jumper. Tapered headtube, short chainstays, horizontal dropouts and wide frame tubes for improved rigidity.
Features
- Equipped with an alloy frame and suspension fork for agile and fun riding
- Excellent brake performance with hydraulic disc brake
- Simple and easier maintenance with single speed gearing
Specifications
| Frame | AL6 DIRT JUMP, 135MM O.L.D., 100MM TRAVEL, IS MOUNT 160MM |
|---|---|
| Fork | X-Fusion Slant 100mm Travel |
| Crankset | SAMOX TAF15-D32A 32T, 170MM |
| Bottom Bracket | SAMOX INTEGRATED BB BSA |
| Sprocket | 14T |
| Chain | KMC HL-710 |
| Wheels | WTB SX-25 DISC 26" |
| Tyres | VEE XCV, 26”X2.25” |
| Handlebar | ALLOY W:750MM R:38.1MM BB:3.18MM |
| Stem | ALLOY E:40MM R:0DEG BB:31.8MM |
| Headset | ZS 44/28.6 | ZS 56/40 |
| Seatpost | ALLOY, PIVOTAL, 30.9X200MM |
| Saddle | POLYGON PIVOTAL SADDLE |
| Brake | SHIMANO BL-MT201 |
| Rotor | SHIMANO ALTUS SM-RT26 |
Geometry
| One Size | |
|---|---|
| Stack | 564.27 |
| Reach | 416.7 |
| Headtube Angle | 70 |
| Headtube Length | 120 |
| Seattube Angle | 72 |
| Seattube Length | 300 |
| Toptube (Effective) | 600 |
| Chainstay Length | 385 |
| Wheelbase | 1047.2 |
| BB Height | 327 |
| BB Drop | 12 |
| Standover | 651.9 |
