+3532840609Unveil the Tambora
Swift Adventures Unlocked in One Bike
Drawing inspiration from the birth of bicycles, sparked by the largest volcanic eruption in recorded history, Mount Tambora, we've looked back and reminded ourselves and the world of this history by creating the Polygon Tambora A – a perfect fusion of all-road and gravel capabilities in one extraordinary ride. Designed for versatility, the Tambora A features a short wheelbase, making it an agile companion for all-road exploration. Equipped with a 2-by drivetrain, it offers enhanced versatility and a wide range of gears, empowering us to conquer any terrain with newfound speed.Whether you're a competitive racer, long-distance enthusiast, or an adventurous explorer, this bike is tailored to meet your needs.

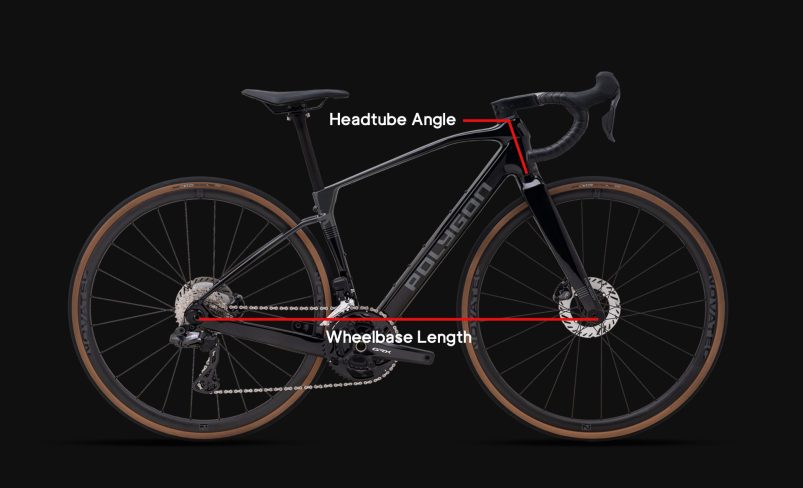

2 Bikes in 1
Experience the ultimate ride that combines power and speed with unwavering stability. The wheelbase length ensures stability, while the precise head tube angle instills confidence in your steering and control. No need to compromise between speed, stability, and confidence—now, the choice is in your hands.

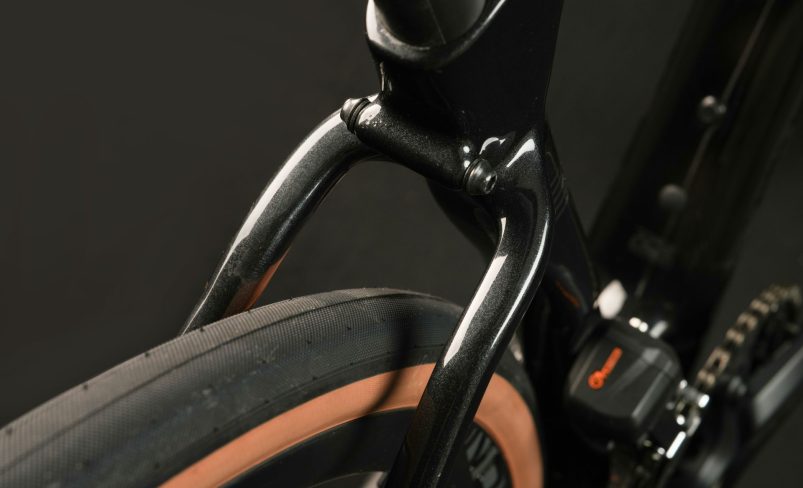

Tire Clearance
Accomodating up to 35c of tire for a short position flip chip and 45c for a long position flip chip.
Adjustable Geometry
Where you can switch between speed and agility from a short position flip chip or stability and control from a long position flip chip.

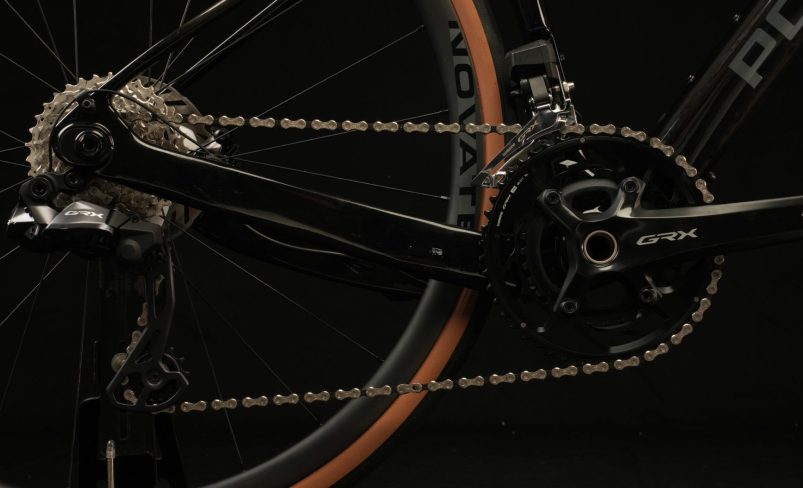

2x Drivetrain
Tailored for those who crave performance on extended, fast-paced all-road adventures, the 2-by drivetrain offers a broad range of gears, ensuring effortless cruising on flats with precision control. It delivers the perfect balance of power, agility, and efficiency for long-distance rides.

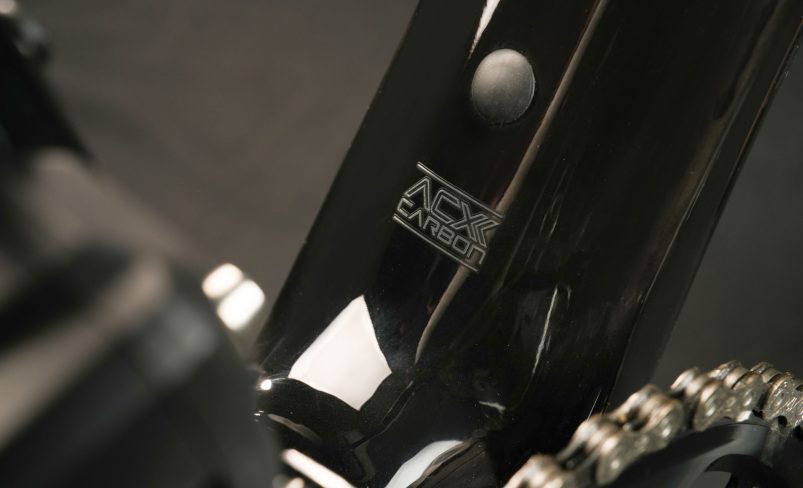

Full Carbon Gravel Bike
Introducing our first carbon gravel bike – Tambora A. Experience seamless power transfer at high speeds and become one with the ride.

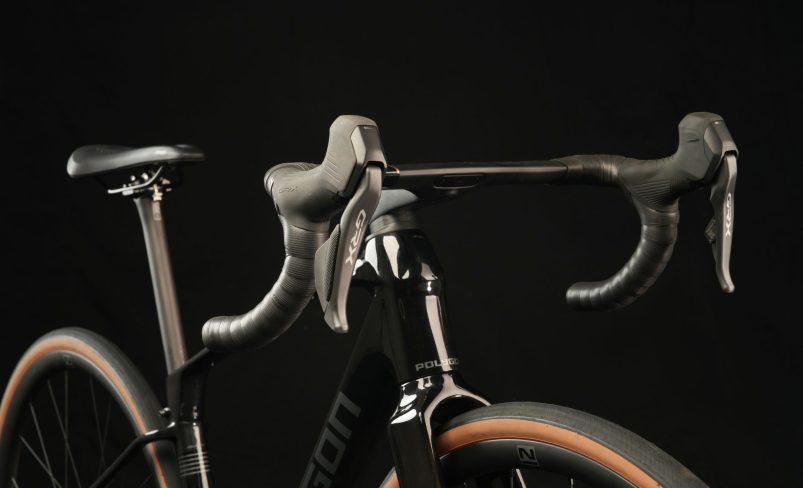

Electronic Shifting
Experience the ultimate cycling pleasure with Polygon Tambora A9X’s Shimano GRX Di2, ensuring a superior shifting experience.
Specifications
| Frame | ACX GRAVEL Carbon |
|---|---|
| Fork | GRAVEL Carbon |
| Headset | TOKEN TK155P-36 W/ SEALED BEARING, IS 52/28.6 | IS 52/40 |
| Stem | BLKTEC R8 INTEGRATED, EXT: 100mm (S, M) / 110mm (L-XL), BB: INTEGRATED, R/D: 0 Degree |
| Handlebars | BLKTEC R8 INTEGRATED, W: 400mm (S, M) / 420mm ( L, XL), BB: 31.8mm INTEGRATED, R/D: 125mm, B/R: 72mm |
| Wheels | NOVATEC G24 DISC (28mm) W/ TUBELESS TAPE INSTALLED |
| Rims | F: CARBON FV H: 28 622x24 24H FOR TYRE 622-35/68 TLR / R: CARBON FV H: 28 622x24 24H FOR TYRE 622-35/68 TLR |
| Spokes | F: STAINLESS DOUBLE BUTTED 14G NDS:282mm DS:284mm W/ NIPPLE BRASS / R: STAINLESS DOUBLE BUTTED 14G NDS:284mm DS:282mm W/ NIPPLE BRASS |
| Hubs | F: NOVATEC D791SB 12x100mm 24H CL / R: NOVATEC D792SB 12x142mm 24H CL FOR CASSETTE SPROCKET |
| Tyres | MAXXIS RE-FUSE 700X32C |
| Shifter | SHIMANO GRX Di2 ST-RX825, 2x12-SPEED BRIFTER |
| Rear Derailleur | SHIMANO GRX Di2 RD-RX825 |
| Front Derailleur | SHIMANO GRX Di2 FD-RX825 |
| Crankset | SHIMANO GRX FC-RX820, 48x31T |
| Cassette | SHIMANO ULTEGRA CS-R8101, 11-34T |
| Chain | KMC NEW X-12 |
| Bottom Bracket | TOKEN T47 FOR 24mm SPINDLE |
| Brakes | SHIMANO GRX RX825 HYDRAULIC DISC |
| Brake Levers | SHIMANO RX825 |
| Rotors | SHIMANO CL800, 160mm |
| Seatpost | CARBON, DxL: 27.2x400mm |
| Saddle | FIZIK TERRA ARGO X7 |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 566 | 591 | 621 | 648 |
| Reach | 371 | 383 | 400 | 415 |
| Headtube Angle | 70.25 | 71.77 | 72.06 | 72.26 |
| Headtube Length | 143 | 163 | 193 | 221 |
| Seattube Angle | 74.75 | 74.26 | 73.76 | 73.26 |
| Seattube Length | 404 | 448 | 492 | 535 |
| Toptube (Effective) | 526 | 550 | 581 | 610 |
| Chainstay Length | 415 | 415 | 415 | 415 |
| Wheelbase | 997 | 1003 | 1026 | 1048 |
| BB Height | 265 | 265 | 265 | 265 |
| BB Drop | 79 | 79 | 79 | 79 |
| Standover | 701 | 741 | 784 | 819 |
| Stem Length | 100 | 100 | 110 | 110 |
| Handlebar Width | 400 | 400 | 420 | 420 |
| Rider Height | 150-163 | 163-175 | 175-188 | 188-195 |
