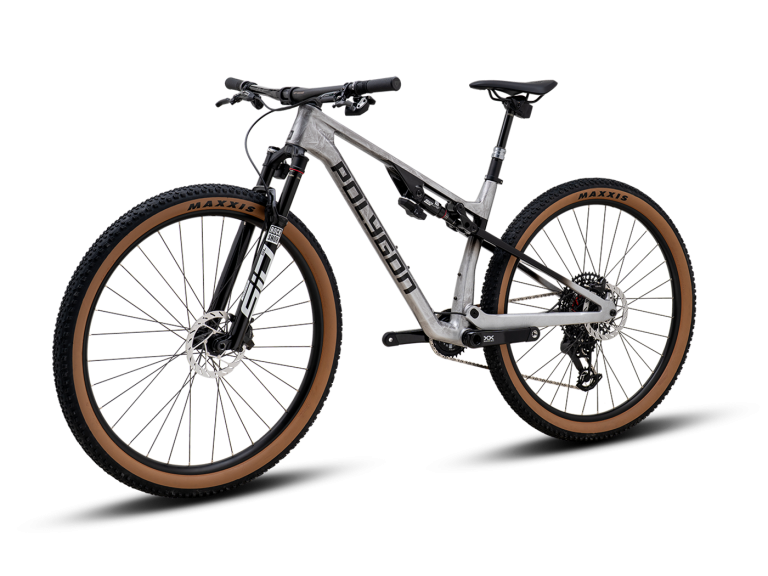

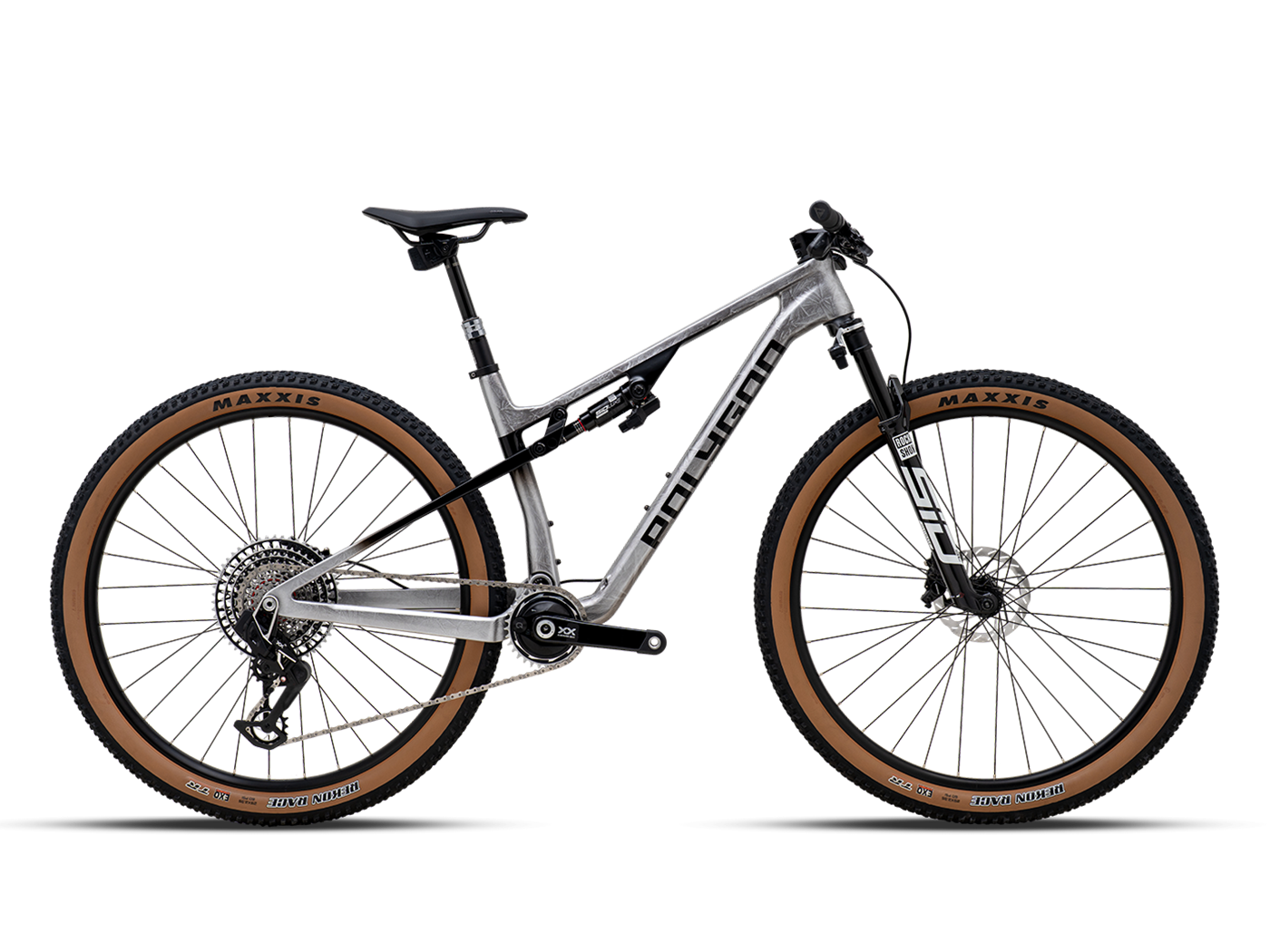

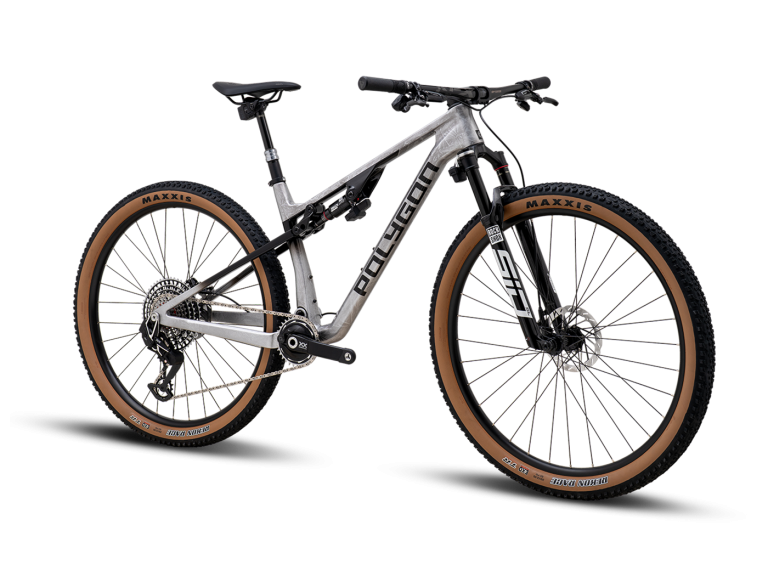

Polygon Syncline DR0 Full Suspension Mountain Bike
Color:
Color
Size:
Size
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Polygon Syncline DR0 Full Suspension Mountain Bike
Silver / L
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609XC, Reimagined.
The new generation of Syncline: An XC, with full-sus control.
Cross-country racing isn’t what it used to be—and neither is the Syncline. The new Syncline DR takes everything we’ve learned from years of UCI racing and builds it into a carbon full- suspension machine made for the speed, precision, and intensity of modern XC. It’s your edge. For race day. For every day. For the chase.
Fast But Composed
With 110mm of efficient rear travel and 120mm up front, the Syncline DR’s single-pivot suspension balances speed with control — staying smooth through roots, planted in rock gardens, and precise in switchbacks.
No Watt Wasted
Every pedal stroke drives straight into forward momentum through a lightweight carbon chassis and a threaded BSA73 bottom bracket for maximum stiffness and easy service.
Locked in Precision
Sleek internal routing keeps things quiet, while a 12x148mm Boost thru-axle and UDH hanger deliver rock-solid drivetrain stability when you’re battling for position and precise shifting under pressure.
Traction Wherever You Need It
From rocky climbs to muddy sprints, with 29x2.35 tires, the Syncline DR delivers added grip, smoother comfort, and confident control.
Geometry Made For Modern XC
With modern geometry and a 4-bar flex-stay suspension platform, the Syncline DR is built to take on today’s increasingly demanding XC courses.
Specifications
| Frame | ACX XC 110mm TRAVEL |
|---|---|
| Fork | ROCKSHOX SID SL FLIGHT ATTENDANT 110mm TRAVEL 29" |
| Rear Shock | ROCKSHOX SIDLUXE FLIGHT ATTENDANT, E2E:165x37.5mm |
| Headset | INTERNAL CABLE ROUTING HEADSET, S.H.I.S. IS 52/28.6 | IS 52/40 |
| Stem | FSA KFX 2-BOLT STEM, E: 70MM, BB: 31.8MM, R/D: -)20degree |
| Handlebars | FSA KFX FLAT CARBON, W: 760MM, BB: 31.8MM |
| Wheels | POLYGON MT6 TUBELESS READY |
| Rims | ALLOY DOUBLE WALL H:18mm W: 29mm 622-30 32H FOR TYRE 622-54/76 TL READY |
| Spokes | F: 14G STAINLESS NDS:292mm DS:294mm W/ 12mm BRASS NIPPLE / R: 14G STAINLESS NDS:294mm DS:292mm W/ 12mm BRASS NIPPLE |
| Hubs | F: NOVATEC D791SB BOOST 15x110mm 32H CL / R: NOVATEC D462SB BOOST 12x148mm 32H CL FOR XD DRIVE |
| Tyres | MAXXIS REKON RACE 29"x2.35" |
| Shifter | SRAM EC AXS POD |
| Rear Derailleur | SRAM XX SL EAGLE AXS T-TYPE 12-SPEED |
| Crankset | SRAM FC XX SL EAGLE T-TYPE POWER METER 32T |
| Cassette | SRAM XX SL EAGLE CS-XS-1299 T-TYPE 10-52T XD-DRIVE |
| Chain | SRAM CN XX SL EAGLE T-TYPE 12-SPEED |
| Bottom Bracket | SRAM DUB BSA 73mm |
| Brakes | SRAM LEVEL ULTIMATE HYDRAULIC DISC BRAKES |
| Rotors | SRAM HS2 160mm CENTER-LOCK |
| Seatpost | SRAM REVERB AXS 125mm TRAVEL, D x L: 31.6 x 390mm |
| Saddle | FIZIK TERRA ARGO X7, R: S-ALLOY MOBIUS ø 7mm |
| Extras |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Rider Height (cm) | 155-165 | 165-175 | 175-185 | 185-195 |
| Stack | 587 | 601 | 606 | 615 |
| Reach | 410 | 435 | 460 | 485 |
| Headtube Angle | 67.5 | 67.5 | 67.5 | 67.5 |
| Headtube Length | 95 | 105 | 115 | 125 |
| Seattube Angle | 74.75 | 74.75 | 74.75 | 74.75 |
| Seattube Length | 384 | 432 | 470 | 510 |
| Toptube (Effective) | 570 | 599 | 625 | 653 |
| Chainstay Length | 440 | 440 | 440 | 440 |
| Wheelbase | 1217.7 | 1188.9 | 1160 | 1131 |
| BB Height | 334.5 | 334.5 | 334.5 | 334.5 |
| BB Drop | 38 | 38 | 38 | 38 |
| Standover | 725 | 726 | 725 | 725 |
