Polygon Strattos S8X Disc Road Bike
Color
Size
Click & Collect
Polygon Strattos S8X Disc Road Bike
Green / XXS
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin

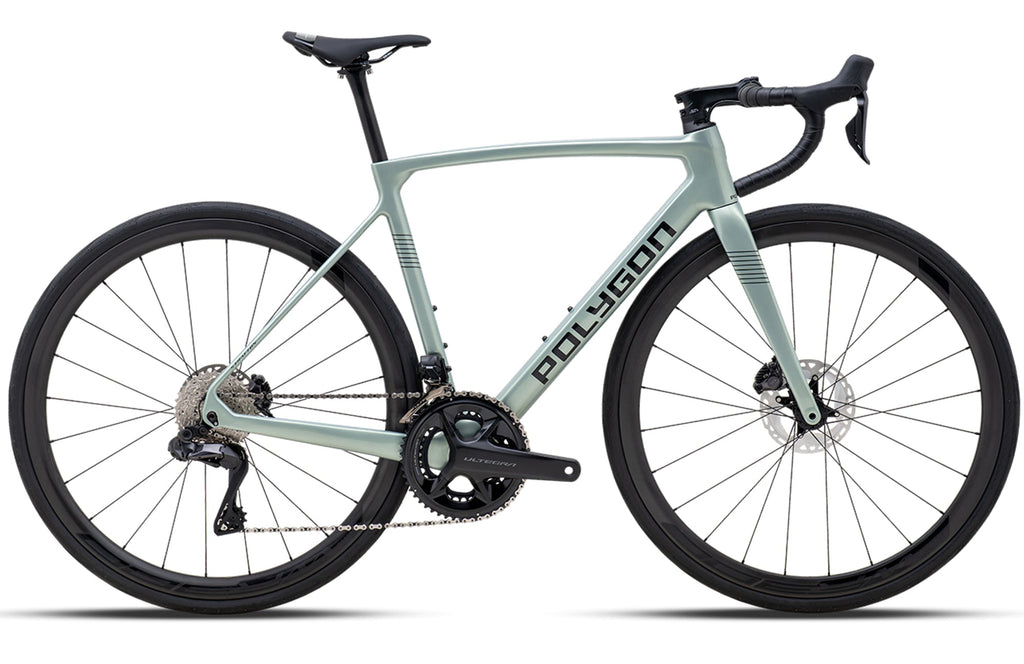

+3532840609The Polygon Strattos S8X is a carbon endurance road bike. It is designed to be comfortable for long rides, yet remains aggressive enough for powerful and efficient riding. The bike weighs an impressive 8.21kg. Other key features include: Shimano Ultegra Di2 electronic drivetrain, Shimano Ultegra disc brakes, and Novatec R3 carbon wheels.
THE PERFECT BLEND
The Polygon Strattos strikes the perfect balance between endurance comfort and race-inspired performance. Its geometry offers an upright position that reduces strain for long rides, yet remains aggressive enough for a powerful and efficient ride. Thanks to the carbon frame, the Strattos S8X weighs an impressive 8.21kg, perfect for crushing gran fondos or clocking up weekend miles.
EFFICIENCY AND SPEED
Building on the classic lines and styling of a race bike, the lightweight carbon frame features subtle aerodynamic cues on the tubing and internal cable routing to reduce wind residence. While, the stiff downtube, thru-axles, and wide bottom bracket ensure an efficient platform for power transfer to put down some watts!
ENDURING COMFORT
Don't sacrifice comfort for speed. The Strattos utilize flex stays, dropped seat stays, and a carbon seatpost with an internal wedge to absorb road vibrations, keeping you comfortable on long rides. The FULL carbon fork and steerer also reduce weight in the front end for improved comfort while maintaining precise handling.
A TRUSTED BRAND
Polygon boasts over 30 years of experience and is known for offering high-performance bikes at competitive prices. Polygon road bikes have led to numerous national titles and even a victory at the 2023 Tour De Taiwan. With a 5-year warranty, you can trust Polygon to deliver from the factory to the track.
Specifications
Frame | ACX All-Round Uci Approved, Internally Routed, Pressfit BB86, 12x142mm |
---|---|
Fork | Full Carbon, Taper 1-1/8" To 1-1/2", Flat Mount Disc Brake |
Stem | Entity Xpert Alloy, 31.8mm, 10° |
Handlebars | Entity Xpert Alloy, 31.8mm, 125mm Drop, 70mm Reach |
Hubs | Novatec D792SB-CL-X12, 12x142mm |
Rims |
Novatec R3, Carbon, 38mm Depth, 15mm Inner |
Tyres |
Schwalbe One, Addix, Raceguard, Microskin, 700x28C, Tubeless ready* |
Shifter |
Shimano Ultegra Di2 ST-R8170, 2x12-Speed Dual Control Lever |
Front Derailleur | Shimano Ultegra Di2 FD-R8150 Braze-On |
Rear Derailleur |
Shimano Ultegra Di2 RD-R8150 Direct Attach |
Crankset | Shimano Ultegra FC-R8100 52/36T |
Cassette |
Shimano Ultegra CS-R8101, 11-34T |
Chain | KMC X-12 |
Front Brake |
Shimano Ultegra BR-R8170 Hydraulic Disc, 160mm RT-CL800 Rotor, Center Lock |
Rear Brake |
Shimano Ultegra BR-R8170 Hydraulic Disc, 140mm RT-CL800 Rotor, Center Lock |
Brake Levers | |
Seatpost | Entity Xpert Alloy, 27.2 x 350mm, 15mm, Integrated Shape W/ Bolt |
Saddle | Entity Flux2, Cr-Mo Ø 7mm |
Geometry
XXS | XS | S | M | L | XL | XXL | |
---|---|---|---|---|---|---|---|
Stack | 493.2 | 949.7 | 510.7 | 533.9 | 557.9 | 583.8 | 402.8 |
Reach | 372.9 | 382.5 | 383.4 | 386.9 | 389.8 | 391.5 | 402.8 |
Headtube Angle | 71.5 | 72 | 72.5 | 73 | 73 | 73 | 73 |
Headtube Length | 90 | 90 | 105 | 130 | 155 | 185 | 215 |
Seattube Angle | 75 | 75 | 74.5 | 74 | 73.5 | 73 | 73 |
Seattube Length | 439.1 | 454.2 | 474.2 | 500 | 524.7 | 554.3 | 854.2 |
Toptube (Effective) | 505 | 515 | 525 | 540 | 555 | 570 | 590 |
Chainstay Length | 415 | 415 | 415 | 415 | 415 | 417 | 417 |
Wheelbase | 969.7 | 975.6 | 977.3 | 984.9 | 995 | 1007.9 | 1027.8 |
BB Height | 271.5 | 271.5 | 271.5 | 274 | 274 | 276.5 | 276.5 |
BB Drop | 72.5 | 72.5 | 72.5 | 70 | 70 | 67.5 | 67.5 |
Standover | 717.13 | 729.43 | 748.69 | 775.85 | 801.17 | 832.25 | 862.17 |
