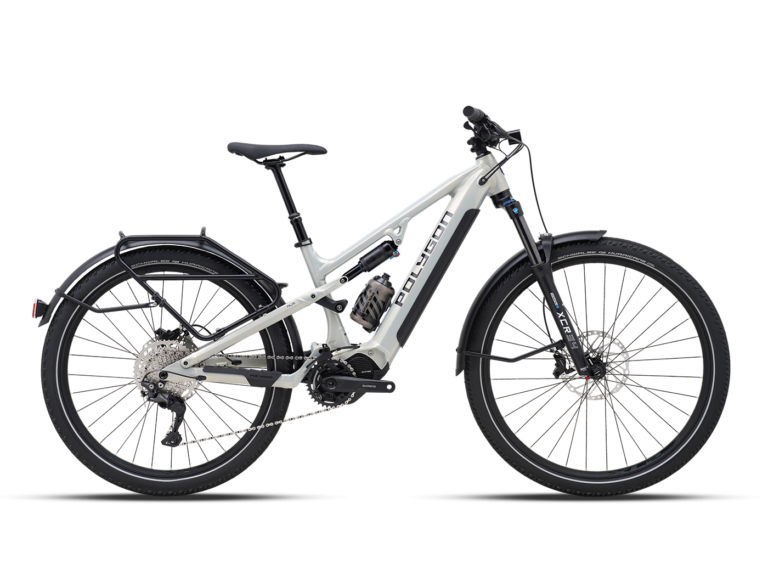

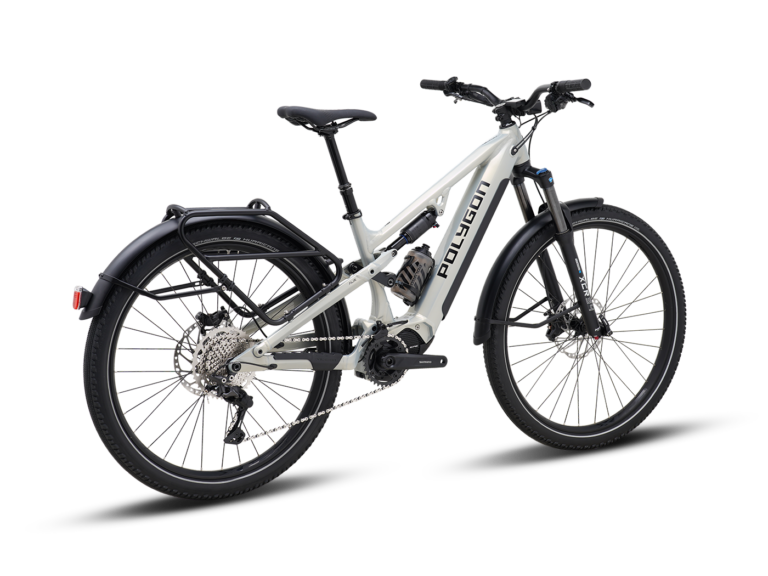

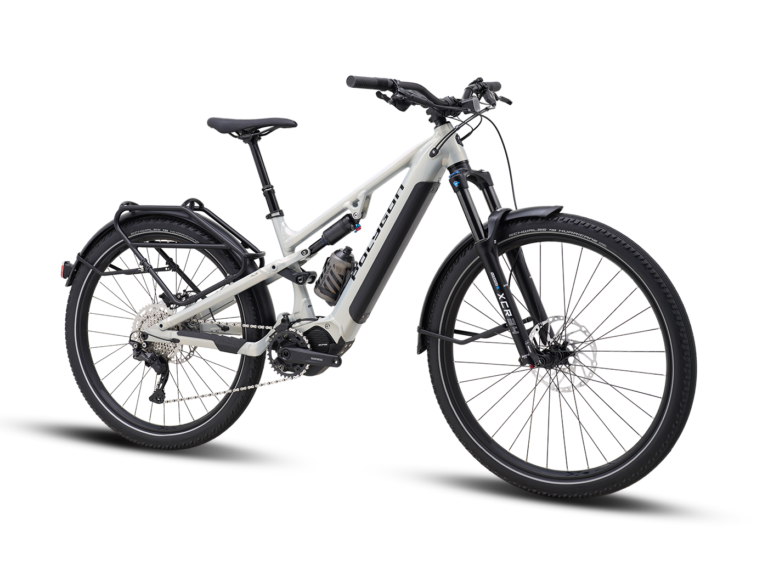

Polygon Siskiu HE-B Shimano Electric Mountain Bike
Color
Size
Availability
Click & Collect
Polygon Siskiu HE-B Shimano Electric Mountain Bike
Pearl White / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609THE ALL-WHEEL EXPERIENCE
A perfect blend of convenience and sport.
Why limit ourselves when we can blend exceptional convenience and sport in one extraordinary bike? The new e-SUV Siskiu HE series is a perfect combination of leisurely traverse urban city, swiftly hovering countryside, and everything in between.The suspension gives a plush ride to smooth out your ride through any terrain. Equipped with a dropper seatpost to easily adjust your height, comfort saddle for a longer ride, front-rear lamp, rear carrier, and fender. Promises you extra comfort on each mile on your a limitless range of fun and exploration.
An SUV e-bike is a bicycle designed for optimal comfort and performance on various types of terrain, similar to an SUV (Sport Utility Vehicle) which can be used both on urban roads and off-road. This bicycle is equipped with suspension features, wide tires for better traction, and a sturdy frame with comfortable geometry, allowing it to cover a variety of terrain.
Features
- Ultimate Performance for versatility: Navigate urban landscapes and off-road adventures effortlessly with Siskiu HE. Comfort on the road with an upright geometry position, while it is firm off-road with a semi-slick tire and suspension. It is designed for urban commuting, off-road adventures, and everything in between, ensuring you're always ready for whatever the road ahead brings.
- Convenient at any miles: Experience exceptional convenience with Siskiu HE. Designed with a dropper seat post to easily adjust the height for any purpose, a comfortable saddle for a longer ride, and front and rear lamps to secure your ride.
- Pack everything up: How many can we pack in a ride? Yes! The built-in rear carrier provides ample space for carrying panniers, groceries, or other essentials, making it an ideal mate for your daily errands or weekend getaways.
- Doubles your power: Siskiu HE will double up your power with 3 power assist variations up to 25km/h. Enjoy flat hills and smooth paved roads up to 150 km of range. Put less effort into its semi-internal battery, so you can easily plug or unplug on maintenance. Relish countless rides while maintaining less.
Frame | ALX E-SUV 120mm TRAVEL |
---|---|
Fork | SR SUNTOUR XCR 34, AIR SPRING,130mm TRAVEL, OFFSET: 51mm, W/ PRELOAD ADJUSTER,LOW SPEED REBOUND,W/ LOCK OUT |
Rear Shock | SR SUNTOUR EDGE PLUS 2CR, E2E: 190x45mm |
Headset | FSA HBS-220 W/ SEALED BEARING, ZS 44/28.6 | ZS 56/40 |
Stem | POLYGON EXPERT, EXT: 40mm |
Handlebars | POLYGON EXPERT, W: 780mm |
Wheels | XL2 TUBELESS READY |
Tyres | SCHWALBE HURRICANE F: 29"x2.40" / R: 27.5"x2.4" 622/584x62 ALLROUND TIRE TLE ADDIX |
Shifter | SHIMANO CUES SL-U6000-R, 1X10-SPEED TRIGGER |
Rear Derailleur | SHIMANO CUES RD-U6000 10-SPEED |
Crankset | SHIMANO SM-CRE70-B 34T |
Cassette | SHIMANO CUES CS-LG300-10 10-SPEED 11-48T CASSETTE |
Chain | KMC EGLIDE 9/10/11-SPEED |
Brakes | SHIMANO BR-M420 |
Seatpost | TRANZ X JD-YSP23JL 150mm (S, M) / 170mm (L, XL) TRAVEL, DxL: 30.9 x 459mm (S, M) / 499mm (L, XL) |
Saddle | POLYGON VOID, STEEL ø7mm |
Pedals | ALLOY FLAT W/ REPLACEABLE PIN |
Motor | SHIMANO DU-EP600 MID MOTOR 25kph (EU) 250Watt, MAX TORQUE 85Nm |
Battery | SHIMANO BT-EN805-L FOR DOWN TUBE INTEGRATED - 504Wh (36V, 14Ah) |
Display | SHIMANO EW-SS301 W/ 760mm CABLE |
Geometry
S | M | L | XL | |
---|---|---|---|---|
Stack | 612 | 616 | 635 | 635 |
Reach | 439 | 454 | 474 | 499 |
Headtube Angle | 66.8 | 67.8 | 67.8 | 67.8 |
Headtube Length | 110 | 110 | 130 | 130 |
Seattube Angle | 77.3 | 76.8 | 75.6 | 76.1 |
Seattube Length | 385 | 400 | 430 | 450 |
Toptube (Effective) | 577 | 598 | 637 | 656 |
Chainstay Length | 457 | 457 | 457 | 457 |
Wheelbase | 1194 | 1199 | 1226 | 1251 |
BB Height | 353 | 353 | 353 | 353 |
BB Drop | 28 | 28 | 28 | 28 |
Standover | 694 | 697 | 705 | 712 |
Sizing
S | M | L | XL | |
---|---|---|---|---|
Height (cm) | 153-165 | 163-175 | 173-185 | 183-195 |
