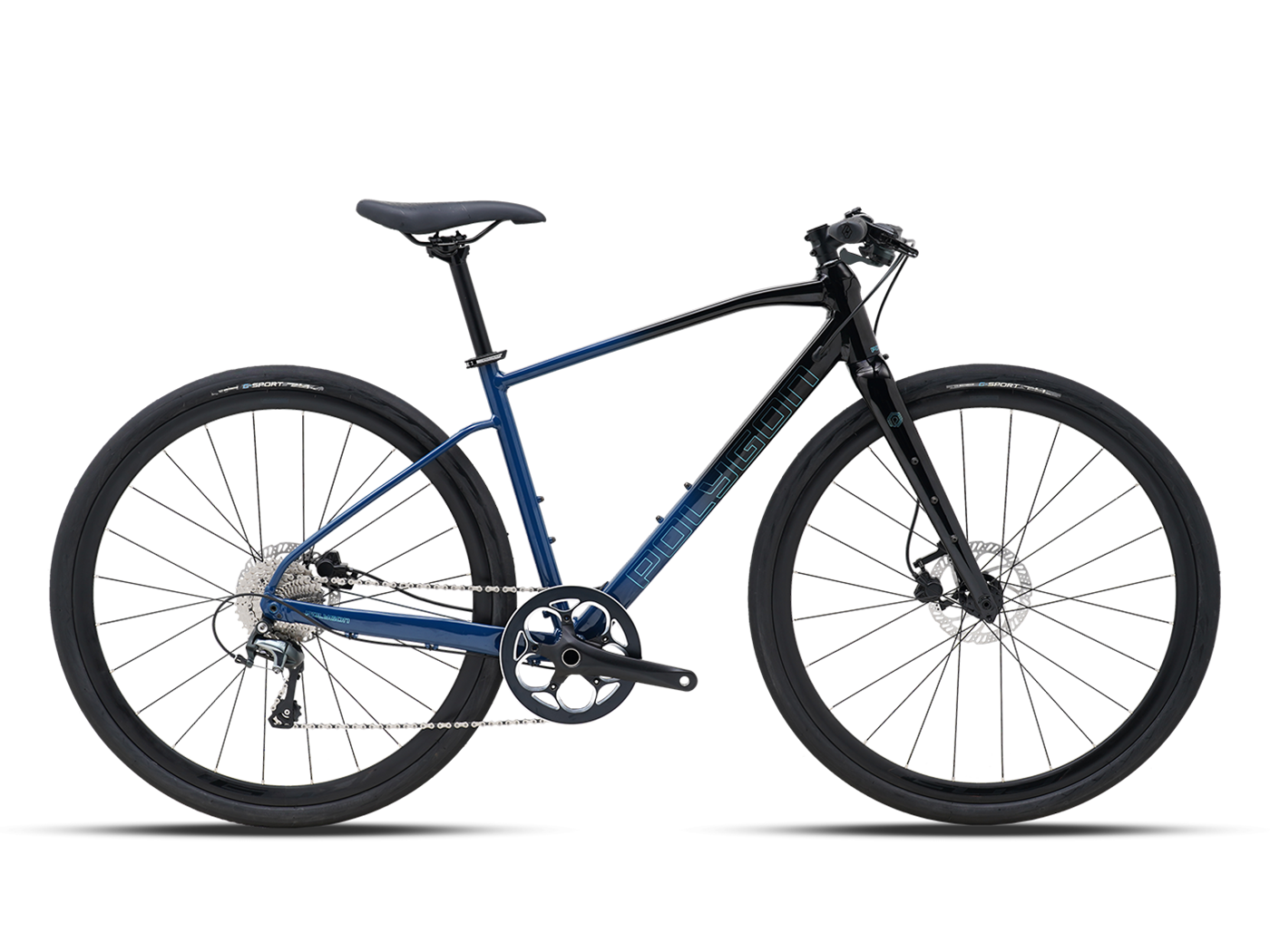

Polygon Path F4 Hybrid Bike
Color:
Color
Size:
Size
Availability
In Store: Out of stock
Warehouse: Out of stock
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Polygon Path F4 Hybrid Bike
Black/Blue / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609YOUR PATH TO ACTIVE LIVING
The ultimate choice for your active life
We are committed to breaking free from the constraints of stigma in order to discover joy and a purposeful life. This is why we introduce a bicycle that challenges the preconceptions associated with road bikes, drop handlebars, and speeds: introducing the all-new Polygon Path F4. This bike is created for fitness enthusiasts who favor a more stable and upright riding stance compared to traditional road bikes. It's a versatile companion, suitable for individuals seeking a swift workout, improved cardiovascular endurance, or even leisurely weekend explorations. The frame's design prioritizes ergonomics, optimizing it for aggressive speed pursuit, further enhanced by a flat handlebar that fosters confidence. Elevate your daily rides with both speed and self-assurance, navigating urban landscapes with ease.
Features
Designed with a flat handlebar, it offers an upright position for confident control. Its lightweight full carbon fork complements this by proficiently absorbing road vibrations, facilitating excellent power output and optimized aerodynamics.
Features a slacker head tube angle to promote an aggressive riding position, paired with a flat handlebar and slacker seat tube angle to enhance confidence. The ideal blend for those seeking both velocity and confidence.
Enhanced by a 700 x 35c tire, you'll conquer urban landscapes with remarkable ease.
Specifications
| Frame | ALX URBAN FITNESS |
|---|---|
| Fork | CARBON RIGID |
| Headset | FSA NO. 42 W/ SEALED BEARING |
| Stem | ALLOY, EXT: 60mm, BB: 31,8mm, R/D: 40mm |
| Handlebars | ALLOY, W: 680mm, BB: 31,8mm, R/D: 0mm, B: 6 degree |
| Wheels | ALLOY DOUBLE WALL 24H |
| Tyres | VEE G-SPORT 700x35C 622x35 |
| Shifter | SHIMANO TIAGRA RAPID FIRE 10 SPEED |
| Rear Derailleur |
|
| Crankset | PROWHEEL 48T |
| Cassette | SHIMANO CS HG500-10 |
| Chain | KMC X10 |
| Bottom Bracket | PROWHEEL BB 68mm |
| Brakes | TEKTRO HD-M275 HYDRAULIC DICS |
| Rotors | TEKTRO TR 160-24 160mm |
| Seatpost |
|
| Saddle | POLYGON SADDLE |
| Extras |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 541.24 | 569.52 | 599.87 | 628.23 |
| Reach | 380 | 390 | 400 | 410 |
| Headtube Angle | 70.5 | 70.5 | 71 | 71 |
| Headtube Length | 115 | 145 | 175 | 205 |
| Seattube Angle | 74.5 | 74.5 | 74 | 73.5 |
| Seattube Length | 430 | 460 | 490 | 520 |
| Toptube (Effective) | 530.1 | 547.94 | 572.01 | 596.09 |
| Chainstay Length | 440 | 440 | 440 | 440 |
| Wheelbase | 1033.28 | 1053.29 | 1068.71 | 1088.48 |
| BB Height | 286 | 286 | 286 | 286 |
| BB Drop | 72 | 72 | 72 | 72 |
| Standover | 703.45 | 734.95 | 763.05 | 792.95 |
Sizing
| S | M | L | XL | |
|---|---|---|---|---|
| Height (CM) | 150-163 | 163-175 | 175-188 | 188-195 |
