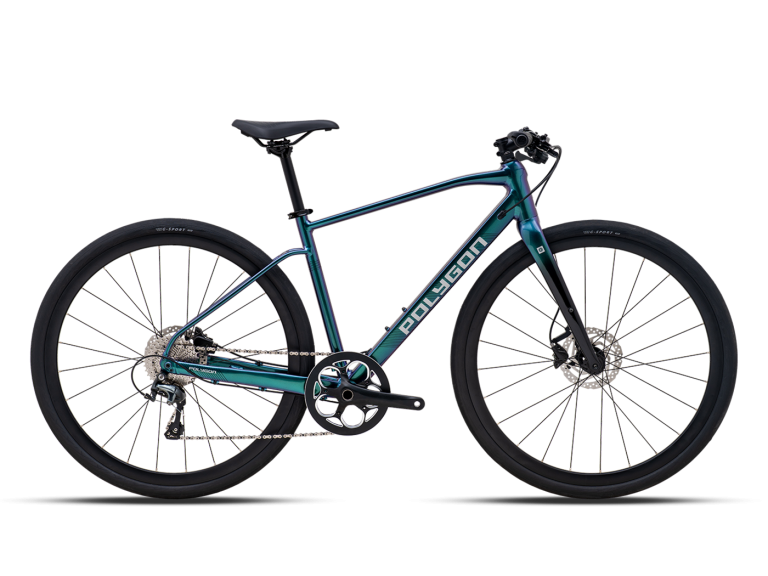

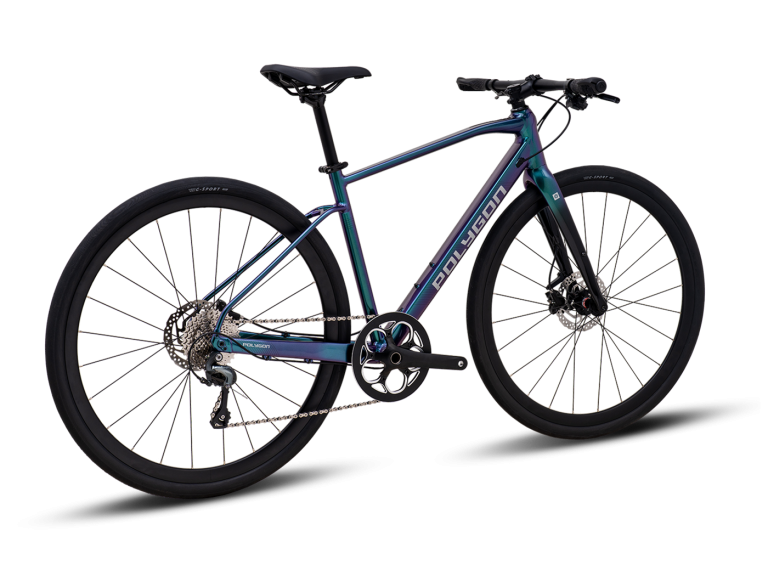

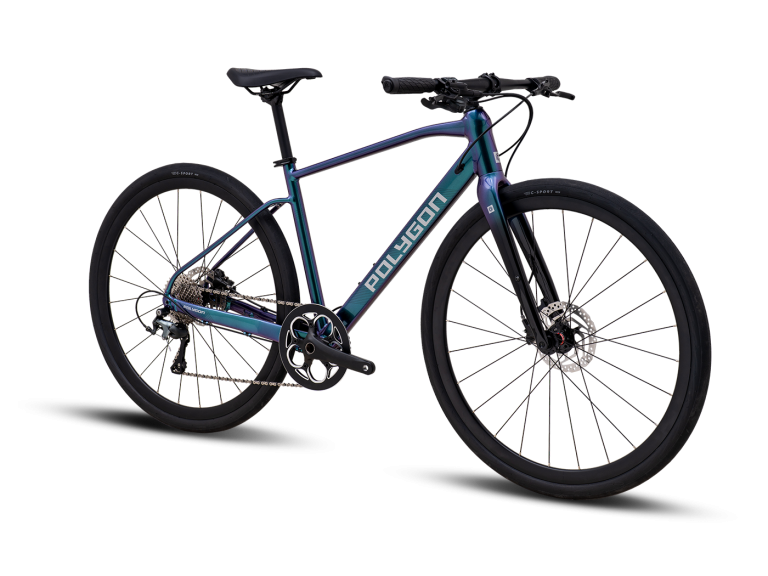

Polygon Path 4 Hybrid Bike 2027
Chameleon Purple / XL
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609PATH: Flat-Bar for Urban Adventures
Urban | ALX Alloy frame | Alloy fork
The Polygon PATH combines the speed of a road bike with the confident, upright visibility of a flat-bar commuter. Lightweight, agile, and ready for any urban adventure, it’s more than a bike; it’s your daily companion.

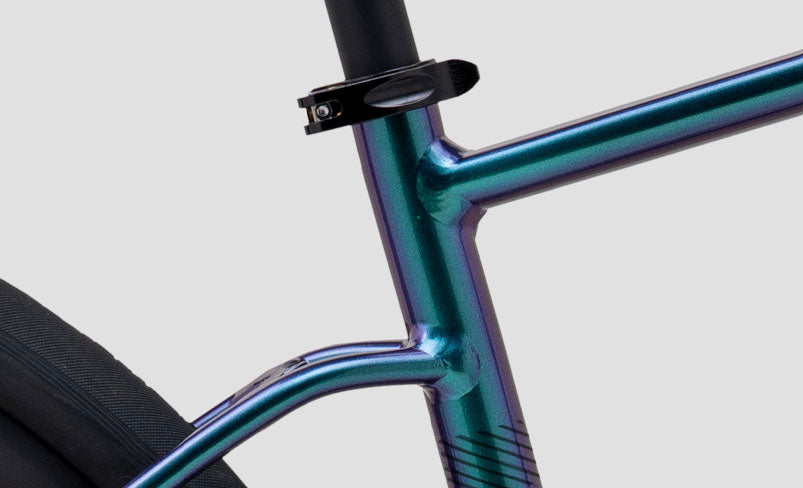

ALX urban frame & Fork
A lightweight, hydroformed aluminum frame designed for durability and agility.

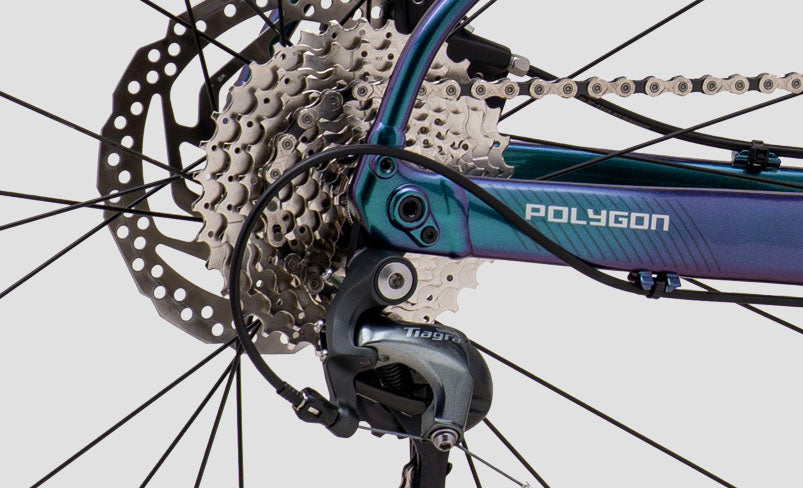

Versatile Drivetrain & Disc Brakes
Featuring reliable Shimano components with a wide range of gears and powerful disc brakes for consistent all-weather stopping.
Comfortable & fast

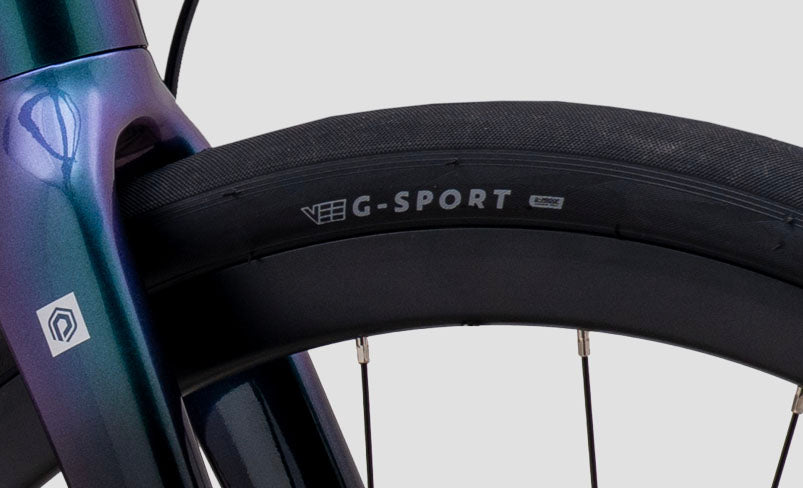

Equipped with 700c wheels and high-volume tires to soak up road vibrations while maintaining maximum momentum.
Utility Ready

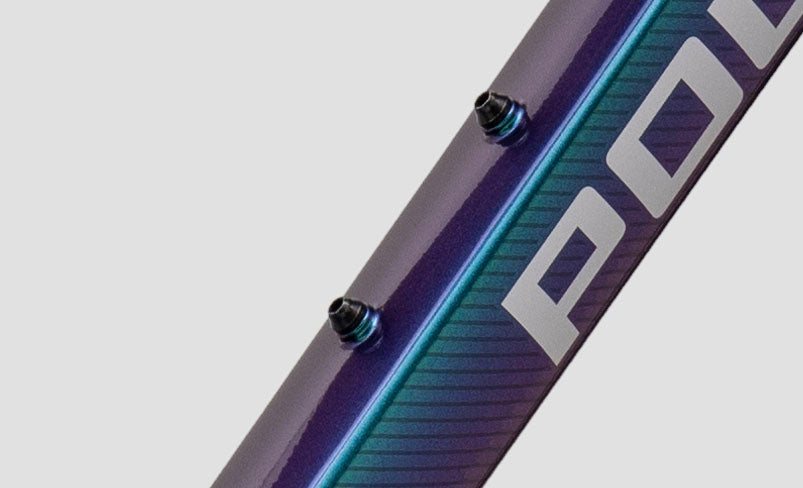

Every Path frame comes standard with integrated mounts for fenders, racks, and water bottles.
Specifications
| Frame | ALX URBAN FITNESS |
|---|---|
| Fork |
CARBON RIGID |
| Headset |
FSA TH-881 W/ SEALED BEARING, IS 42/28.6 | IS 52/40 |
| Stem |
POLYGON EXPERT, EXT: 60mm (S, M) / 80mm (L, XL), BB: 31,8mm, R/D: 41mm |
| Handlebars |
POLYGON EXPERT, W: 680mm, BB: 31,8mm, R/D: 0mm, B: 6 degree |
| Rims |
ALLOY DOUBLE WALL FV H: 30 622X19 24H FOR TYRE 622-28/62 DISC |
| Spokes |
F: STAINLESS 14G NDS:276 & DS:280 / R: STAINLESS 14G NDS:278 & DS:278 |
| Hubs | F: ALLOY DISC BRAKE 12x100mm 24H / R: ALLOY DISC BRAKE 12x142mm 24H CENTERLOCK FOR SPROCKET |
| Tyres |
VEE GOODIE GOODIE 700x35C 622x35 |
| Shifter |
SHIMANO TIAGRA SL-4700, 1x10-SPEED RAPIDFIRE PLUS |
| Rear Derailleur |
SHIMANO TIAGRA RD-4700 |
| Crankset |
PROWHEEL OUNCE, 48T |
| Cassette |
SHIMANO TIAGRA CS HG500-10 |
| Chain | KMC X10 |
| Bottom Bracket | Square taper 68mm |
| Brakes | SHIMANO MT200 HYDRAULIC DISC |
| Rotors | SHIMANO SM-RT26, 160mm |
| Seatpost |
POLYGON EXPERT, DxL: 27,2 x 350mm |
| Saddle | SELLE ROYAL EASE |
| Pedals | ONE PIECE PP FLAT |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 541 | 570 | 600 | 628 |
| Reach | 380 | 390 | 400 | 410 |
| Headtube Angle | 70.5 | 70.5 | 71 | 71 |
| Headtube Length | 95 | 125 | 155 | 185 |
| Seattube Angle | 74.5 | 74.5 | 74 | 73.5 |
| Seattube Length | 430 | 460 | 490 | 520 |
| Toptube (Effective) | 530 | 548 | 572 | 596 |
| Chainstay Length | 440 | 440 | 440 | 440 |
| Wheelbase | 1033 | 1053 | 1069 | 1088 |
| BB Height | 286 | 286 | 286 | 286 |
| BB Drop | 72 | 72 | 72 | 72 |
| Standover | 703 | 735 | 763 | 793 |
