Polygon Kalosi Lanes Evo LS Electric Bike
Color:
Color
Size:
Size
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

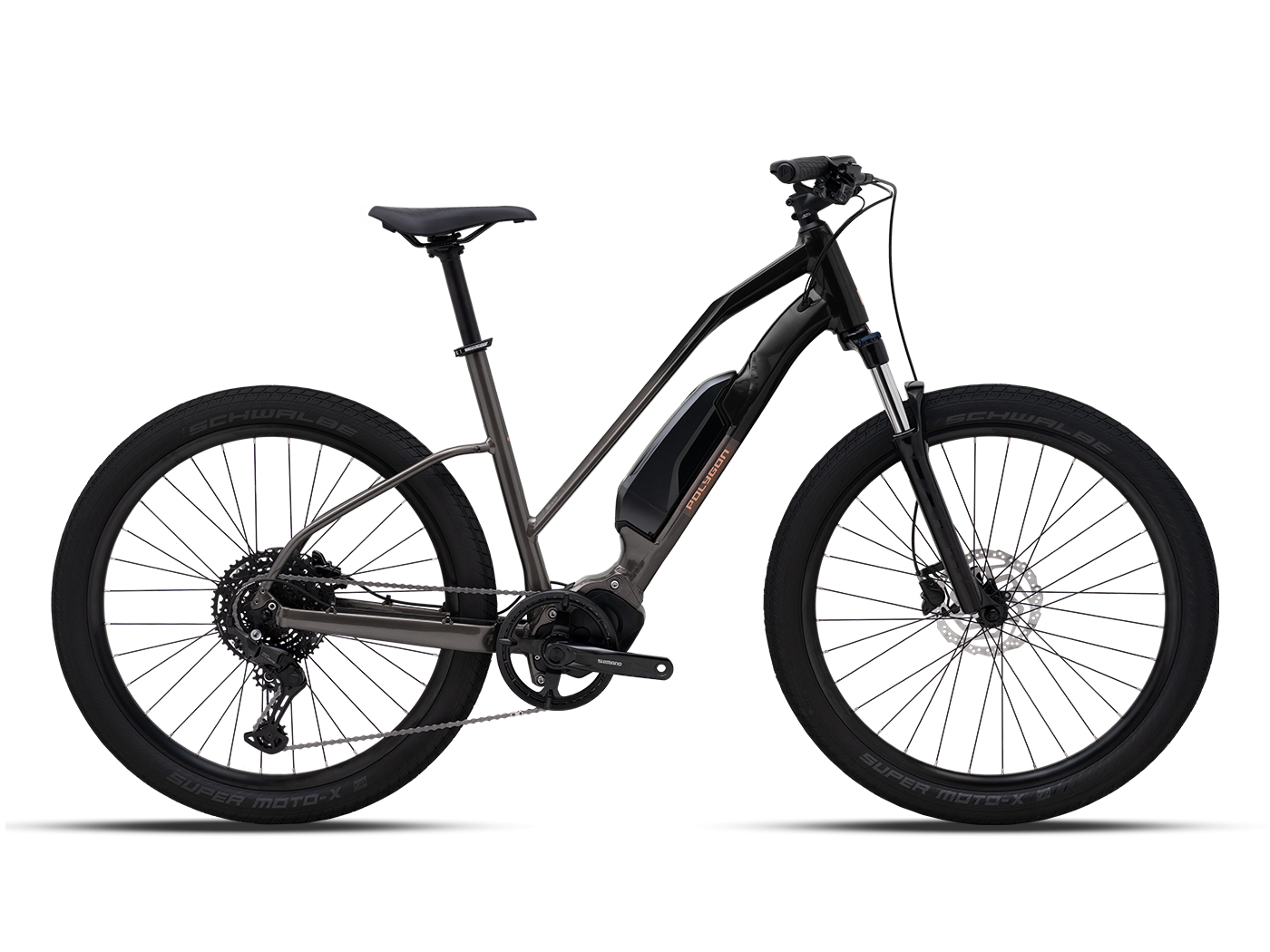

Polygon Kalosi Lanes Evo LS Electric Bike
Black / M
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609GET YOU AROUND
Best way to experience home.
Through Kalosi Lanes Evo, we're trying to experience home differently. It easily takes you from A to B, takes you to run errands faster, and brings you lots and lots of O2. This urban bike comes with a suspension fork to give you a smooth ride while taking you faster with our latest pedal assist system; so you'll experience its comfort, at your home.
Kalosi Lanes Evo comes with high-step frames and mid-step frames to give you an optimum comfort. You choose what’s best.
Our pedal assist system will multiply your effort up to max 25 km/h with our assist variations. Enjoy flat hills and smooth paved roads up to 185 km miles of range when fully charged.
It’s water resistant! Rider doesn’t have to worry when it rains or goes through puddles.
With its suspension fork to smooth out the ride, and Hydraulic Disc Brakes that let you experience a smooth and powerful braking performance; believe me, there’s no condition that can stop you to explore more.
Specifications
| Frame | ALX TREKKING FRAME |
|---|---|
| Fork | SUNTOUR XCM32 HLO 100mm TRAVEL |
| Headset | ZERO STACK (ZS) SEMI INTEGRATED SEALED BEARING FOR TAPER H/T, ZS 44/28.6 | ZS 56/30 |
| Stem | POLYGON XPERT ALLOY, EXT: 60mm (S) / 80mm (M, L), BB: 31.8mm, R/D: 7degree |
| Handlebars | POLYGON EXPERT ALLOY, W: 700mm |
| Rims | ALLOY DOUBLE WALL 584x30C DEPTH:23mm 32H FOR TYRE 584-54/76 |
| Hubs | F: JOYTECH D761DSE QRx100mm 32H CENTERLOCK / R: JOYTECH D762DSE QRx135mm 32H CENTERLOCK |
| Tyres | SCHWALBE SUPER MOTO-X 27.5"x2.40" (584-62) |
| Shifter | SHIMANO CUES SL-U6000 1x10-SPEED TRIGGER |
| Rear Derailleur | SHIMANO CUES RD-U6000-GS DIRECT ATTACH |
| Crankset | SHIMANO FC-E5010 W/ SM-CRE50 44T CL:46.5mm W/ DOUBLE CG |
| Cassette | SHIMANO CS-LG300-10 11-48T |
| Chain | SHIMANO CN-LG500 |
| Brakes | SHIMANO BR-MT201 HYDRAULIC DISC BRAKE |
| Rotors | SHIMANO F:SM-RT10 R:RT-EM600 180mm CENTER LOCK |
| Seatpost | POLYGON EXPERT ALLOY, DxL: 30.9 x 300mm |
| Saddle | LINC EASE, STEEL ø7mm |
| Motor | SHIMANO DU-E5000 MID MOTOR, CONTINUOUS RATED POWER 250Watt, MAXIMUM TORQUE 40Nm |
| Battery | SHIMANO BT-E8010 FOR DOWN TUBE - 504Wh (36V, 14Ah) |
| Sensor | SHIMANO SM-DUE11 FOR REAR ROTOR WITH MAGNET BRACKET |
| Charger |
Geometry
| S | M | |
|---|---|---|
| Stack | 542 | 561 |
| Reach | 380 | 390 |
| Headtube Angle | 71 | 71 |
| Headtube Length | 120 | 140 |
| Seattube Angle | 75 | 74.5 |
| Seattube Length | 430 | 460 |
| Toptube (Effective) | 525 | 546 |
| Chainstay Length | 460 | 460 |
| Wheelbase | 1050 | 1067 |
| BB Height | 287 | 287 |
| BB Drop | 70 | 70 |
| Standover | 525 | 528 |
| Rider Height (cm) | 151-160 | 161-170 |
