Polygon

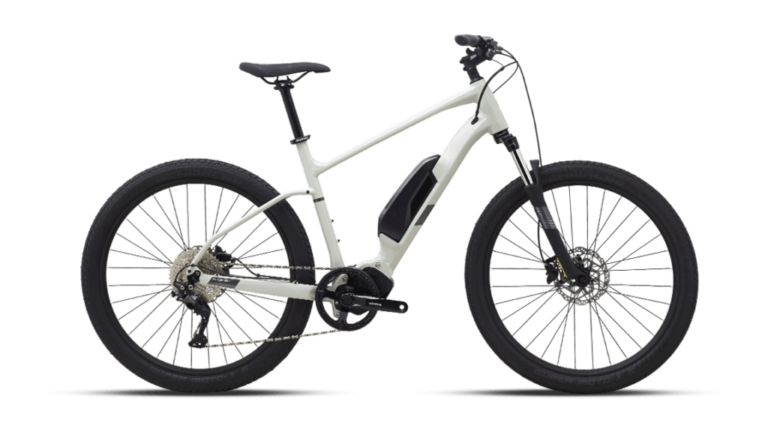

Polygon Kalosi Lanes Evo High Step Electric Hybrid Bike
Color:
Color
Size:
Size
Availability
In Store: Out of stock
Warehouse: Out of stock
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Polygon Kalosi Lanes Evo High Step Electric Hybrid Bike
Grey / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609CHOOSE YOUR WEAPON
Your all-day choice for all-urban terrains
GET YOU AROUND
Best way to experience home
Through Kalosi Lanes Evo, we're trying to experience home differently. It easily takes you from A to B, takes you to run errands faster, and brings you lots and lots of O2. This urban bike comes with a suspension fork to give you a smooth ride while taking you faster with our latest pedal assist system; so you'll experience its comfort, at your home.
Features
- Road to a smart city: Is a new way to enjoy the city with friends. With Polygon e-Bike, everyone with different capacities and abilities can still ride and exercise together, match the rhythm, and enjoy the city together. Say hi to future!
- Pedal assist: Our pedal assist system will multiply your effort up to max 25 km/h with 5 assist variations. Enjoy flat hills and smooth paved roads up to 95 km miles of range when fully charged.
- Weather resistant: It's water resistant! Rider doesn't have to worry when it rains or goes through puddles.
Specifications
| Frame | ALX TREKKING FRAME |
|---|---|
| Fork | SUNTOUR XCM HLO 100mm TRAVEL |
| Headset | ZERO STACK (ZS) SEMI INTEGRATED BEARING FOR TAPER HEAD TUBE, ZS 44/28.6 | ZS 56/30 |
| Stem | ENTITY XPERT ALLOY, EXT: 60mm (S) / 80MM (M, L), BB: 31.8mm, R/D: 7degree |
| Handlebars | ENTITY EXPERT ALLOY, W: 700mm, BB: 31.8mm, R/D: 25mm, B: 18degree |
| Wheels | ALLOY DOUBLE WALL FOR DISC BRAKE 27.5" |
| Tyres | SCHWALBE SUPER MOTO-X 27.5"x2.40" (584-62) |
| Shifter | SHIMANO DEORE SL-M5130-R 10-SPEED TRIGGER |
| Rear Derailleur | SHIMANO DEORE RD-M5130-GS DIRECT ATTACH |
| Crankset | SHIMANO FC-E5010 W/ SM-CRE50 44T CL:46.5mm W/ DOUBLE CG |
| Cassette | SHIMANO CS-LG400-10 11-43T |
| Chain | SHIMANO CN-LG500 |
| Brakes | SHIMANO BR-MT201 HYDRAULIC DISC BRAKE |
| Motor | SHIMANO DU-E5000 DRIVE UNIT |
| Sensor | SHIMANO SM-DUE11 |
| Battery | SHIMANO BT-E8010 |
Geometry
| S | M | L | |
|---|---|---|---|
| Stack | 561 | 592 | 620 |
| Reach | 390 | 400 | 410 |
| Headtube Angle | 71 | 71.5 | 71.5 |
| Headtube Length | 140 | 170 | 200 |
| Seattube Angle | 74.5 | 74 | 73.5 |
| Seattube Length | 460 | 490 | 520 |
| Toptube (Effective) | 546 | 570 | 594 |
| Chainstay Length | 460 | 460 | 460 |
| Wheelbase | 1067 | 1082 | 1101 |
| BB Height | 287 | 287 | 287 |
| BB Drop | 70 | 70 | 70 |
| Standover | 704 | 736 | 766 |
Sizing
| S | M | L | |
|---|---|---|---|
| Height (cm) | 150-160 | 160-170 | 170-180 |
