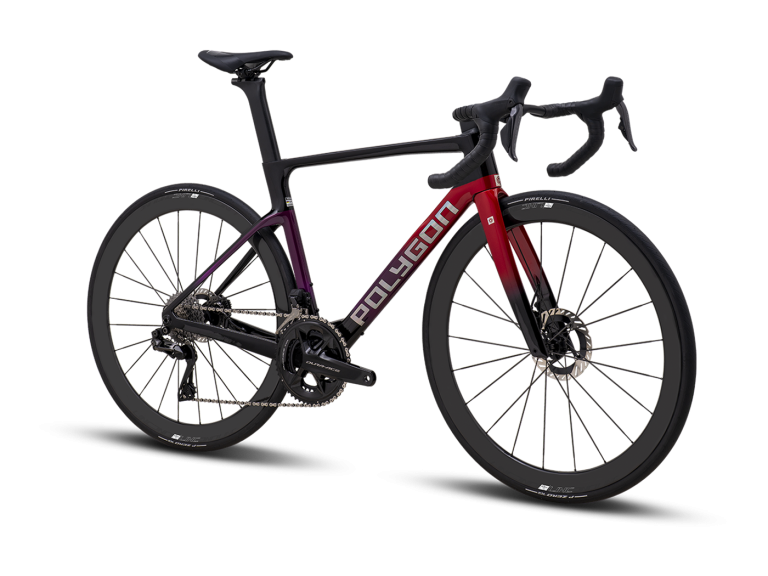

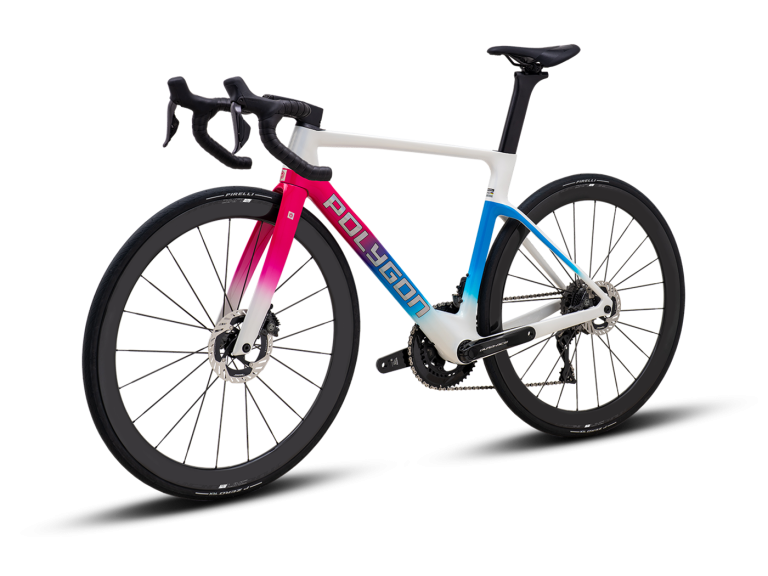

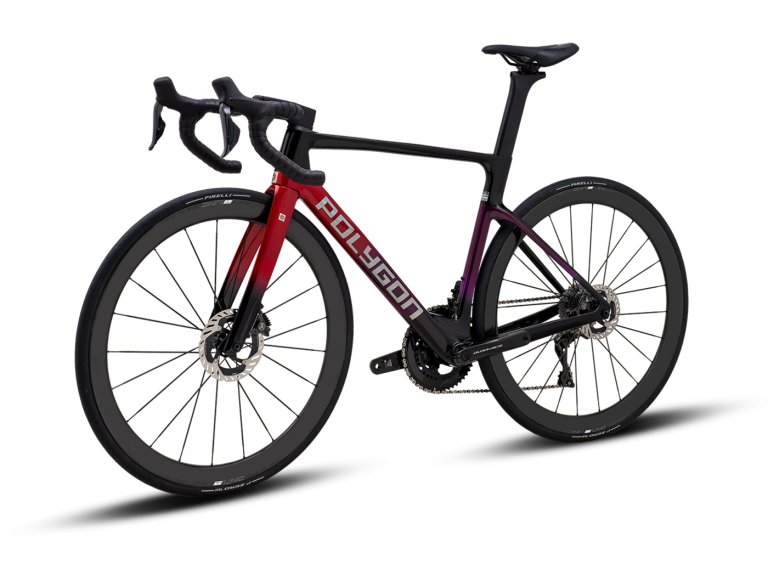

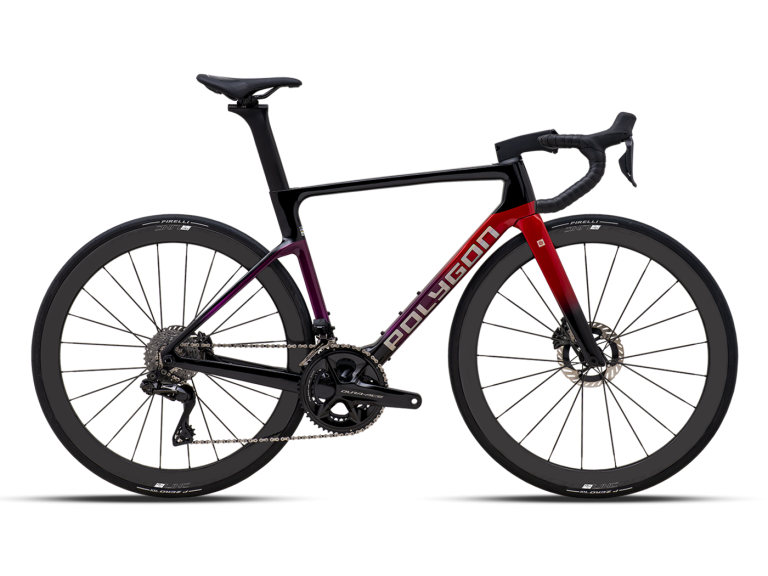

Polygon Helios A9 Di2 Road Bike
Color:
Color
Size:
Size
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Polygon Helios A9 Di2 Road Bike
Red/Purple / L
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609In The Relentless Pursuit Of Speed
Designed To Cut Through Air Better
Introducing the all-new Helios A—the pinnacle of aerodynamic engineering and racing performance. Developed over three years of relentless testing and perfected with the elite UCI Continental Team, TSG, the Helios A is built to dominate any race condition.Refined to be 5.2 seconds faster than its predecessor and lighter than ever, the Helios A is meticulously optimized for speed, agility, and control. Whether battling headwinds or slicing through tight corners, its cutting-edge aerodynamics and balanced stiffness deliver an unmatched ride.This isn’t just a bike—it’s your competitive edge.
Lightweight
Weight is a key factor in proving a high-end road bike’s quality. Our engineers tackled the challenge of trimming grams without sacrificing stiffness—redesigning the ACX carbon frame to shed nearly 150 grams while maintaining top performance.
Superior Power Transfer
We’ve reinforced the bottom bracket for instant power transfer and adopted a T47 threaded system for added stiffness, smooth pedaling, and zero creaks—while up front, a shortened, reinforced head tube sharpens cornering for a decisive edge in every sprint.
Ultimate Aerodynamic Machine
The downtube, as the bike’s aerodynamic core, now features dual bottle cage mounting positions—low for large bottles, high for smaller ones—to reduce drag across setups. Paired with a newly redesigned, sleeker fork, the Helios A now cuts through air more efficiently than ever.
Adaptability
With the new Helios A, Polygon redefines adaptability in road biking. The frame supports both an aero seat post (included) and a 27.2mm round option for added comfort—giving riders full control, whether tackling fast sprints or rough courses. It also fits tires from 28c to 34c, making it ultra-versatile for varying road conditions, and comes equipped with a 45mm carbon rim for balanced performance across the series.
Complete Package
The complete series features a new semi-integrated carbon cockpit—handlebar, stem, and wheels—designed by us and proudly branded under our new component line, LINC. Built to balance performance and comfort, LINC wheels make the bike lighter, faster, and more stable in crosswinds, while maximizing speed on flats. Ideal for modern cyclists who value both performance and elegance.
Specifications
| Frame | ACX PERFORMANCE UCI APPROVED |
|---|---|
| Fork | ACX PERFORMANCE UCI APPROVED |
| Headset | INTEGRATED (IS) SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40 |
| Stem | CARBON 31.8mm, -7.5deg |
| Handlebars | LINC CARBON |
| Wheelset |
LINC BETA CARBON DISC (45mm) W/ TUBELESS TAPE INSTALLED |
| Tyres |
PIRELLI PZERO ROAD TLR 700x28C |
| Shifters |
SHIMANO DURA-ACE Di2 ST-R9270, 2x12-SPEED |
| Rear Derailleur |
SHIMANO DURA-ACE Di2 RD-R9250 DIRECT ATTACH |
| Front Derailleur |
SHIMANO DURA-ACE Di2 FD-R9250 |
| Crankset |
SHIMANO DURA-ACE FC-R9200P 52/36T |
| Cassette |
SHIMANO DURA-ACE CS-R9200-12 11-34T |
| Chain |
KMC X12 EPT 12-SPEED |
| Bottom Bracket |
|
| Brakes |
SHIMANO DURA-ACE HYDRAULIC DISC |
| Rotors SHIMANO DURA-ACE CL900 F:160mm / R:140mm CENTER LOCK | |
| Seatpost | CARBON AERO, DxL: AERO 35 x 351mm |
| Saddle |
LINC FLUX2, CR-MO ø 7mm |
Geometry
| XXS | XS | S | M | L | XL | |
|---|---|---|---|---|---|---|
| Rider Height (cm) | 151-161 | 154-164 | 162-170 | 168-176 | 174-181 | 180-187 |
| Stack | 503 | 511 | 523 | 533 | 551 | 571 |
| Reach | 375 | 385 | 390 | 400 | 405 | 420 |
| Headtube Angle | 71.3 | 71.5 | 72.3 | 72.5 | 72.8 | 73 |
| Headtube Length | 100 | 110 | 120 | 130 | 150 | 170 |
| Seattube Angle | 74.7 | 74.3 | 74 | 73.7 | 73.3 | 73 |
| Seattube Length | 420 | 457 | 489 | 499 | 518 | 536 |
| Toptube (Effective) | 513 | 529 | 540 | 556 | 570 | 598 |
| Chainstay Length | 410 | 410 | 410 | 410 | 410 | 410 |
| Wheelbase | 976 | 988 | 985 | 996 | 1005 | 1024 |
| BB Height | 266 | 268.5 | 271 | 271 | 272.5 | 272.5 |
| BB Drop | 78 | 75.5 | 73 | 73 | 71.5 | 71.5 |
| Standover | 685 | 720 | 752 | 761 | 780 | 799 |
| Stem Length | 100 | 100 | 110 | 110 | 120 | 120 |
| Handlebar Width | 400 | 400 | 420 | 420 | 440 | 440 |
