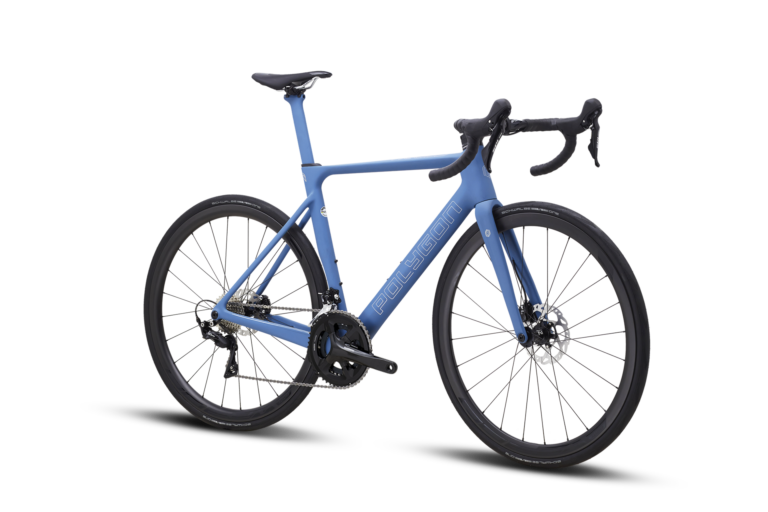

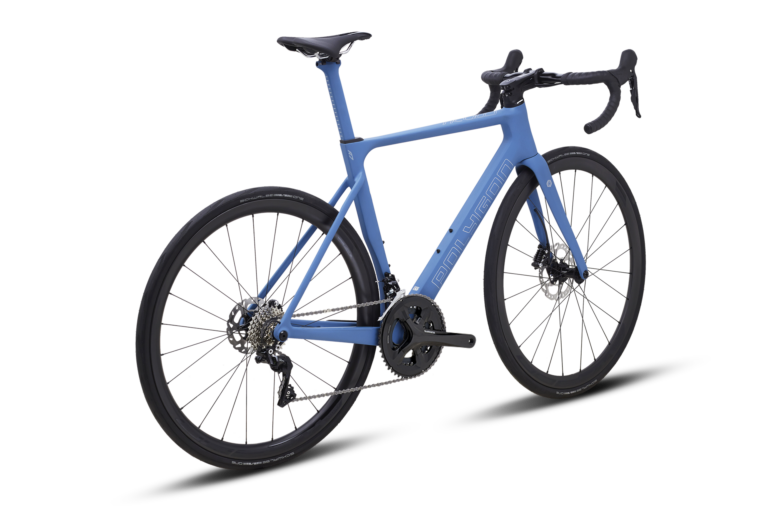

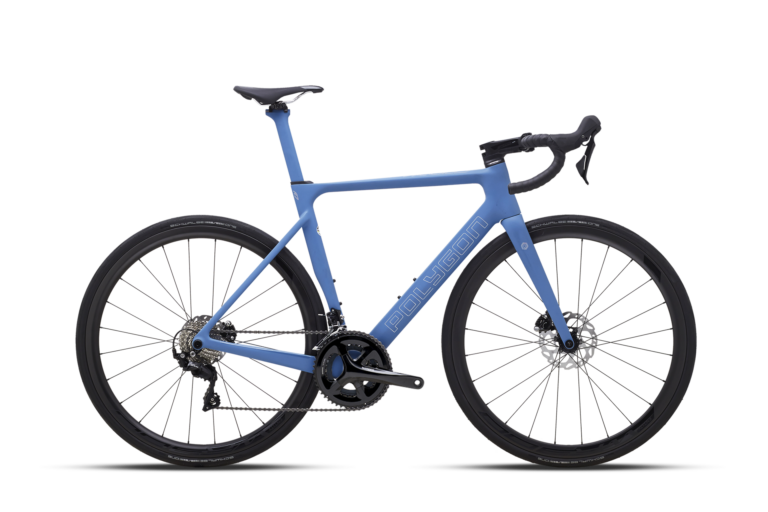

Polygon Helios A7 Road Bike
Polygon Helios A7 Road Bike
Polygon Helios A7 Road Bike

Polygon

Polygon Helios A7 Road Bike

€2,399.00 €2,999.00
Save 20%
Color:

Color
Size:

Size
Quantity:

Availability

In Store: Out of stock
Warehouse: In stock (Usually dispatched within 5-7 days)

Click & Collect

Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

Polygon Helios A7 Road Bike

Cobalt Blue / XXS

Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

Pickup currently unavailable

Unit 9, Hills Hire Centre,
Johnstown Rd,
Dún Laoghaire,
Co. Dublin

012840609

Warehouse

Pickup available, usually ready in 5+ days

Unit 9, Hills Hire Centre,
Johnstown Rd,
Dún Laoghaire,
Co. Dublin

+3532840609

IN THE RELENTLESS PURSUIT OF SPEED

DESIGNED TO CUT THROUGH AIR BETTER
In our pursuit of speed, we cyclists have always seen nature as an adversary. From daunting air drag to coarse road surfaces, we sought to minimize interaction with our surroundings in hopes of achieving optimal efficiency. Helios is here to transform that paradigm because by embracing nature, we can be even faster.

Cuts Through Air

The best teacher of aerodynamics comes from raindrops: the billions that seeks the most efficient way in cutting through air. With this inspiration, the new shape of Helios is designed to cut through air without leaving behind turbulence, thus achieving an industry-leading; 31% reduction in drag over previous generation designs.

Flies On Climbs

We went back to the basic philosophy of a bicycle: how do we leverage the rider’s work in the most efficient way possible? To this end, we reinforced the bottom bracket and right chainstay to instantaneously transmit pedaling power to the wheels. In addition, with one of the lightest frames at only 800 grams, it is designed to defy gravity and fly even in the most arduous of climbs.

Synchronised To The Human Body

At the end of the day, we designed Helios with its rider in mind. Few tracks are ever completely smooth or straight. The reinforcements, in conjunction with clearance for wider tires that is proven to minimize rolling resistance, enable the rider of this bike to best control, corner, and conquer.

HELIOS A9X C60 POWERMETER HELIOS A9X DURA ACE C60 HELIOS A9X ENTITY WR5 POWER METER HELIOS A9X ENTITY WR5 HELIOS A8X HELIOS A7X
Frame ACX PERFORMANCE UCI APPROVED ACX PERFORMANCE UCI APPROVED ACX PERFORMANCE UCI APPROVED ACX PERFORMANCE UCI APPROVED ACX PERFORMANCE UCI APPROVED ACX PERFORMANCE UCI APPROVED
Fork ACX PERFORMANCE UCI APPROVED ACX PERFORMANCE UCI APPROVED ACX PERFORMANCE UCI APPROVED ACX PERFORMANCE UCI APPROVED ACX PERFORMANCE UCI APPROVED
Headset INTEGRATED SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40 INTEGRATED SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40 INTEGRATED SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40 INTEGRATED SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40 INTEGRATED SEALED BEARING FOR OS HEAD TUBE, IS 52/28.6 | IS 52/40
Stem VISION METRON 5D ACR INTEGRATED, EXT: 100mm (XS, S) / 110mm (M, L) / 120mm (XL), BB: INTEGRATED, R/D: 6degree VISION METRON 5D ACR INTEGRATED, EXT: 100mm (XS, S) / 110mm (M, L) / 120mm (XL), BB: INTEGRATED, R/D: 6degree VISION METRON 5D ACR INTEGRATED, EXT: 100mm (XS, S) / 110mm (M, L) / 120mm (XL), BB: INTEGRATED, R/D: 6degree
 VISION METRON 5D ACR INTEGRATED, EXT: 100mm (XS, S) / 110mm (M, L) / 120mm (XL), BB: INTEGRATED, R/D: 6degree
 VISION METRON 5D ACR INTEGRATED, EXT: 100mm (XS, S) / 110mm (M, L) / 120mm (XL), BB: INTEGRATED, R/D: 6degree BLKTEC R8 INTEGRATED, EXT: 100mm (XXS, XS, S) / 110mm (M, L) / 120mm (XL), BB: INTEGRATED, R/D: 0 Degree
Handlebars VISION METRON 5D ACR INTEGRATED, W: 400mm (XS, S) / 420mm (M, L) / 420mm (XL), R/D: 125mm, BB: INTEGRATED, B/R: 80mm VISION METRON 5D ACR INTEGRATED, W: 400mm (XS, S) / 420mm (M, L) / 420mm (XL), R/D: 125mm, BB: INTEGRATED, B/R: 80mm VISION METRON 5D ACR INTEGRATED, W: 400mm (XS, S) / 420mm (M, L) / 420mm (XL), R/D: 125mm, BB: INTEGRATED, B/R: 80mm VISION METRON 5D ACR INTEGRATED, W: 400mm (XS, S) / 420mm (M, L) / 420mm (XL), R/D: 125mm, BB: INTEGRATED, B/R: 80mm
 VISION METRON 5D ACR INTEGRATED, EXT: 100mm (XS, S) / 110mm (M, L) / 120mm (XL), BB: INTEGRATED, R/D: 6degree BLKTEC R8 INTEGRATED, W: 400mm (XXS, XS, S) / 420mm (M, L, XL), BB: INTEGRATED, R/D: 0, B: 0
Wheels SHIMANO DURA-ACE WH-R9270-C60-HR-TL (60mm) TUBELESS SHIMANO DURA-ACE WH-R9270-C60-HR-TL (60mm) TUBELESS ENTITY WR5 DISC (50mm) W/ TUBELESS TAPE INSTALLED​ ENTITY WR5 DISC (50mm) W/ TUBELESS TAPE INSTALLED​ ENTITY WR5 DISC (50mm) W/ TUBELESS TAPE INSTALLED ENTITY WR5 DISC (50mm) W/ TUBELESS TAPE INSTALLED
Rims CARBON 622-19 24H FOR TYRE 622-28/62 DISC TUBELESS READY CARBON 622-19 24H FOR TYRE 622-28/62 DISC TUBELESS READY
Spokes STAINLESS STRAIGHT PULL BUTTE F: STAINLESS STRAIGHT PULL BUTTED F: NDS:264mm DS:266mm / R: NDS:266mm DS:263mm
Hubs F: ALLOY THRU AXLE 12x100mm 24H SEALED BEARINGS CENTER LOCK / R: ALLOY THRU AXLE 12x142mm 24H SEALED BEARINGS CENTER LOCK F: ALLOY 12x100mm 24H SEALED BEARINGS CL / R; ALLOY 12x142mm 24H SEALED BEARINGS CL
Tyres SCHWALBE ONE ADDIX TLE 700x28C SCHWALBE ONE ADDIX TLE 700x28C SCHWALBE ONE ADDIX TLE 700x28C SCHWALBE ONE ADDIX TLE 700x28C SCHWALBE ONE ADDIX TLE 700x28C SCHWALBE ONE ADDIX TLE 700x28C
Shifter Shimano Dura Ace ST-R9270 Di2 12-Speed Shimano Dura Ace ST-R9270 Di2 12-Speed Shimano Dura Ace ST-R9270 Di2 12-Speed Shimano Dura Ace ST-R9270 Di2 12-Speed SHIMANO ULTEGRA Di2 ST-R8170, 2x12-SPEED DCL SHIMANO 105 Di2 ST-R7170, 2x12 SPEED BRIFTER
Rear Derailleur SHIMANO DURA-ACE Di2 RD-R9250 DIRECT ATTACH SHIMANO DURA-ACE Di2 RD-R9250 DIRECT ATTACH SHIMANO DURA-ACE Di2 RD-R9250 DIRECT ATTACH Shimano Dura Ace Di2 RD-R9250 12-Speed DA SHIMANO ULTEGRA Di2 RD-R8150 SHIMANO 105 Di2 RD-R7150
Front Derailleur Shimano Dura Ace Di2 FD-R9250 12-Speed DA Shimano Dura Ace Di2 FD-R9250 12-Speed DA Shimano Dura Ace Di2 FD-R9250 12-Speed DA Shimano Dura Ace Di2 FD-R9250 12-Speed DA SHIMANO ULTEGRA Di2 FD-R8150 SHIMANO 105 Di2 FD-R7150
Crankset SHIMANO DURA-ACE FC-R9200 52/36T W/ POWER METER, CRANK ARM: 170mm (XS, S, M) / 172.5mm (L, XL) SHIMANO DURA-ACE FC-R9200 52/36T, 170mm (XS, S, M) / 172.5mm (L, XL) Shimano Dura Ace FC-R9200-P 52-36t 170mm w/ Power Meter (XS,S,M) 172.5mm (L,XL) Shimano Dura Ace FC-R9200-P 52-36t 170mm (XS,S,M) 172.5mm (L,XL) SHIMANO ULTEGRA FC-R8100 52/36T, CRANK ARM: 170mm (XS, S, M) / 172.5mm (L, XL) SHIMANO FC-R7100, 50/34T CRANK ARM 170MM (XXS, XS, S, M) / 172.5MM (L, XL)
Cassette SHIMANO DURA-ACE CS-R9200-12 11-34T SHIMANO DURA-ACE CS-R9200-12 11-34T SHIMANO DURA-ACE CS-R9200-12 11-34T Shimano Dura Ace CS-R9200 12-Speed 11-34T SHIMANO ULTEGRA CS-R8100-12 11-34T SHIMANO 105 CS-R7100-12 11-34T
Chain SHIMANO CN-M8100 12-SPEED SHIMANO CN-M8100 12-SPEED SHIMANO CN-M8100 12-SPEED Shimano CN-M8100 12-Speed Quick-Link SHIMANO CN-M8100 12-SPEED KMC X12
Bottom Bracket SHIMANO SM-BB92-41B, PRESSFIT BB86 SHIMANO SM-BB92-41B, PRESSFIT BB86 Bottom Bracket Shimano KSMBB9241B For Road Bottom Bracket Shimano KSMBB9241B For Road SHIMANO SM-BB92-41B, PRESSFIT BB86 SHIMANO BB-RS500 PRESSFIT 86
Brakes SHIMANO DURA-ACE HYDRAULIC DISC SHIMANO DURA-ACE HYDRAULIC DISC SHIMANO DURA-ACE BR-R9270 SHIMANO DURA-ACE BR-R9270 SHIMANO ULTEGRA HYDRAULIC DISC SHIMANO 105 BR-R7170
Rotors SHIMANO DURA-ACE RT-MT900 F:160mm / R:140mm CENTER LOCK SHIMANO DURA-ACE RT-MT900 F:160mm / R:140mm CENTER LOCK ​ SHIMANO DURA-ACE RT-MT900 F:160mm / R:140mm CENTER LOCK​ SHIMANO DURA-ACE RT-MT900 F:160mm / R:140mm CENTER LOCK​ SHIMANO ULTEGRA SHIMANO SM-RT70 F:160mm / R:140mm CL
Seatpost Carbon 35 x 337mm (XS) / 357mm (S,M,L & XL) Carbon 35 x 337mm (XS) / 357mm (S,M,L & XL) Carbon 35 x 337mm (XS) / 357mm (S,M,L & XL) Carbon 35 x 337mm (XS) / 357mm (S,M,L & XL) CARBON, AERO 35 x 337mm (XS) / 357mm (S, M, L, XL) CARBON, AERO 35 x 306mm (XXS) / 337mm (XS) / 357mm (S, M, L, XL)
Saddle Entity Flux2, Cr-Mo Rail Entity Flux2, Cr-Mo Rail Entity Flux2, Cr-Mo Rail Entity Flux2, Cr-Mo Rail ENTITY FLUX2, CR-MO ø 7mm ENTITY FLUX2, CR-MO ø 7mm


Geometry

XXS XS S M L XL
Stack 505 520.21 535.2 550.4 564.7 580.8
Reach 370 375 380 385 390 395
Headtube Angle 71.5 71.8 72 72.3 72.3 72.8
Headtube Length 100 115 130 145 160 175
Seattube Angle 75 74.7 74.3 74 73.7 73.3
Seattube Length 450 475 500 520 545 570
Toptube (Effective) 505.31 517.31 530.42 543.04 555.14 569.25
Chainstay Length 415 415 415 415 415 415
Wheelbase 968.82 975.82 983.9 991.1 1000.62 1005.8
BB Height 271 271 271 271 271 271
BB Drop 73 73 73 73 73 73
Standover 715.04 739.4 763.21 780.8 802.52 824.28
