Polygon

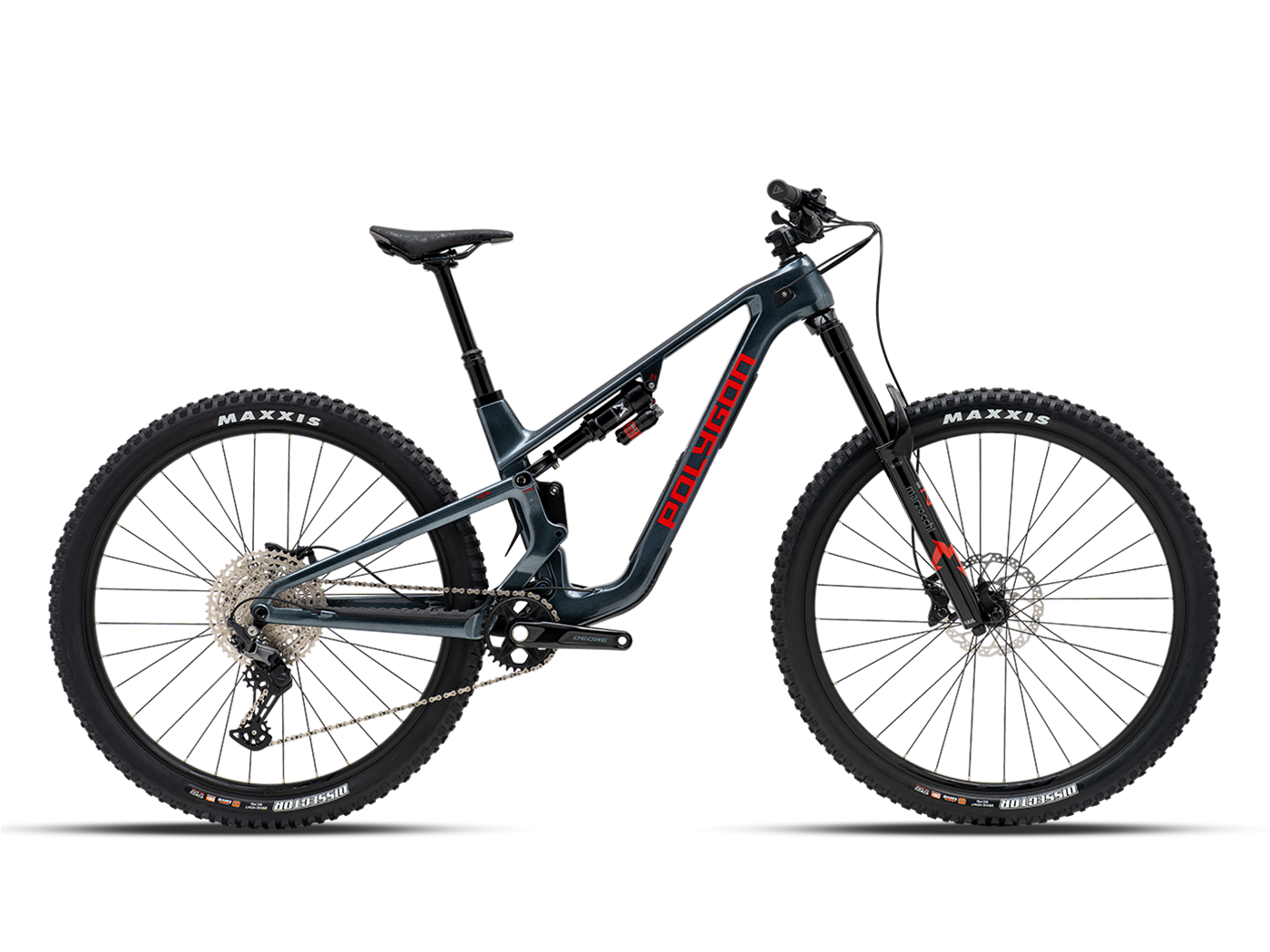

Polygon Collosus T6 Carbon Full Suspension MTB
Color
Size
Click & Collect
Polygon Collosus T6 Carbon Full Suspension MTB
Grey / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609As trails get steeper, rougher, and wilder, the bikes we ride must rise to match. The Collosus T Series rises to meet this new era of aggressive trail riding. Performance wise, it’s it’s lighter and more nimble than the enduro-focused Collosus N, yet more confident and capable on descents than the versatile Siskiu T. Born from the chaos of modern trails, it’s built to charge harder, corner deeper, and descent confidently.
Adjustable Geometry
Riders can adjust the bottom bracket height and switch between 29” and mullet setups using the rear wheel and shock mount flip chips. Additionally, half-spherical headset bearings allow precise head angle tuning (+/-0.75°) for optimal adaptability across any terrain
IFS Suspension Design
The heart of the IFS system lies in the twin link at the base of the seat tube. On the Collosus T, the compact IFS uses separated links for greater flexibility while maintaining anti-squat performance. This placement also increases rear triangle stiffness for sharper handling and better control.
Polypocket Frame Storage
Our proprietary PolyPocket keeps your essentials secure and within reach. The insert bag attaches with a Velcro backing for a rattle-free fit, includes a stopper to prevent sliding toward the bottom bracket, and integrates cable guides for a clean, organized look.
UDH Dropout
With the UDH dropouts, the Collosus T is now compatible with T-Type drivetrains for seamless integration with modern shifting systems.
Specifications
| Frame | ACX TRAIL 140mm TRAVEL |
|---|---|
| Fork | MARZOCCHI BOMBER Z1 160mm TRAVEL |
| Rear Shock | MARZOCCHI BOMBER AIR , E2E: 210x55mm |
| Headset | FSA NO.76 ALLOY TOP COVER, THREADLESS, ZS 51/28.6 | ZS 59/40 |
| Stem | ALLOY, EXT: 35mm, BB: 35mm, R/D: 0degree |
| Handlebars | RACE FACE CHESTER 35, W: 780mm, BB: 35mm, R/D: 35mm, B: 8degree |
| Rims | F: ALLOY DOUBLE WALL H:18mm W: 30mm 622-30 32H FOR TYRE 622-54/76 TL READY / R: ALLOY DOUBLE WALL H:18mm W: 30mm 622-30 32H FOR TYRE 622-54/76 TL READY |
| Spokes | F: 14G STAINLESS NDS:290mm DS:292mm W/ 12mm BRASS NIPPLE / R: 14G STAINLESS NDS:294mm DS:292mm W/ 12mm BRASS NIPPLE |
| Hubs | F: SHIMANO TC-500 BOOST 15x110mm 32H CL / R: SHIMANO TC-500 12x148mm 32H CL FOR MICRO SPLINE |
| Tyres | MAXXIS DISSECTOR 29"x2.40" |
| Rear Shifter | SHIMANO DEORE SL-M6100-R, 1x12-SPEED TRIGGER |
| Rear Derailleur | SHIMANO DEORE M6100, SHADOW RD+ |
| Crankset | SHIMANO MT6120, 32T |
| Cassette | SHIMANO DEORE M6100, 10-51T |
| Chain | KMC X-12 |
| Bottom Bracket | BSA THREADED, 73mm |
| Brakes | SHIMANO MT420, HYDRAULIS DISC |
| Brake Levers | SHIMANO M4100 |
| Rotors | SHIMANO RT54, 180mm |
| Seatpost | TRANZ X JD-YSP39KL 150mm (S, M) / 170mm (L, XL) TRAVEL, DxL: 34.9x456mm (S, M) / 495mm (L, XL) |
| Saddle | XTENT |
| Pedals | ALLOY FLAT W/ REPLACEABLE PIN |
Geometry

| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 613 | 618 | 627 | 640 |
| Reach | 440 | 465 | 485 | 505 |
| Headtube Angle | 64.5 | 64.5 | 64.5 | 64.5 |
| Headtube Length | 90 | 95 | 105 | 120 |
| Seattube Angle | 77 | 77 | 77 | 77 |
| Seattube Length | 390 | 400 | 415 | 430 |
| Toptube (Effective) | 572 | 598 | 621 | 645 |
| Chainstay Length | 430 | 430 | 435 | 435 |
| Wheelbase | 1192 | 1219 | 1248 | 1274 |
| BB Height | 338 | 338 | 338 | 338 |
| BB Drop | 38 | 38 | 38 | 38 |
| Standover | 687 | 691 | 704 | 704 |
| Rider Height (cm) | 155-165 | 165-175 | 175-185 | 185-195 |
