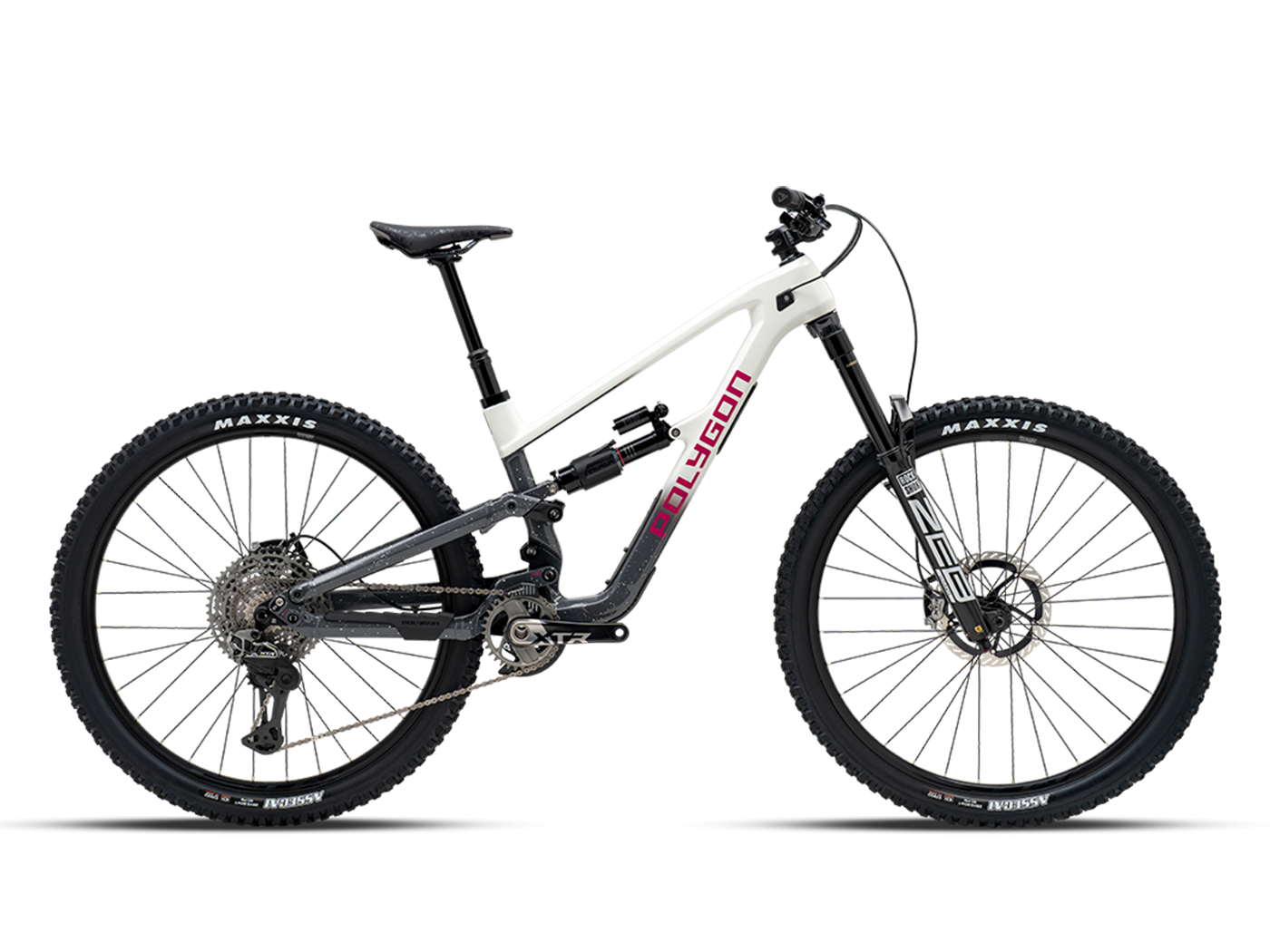

Polygon Collosus N9 Di2 Carbon Enduro Bike
Color:
Color
Size:
Size
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Polygon Collosus N9 Di2 Carbon Enduro Bike
White / L
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609RELEASE THE BEAST
Ride faster, track better, leave them in the dust
The next generation of our flagship enduro machine—lighter, faster, and more adjustable than ever. Shaped by feedback from our pro athletes and proven on the world stage with Polygon Factory Racing in the 2022 Enduro World Series Industry Trophy, the new Collosus N takes everything they demanded and pushes it further. The carbon front triangle not only saves weight but also improves control and damping, making every ride more confident and comfortable.A carbon front triangle drops 500g without sacrificing strength. Flip-chips keep BB height consistent when switching between MX and 29” setups, while a tapered headtube opens the door for angle- and reach-adjust headsets.At its core, the proven IFS system delivers efficient pedaling and precise handling for high-speed hits. With rider-driven upgrades like the PolyPocket and advanced dropper post, the 2025 Collosus N isn’t just an evolution—it’s the ultimate tool for pros and riders chasing podiums. Available in Carbon/Alloy or full Alloy, both rolling as full 29ers.

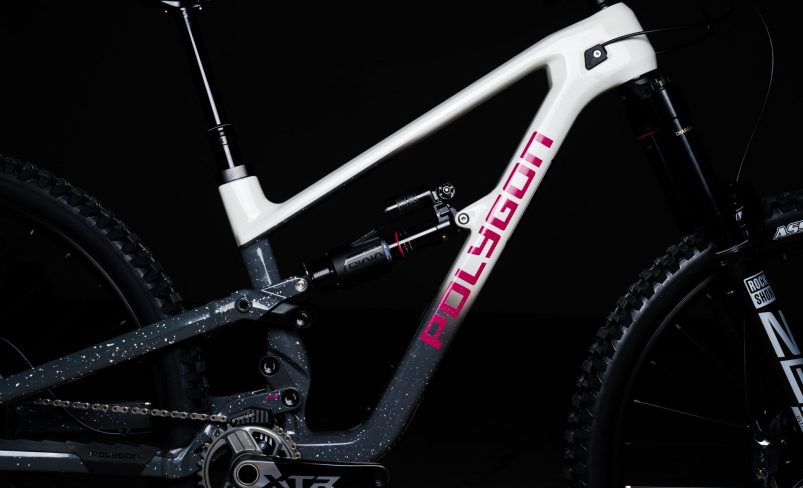

Carbon Up Front
The new design features a carbon front triangle, giving the bike a noticeably lighter feel on both the trails and the scales. Its stiffer front end makes it more responsive and fun to ride.
Built For Balance
With a slack 63.5° head angle, compact 435mm chainstays, and grippy 29x2.5” tires, the Collosus N9 delivered the sweet spot of stability and agility.

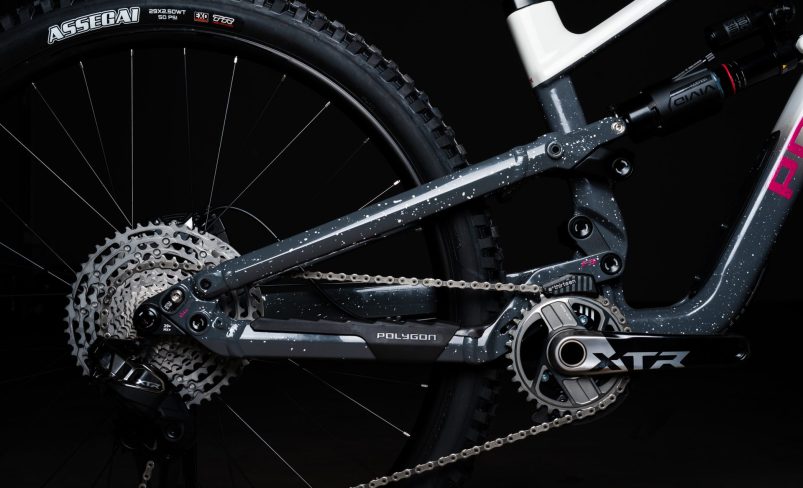

No Compromise Suspension Performance
Our innovative Independent Floating Suspension System is engineered to control wheel path and anti-squat independently to the leverage curve, ensuring optimal performance across varied terrain.

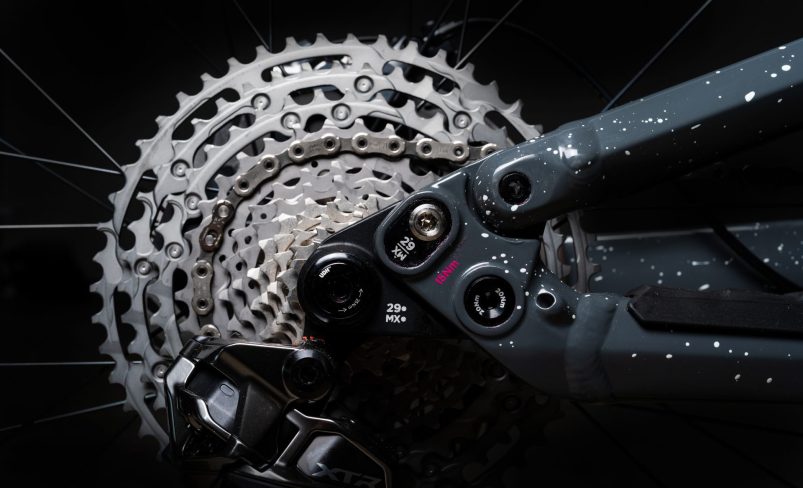

Mixed Wheel or Full 29"
The second-generation Collosus N lets riders switch between MX and 29” wheels while maintaining geometry - at just a flip of a switch.

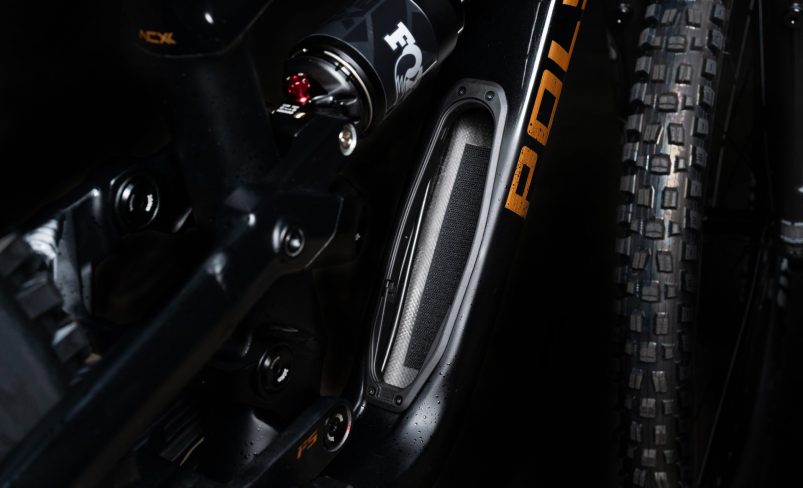

Polypocket Frame Storage
Our proprietary PolyPocket system keeps your essentials secure and within reach. It features an insert bag with Velcro backing for a rattle-free fit, a stopper to keep it from sliding toward the BB, and integrated cable guides for a clean look.
Specifications
| Collosus TE0 | Collosus TE8 | |
|---|---|---|
| Frame | ACX & ALX ENDURO 170mm TRAVEL | ACX & ALX ENDURO 170mm TRAVEL |
| Fork | ROCKSHOX ZEB ULTIMATE, 170mm TRAVEL | FOX 38 FLOAT PERFORMANCE, 170mm TRAVEL |
| Rear Shock | ROCKSHOX VIVID SELECT+, E2E: 230x65mm | FOX FLOAT X2, E2E: 230x65mm |
| Headset | FSA NO.57E W/ SEALED BEARING ZS 44/28.6 | ZS 56/40 | FSA NO.57E W/ SEALED BEARING, ZS 44/28.6 | ZS 56/40 |
| Stem | RACE FACE AEFFECT R 35, EXT: 40mm, BB: 35mm, R/D: 0degree | RACE FACE AEFFECT R 35, EXT: 40mm, BB: 35mm, R/D: 0degree |
| Handlebars | RACE FACE CHESTER 35, W: 780mm, BB: 35mm, R/D: 35mm, B: 8degree | RACE FACE CHESTER 35, W: 780mm, BB: 35mm, R/D: 35mm, B: 8degree |
| Rims | ALLOY DOUBLE WALL H:18mm W: 30mm 622-30 32H FOR TYRE 622-54/76 TL READY | ALLOY DOUBLE WALL H:18mm W: 30mm 622-30 32H FOR TYRE 622-54/76 TL READY |
| Spokes | F: 14G STAINLESS NDS:290mm DS:292mm W/ 12mm BRASS NIPPLE / R: 14G STAINLESS NDS:294mm DS:292mm W/ 12mm BRASS NIPPLE | F: 14G STAINLESS NDS:290mm DS:292mm W/ 12mm BRASS NIPPLE / R: 14G STAINLESS NDS:294mm DS:292mm W/ 12mm BRASS NIPPLE |
| Hubs | F: SHIMANO XT HB-M8110-B BOOST 15x110mm 32H CL / R: SHIMANO DEORE XT FH-M8110-B BOOST 12x148mm 32H CL FOR MICRO SPLINE | F: NOVATEC D791SB BOOST 15x110mm 32H 6B / R: NOVATEC D462SB BOOST 12x148mm 32H 6B FOR XD |
| Tyres | MAXXIS ASSEGAI 29"x2.5" (622-63) | MAXXIS ASSEGAI 29"x2.5" (622-63) |
| Shifter | SHIMANO XTR DI2 SW-M9250 I-SPEC EV, 1x12-SPEED | SRAM GX SL-GX-1-A2, 1x12-SPEED TRIGGER |
| Rear Derailleur | SHIMANO XTR DI2 RD-M9250 | SRAM GX EAGLE GX-1-B2 |
| Crankset | SHIMANO XTR FC-M9220, 32T | SRAM GX EAGLE, 32T |
| Cassette | SHIMANO XTR CS-M9200 10-51T | SRAM GX EAGLE XG 1275 10-52T |
| Chain | SHIMANO XTR CN-M9100 | SRAM GX EAGLE |
| Bottom Bracket | SHIMANO SM-BB93 |
SRAM DUB BSA THREADED |
| Brake Levers | SHIMANO XTR BL-M9220 | MAGURA MT7 W/ HC3 LEVER |
| Rotors | SHIMANO CL-900, 203mm | MAGURA MDR-C, 203mm 6B |
| Seatpost | TRANZ X JD-YSP39KL 150mm (S, M) / 170mm (L, XL) TRAVEL, DxL: 34.9 x 456mm (S, M) / 495mm (L, XL) | TRANZ X JD-YSP39KL, 150mm (S, M) / 170mm (L, XL) TRAVEL, DxL: 34.9 x 456mm (S, M) / 495mm (L, XL) |
| Saddle | LINC XTENT | LINC XTENT, CR-MO ø7mm |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 6255 | 630 | 634.5 | 643.4 |
| Reach | 440 | 460 | 480 | 500 |
| Headtube Angle | 63.5 | 63.5 | 63.5 | 63.5 |
| Headtube Length | 100 | 105 | 110 | 120 |
| Seattube Angle | 77 | 77 | 77 | 77 |
| Seattube Length | 390 | 400 | 415 | 430 |
| Toptube (Effective) | 583.6 | 604.6 | 626.4 | 647.7 |
| Chainstay Length | 435 | 435 | 435 | 435 |
| Wheelbase | 1221.7 | 1244 | 1266.2 | 1290.7 |
| BB Height | 353 | 353 | 353 | 353 |
| BB Drop | 27 | 27 | 27 | 27 |
| Standover | 710 | 716 | 717 | 720 |
| Rider Height | 155-165 | 165-175 | 175-185 | 185-195 |
