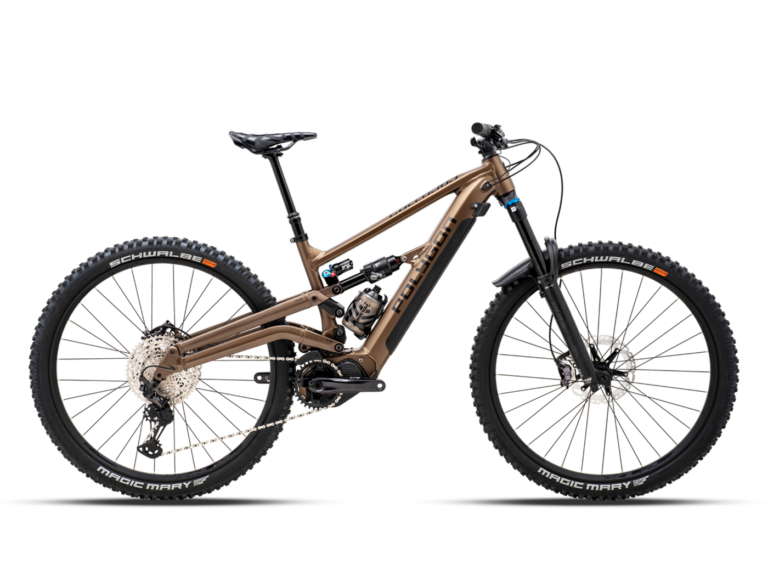

Polygon Collosus N8E Electric Mountain Bike
Color:
Color
Size:
Size
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Polygon Collosus N8E Electric Mountain Bike
Metallic Brown / M
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609
FUN REDEFINED
RIDE FURTHER, FASTER, FUN LIKE NEVER BEFORE
The Collosus N has been developed to meet the needs of all riders. At the heart of it all, the IFS 6-bar linkage creates an efficient pedaling platform for sprinting and climbing with precise handling whilst eating big hits at high speed. Making it suitable for your everyday weekend warrior up to your World Enduro Racers.
The 6-bar Independent Floating Suspension platform provides 160mm of optimized wheel path to swallow square-edge hits and remain active under braking, while the independent shock leverage allows supple sensitivity with progressive support for composure in the rowdiest of rock gardens.
The IFS platform’s separation of wheel path from shock leverage also allows highly efficient power transfer without sacrificing small bump compliance. Put your power down and Shimano STEPS delivers a mountain more, direct to the ground on even the chunkiest trails.
When your business is going fast, 29” wheels deliver unrivaled performance when the trails get gnarly. Their inherently optimal roll over and a long contact patch provide all the braking, cornering and climbing traction you desire, while 2.6” wide Schwalbe Super Gravity tires strike the balance of cushion and precision.
The Collosus N8E features a slack 64.5° head angle with long reach and low bottom bracket. Combined with the 29” wheels and short offset fork for a long trail, the stability and high-speed composure is confidence inspiring.
On the other hand, agility is achieved by one of the shortest rear center lengths in category, possible thanks to the IFS wheel path and elevated chainstay design. Despite the 435mm rear center, The Collosus N8E confidently conquers the steepest climbs thanks to the steep 77° seat angle and low, forward center of gravity.
The Collosus N8E features the proven Shimano STEPS EP8 2.7kg motor which seamlessly provides up to 85Nm of torque for solid performance. Rigid, durable and weatherproof for confidence on any adventure.
Specifications
| Collosus N8XE | Collosus N8E | ||
|---|---|---|---|
| Frame | ALX AM/ENDURO 160mm TRAVEL | ALX ENDURO FRAME | |
| Fork | FOX 38 FLOAT FACTORY | FOX 38 FLOAT PERFORMANCE, FLOAT EVOL, 160mm TRAVEL, OFFSET: 44mm, GRIP, 3POS, W/ FENDER | |
| Rear Shock | FOX FLOAT X2 FACTORY | FOX FLOAT X2, AIR SPRING, 2 POSITION ADJUST, HSC-LSC, HSR-LSR, E2E: 205x65mm | |
| Stem | RACE FACE AFFECT R 35, EXT:40mm, BB: 35mm, R/D: 0mm | ENTITY, W: 780mm, BB: 35mm, R/D: 25mm, B: 9degree | |
| Handlebars | RACE FACE AFFECT R 35, W: 780mm, BB: 35mm, R/D: 20mm, B: 8degree | ENTITY, EXT: 35mm, BB: 35mm, R/D: 0degree | |
| Wheels | XL2 TUBELESS READY | ENTITY XL3 TUBELESS READY | |
| Tyres | SCHWALBE MAGIC MARY EVO 29"x2.60" 622x65 SUPER GRAVITY TLE ADDIX SOFT | SCHWALBE MAGIC MARY EVO 29"x2.60" 622x65 SUPER GRAVITY TLE ADDIX SOFT | |
| Shifter | SHIMANO XT Di2 SW-M8150, 1x12-SPEED I-SPEC EV | SHIMANO XT SL-M8100-R 1X12-SPEED TRIGGER | |
| Rear Derailleur | SHIMANO XT Di2 RD-M8150 |
|
|
| Crankset | SHIMANO SM-CRE80-12-B 34T | SHIMANO SM-CRE80-12-B 34T CHAINRING | |
| Cassette | SHIMANO XT CS-M8100 10-51T MICROSPLINE | SHIMANO DEORE CS-M6100 12-SPEED 10-51T | |
| Chain | KMC E12 FOR 12-SPEED | KMC E12 FOR 12-SPEED | |
| Bottom Bracket | Shimano Hollowtech | Shimano Hollowtech | |
| Brakes | SHIMANO XT M8120 HYDRAULIC DISC | SHIMANO XT M8120 HYDRAULIC DISC | |
| Brake Levers | SHIMANO XT BL-M8100 | SHIMANO XT BL-M8100 | |
| Rotors | F: SHIMANO RT-MT800 203 CL / R: SHIMANO RT-EM810 203 CL | F: SHIMANO RT-MT800 203 CL / R: SHIMANO RT-EM810 203 CL | |
| Seatpost | FOX TRANSFER FACTORY SERIES 150mm (S, M) / 175mm (L, XL) TRAVEL, DxL: 30.9x418mm (S, M) / 475mm (L, XL) | TRANZ X JD-YSP23JL 150mm (S, M) / 170mm (L, XL) TRAVEL, DxL: 30.9 x 459mm (S, M) / 499mm (L, XL) | |
| Saddle | XTEND | XTEND | |
| Motor | SHIMANO DU-EP801 MID MOTOR 25kph / 20mph | SHIMANO DU-EP801 MID MOTOR (25kph / 20mph) | |
| Battery | SHIMANO BT-EN806 FOR DOWN TUBE INTEGRATED - 630Wh (36V, 14Ah) | SHIMANO BT-EN806 FOR DOWN TUBE INTEGRATED - 630Wh (36V, 17.5Ah) | |
| Display | SHIMANO EW-SS301 W/ 760mm CABLE | SHIMANO EW-SS301 W/ 760mm CABLE | |
| Charger | Shimano Steps | Shimano Steps |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 626.16 | 630.68 | 635.19 | 644.22 |
| Reach | 450 | 470 | 490 | 510 |
| Headtube Angle | 64.5 | 64.5 | 64.5 | 64.5 |
| Headtube Length | 100 | 105 | 110 | 120 |
| Seattube Angle | 77 | 77 | 77 | 77 |
| Seattube Length | 400 | 410 | 420 | 430 |
| Toptube (Effective) | 594.56 | 615.6 | 636.65 | 658.73 |
| Chainstay Length | 435 | 435 | 435 | 435 |
| Wheelbase | 1212.09 | 1234.25 | 1256.4 | 1280.7 |
| BB Height | 345 | 345 | 345 | 345 |
| BB Drop | 35 | 35 | 35 | 35 |
| Standover | 710 | 710 | 710 | 710 |
