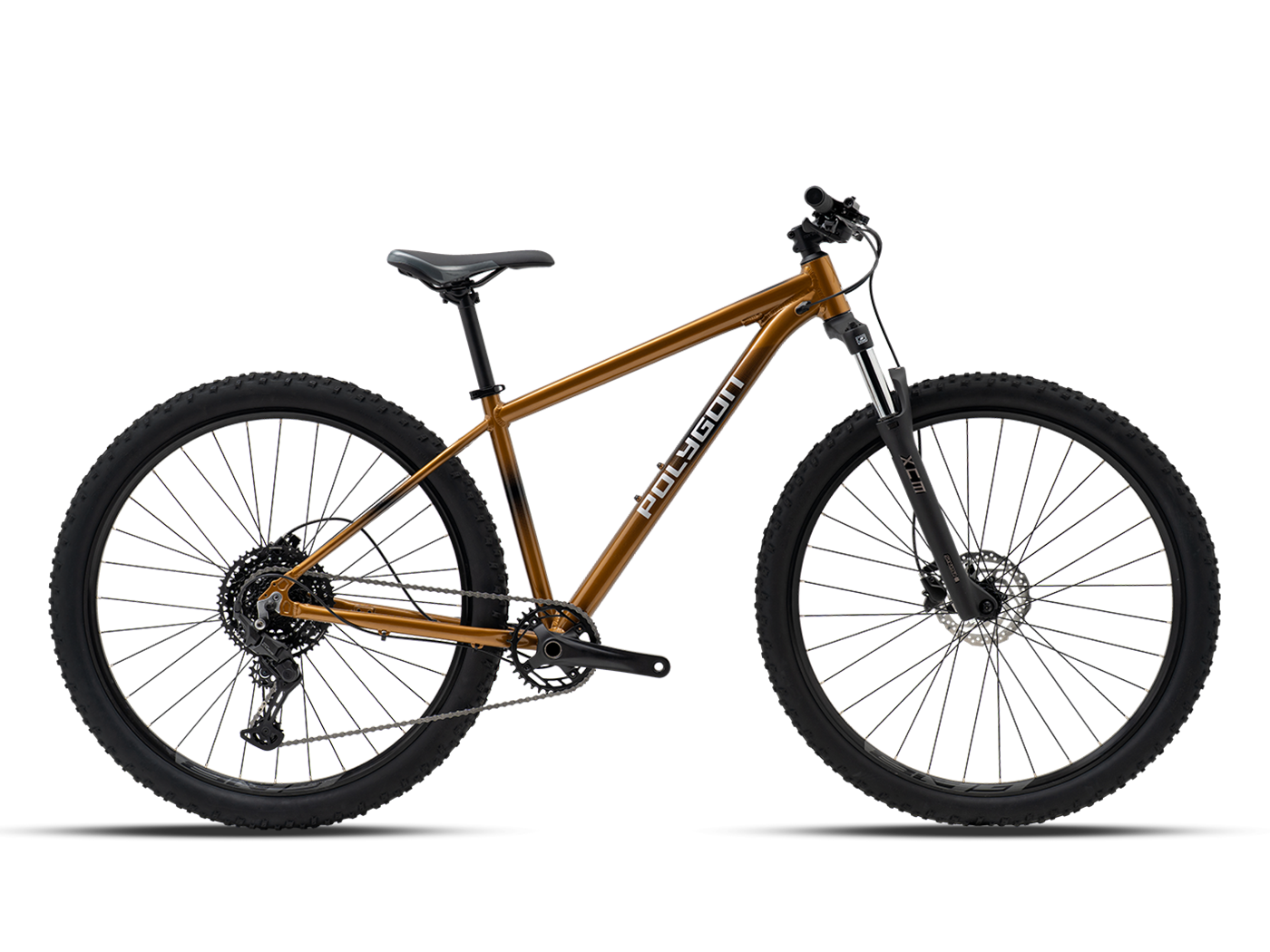

Polygon Cascade 5 Hardtail MTB
Brown / M - 29"
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup available, usually ready in 24 hours
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609THE SORCERER
Our all-time sorcerer -- Cascade 5, born for you who are planning to go for recreational riding on the weekends and feel the mountains. The Cascade 5 MTB is built with a lightweight and durable AL6 frame with modern geometry for a more comfortable ride. The component spec includes: 27.5” wheels for less rolling resistance, a 100mm travel suspension fork to smooth out the bumps while riding down fire roads, and disc brakes to keep riders in control. Be ready to be enchanted by our sorcerer and start loving mountains even more.
Features:
- Upright Geometry for comfortable ride
- Light yet durable alloy frame
- Fast, responsive, indexed shifting
Specification
| Frame | ALX XC SPORT FRAME |
|---|---|
| Fork |
SUNTOUR XCM 32 100MM TRAVEL |
| Headset | ZERO STACK W/ SEALED BEARING, ZS 44/28.6 | ZS 44/30 |
| Stem | POLYGON SPORT E: 40MM, B: 31.8MM, R/D: 7 |
| Handlebars | POLYGON SPORT W: 700MM, B: 31.8MM, R/D: 20MM |
| Wheels | ALLOY DOUBLE WALL |
| Tyres | DELI 27.5" / 29"x2.25" |
| Shifter |
SHIMANO CUES SL-U6000, 1x10-RAPID FIRE |
| Rear Derailleur |
SHIMANO CUES RD-U6000GS |
| Crankset |
PROWHEEL CHARM, 36T |
| Cassette |
SHIMANO CUES CS-LG300, 11-48T |
| Chain |
KMC X-GLIDE |
| Bottom Bracket |
PROWHEEL TWO PIECE BB |
| Brakes |
SHIMANO MT200 |
| Rotors | SHIMANO SM-RT10, 160mm |
| Seatpost | ALLOY SEATPOST 27.2x350mm |
| Saddle | BLACK STEEL ø7mm |
| Pedals | ONE PIECE PP BODY |
Geometry
| XS - 27.5" | S - 27.5" | S - 29" | M - 29" | L - 29" | XL - 29" | |
|---|---|---|---|---|---|---|
| Stack | 596 | 601 | 620 | 624 | 629 | 638 |
| Reach | 380 | 400 | 400 | 420 | 440 | 450 |
| Headtube Angle | 69 | 70 | 68 | 69 | 68 | 68 |
| Headtube Length | 110 | 115 | 90 | 95 | 100 | 110 |
| Seattube Angle | 75 | 75 | 73 | 74 | 75 | 75 |
| Seattube Length | 360 | 390 | 390 | 430 | 460 | 490 |
| Toptube (Effective) | 539 | 561 | 566 | 585 | 604 | 624 |
| Chainstay Length | 440 | 440 | 455 | 455 | 455 | 455 |
| Wheelbase | 1085 | 1108 | 1122 | 1142 | 1161 | 1182 |
| BB Height | 310 | 310 | 304 | 304 | 304 | 304 |
| BB Drop | 45 | 45 | 69 | 69 | 69 | 69 |
| Standover | 646 | 703 | 709 | 737 | 759 | 780 |
| Height | 145-155 | 155-165 | 155-165 | 165-175 | 175-185 | 185-195 |
