Polygon Cascade 3 Hardtail MTB
Color:
Color
Size:
Size
Quantity:
Click & Collect
Pickup available at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Usually ready in 24 hours

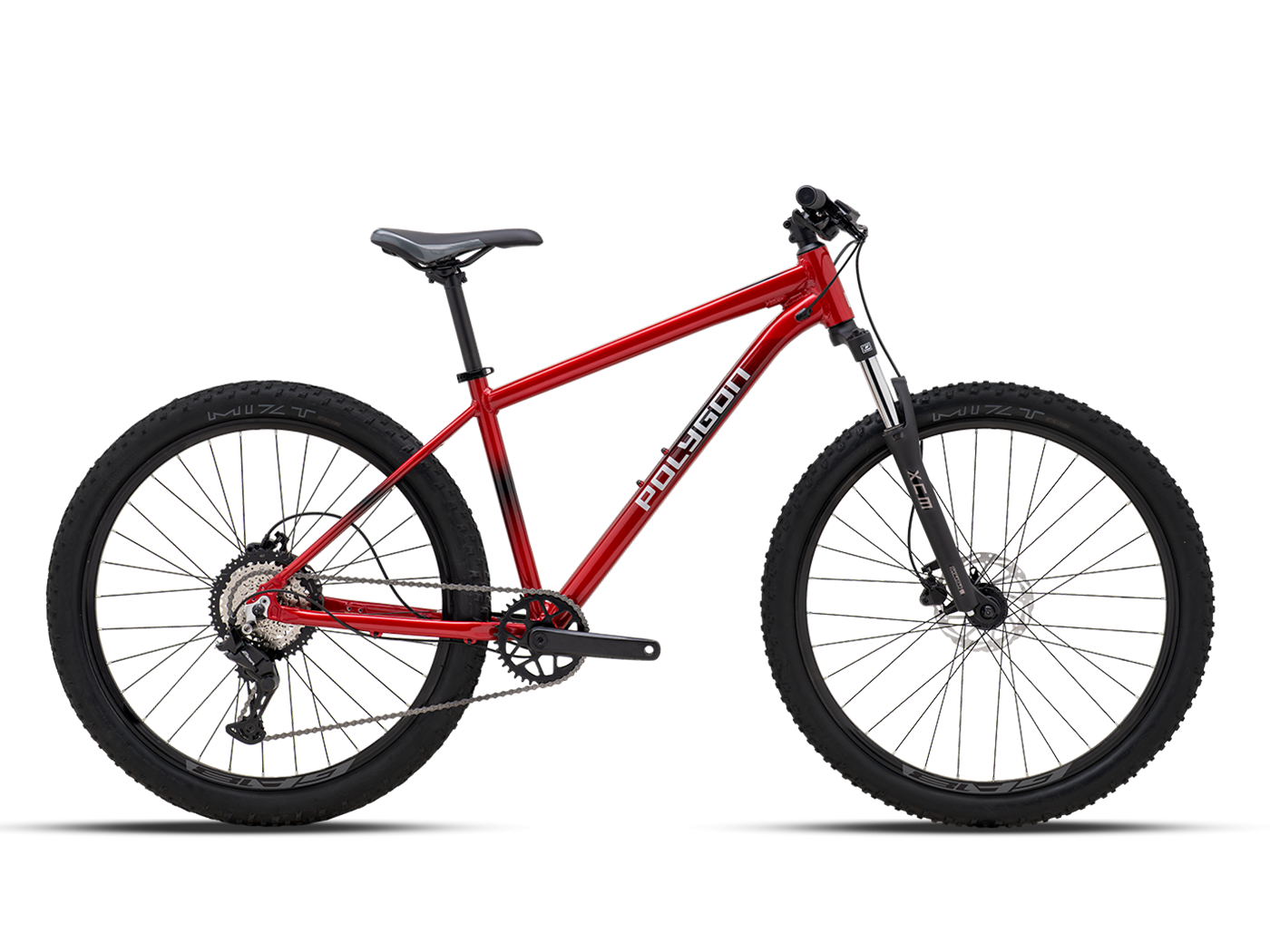

Polygon Cascade 3 Hardtail MTB
Red / S - 27.5"
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup available, usually ready in 24 hours
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609THE SORCERER
The beginning of loving mountains
Our all-time sorcerer -- Cascade, born for you who are planning to go for recreational riding on the weekends and feel mountains. The Cascade MTB is built with a lightweight and durable AL6 frame with modern geometry for a more comfortable ride. The component spec includes: 27.5” wheels for less rolling resistance, a 100mm travel suspension fork to smooth out the bumps while riding down fire roads, and disc brakes to keep riders in control. Be ready to be enchanted with our sorcerer and start loving mountains even more.
Features:
- Upright Geometry for comfortable ride
- Light yet durable alloy frame
- Fast, responsive, indexed shifting
Specification
| Frame | ALX XC SPORT FRAME |
|---|---|
| Fork | SUNTOUR XCE 28 100mm TRAVEL |
| Headset | ZERO STACK W/ SEALED BEARING, ZS 44/28.6 | ZS 44/30 |
| Stem | POLYGON SPORT E: 40MM, B: 31.8MM, R/D: 7 |
| Handlebars | POLYGON SPORT W: 700MM, B: 31.8MM, R/D: 20MM |
| Wheels | ALLOY DOUBLE WALL |
| Tyres | DELI 27.5" / 29"x2.25" |
| Shifter | SHIMANO ALTUS SL-M315, 1x8-SPEED TRIGGER |
| Rear Derailleur | SHIMANO ESSA RD-U2000 |
| Crankset | PROWHEEL C10Y, 36T |
| Cassette | SHIMANO CS-HG400, 11-45T |
| Chain | KMC Z-8.3 |
| Bottom Bracket | SQUARE BB, 68mm |
| Brakes | TEKTRO HD-M280 |
| Rotors | TEKTRO TR160, 160mm |
| Seatpost | ALLOY SEATPOST 27.2x350mm |
| Saddle | BLACK STEEL ø7mm |
| Pedals | ONE PIECE PP BODY |
Geometry
| S - 27.5" | S - 29" | M - 29" | L - 29" | |
|---|---|---|---|---|
| Stack | 601 | 624 | 624 | 629 |
| Reach | 420 | 420 | 420 | 440 |
| Headtube Angle | 68 | 68 | 68 | 68 |
| Headtube Length | 115 | 90 | 95 | 100 |
| Seattube Angle | 75 | 74 | 75 | 75 |
| Seattube Length | 390 | 390 | 430 | 460 |
| Toptube (Effective) | 561 | 566 | 585 | 604 |
| Chainstay Length | 440 | 455 | 455 | 455 |
| Wheelbase | 1108 | 1142 | 1142 | 1161 |
| BB Height | 310 | 304 | 304 | 304 |
| BB Drop | 45 | 69 | 69 | 69 |
| Standover | 703 | 737 | 737 | 759 |
| Height | 155-165 | 155-165 | 165-175 | 175-185 |
