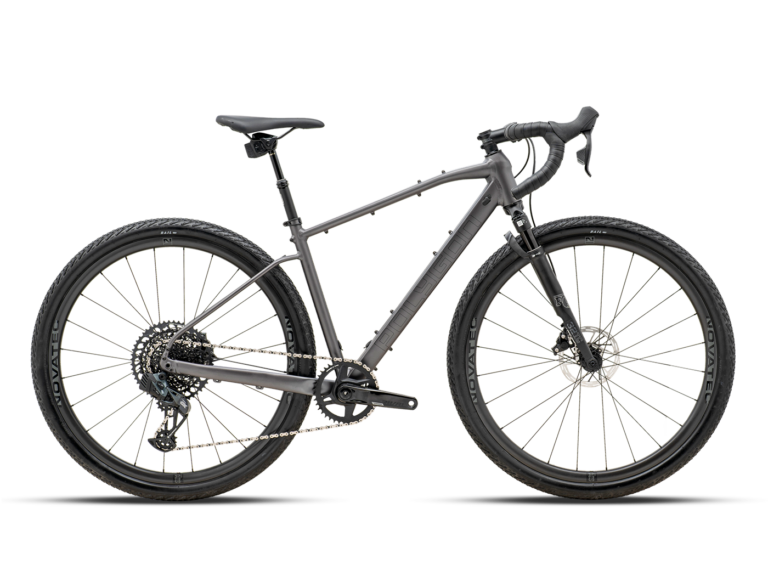

Polygon Bend V9X Gravel Bike
Polygon Bend V9X Gravel Bike

Polygon

Polygon Bend V9X Gravel Bike

€3,150.00 €4,499.00
Save 30%
Color:

Color
Size:

Size
Quantity:

Availability

In Store: Out of stock
Warehouse: In stock (Usually dispatched within 5-7 days)

Click & Collect

Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

Polygon Bend V9X Gravel Bike

Charcoal / S

Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin

Pickup currently unavailable

Unit 9, Hills Hire Centre,
Johnstown Rd,
Dún Laoghaire,
Co. Dublin

012840609

Warehouse

Pickup available, usually ready in 5+ days

Unit 9, Hills Hire Centre,
Johnstown Rd,
Dún Laoghaire,
Co. Dublin

+3532840609

BEYOND THE BEND​

Get faster, get lost, get beyond​

Unleash your spirit of adventure with the Polygon Bend series – the ultimate companion for boundless exploration and off-road versatility. Engineered with precision and crafted for pure adventure, these bikes are designed to conquer rugged terrains with ease. Responsive handling and agile geometry provide optimal maneuverability, empowering riders to navigate challenging trails and conquer untamed paths with confidence. Whether you're a seasoned gravel enthusiast or an aspiring off-road adventurer, the Polygon Bend Series offers unparalleled excitement and limitless exploration. Embrace the thrill of the Polygon Bend and let your adventures take flight.​



With generous tire clearance, the adventures know no bounds

Unleash your adventurous spirit with our gravel bike’s generous tire clearance, accommodating up to 50c tires. Embark on thrilling bikepacking journeys and conquer any terrain with ease, as you immerse yourself in the boundless exploration​

Who needs a dropper post? Us.

Polygon Bend Series provides you with dropper seat post to put you where you want to be; all at your fingertips. Effortlessly adjust your saddle height for technical trails and smooth descents, providing you the freedom to move and stay in control.​

The perfect blend of aerodynamics and handling

Paired with a flared handlebar to enhance aerodynamics in a narrower position, while maintaining optimal handling on wider drops.​

Here, here, and here. Mounts everywhere!

Pack your essentials. Our Polygon Bend Series features an adequate number of mounting bolts for bottles and bags on the seat tube, top tube, and down tube. No need to worry about other essentials for bikepacking; we've got you covered with rear carrier bolts and 3 mounts on each side of the fork. Mount up, adventure awaits!​

Specifications

BEND V9X BEND R9X BEND R7
Frame ALX GRAVEL ALX GRAVEL ALX GRAVEL
Fork FOX TC 32 40mm TRAVEL CARBON RIGID CARBON RIGID
Headset FSA NO. 42 W/ SEALED BEARING, IS 42/28.6 | IS 52/40 FSA NO. 42 W/ SEALED BEARING, IS 42/28.6 | IS 52/40 FSA NO. 42 W/ SEALED BEARING, IS 42/28.6 | IS 52/40
Stem ALLOY STEM, EXT: 50mm, BB: 31,8mm, R/D: 7degree ENTITY XPERT, EXT: 70mm, BB: 31,8mm, R/D: 7degree
 ALLOY STEM, EXT: 50mm, BB: 31,8mm, B/R: 7degree
Handlebars ALLOY FLARE 16degree, W: 420mm (S, M) / 440mm (L, XL), BB: 31,8mm, R/D: 125mm. B/R: 77mm ENTITY XPERT FLARE 16degree, W: 420mm (S, M) / 440mm (L, XL), BB: 31,8mm, R/D: 125mm, BR: 77mm
 ALLOY FLARE 16degree, W: 420mm (S, M) / 440mm (L, XL), BB: 31,8mm, R/D: 125mmREAR, B/R: 77mm
Wheels NOVATEC G24 DISC (28mm) W/ TUBELESS TAPE INSTALLED NOVATEC G24 DISC (28mm) W/ TUBELESS TAPE INSTALLED ALLOY DOUBLE WALL 32H
Rims CARBON FV H: 28 622x24 24H FOR TYRE 622-35/68 TLR CARBON FV H: 28 622x24 24H FOR TYRE 622-35/68 TLR ALLOY DOUBLE WALL FV H: 18 622X25 32H FOR TYRE 622-44/76 DISC TLR
Spokes F: STAINLESS DOUBLE BUTTED 14G NDS:282mm DS:284mm W/ NIPPLE BRASS / R: STAINLESS DOUBLE BUTTED 14G NDS:284mm DS:282mm W/ NIPPLE BRASS F: STAINLESS DOUBLE BUTTED 14G NDS:282mm DS:284mm W/ NIPPLE BRASS / R: STAINLESS DOUBLE BUTTED 14G NDS:284mm DS:282mm W/ NIPPLE BRASS F: STAINLESS 14G NDS:292 & DS:294 W/ NIPPLE BRASS / R: STAINLESS 14G NDS:294 & DS:292 W/ NIPPLE BRASS
Hubs F: NOVATEC D791 12x100mm 24H CL / R: NOVATEC D792 12x142mm 24H CL FOR XDR F: NOVATEC D791 12x100mm 24H CL / R: NOVATEC D792 12x142mm 24H CL FOR XDR F: ALLOY DISC BRAKE 12x100mm 32H CL / R: ALLOY DISC BRAKE 12x142mm 32H CL FOR SPROCKET
Tyres VEE RAIL 700x50C 622x50 TLR VEE ROCKETMAN 700x44C 622x44 TLR
 VEE ROCKETMAN 700x44C 622x44 TLR
Shifter SRAM RIVAL ETAP AXS 12-SPEED BRIFTER SRAM RIVAL ETAP AXS 1x12-SPEED BRIFTER SRAM APEX 1 11-SPEED BRIFTER
Rear Derailleur SRAM GX EAGLE AXS 12-SPEED SRAM RIVAL XPLR ETAP AXS 12-SPEED SRAM APEX 1 11-SPEED
Crankset SRAM RIVAL 1 WIDE 40T, MAX: 42T SRAM RIVAL 1 WIDE 40T SRAM APEX 1 40T, MAX: 42T
Cassette SRAM XG-1275 12 SPEED 10-52T SRAM XG-1251 12 SPEED 10-44T SRAM PG-1130 11-SPEED 11-42T
Chain SRAM GX EAGLE SRAM RIVAL 1 KMC X11-1 FOR 11-SPEED
Bottom Bracket SRAM DUB BSA 68mm SRAM DUB BSA SRAM GXP
Brakes SRAM RIVAL HYDRAULIC DISC SRAM RIVAL HYDRAULIC DISC SRAM APEX 1 HYDRAULIC DISC
Rotors SRAM PACELINE 160mm CL SRAM PACELINE 160mm CL SRAM PACELINE 160mm CL
Seatpost REVERB AXS XPLR T: 75mm, DxL: 27,2 x 400mm REVERB AXS XPLR T: 75mm, DxL: 27,2 x 400mm TRANX-Z JD-YSP38J T: 70mm, DxL: 27,2 x 315mm
Saddle FLUX2, CR-MO ø 7mm ENTITY, STEEL ø 7mm FLUX2, CR-MO ø 7mm
Pedals ONE PIECE PP FLAT ONE PIECE PP FLAT ONE PIECE PP FLAT

Geometry

S M L XL
Stack 564 589 624 657
Reach 363 376 389 409
Headtube Angle 69 69.5 70 70
Headtube Length 105 130 165 200
Seattube Angle 74 73.5 73 73
Seattube Length 405 450 495 540
Toptube (Effective) 525 550 580 610
Chainstay Length 445 445 445 445
Wheelbase 1038 1054 1076 1107
BB Height 282 282 282 282
BB Drop 75 75 75 75
Standover 679 739 782 824
