Orange

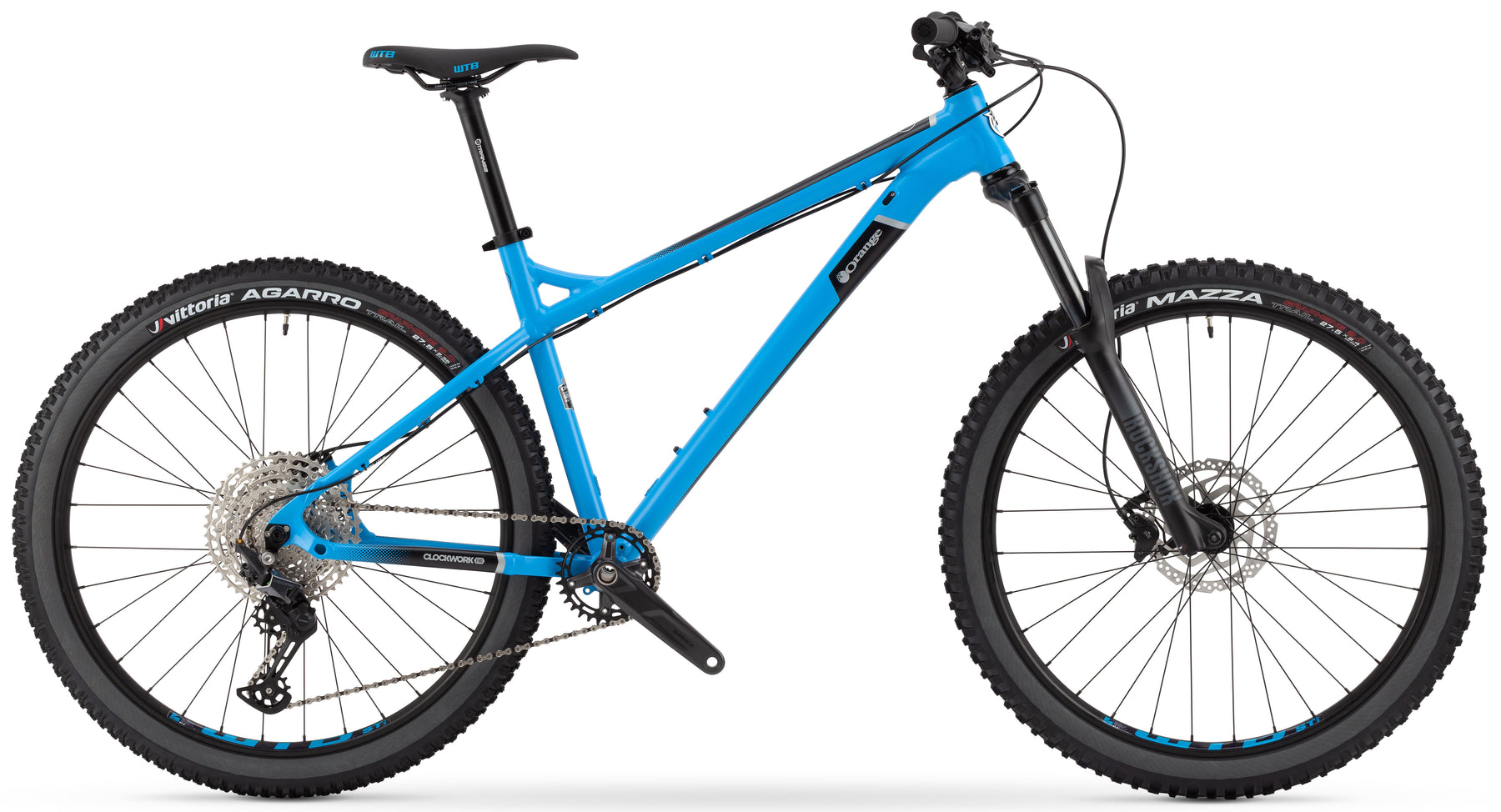

Orange Clockwork Evo Comp Hardtail Mountain Bike
Color:
Color
Size:
Size
Quantity:
Availability
Click & Collect
Pickup available at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Usually ready in 24 hours
Orange Clockwork Evo Comp Hardtail Mountain Bike
Cyan Blue / M
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup available, usually ready in 24 hours
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609The new Orange Clockwork EVO Comp 27.5 Hardtail Mountain Bike sits cheekily between the Clockwork and the full-gas aggressive Crush, firmly hitting a sweet spot for serious minded riders.
The Clockwork EVO gets a proper frame overhaul, with and extra 10mm of fork travel to 140mm, a slacker head angle at 65°, and a lower bottom bracket to keep the centre of gravity low. Some lovely new cable routeing details complete the package of this performance hardtail.
If you're looking for a fast, lean and wild riding trail hardtail this is the bike you're looking.
Features
- 140mm Front Travel / 27.5 Wheel Size
- Super Lightweight Frame Designed in Britain
- 5 year frame warranty with Limited Lifetime Crash Replacement
- Custom butted 6061-T6 aluminium frame
- Improved standover and EVO geometry
- Geometry revised for 140mm travel fork
- Bolt through 12 x 148 rear hub spacing
Specifications
| FRAME AND FORK | 6061-T6 Custom Butted OS Aluminium Tube. Wheel Size:27.5 |
| Swingarms | Bolt Type Allen Key Head (Boost 148mm Hub) |
| Rear Shocks | N/A |
| Headsets | FPD 44mm For Tapered Steerer |
| Forks | ForksRockShox Recon RL 140mm 27.5" |
| DRIVETRAIN | |
| Chains | SRAM SX Eagle |
| Shifters | SRAM SX Eagle |
| Cassettes | SRAM SX Eagle 1210 11-50T |
| Chain Device | Not Included |
| Bottom Brackets | SRAM DUB |
| Chainsets | SRAM SX Eagle 32t |
| Rear Mech | SRAM SX Eagle 12spd |
| WHEEL AND TYRES | |
| Wheelsets | WTB ST i27 on Strange 29 |
| Tyres | Vittoria Agarro 2.35 29 |
| BRAKING | |
| Brakes | Shimano MT400 |
| FINISHING KIT | |
| Saddles | WTB Silverado Sport |
| Handlebars | Strange 0.5" Riser 780mm |
| Grips/ Handlebars | Strange 130 Lock-On Black / Strange 0.5" Riser 780mm |
| Seatposts | Strange Post 400 30.9 |
CLOCKWORK EVO GEOMETRY
| 6061-T6 Custom Butted Aluminium | ||||
| Frame Size | S | M | L | XL |
| Seat Tube Length | 16" | 17" | 18" | 20" |
| A. Head Angle | 65° | 65° | 65° | 65° |
| B. Seat Angle | 74° | 74° | 74° | 74° |
| C. Top Tube | 619 | 625 | 638 | 654 |
| D. Effective TT | 610 | 630 | 650 | 670 |
| E. BB Height (axle diff) | -58 | -58 | -58 | -58 |
| E. BB Height (from ground) | 296 | 296 | 296 | 296 |
| F. Chainstay | 425 | 425 | 425 | 425 |
| G. Head Tube | 100 | 110 | 110 | 120 |
| H. Wheelbase | 1164 | 1186 | 1206 | 1227 |
| J. Reach | 434 | 451 | 471 | 489 |
| K. Stack | 612 | 621 | 621 | 630 |
| O. Fork Offset | 46 | 46 | 46 | 46 |
| Stem Length | 50 | 50 | 50 | 50 |
| Standover | 658 | 676 | 694 | 730 |
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height from ground is with 710 mm Ø tyre.
TECHNICAL INFO
| FORK TRAVEL | |||||||||
|
|||||||||
| Rear Hub | 12 x 148 mm Boost | ||||||||
| Seatpost Ø | 30.9 mm | ||||||||
| Seat Clamp Ø | 34.9 mm | ||||||||
| BB Shell | 73mm ISCG05 | ||||||||
| 1.1/8" Headset | Upper: ZS44/28.6 | ||||||||
Size Guide
| M | L | XL |
|---|---|---|
| 5'6" - 5'10" | 5'9" - 6'1" | 6'0" - 6'5" |
