Orange Alpine Evo Limited Edition 2022 - Fox 38 & Float X2 Factory Fork & Shock Upgrade - Size Large

  • Sale
  • €7,950.00
Tax included. Shipping calculated at checkout.

In Store (Ships within 24hrs): In Stock

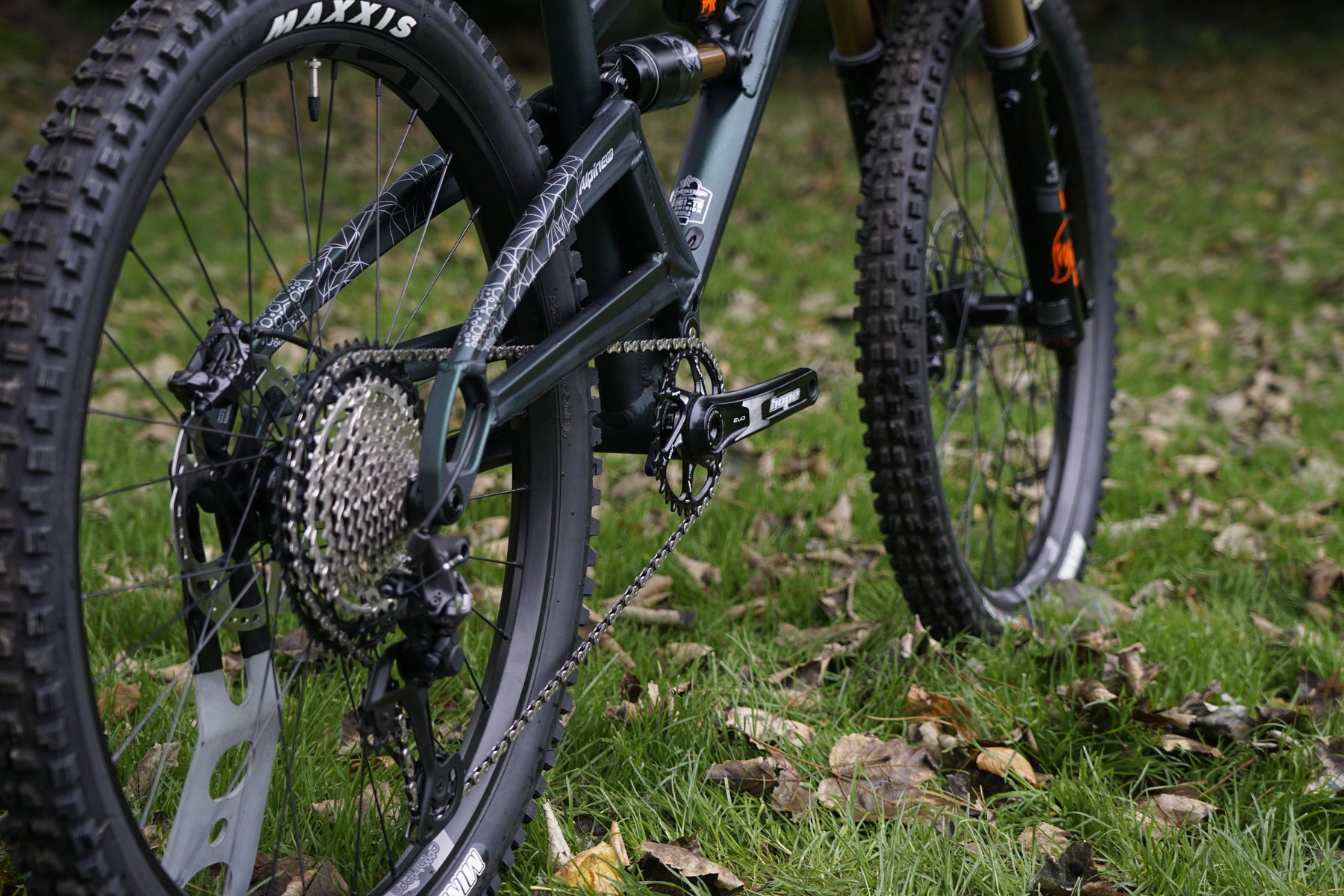

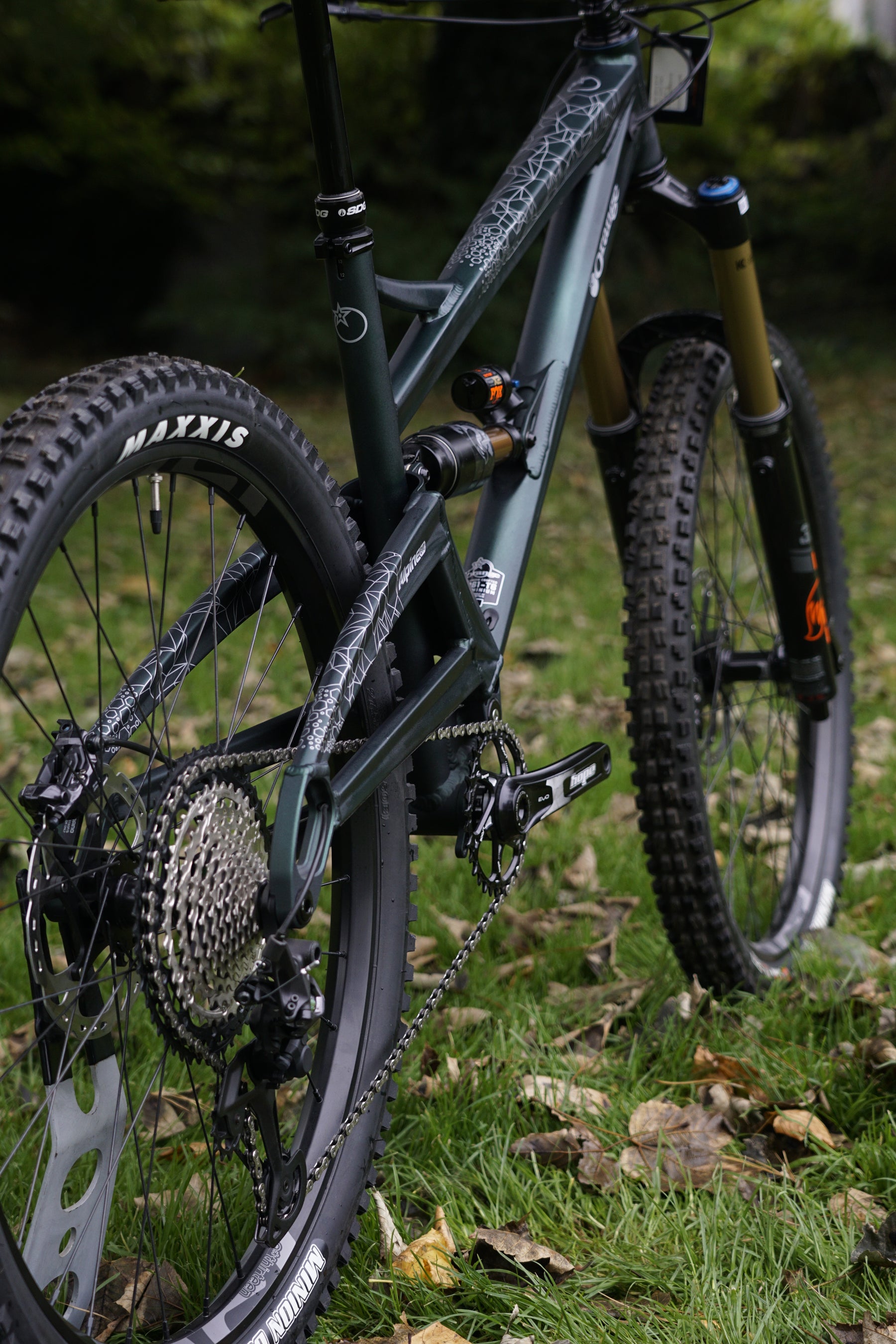

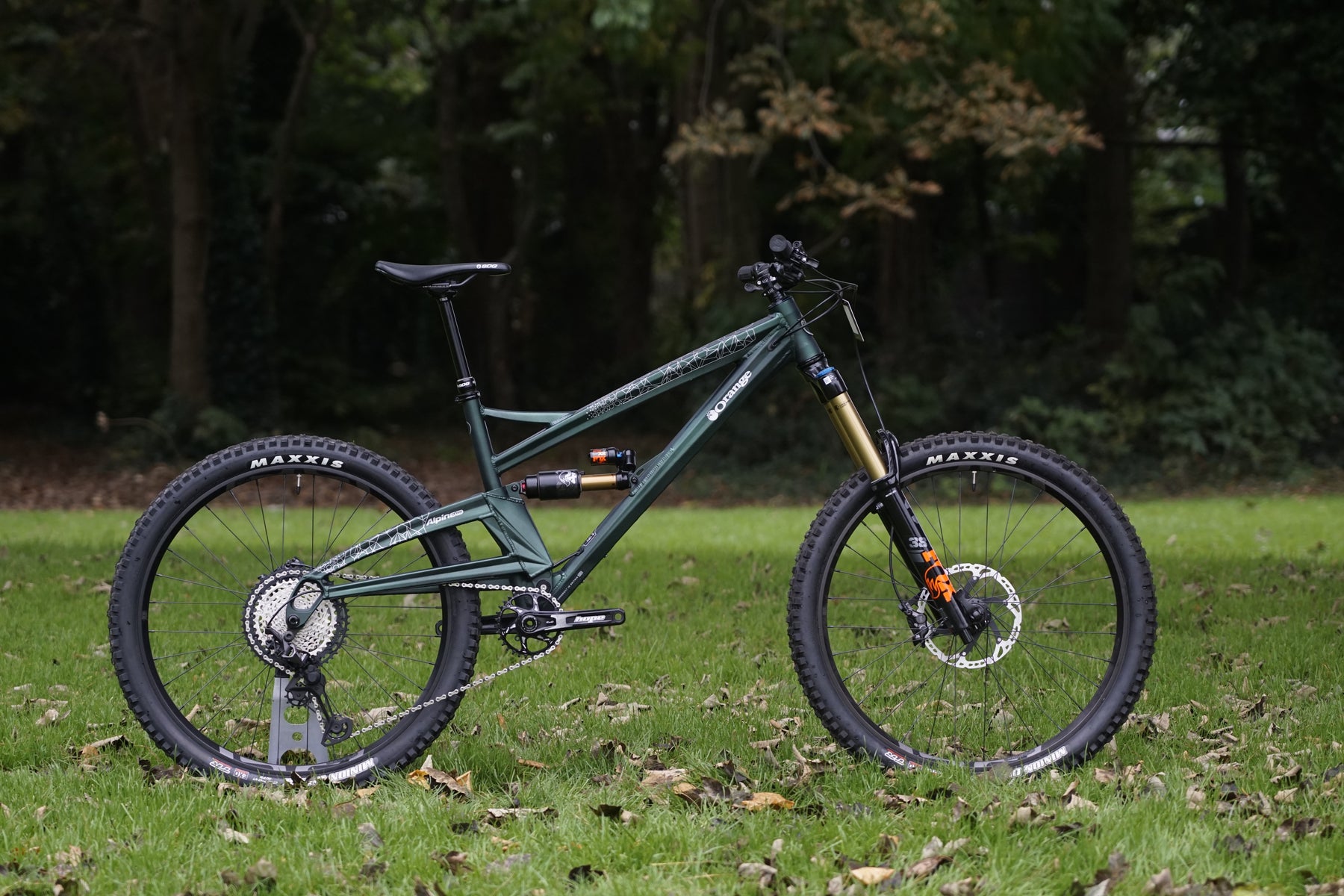

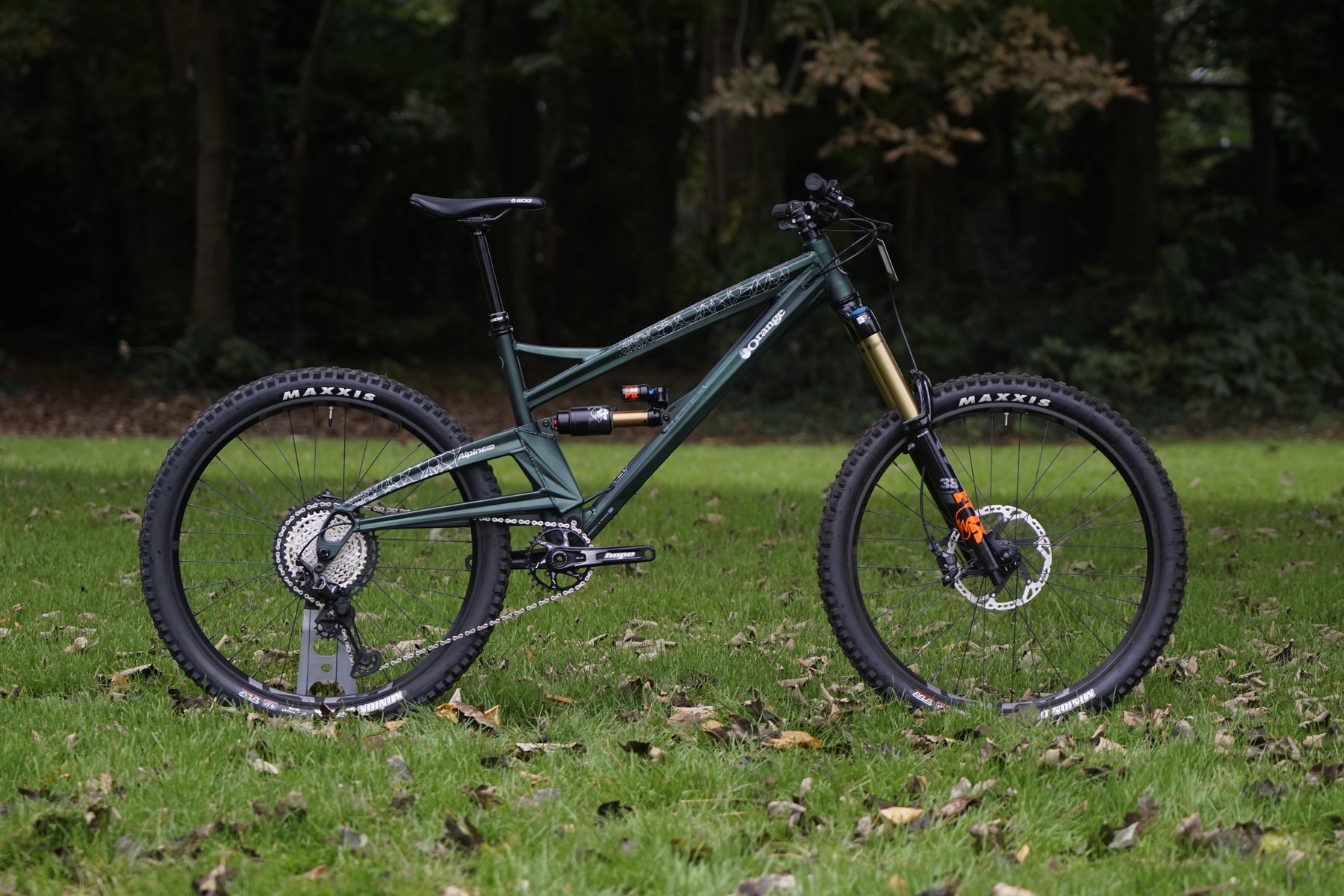

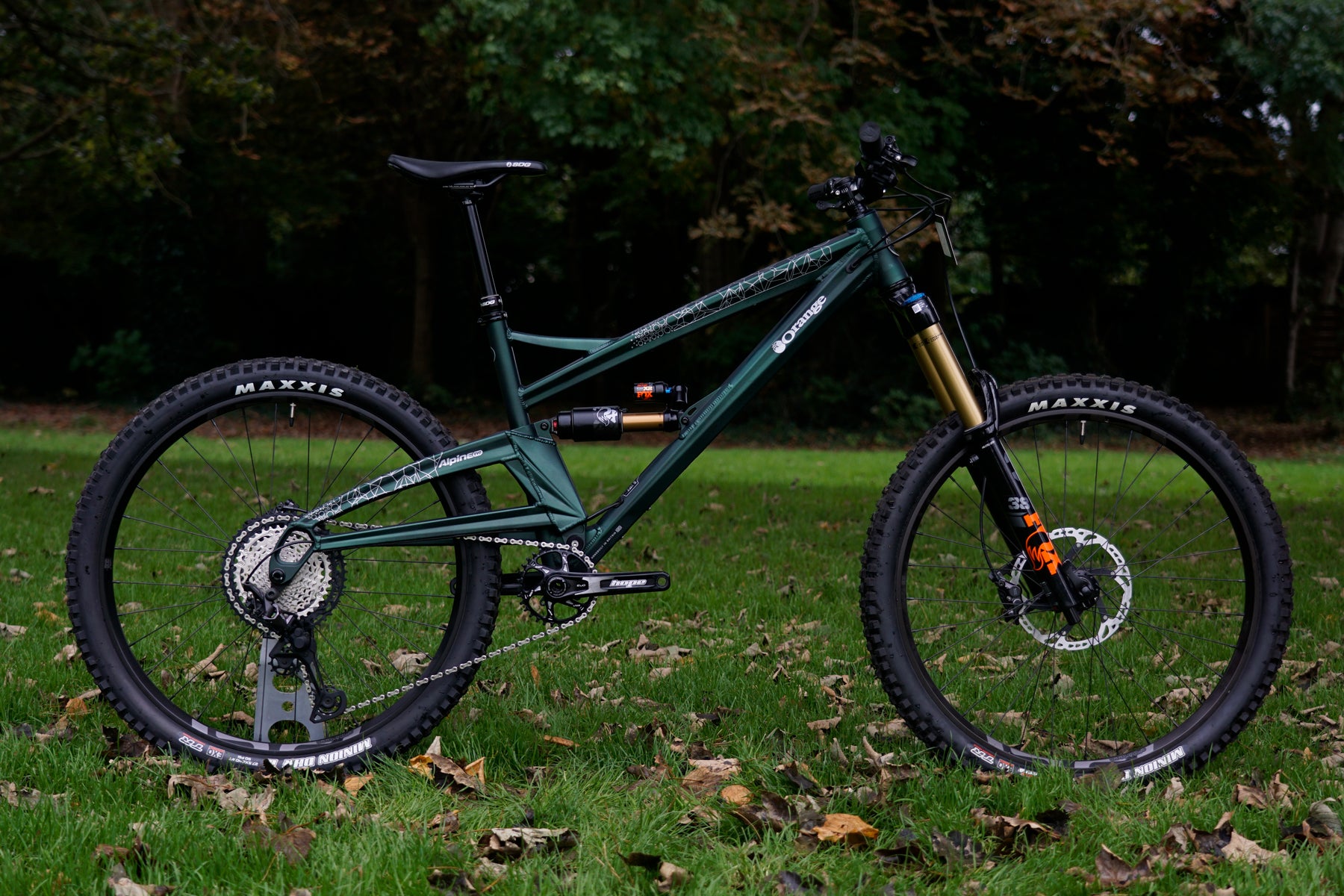

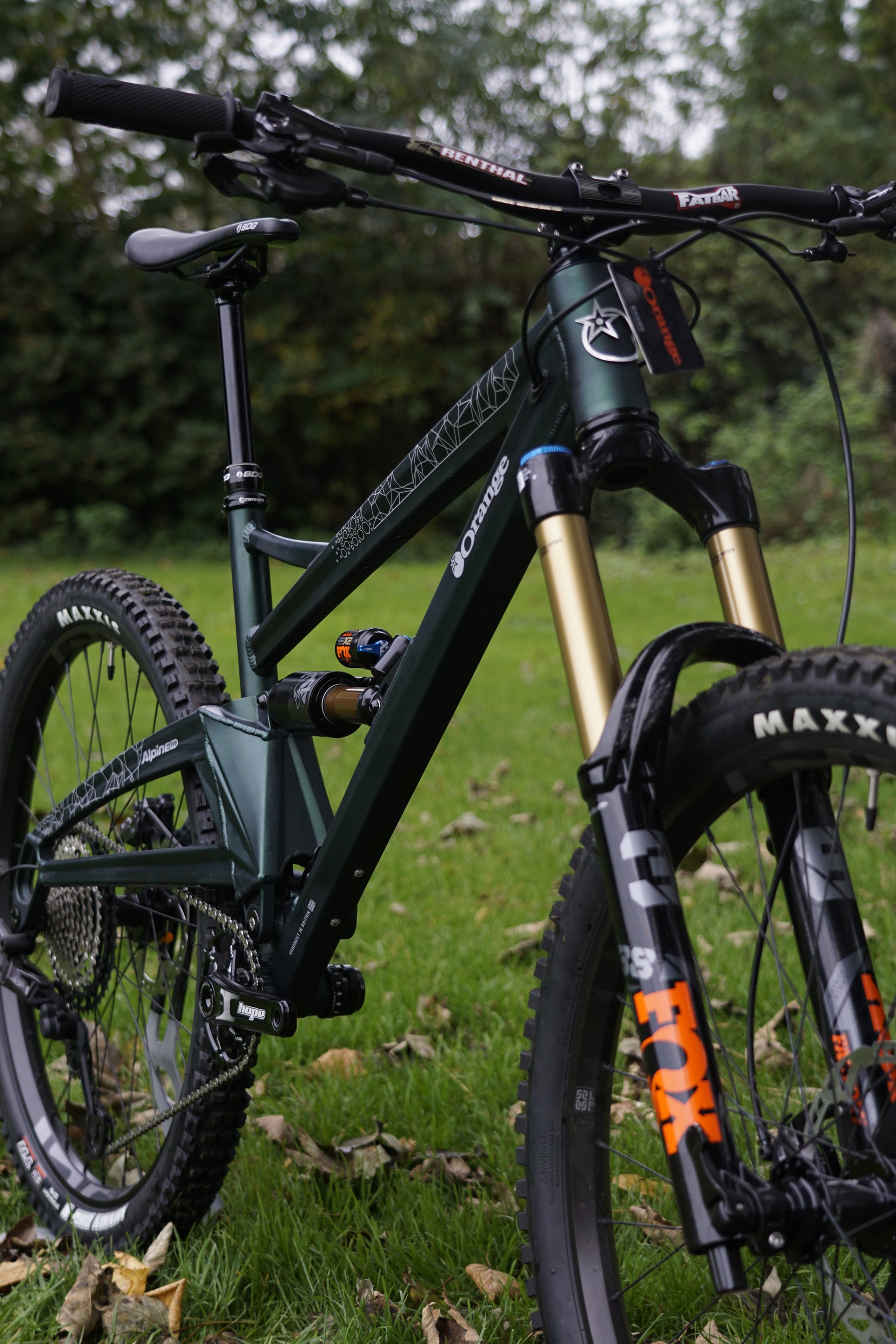

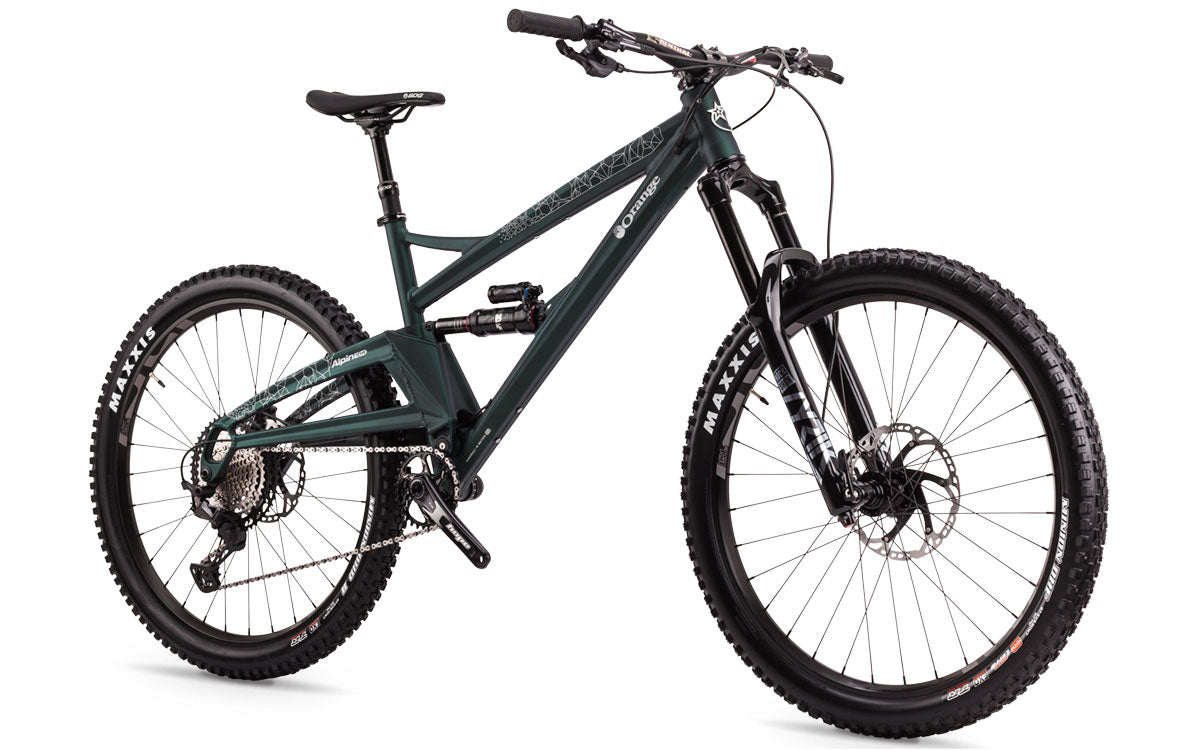

The Orange alpine Evo Limited edition is a progressive geometry trail slayer with 27.5" wheels from Orange bikes. With a long reach, super slack head angle and steep seattube angle the Alpine Evo Le is equipped to tackle the steepest most technical trails with ease and make pedalling back to the top to do run after run a breeze.

With a top of the line build kit, featuring tons of goodies from Hope, Shimano, Rockshox and renthal and a very special paint job this bike is a top of the range trail tamer that will be the envy of most out on the trail.

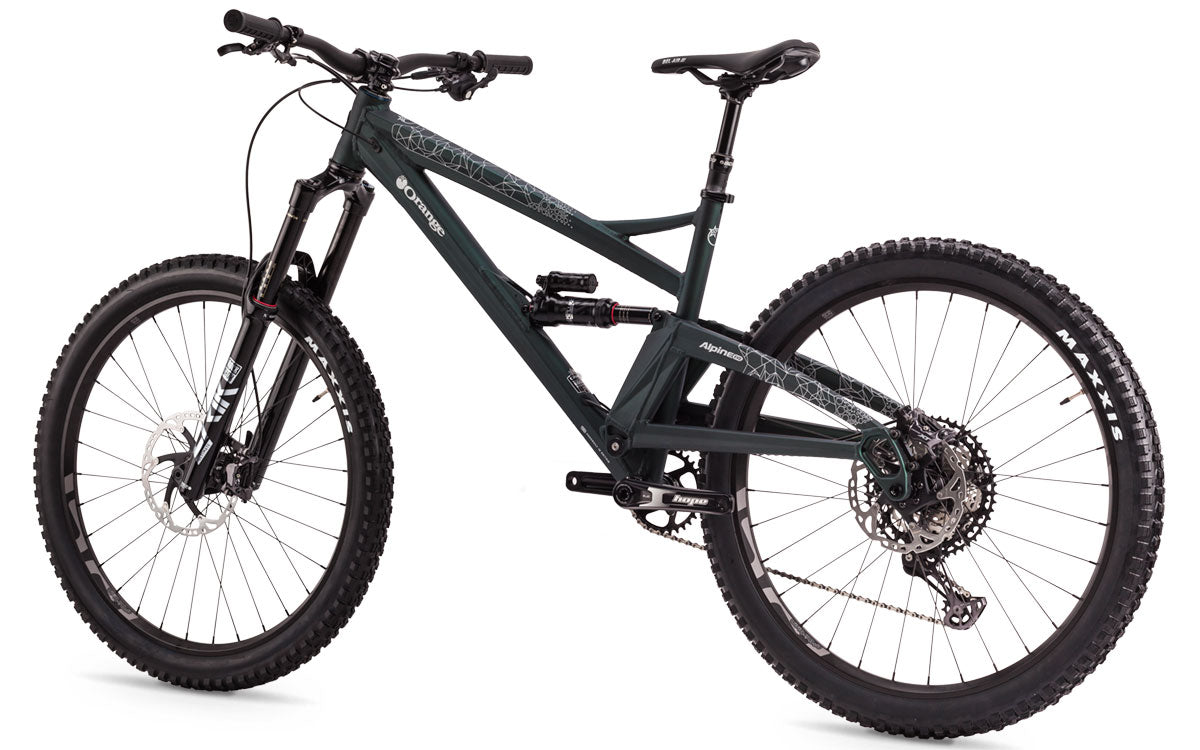

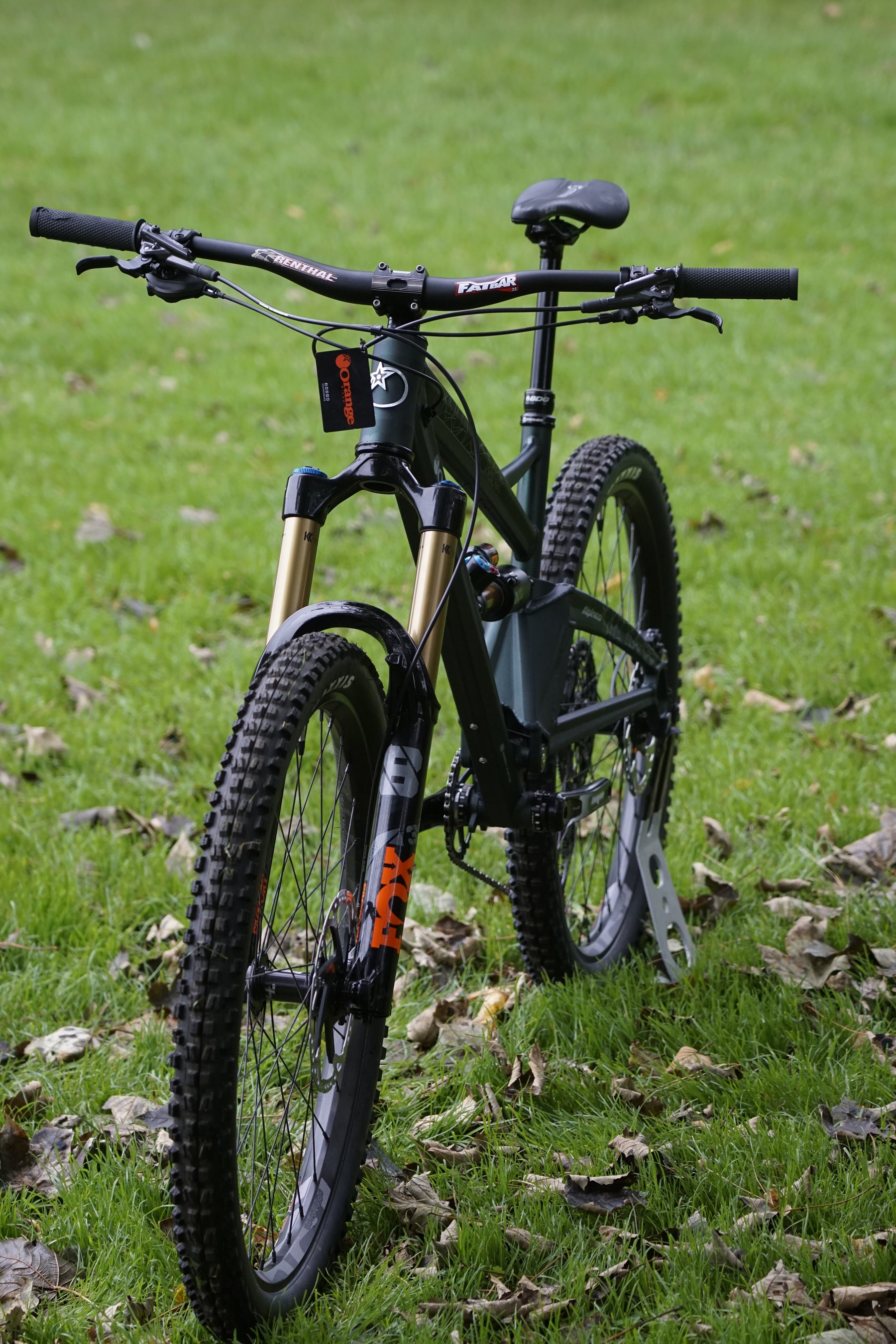

Please note Images are for illustration only. This bike comes equipped with a Fox 38 Factory fork in black 170mm travel and a Fox Float X2 rear shock upgrade. Please consult the spec for accurate build info.

FRAME AND FORK

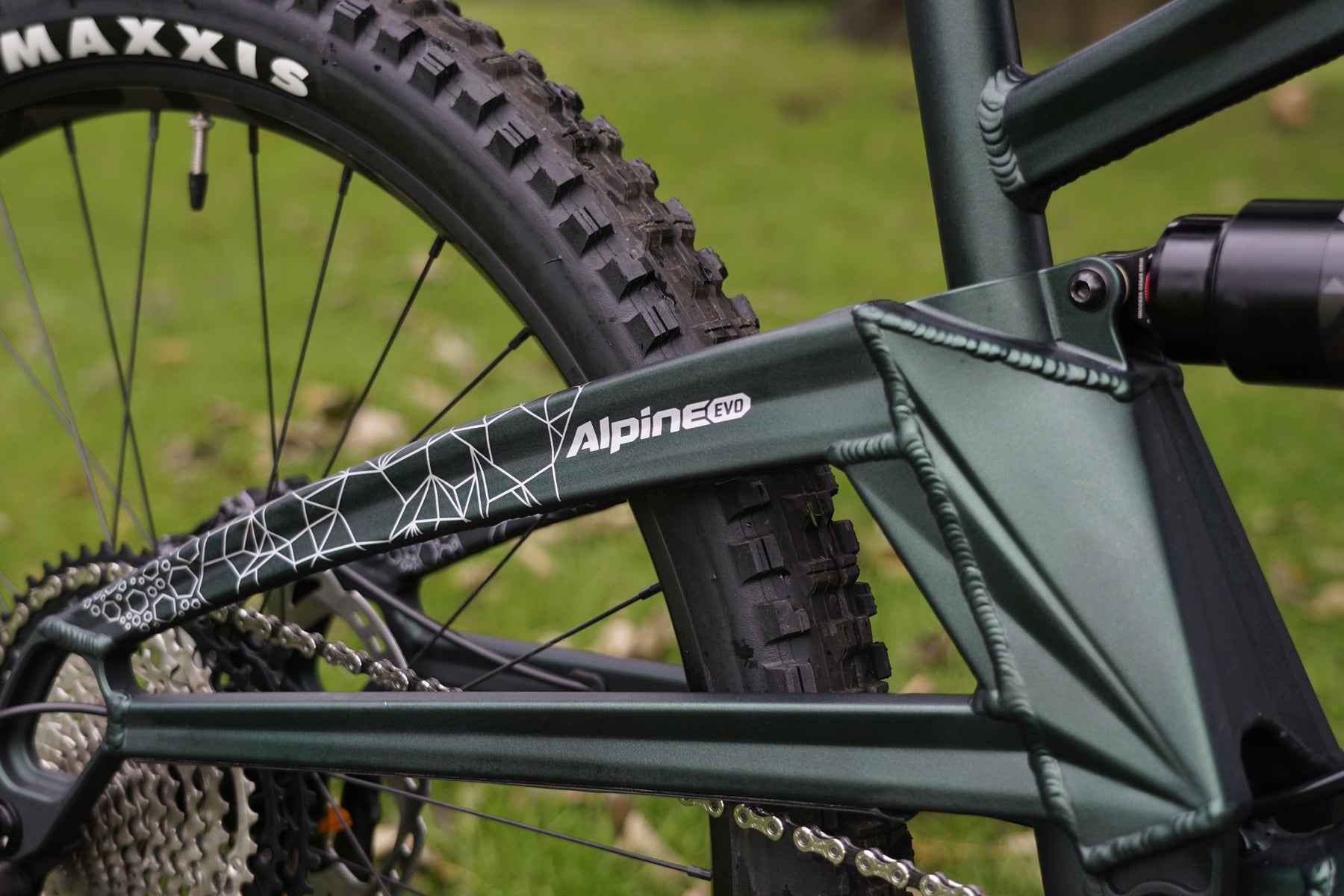

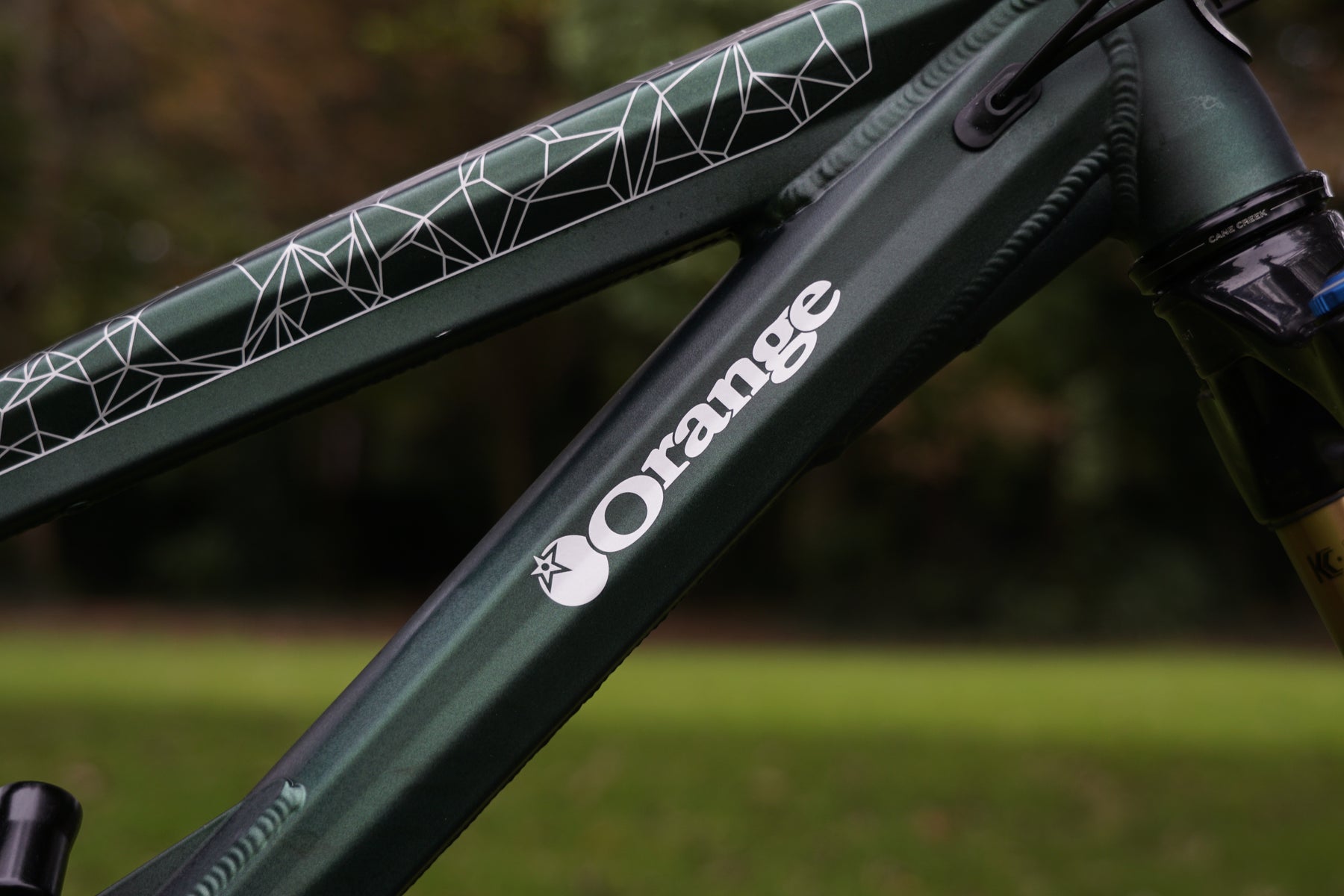

6061-T6 Monocoque UK Formed Custom Aluminium Tubing. Wheel Size: 27.5. Rear wheel travel: 155.

Swingarm
Bolt Type Allen Key Head (Boost 148mm Hub)

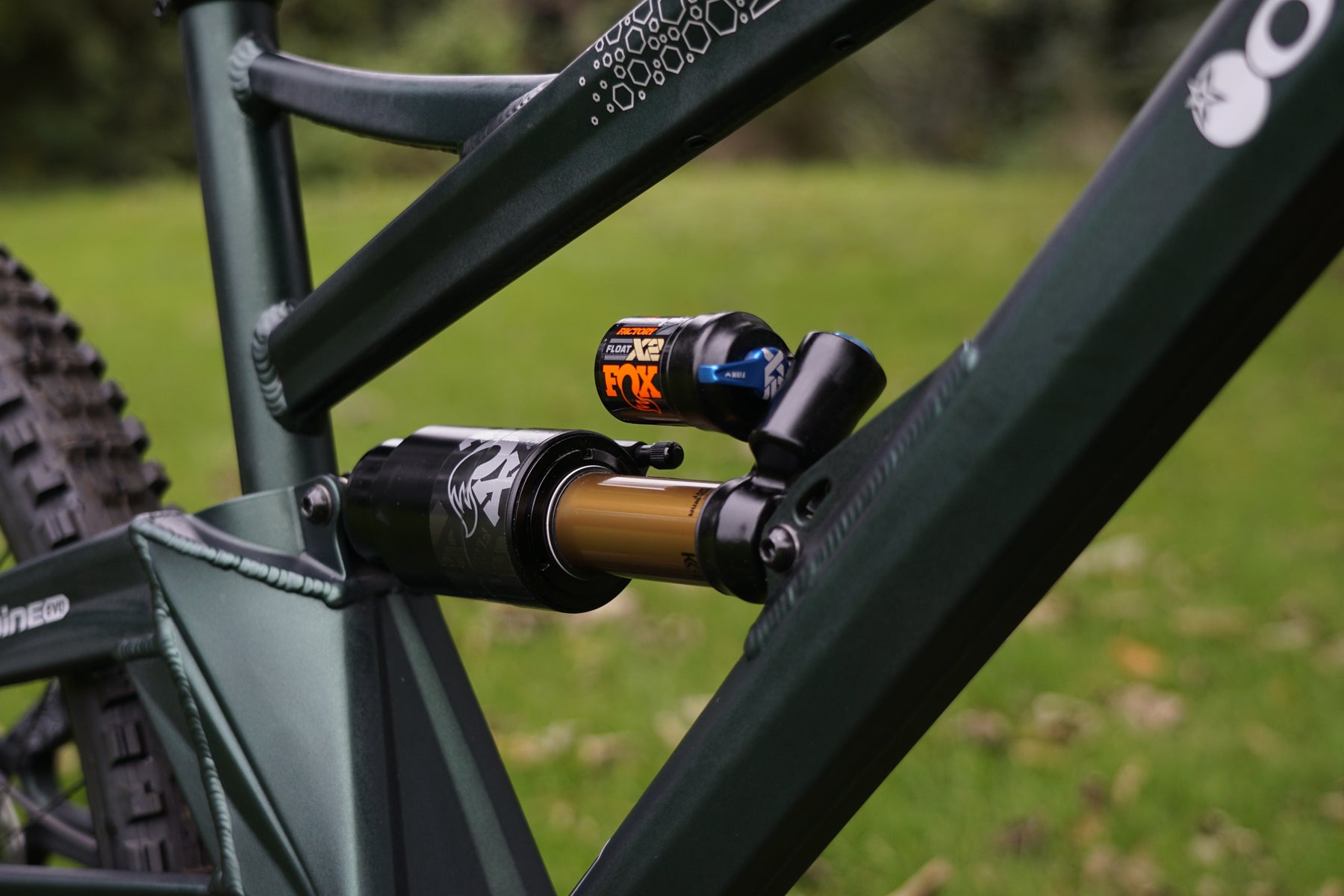

Rear Shock
Fox Float X2 230x65

Headset
Cane Creek 49mm for Tapered Steerer

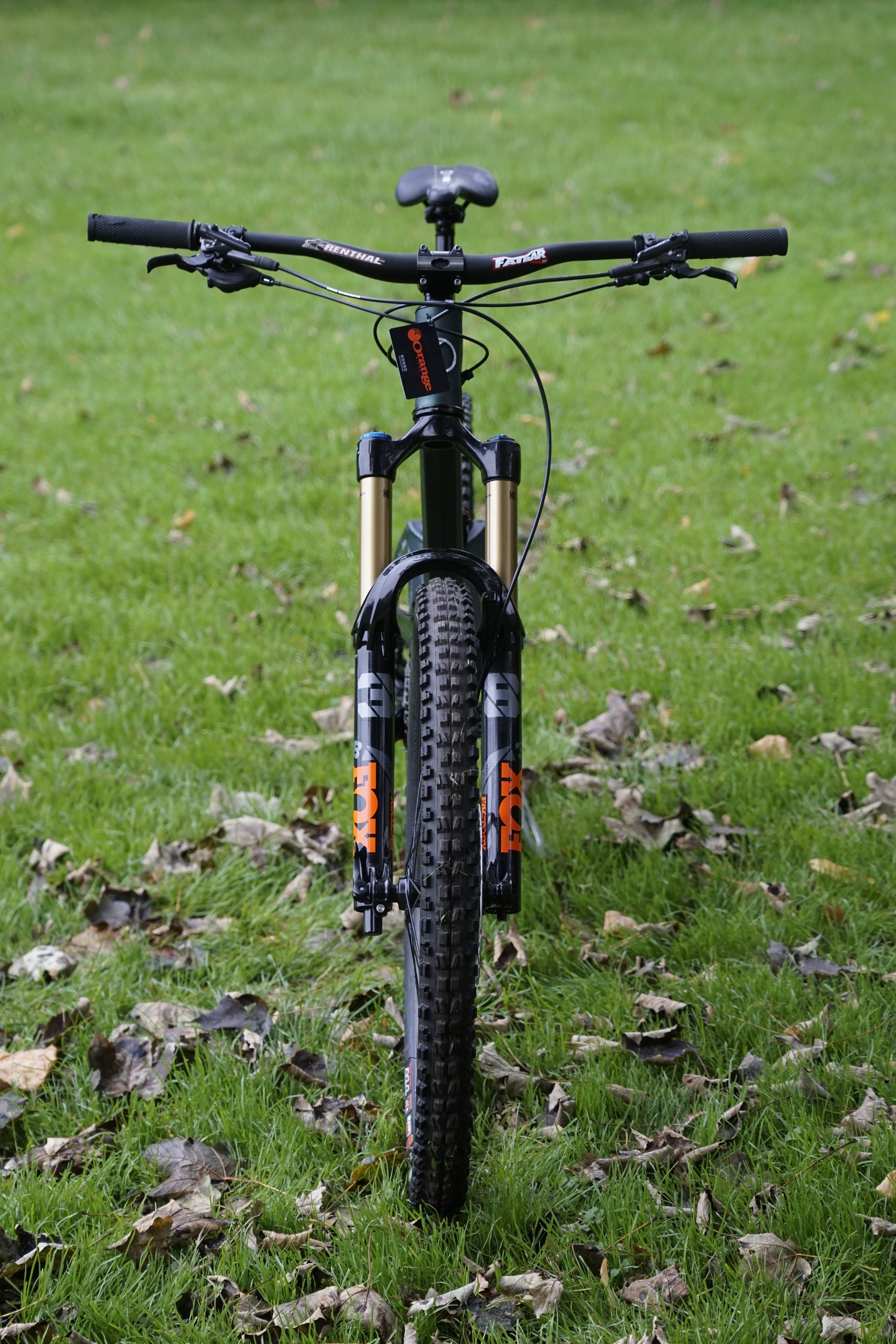

Fork

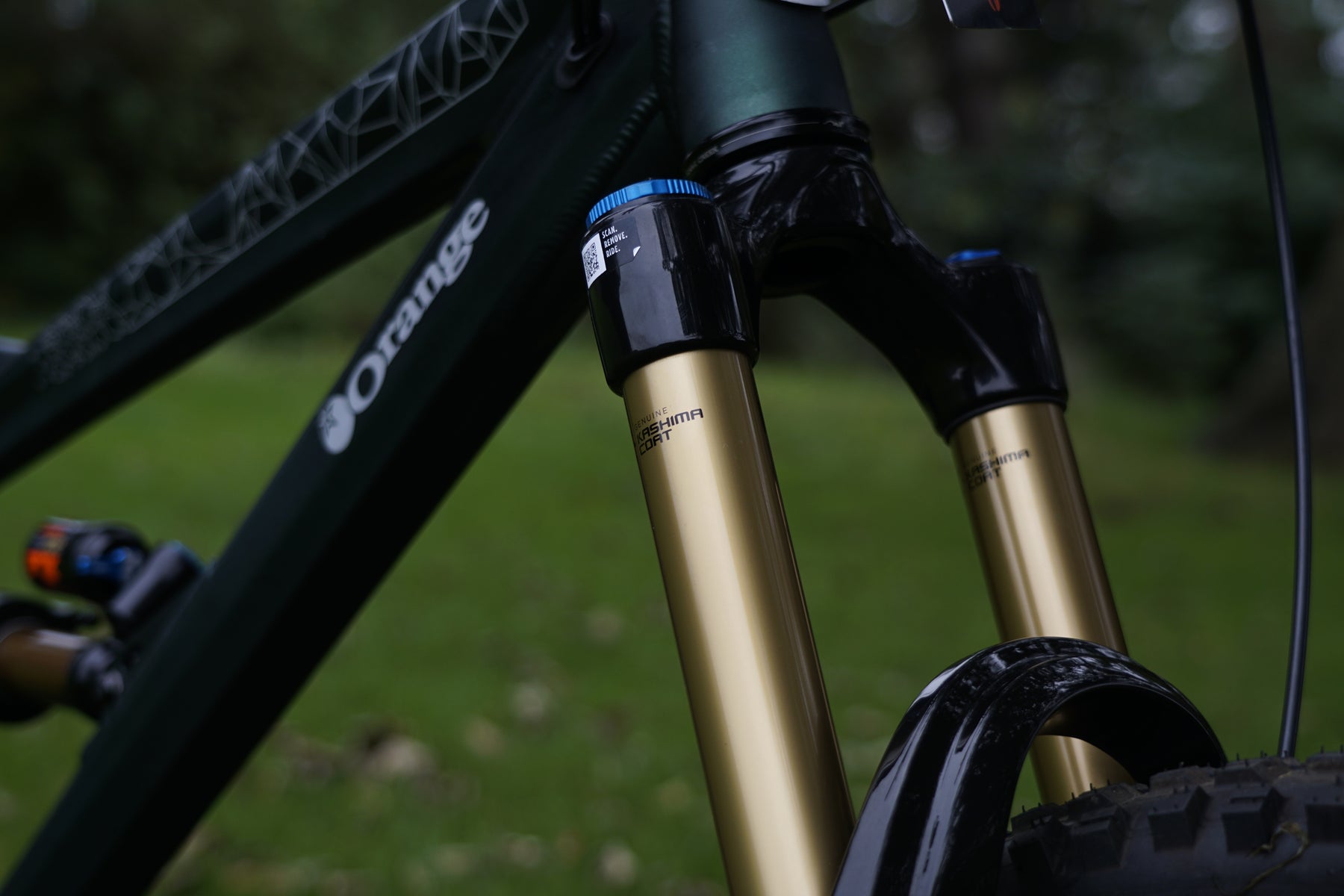

Fox 38 Factory, Kashima, Color: Black, 170mm


DRIVETRAIN

Chain
KMC 12spd

Shifters
Shimano XT 12spd

Cassette
Shimano XT 10-51T 12spd

Chain Device
Not Included

Bottom Bracket
Hope 30mm Black

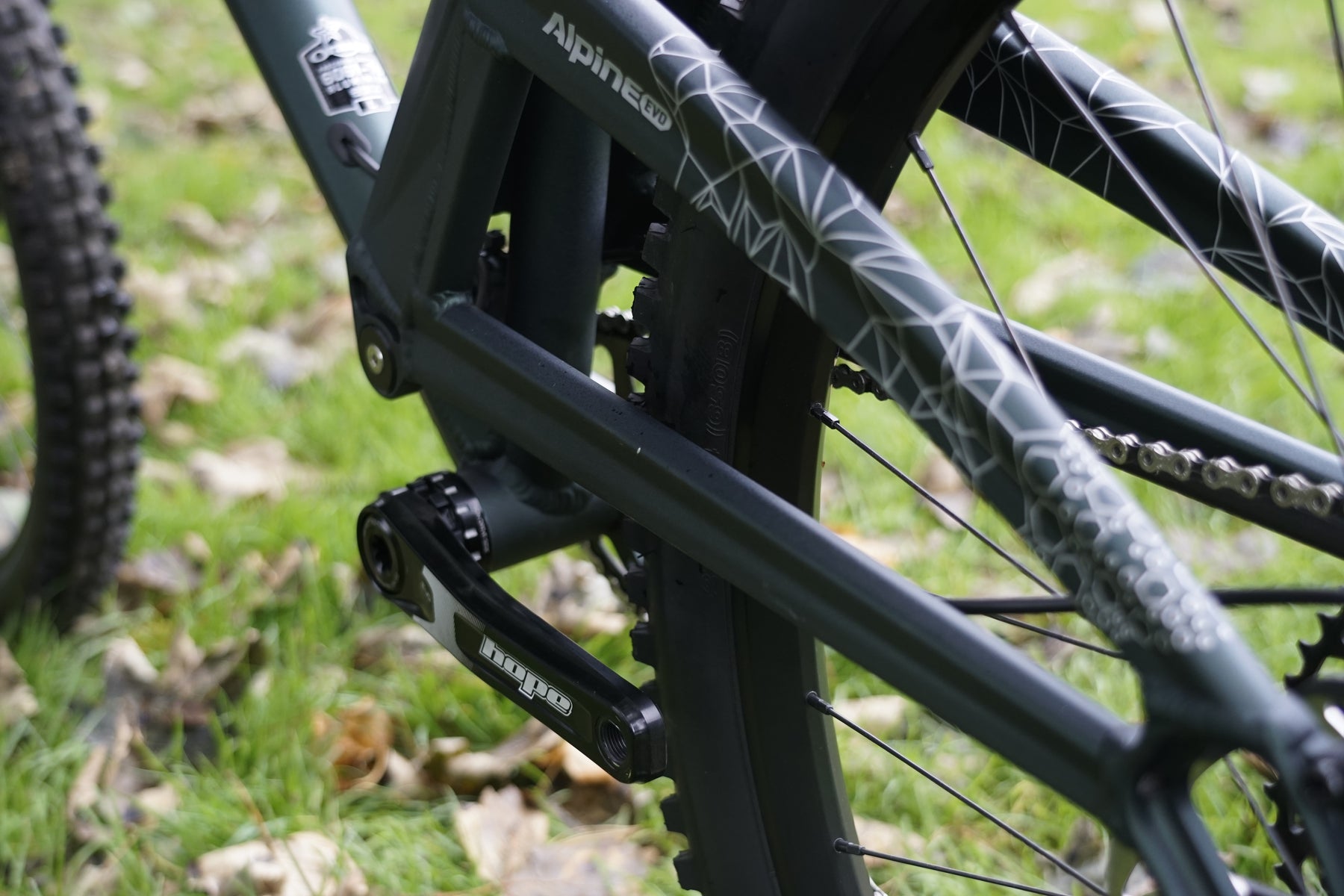

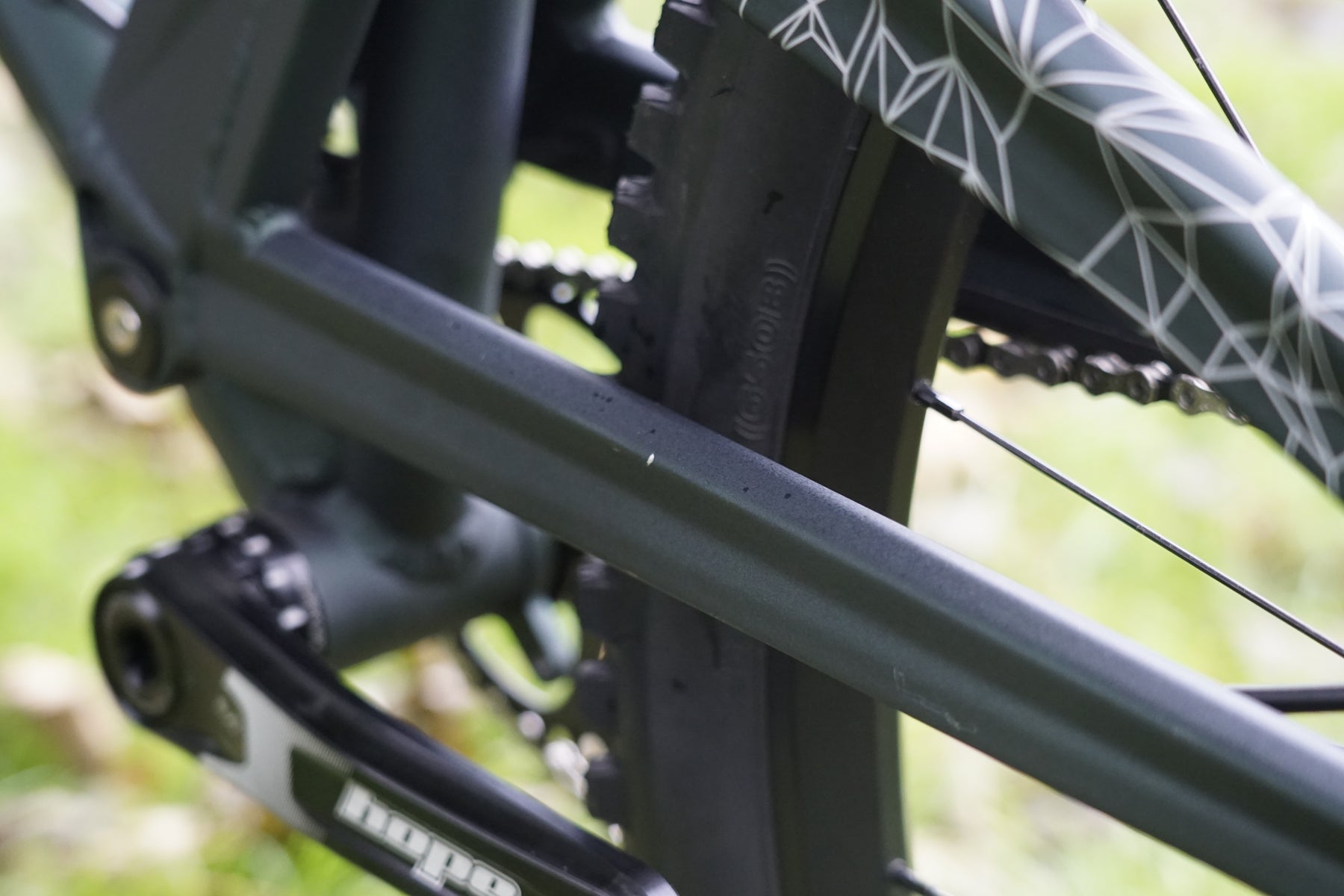

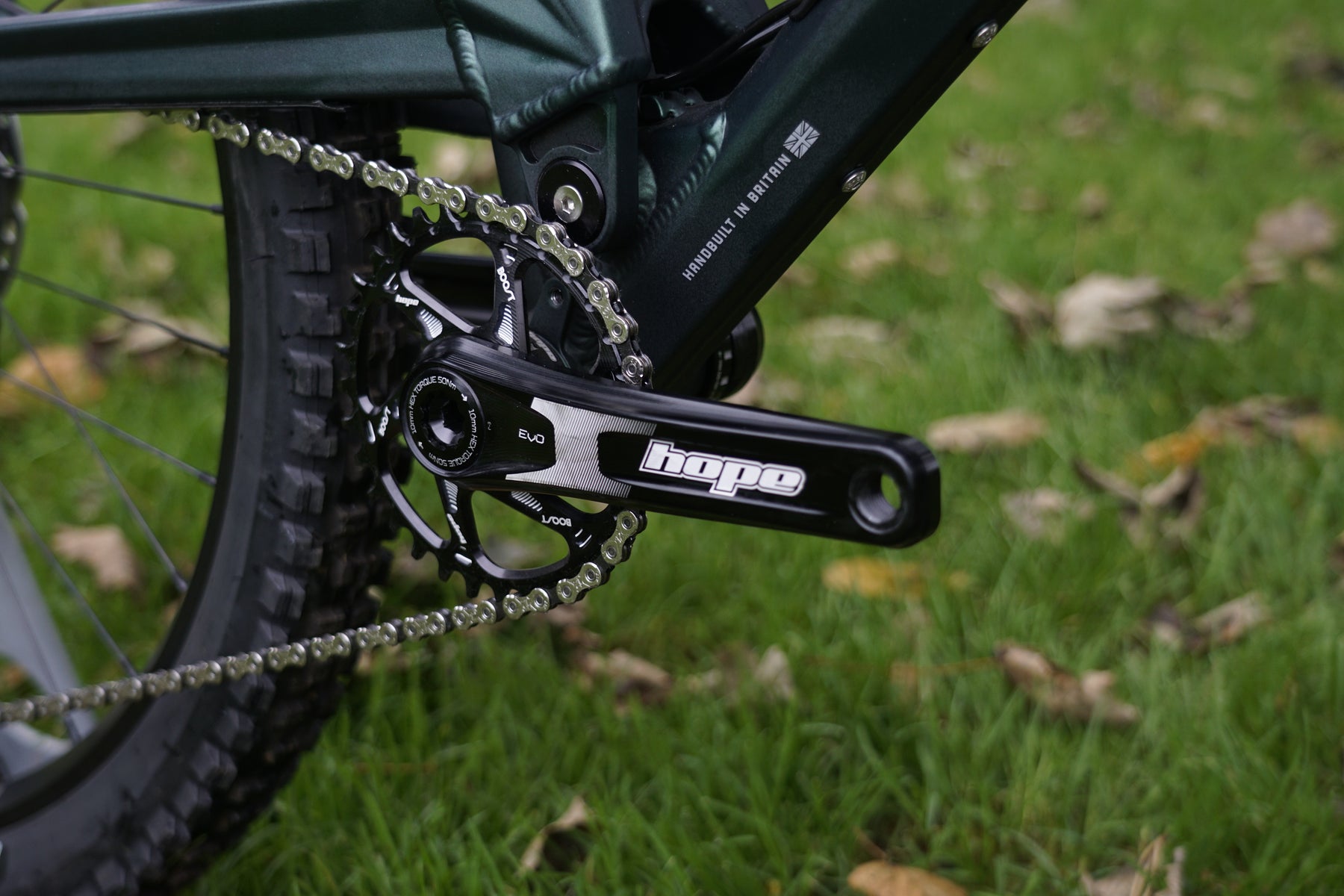

Crankset
Hope Black 32t

Rear Mech
Shimano XT 12spd


WHEEL AND TYRES

Wheelset
E13 TRS 30mm (Grey) + Hope Pro 4 (Black) 27.5

Tyres
Maxxis Minion DHF 2.5 3C Exo / DHR II 2.4 Exo 27.5


BRAKING

Brakes
Shimano XT Trail 203/180


FINISHING KIT

Saddle
SDG Strange Bel Air III

Handlebars

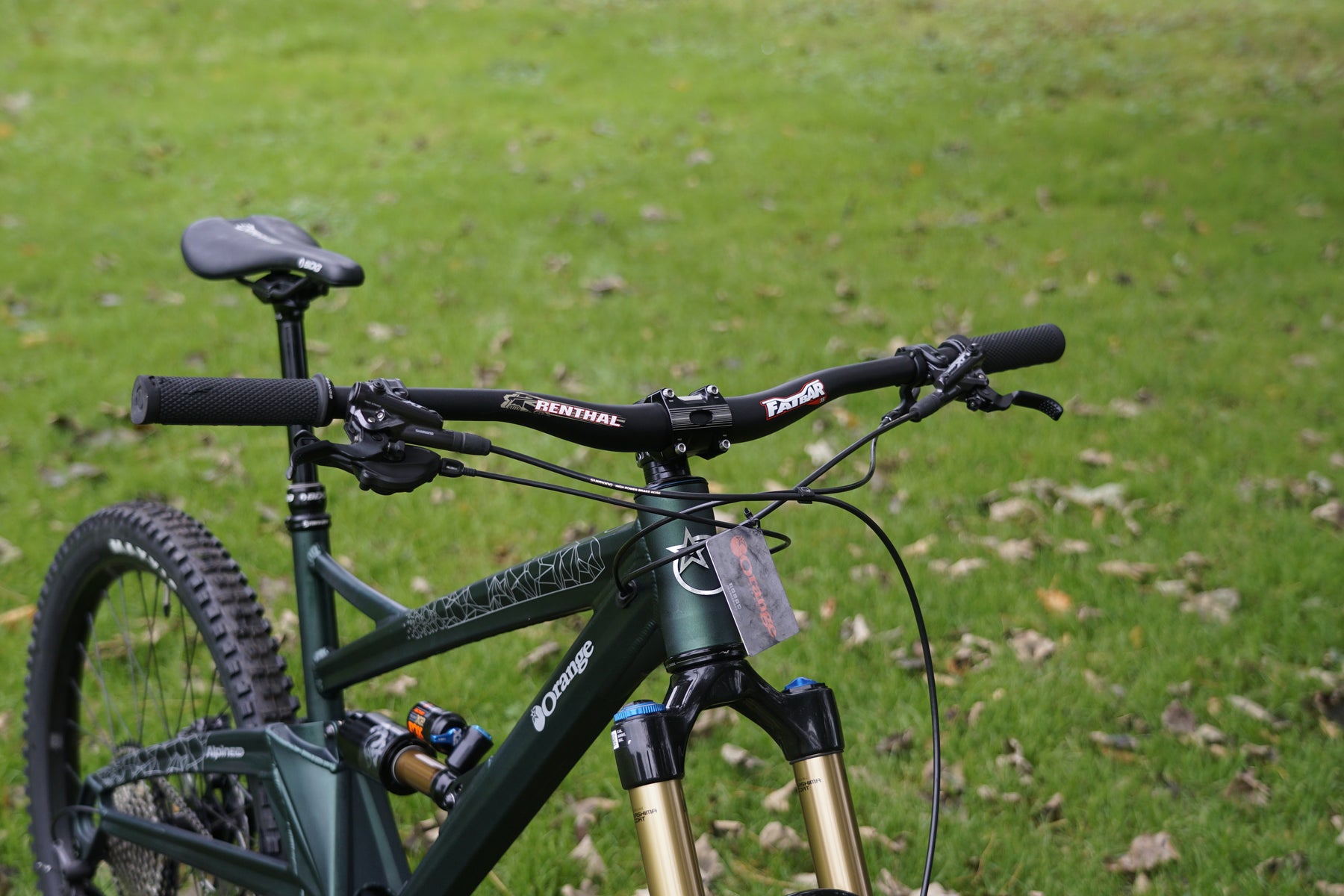

Renthal FatBar M35 800mm

Grips
Strange Grappler Lock-On

Seatpost
SDG Tellis 150mm

Seat Clamp
Strange Bolted

Stem
Hope M35 x 35mm Black

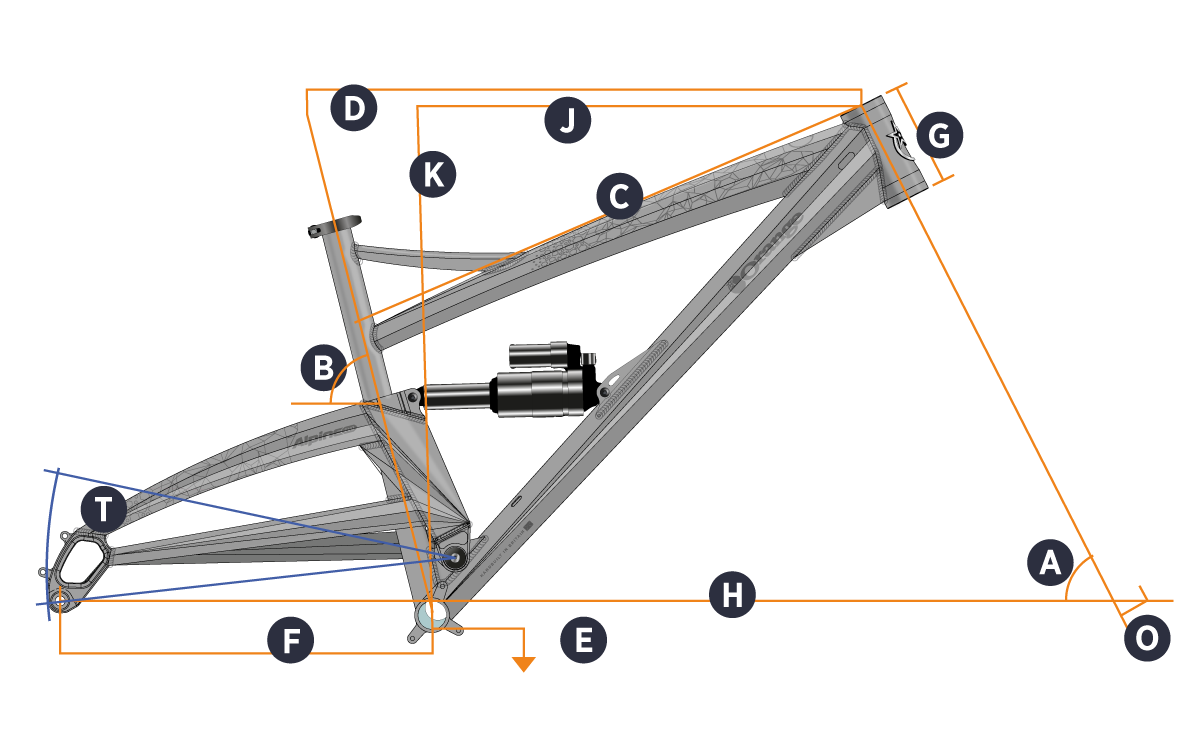

ALPINE EVO GEOMETRY

Monocoque/6061-T6 Custom Butted Aluminium tubing
Frame Size S M L XL
Seat Tube Length 15" 17" 18" 19"
A. Head Angle 63° 63° 63° 63°
B. Seat Angle (Effective) 76° 76° 76° 76°
D. Top Tube (effective) 605 625 645 665
E. BB Height (from ground) 337 337 337 337
BB height (from axles -17 -17 -17 -17
F. Chainstay 445 445 445 445
G. Head Tube 100 110 120 125
H. Wheel base 1236 1258 1280 1301
J. Reach 458 476 495 513
K. Stack 589 598 607 611
O. Fork Offset 37 37 37 37
T. Rear Travel 155 155 155 155
Standover 720 742 772 795
Unless otherwise indicated all measurements are in mm. Frame angles are measured static, without rider sag. Bottom bracket height measured from ground with 708 mm Ø tyre.
TECHNICAL INFO
FORK TRAVEL
OPTIMUM MAXIMUM MINIMUM
160 mm 160 mm 160 mm
Shock Length 230 x 65 mm
Rear Hub 12 x 148mm Boost
Fork Offset 37 mm
Seatpost Ø 30.9 mm
Seatclamp Ø 34.9 mm
Front Derailleur N/A
BB Shell 73 mm ISCG05
Tapered Headset Upper: ZS49/28.6
Lower: EC49/40
RIDE GUIDE
Downhill 1
Freeride 3
Enduro 5
All Mountain 4
Trail 4
XC Racing 0
Bike Packing 0
Gravel 0
BIKE SIZING GUIDELINES
S
5'0" — 5'6"
M
5'5" — 5'9"
L
5'8" — 6'1"
XL
5'11" — 6'3"

Please note: This is for guidance only. You may be taller or shorter, it doesn't mean our bikes will not fit you. The best way to determine the correct bike size for you is to try one.
