Nukeproof

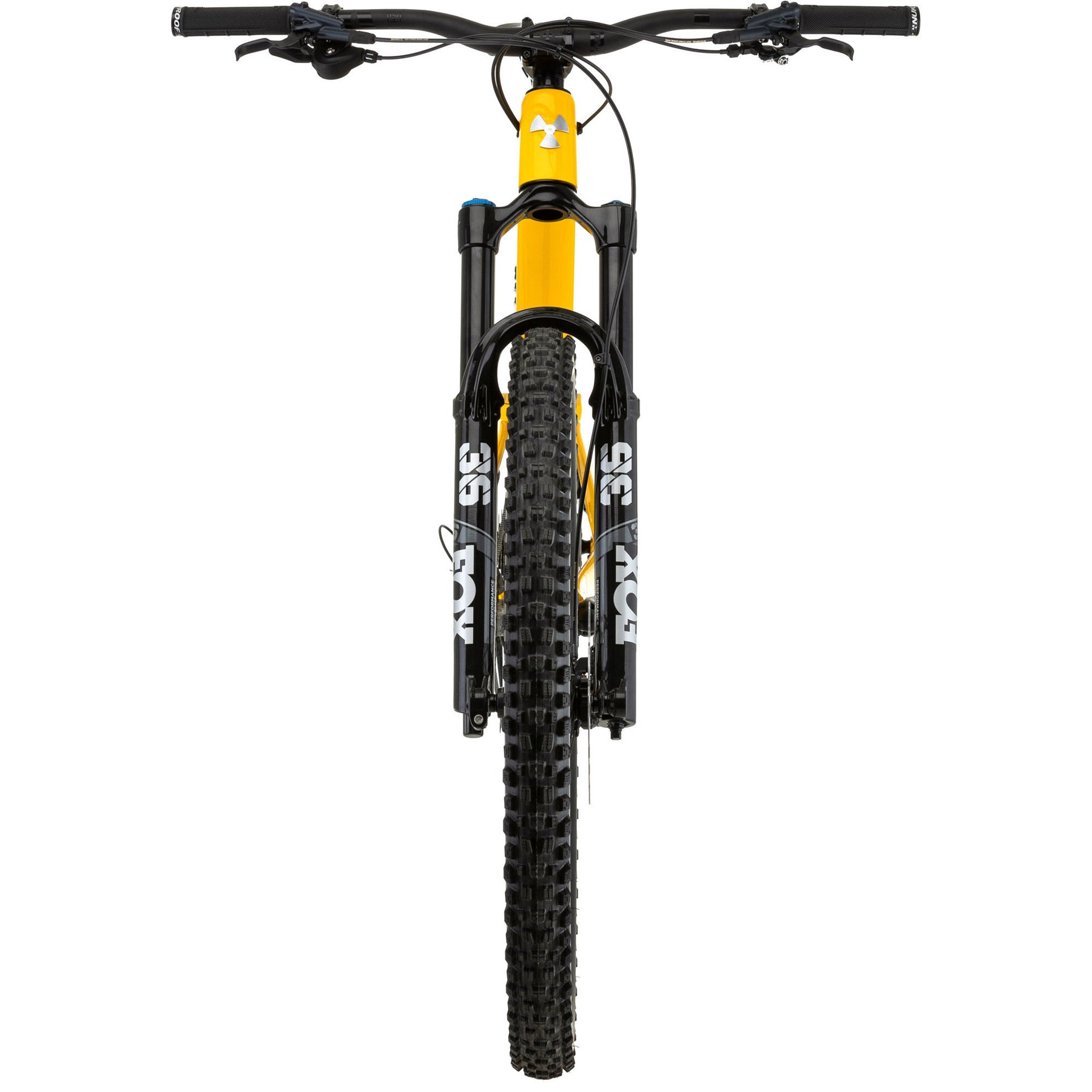

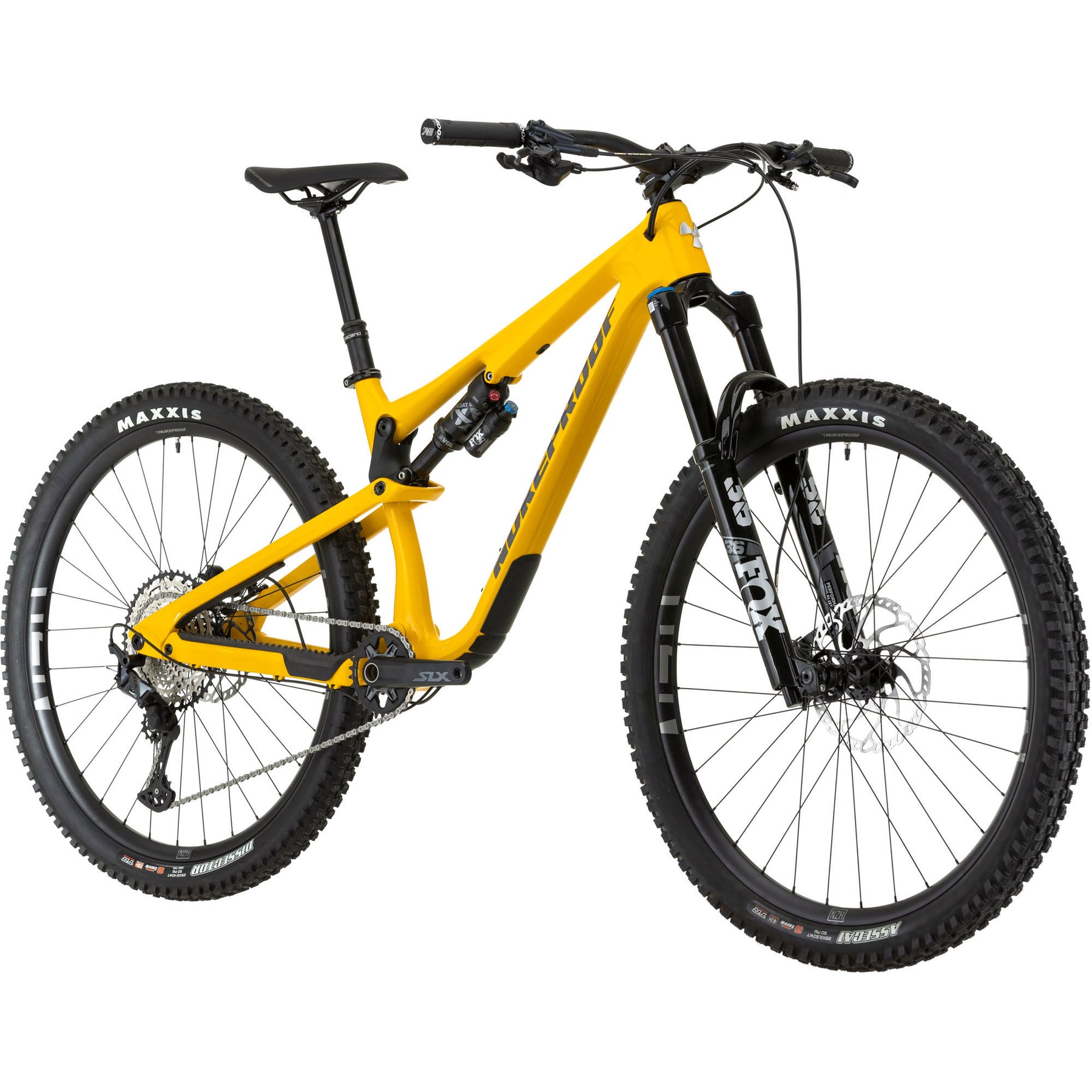

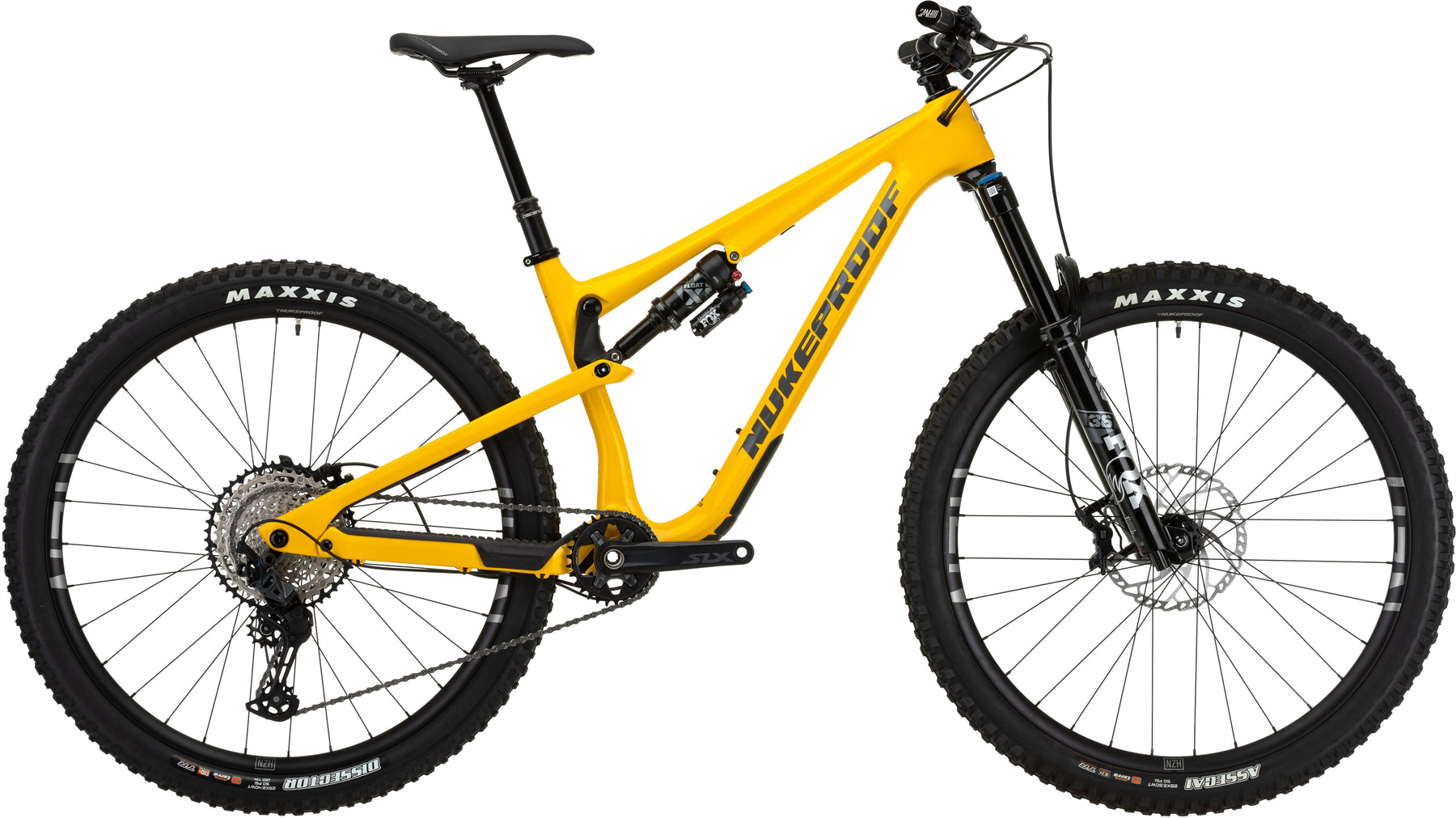

Nukeproof Reactor 290 Elite Carbon Bike 2022
Color:
Color
Size:
Size
Quantity:
Availability
Click & Collect
Pickup available at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Usually ready in 24 hours
Nukeproof Reactor 290 Elite Carbon Bike 2022
NP Yellow / XL
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup available, usually ready in 24 hours
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609With its full monocoque carbon fibre frame, Fox Float front and rear suspension and a Shimano SLX 12-Speed drivetrain, the Nukeproof Reactor 290 Elite Carbon Bike (SLX - 2022) will guide you up and down rough and challenging trails with ease.
Specifications
- Frame: Nukeproof Reactor 290 Carbon, 130mm Travel, UD woven Carbon Fibre frame, internal cable routing, ISCG 05 mounts, Enduro bearings, Threaded 73mm BB, Boost 148mm rear axle spacing, 3D contoured rubber frame protection
- Fork: Fox 36 Float, Performance Elite Series, Grip 2 Damper, 150mm, 44mm Offset, BOOST, Black
- Shock: Fox Float X, Performance Elite Series, 2 Position, LV EVOL, Custom CM+, RM, Rezi LM tune, 210x50mm, Bearing End, 1x 0.2 spacer fitted.
- Front Wheel: Nukeproof Horizon V2 29", 6 Bolt, 110x15mm
- Rear Wheel: Nukeproof Horizon V2 29", 6 Bolt, Shimano Microspline Driver, 148x12mm
- Tyres: Front: Maxxis Assegai 29x2.5" WT 3C MaxxTerra/EXO+/TR, Rear: Maxxis Dissector 29x2.4" WT 3C MaxxTerra/EXO+/TR
- Crankset: Shimano SLX M7100 12-Speed, Hollowtech 2, 170mm, 30T, 52mm Chainline
- Shifter: Shimano SLX M7100-IR, 12-speed Rapidfire Plus, I-Spec EV
- Rear Derailleur: Shimano SLX M7100, SGS 12-Speed, Shadow Plus
- Chain: Shimano SLX M7100 HG 12-speed Inc Quicklink
- Cassette: Shimano SLX M7100-12, 12-Speed (HYPERGLIDE+), 10-51T
- Brakes: Shimano SLX M7120, 4 Pot Brake, Metallic Pads
- Front Rotor: Brakco, 203mm
- Rear Rotor: Brakco, 180mm
- Handlebars: Nukeproof Horizon V2 25mm Rise, Width - M780mm, L800mm, XL800mm
- Stem: Nukeproof Horizon, 45mm, Black
- Saddle: Nukeproof, Black
- Seatpost: Brand-X Ascend internal with Brand-X Remote lever, M:150mm drop; L:170mm drop; XL:200mm drop
- Headset: Nukeproof, 44-56 IITS
- Grips: Nukeproof Sam Hill Signature
- Weight: 14.66kg (Medium, Tubeless)
Geometry

| REACTOR 290 140MM FORK (CARBON) | REACTOR 290 150MM FORK (CARBON) | REACTOR 290C ST (130MM FORK) | |||||||
|---|---|---|---|---|---|---|---|---|---|
| Medium | Large | X-Large | Medium | Large | X-Large | Medium | Large | X-Large | |
| (A) REACH | 451 | 480 | 514 | 446.3 | 475.4 | 509.5 | 460 | 488 | 521.6 |
| (B) STACK | 615 | 620 | 625 | 618.4 | 623.5 | 628.7 | 608 | 614 | 618 |
| (C) EFFECTIVE TOP TUBE LENGTH | 610 | 640 | 675 | 611.4 | 641.2 | 676.3 | 608 | 638 | 673 |
| (D) SEATTUBE LENGTH | 420 | 458 | 508 | 420 | 458 | 508 | 420 | 458 | 508 |
| (E) EFFECTIVE SEATTUBE ANGLE | 75.5° (Low 75°) |
75.5° (Low 75°) |
75.5° (Low 75°) |
75.1° (Low 74.6°) |
75.1° (Low 74.6°) |
75.1° (Low 74.6°) |
76.3° (Low 75.8°) |
76.3° (Low 75.8°) |
76.3° (Low 75.8°) |
| (F) SEATTUBE ANGLE (ACTUAL) | 71° (Low 70.5°) |
71° (Low 70.5°) |
71° (Low 70.5°) |
70.6° (Low 70.1°) |
70.6° (Low 70.1°) |
70.6° (Low 70.1°) |
71.8° (Low 71.3°) |
71.8° (Low 71.3°) |
71.8° (Low 71.3°) |
| (G) SADDLE HEIGHT AT SADDLE OFFSET | - | - | - | - | - | - | - | - | - |
| (H) SADDLE OFFSET AT SADDLE HEIGHT (AT 30% SAG RT ONLY) | - | - | - | - | - | - | - | - | - |
| (I) HEADTUBE LENGTH | 105 | 110 | 115 | 105 | 110 | 115 | 105 | 110 | 115 |
| (J) HEADTUBE ANGLE | 66° (Low 65.5) |
66° (Low 65.5) |
66° (Low 65.5) |
65.5° (Low 65) |
65.5° (Low 65) |
65.5° (Low 65) |
66.8° (Low 66.3) |
66.8° (Low 66.3) |
66.8° (Low 66.3) |
| (K) CHAINSTAY LENGTH | 440 | 440 | 440 | 440 | 440 | 440 | 440 | 440 | 440 |
| (L) FRONT CENTRE | 762.5 | 792 | 830 | 766.5 | 796 | 834 | 755.5 | 785 | 823 |
| (M) WHEELBASE | 1205 | 1235 | 1271 | 1209 | 1239.1 | 1275.1 | 1198 | 1228 | 1264 |
| (N) BOTTOM BRACKET DROP | -33 (Low -39) |
-33 (Low -39) |
-33 (Low -39) |
-30 (Low -36) |
-30 (Low -36) |
-30 (Low -36) |
-39 (Low -45) |
-39 (Low -45) |
-39 (Low -45) |
| (O) BOTTOM BRACKET HEIGHT | 336 (Low 330) |
336 (Low 330) |
336 (Low 330) |
336 (Low 330) |
336 (Low 330) |
336 (Low 330) |
330 (Low 324) |
330 (Low 324) |
330 (Low 324) |
| (P) STAND OVER HEIGHT | 736 (High) | 744 (High) | 769 (High) | 739 (High) | 747 (High) | 772 (High) | 730 (High) | 738 (High) | 763 (High) |
| (Q) FORK TRAVEL | 140 | 140 | 140 | 150 | 150 | 150 | 130 | 130 | 130 |
| (R) TRAIL | - | - | - | - | - | - | - | - | - |
| (S) FORK OFFSET | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 | 44 |
| (T) AXLE TO CROWN  | 554 | 554 | 554 | 564 | 564 | 564 | 537 | 537 | 537 |
| (U) MAXIMUM SEATPOST INSERT | 215 | 250 | 300 | 215 | 250 | 300 | 215 | 250 | 300 |
*All dimensions in mm unless otherwise stated
Frame Specifications:
- Material: Ultra Strong T700/800 Monocoque Carbon Fibre
- Fork Travel: 150mm
- Axle to Crown: 557mm
- Fork Offset: 44mm
- Rear Travel: 130mm
- Wheels Size: 29"
- Max Tyre Size: 2.6"
- Recommended Shock Sag (Measured seated): 30%
- Shock Size: 210x50mm
- Shock Hardware F: 25x8mm
- Shock Hardware R: 30x8mm
- Sizing: M/L/XL
- Headtube: 44-56mm Tapered Semi-Integrated
- Headset: ZS44-28.6 - T2 / ZS56/40 - B8
- Bearings Required: 2x (6902 2RS), 4x (6800 2RS), 4x (6901 2RS)
- Seatpost: 31.6mm (Internal Routing for Dropper Seatpost)
- Seat Clamp: 36.4mm
- BB: Threaded 73mm BSA
- Rear Hub: Boost 148x12mm
- Rear Axle: Sram Maxle Stealth M12x1.75 180mm (Thread Length 20mm)
- Chain Guide: ISCG05
- Brake Mount: 180mm Direct Post
- Protection: 3D Contoured Rubber Frame Protection for DT/SS/CS
