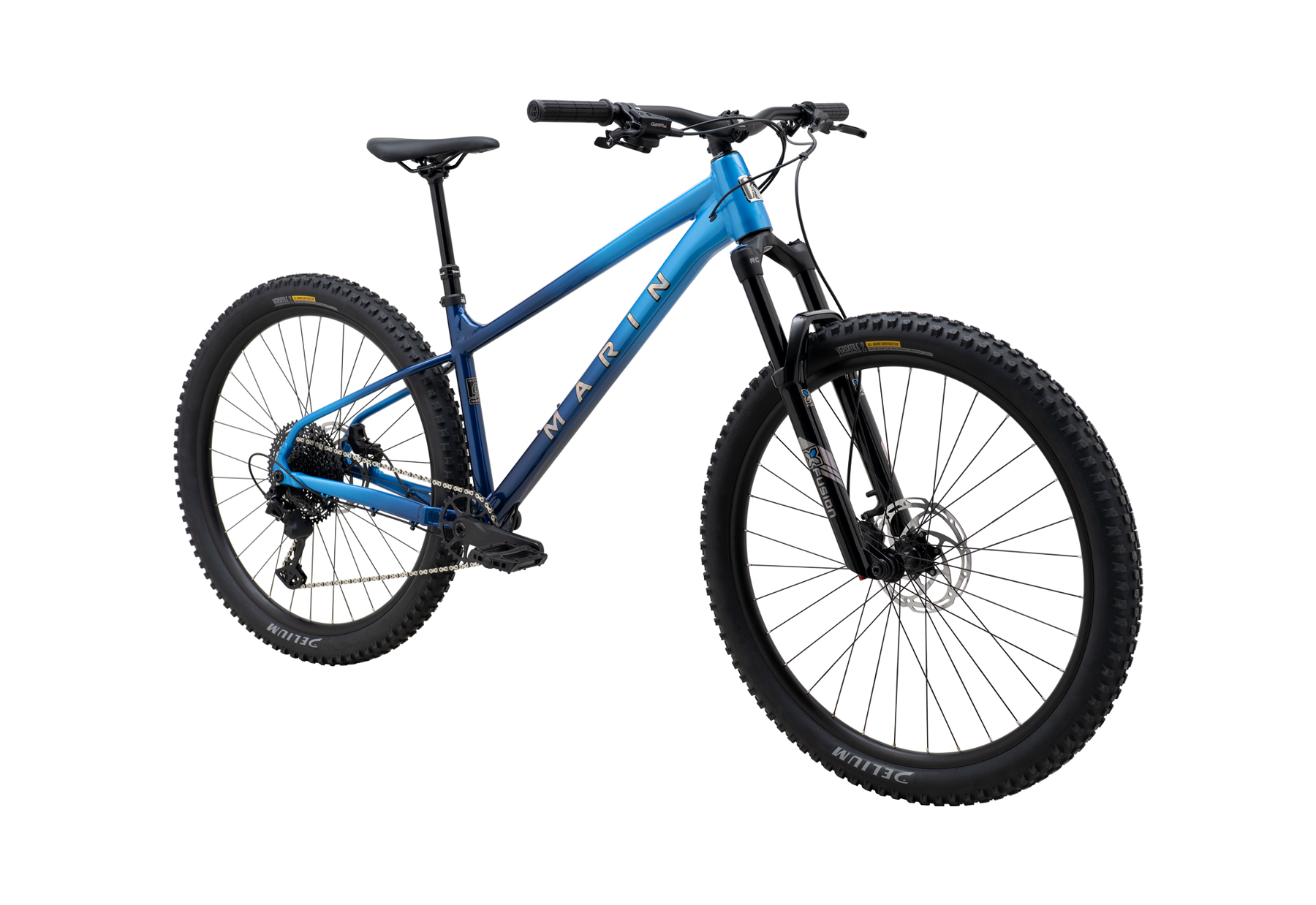

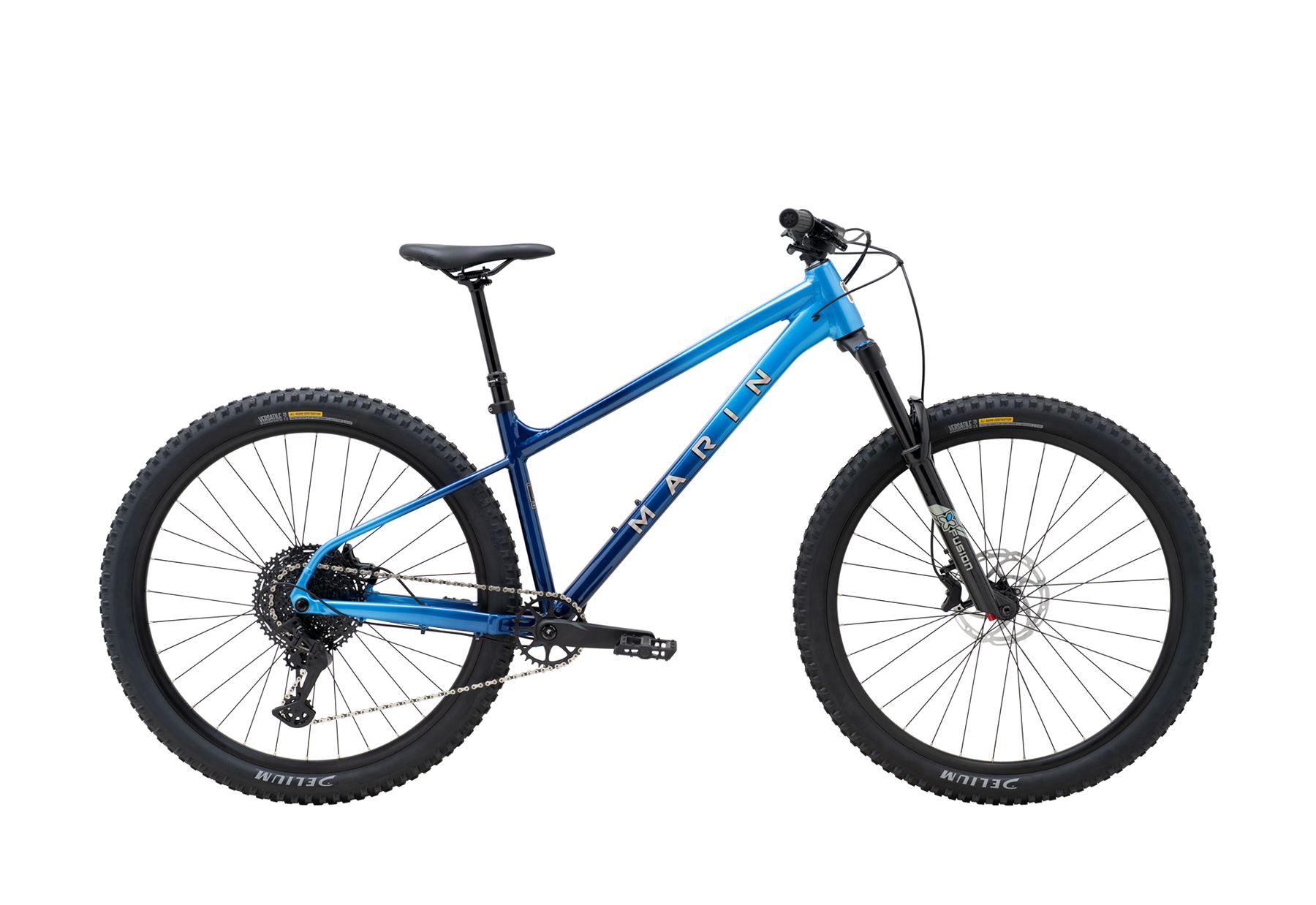

Marin San Quentin 2 29" Hardtail Mountain Bike 2026
Color:
Color
Size:
Size
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Marin San Quentin 2 29" Hardtail Mountain Bike 2026
Blue Fade / M
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Dirt jump DNA with all the speed and roll-over of 29" wheels. The Marin San Quentin 2 29 is our mid-pack model that blends bang-for-your-buck value with kick-ass components. We’ve packed in 29" wheels, a TranzX dropper post, X-Fusion suspension fork, Tektro brakes, Vee Tire rubber and plenty of awesome Marin kit to create a bike you’ll love to rip, but that won’t shred your budget. Dirt jump DNA with all the speed and roll-over of 29" wheels.
Specifications
| Frame | Series 3 6061 Aluminum, Double Butted Frame, Internal Cable Routing, 12x148mm Thru-Axle, 73mm Threaded BB |
|---|---|
| Fork | X-Fusion Slide (29) or Sweep(27.5) Boost RC, 140mm Travel, Compression and Rebound Adjustment, 44mm Offset |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Stem | Marin 3D Forged Alloy, 35mm |
| Handlebars | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Grips | Marin Grizzly Lock On |
| Rims | 29mm Inner, Pinned Joint, 32H, Tubeless Compatible |
| Spokes | 14g Black Stainless Steel |
| Hubs | Shimano HF-MT410B, 110x15mm, 32H / Shimano HF-MT400B, 148x12, Disc, Standard Freehub Body |
| Tyres | Delium Vesatile, All-Around Construction, 2.5", Wire-Bead Tubeless |
| Shifter | Shimano CUES 11-speed |
| Rear Derailleur | Shimano CUES U6000GS, w/Clutch |
| Crankset | Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing |
| Cassette | Shimano CUES CSLG400, 11-Speed, 11-51T |
| Chain | KMC LG |
| Bottom Bracket | External Sealed Cartridge Bearing |
| Brake Levers |
Tektro M535 |
| Front Brake | Tektro M535 4-Piston Hydraulic, 180mm Rotor |
| Rear Brake | Tektro M535 4-Piston Hydraulic, 180mm Rotor |
| Seatpost | TranzX, YSP18, 1x Remote, Size S 120mm Travel, Size M 150mm Travel, Size L-XL 170mm Travel, 30.9mm |
| Saddle | Marin Speed Concept |
| Pedals | Marin MTB Plastic |
| Extras | - |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 632 | 636 | 645 | 650 |
| Reach | 422 | 450 | 470 | 500 |
| Headtube Angle | 64 | 64 | 64 | 64 |
| Headtube Length | 115 | 120 | 125 | 130 |
| Seattube Angle | 77 | 77 | 77 | 77 |
| Seattube Length | 330 | 380 | 410 | 420 |
| Toptube (Effective) | 568 | 596 | 619 | 650 |
| Chainstay Length | 430 | 430 | 430 | 430 |
| Wheelbase | 1182 | 1212 | 1236 | 1268 |
| BB Height | 327 | 327 | 327 | 327 |
| BB Drop | 50 | 50 | 50 | 50 |
| Standover | 650 | 683 | 688 | 695 |
| Fork Offset | 44 | 44 | 44 | 44 |
| Stem Length | 35 | 35 | 35 | 35 |
| Handlebar Width | 780 | 780 | 780 | 780 |
| Crank Length | 170 | 170 | 170 | 170 |
