Marin

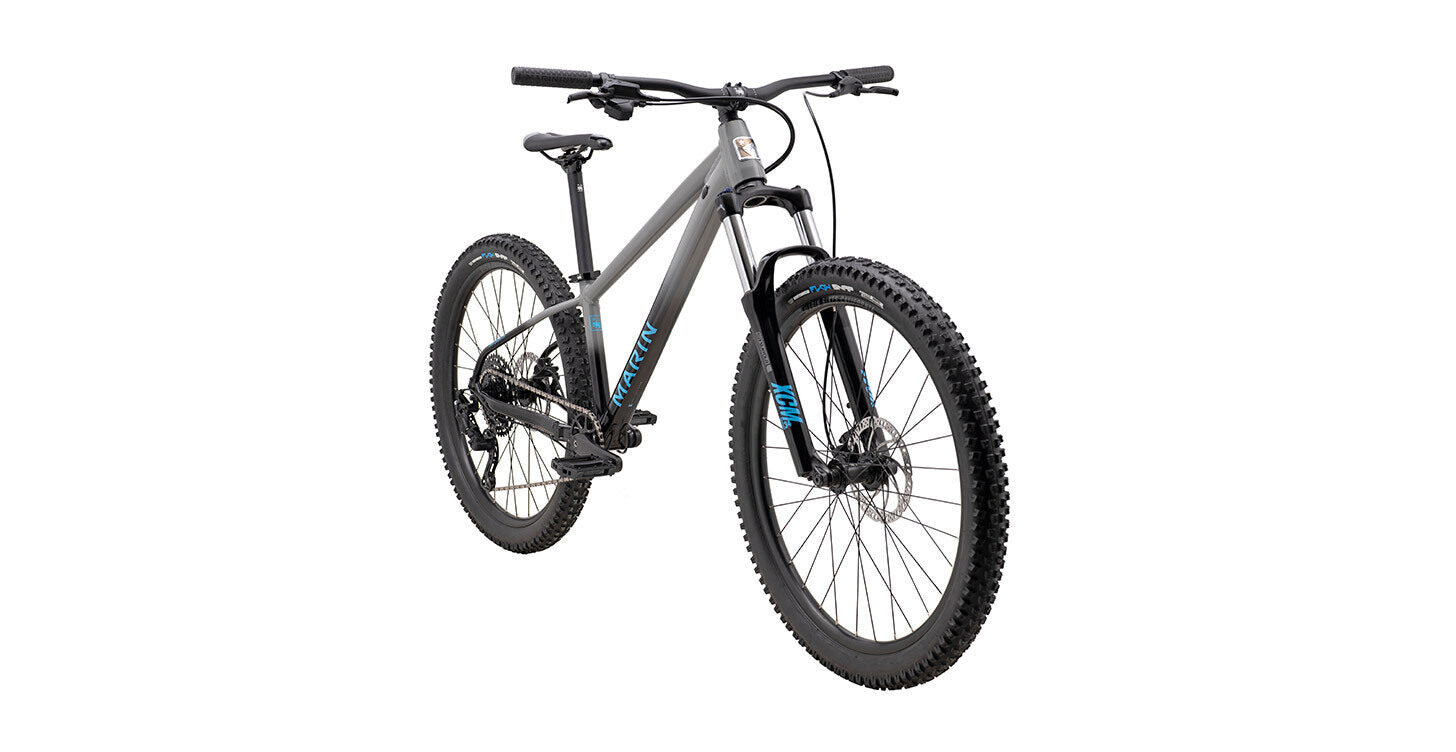

Marin San Quentin 1 29 Hardtail Mountain Bike
Color
Size
Availability
Click & Collect
Marin San Quentin 1 29 Hardtail Mountain Bike
Grey/Black / M - 29"
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The San Quentin 1 is our bang-for-your-buck hardcore hardtail that looks and rides like a bike twice the price. Because why should fewer dollars in the bank mean fewer good times on the trails?
We've packed in an SR Suntour XCM34 suspension fork, Vee Tire Co tires, Tektro disc brakes and a load of awesome Marin components to create a bike you’ll love to rip, but that won’t shred your budget. And we've given it a bad-ass paint job that'll cut it alongside those big-bucks bikes.
Specifications
| Frame | Series 2 6061 Aluminum 27.5 or 29" Wheel, Double Butted, Internal Cable Routing, 141mm Open Dropout, 73mm Threaded BB |
|---|---|
| Fork | SR Suntour XCM34 Boost 15x110mm Spacing, 130mm Travel, Coil Spring, Bolt-On Thru-Axle |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Stem | Marin Alloy, 45mm |
| Handlebars | Marin Mini-Riser, 6061 Double Butted Aluminum, 780mm Width, 28mm Rise, 5º Up, 9º Back |
| Grips | Marin MTN, Closed End |
| Rims | Marin Aluminum Double Wall, Disc Specific, 29mm Inner, Pinned Joint, 32H, Tubeless Compatible |
| Spokes | 14g Black Stainless Steel |
| Front Hub | Forged Alloy, 110x15mm, Sealed Cartridge Bearing, Disc, 32H |
| Rear Hub | Forged Alloy, Sealed Bearings, Alloy Axle, QR type, 141mm Width, Disc, 32H, Shimano Standard Freehub Body |
| Tyres | Vee Tire Co., Flow Snap, 27.5/29x2.6", MPC Compound, Wire Bead |
| Rear Shifter | microSHIFT SL-M9195-R, 1x9 with Bearings |
| Rear Derailleur | microSHIFT RD-M9195M, 9 Speed, With Clutch |
| Crankset | Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, Boost Spacing |
| Cassette | SunRace, 9-Speed, 11-46T |
| Chain | KMC X-9 |
| Bottom Bracket | Sealed Cartridge Bearing, Square Taper |
| Front Brake | Tektro M275 Hydraulic Disc, 180mm Rotor |
| Rear Brake | Tektro M275 Hydraulic Disc, 180mm Rotor |
| Brake Levers | Tektro M275 Hydraulic |
| Seatpost | Marin Alloy, 30.9mm |
| Saddle | Marin Speed Concept |
| Pedals | Nylon Platform |
| Extras |
Geometry
| M | L | XL | |
|---|---|---|---|
| Stack | 644 | 653 | 657.5 |
| Reach | 450 | 470 | 500 |
| Headtube Angle | 64 | 64 | 64 |
| Headtube Length | 115 | 125 | 130 |
| Seattube Angle | 77 | 77 | 77 |
| Seattube Length | 380 | 410 | 420 |
| Toptube (Effective) | 598.7 | 620.8 | 651.8 |
| Chainstay Length | 425 | 425 | 425 |
| Wheelbase | 1207 | 1232 | 1264.6 |
| BB Height | 327 | 327 | 327 |
| BB Drop | 50 | 50 | 50 |
| Standover | |||
| Fork Offset | 47 | 47 | 47 |
