Marin
Marin Rift Zone XR Mountain Bike
Color
Size
Click & Collect

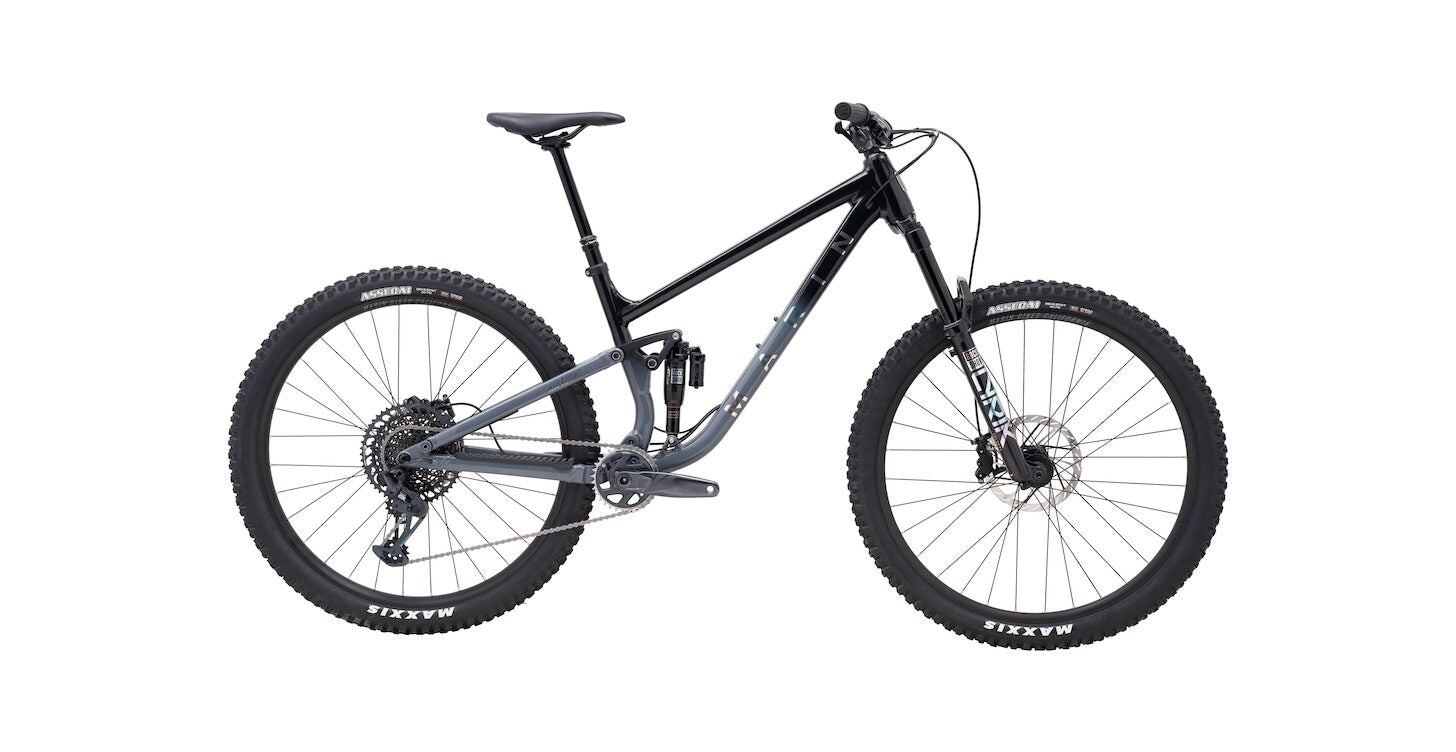

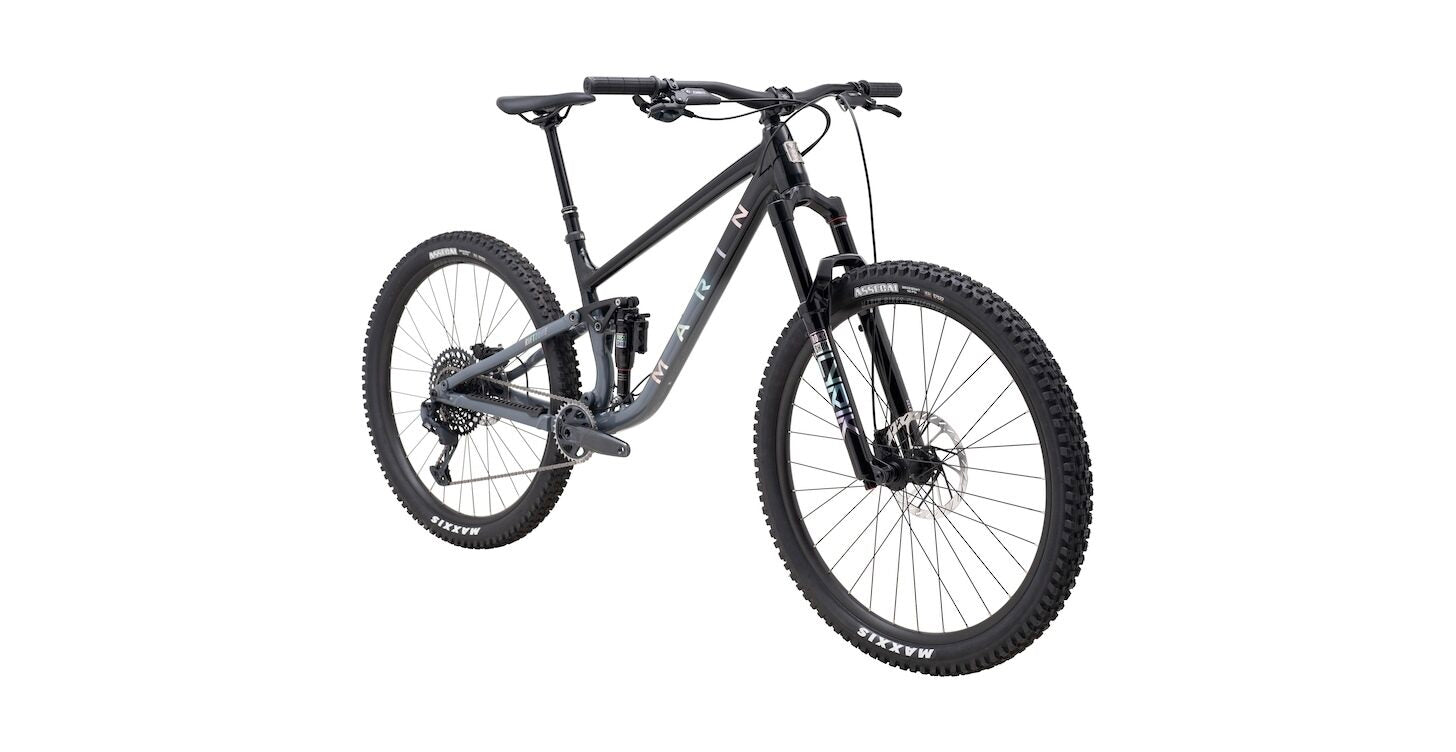

Marin Rift Zone XR Mountain Bike
Black/Grey / S - 27.5"
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Feel the Rifty Love! Our take on the ultimate do-it-all trail bike, the Marin Rift Zone is made to party, whatever your jam might be. Your ideal partner for everything from all-day epics, to local shred laps to big mountain adventures, the Rifty is Made For Fun.
The Rift Zone 29 brings together trail-taming 29" wheels, 130mm of rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails.
"XR" means Extra Rad over here at Marin, and with that, the Rifty XR gets an extra spicy build. Starting out front, the fork is RockShox's supreme Lyrik Select+ model, now sporting 150mm of travel. Not wanting to leave the rear in the lurch, the Super Deluxe Select+ shock balances out the bouncy bits. SRAM's wide-range 12-speed GX Eagle drivetrain helps get the power to the rear wheel, while SB8 4-piston brakes offer impeccable braking performance.
Specifications
| Frame | Series 3 6061 Aluminum, 29” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs |
|---|---|
| Fork | RockShox Lyrik Select+, 150mm Travel, 29" wheels, 110x15 Maxle Stealth, 42mm Offset |
| Rear Shock | RockShox Super Deluxe Select+, 210x55mm, 25xM8 Hardware, Custom Tune |
| Headset | FSA No 57, Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |
| Stem | Marin CNC, 35mm Length, 35mm Bar Bore |
| Handlebars | Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back |
| Grips | Marin Grizzly Lock-On |
| Rims | Marin Aluminum Double Wall, 29mm Inner, Sleeved Joint, Disc Specific, 32H, Tubeless Compatible |
| Spokes | 14g Black Stainless Steel |
| Front Hub | Formula, DC-711, 110x15mm, 6-Bolt Disc, 32h |
| Rear Hub | Formula, DCL-3482, 148x12, 4 Sealed Bearings, 6-Bolt Disc, XD Driver, 32H |
| Tyres | Maxxis Assegai, 29x2.5", MAXX TERAA, EXO, Tubeless Compatible |
| Rear Shifter | SRAM GX Eagle Lunar MMX Mount |
| Rear Derailleur | SRAM GX Eagle Lunar |
| Crankset | SRAM GX Eagle, 32T, 55MM CL, 170MM Length |
| Cassette | SRAM XG 1275 Eagle Cassette 10-52T |
| Chain | SRAM NX Eagle |
| Bottom Bracket | SRAM DUB MTB 73 |
| Front Brake | SRAM DB8 4-Piston Hydraulic Disc, HSC 200mm Rotor |
| Rear Brake | SRAM DB8 4-Piston Hydraulic Disc, HSC 180mm Rotor |
| Brake Levers | SRAM DB8 Hydraulic |
| Seatpost | TranzX, YSP23JL, 1x Remote, Size S 150mm Travel, Size M and L 170mm Travel, Size XL 200mm Travel, 30.9mm |
| Saddle | Marin Speed Concept |
| Pedals | - |
| Extras | Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head |
Geometry
| S - 27.5" | M - 27.5" | M - 29" | L - 29" | XL - 29" | |
|---|---|---|---|---|---|
| Stack | 569.1 | 600.7 | 628.2 | 637.3 | 641.8 |
| Reach | 415 | 430 | 460 | 485 | 515 |
| Headtube Angle | 65.1 | 65.1 | 65.1 | 65.1 | 65.1 |
| Headtube Length | 115 | 120 | 115 | 125 | 130 |
| Seattube Angle | 77 | 77 | 77 | 77 | 77 |
| Seattube Length | 330 | 390 | 400 | 425 | 430 |
| Toptube (Effective) | 550.6 | 568.7 | 605 | 632.1 | 663.2 |
| Chainstay Length | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1147.8 | 1164.8 | 1205.1 | 1234.4 | 1266.3 |
| BB Height | 344 | 344 | 348 | 348 | 348 |
| BB Drop | 35 | 35 | 35 | 35 | 35 |
| Standover | 661.7 | 677.8 | 691.2 | 701.7 | 700.5 |
| Fork Offset | 44 | 44 | 44 | 44 | 44 |
