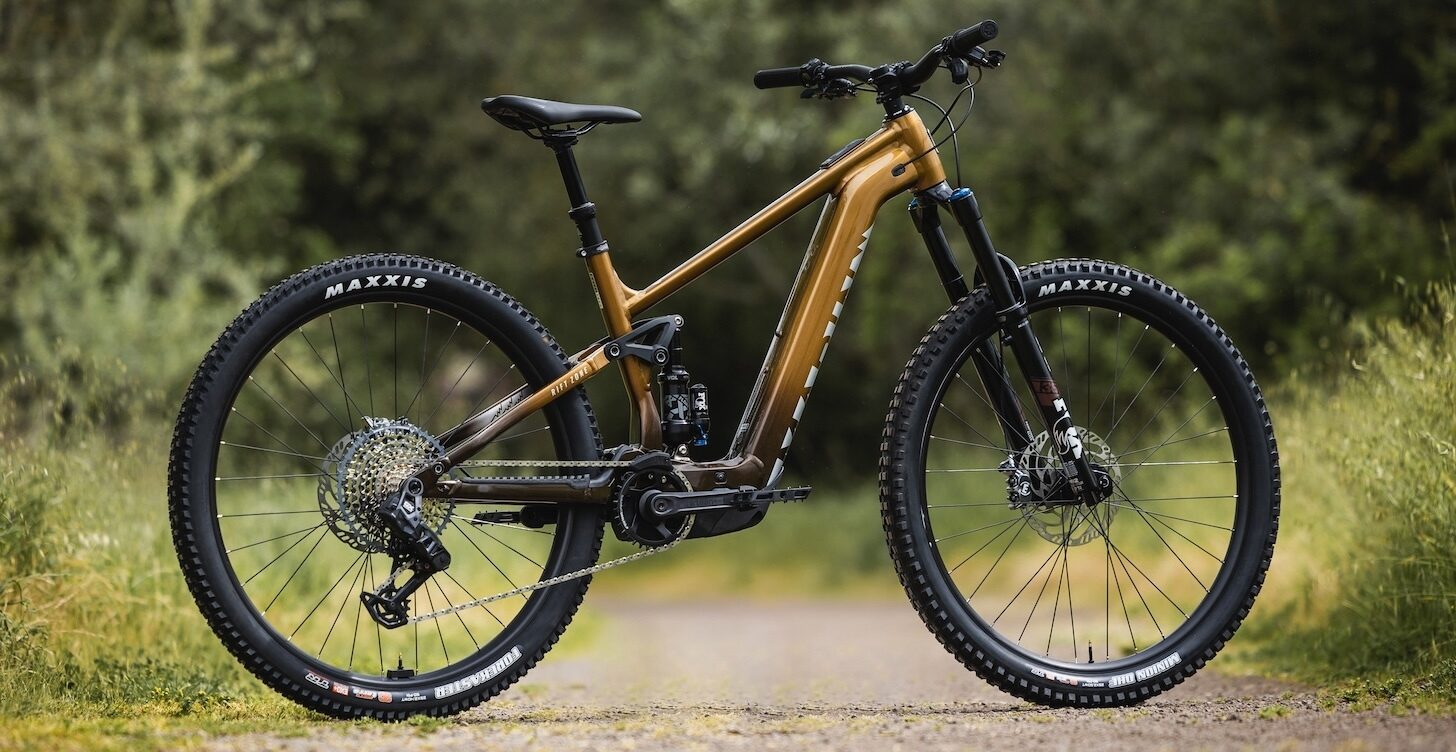

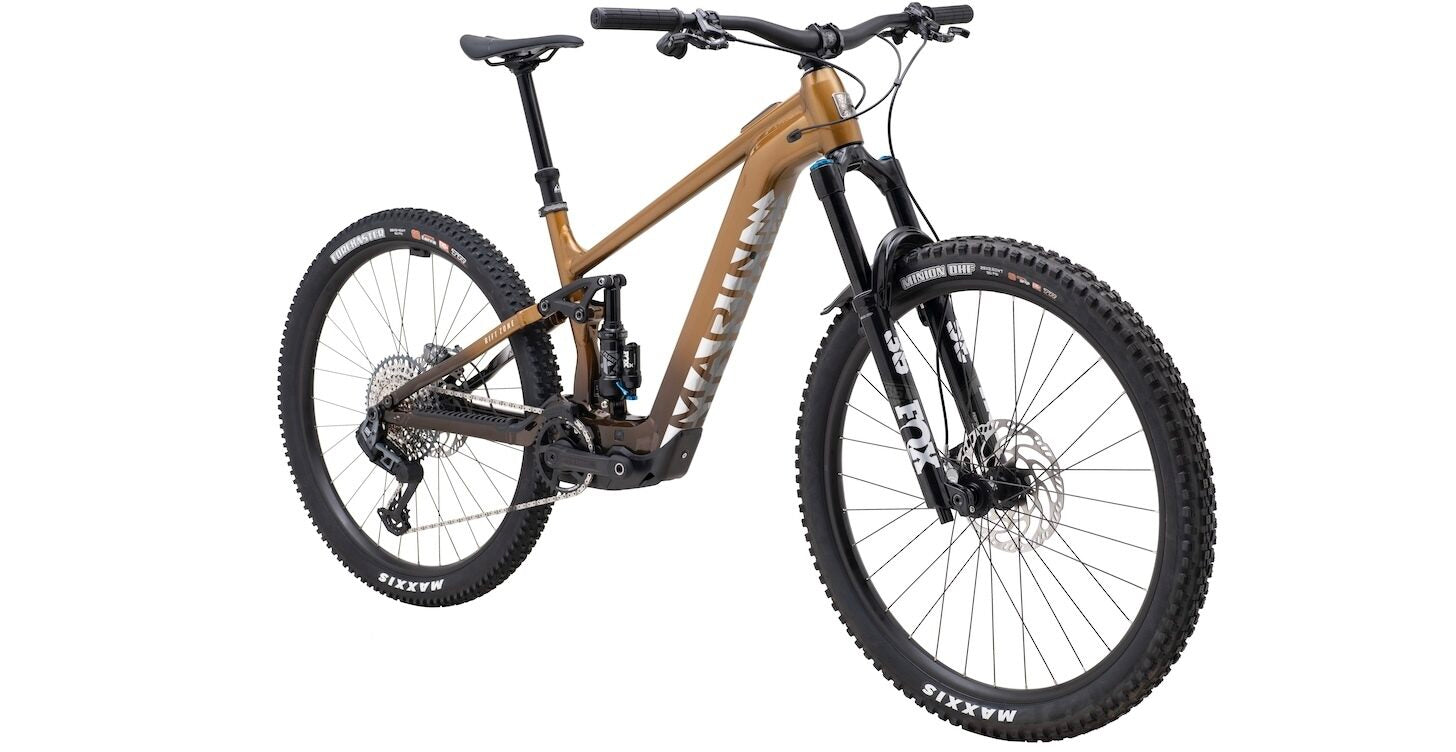

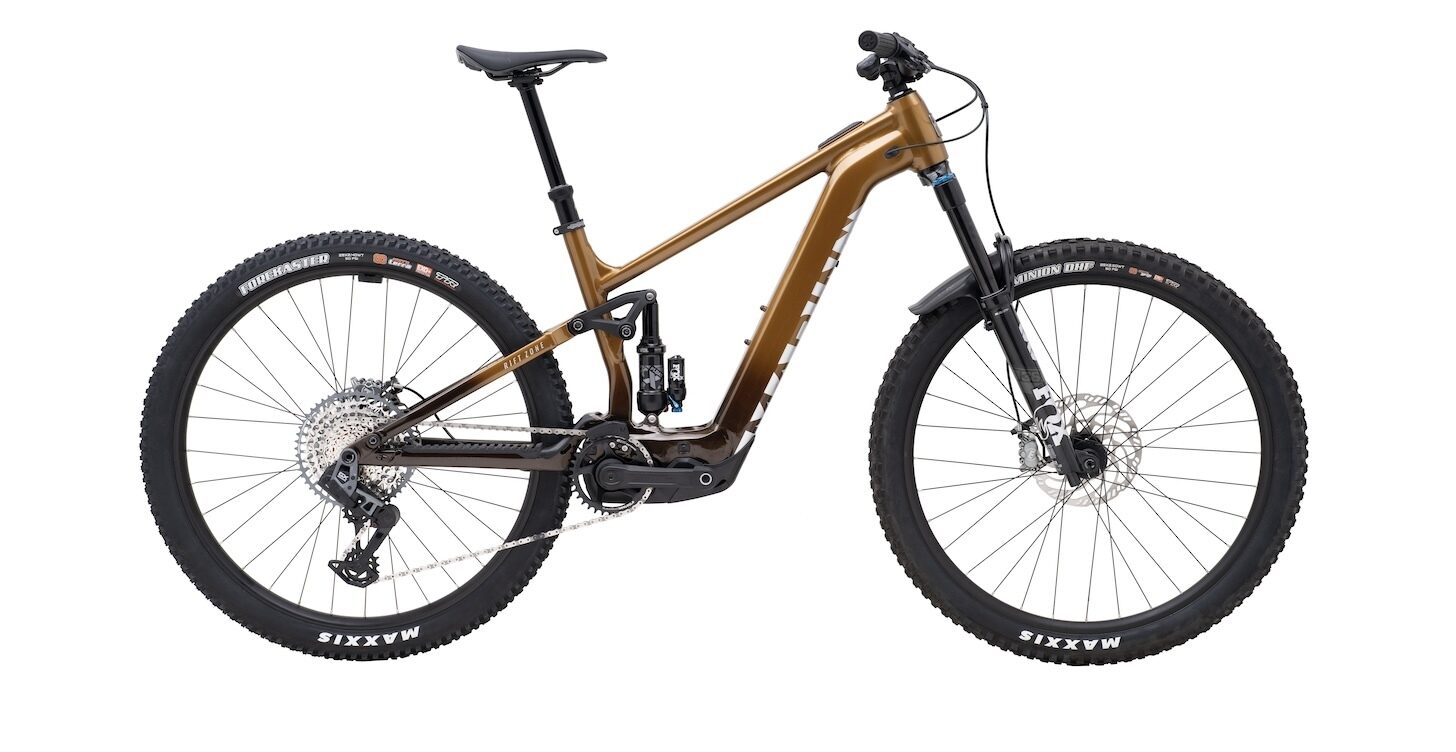

Marin Rift Zone El XR Bosch Electric Mountain Bike
Tan/Brown / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The new Rift Zone EL charts a different path within the Rift Zone E family. These models take the proven geometry, travel and trail prowess of the proven Rift Zone E in a nimble and lighter package.
Marin’s all-new Rift Zone EL (“Electric Light”) trail eMTBs take everything you love about the Rift Zone formula and repurposes it into bikes that share the capability as the full-powered versions, but in lighter-weight packages.
Made possible in part by Bosch’s new lightweight Performance Line SX drive unit and CompactTube internal battery, the Rift Zone EL models deliver a decidedly playful ride, with a power delivery so natural you might forget it’s an ebike. All of the benefits without the bulk, the Rift Zone EL is the perfect platform for those who don’t require the full range and power output of more traditional eMTBs.
All three models are well-equipped with performance-focused components from top-tier supplier partners such as Fox, SRAM, Shimano, TRP and more. Throw a leg over one and discover just how agile and fun an eMTB can be.
The flagship Rift Zone EL XR is decked out with a gamut of high performance components, including the impressive Fox 36/Float X Performance Elite suspension combo, SRAM's GX AXS wireless T-type transmission drivetrain and Magura MT-7 4-piston brakes.
Specifications
| Frame | All New Series 4 Alloy Lightweight E, 140mm MultiTrac Suspension, Integrated Battery/Charging Port, 148mm Rear Thru-Axle |
|---|---|
| Fork | Fox 36 Performance Elite, 150mm Travel, 29", 110x15 Kabolt, 44mm Offset |
| Shock | Fox Float X, Performance Elite, EVOL Air Spring, Climb Switch, Rebound Adjustment, Custom Tune, 210x55mm, 25xM8 Upper Mount, No Lower DU or Hardware |
| Headset | FSA Custom, Adjustable HTA Design |
| Stem | Marin CNC, 35mm Length, 35mm Bar Bore |
| Handlebars | Marin Trail, 35mm Clamp, 7000 Alloy Bar, 800mm Length, 20mm Rise, 5 Degree Up, 8 Degree Back |
| Grips | Marin Grizzly Lock On |
| Rims | Marin Aluminum Double Wall, 29" Diameter, 32mm Inner Rim Width, Welded Joint, Disc Specific, Tubeless Compatible |
| Spokes | 14g Black Stainless Steel |
| Front Hub | Formula DCL-3482, 4 Sealed Bearings, 148x12, XD Driver, 6-Bolt, 32H |
| Rear Hub | Formula DC-711, 110x15, 6-Bolt, 32H |
| Tyres | Front: Maxxis Minion DHF, 29x2.4" MAXXGRIP, Tubeless ready, EXO+, Rear: Maxxis Forecaster 29x2.4", Tubeless Ready MAXX TERRA EXO+ |
| Rear Shifter | SRAM AXS POD |
| Rear Derailleur | SRAM GX AXS T-Type |
| Crankset | e*thirteen e*spec Plus, 160mm Length, 34T |
| Cassette | SRAM CS-XS-1275 T-Type, 10-52T |
| Chain | SRAM GX T-Type |
| Chainguide | e*thirteen e*Spec Chainguide |
| Front Brake | Magura MT7, 4-Piston Hydraulic Disc, E-Specific Pads, 203mm MDR Rotor |
| Rear Brake | Magura MT7, 4-Piston Hydraulic Disc, E-Specific Pads, 203mm MDR Rotor |
| Brake Levers | Magura HC3 |
| Seatpost | PNW Loam Post with Range Lever, Size S 150mm Travel, Size M-L 170mm Travel, Size XL 200mm Travel, 34.9mm |
| Saddle | Marin Speed Concept |
| Extras | Bolt-On 12mm Thru-Axle, 174mm Length, 1.0 Thread Pitch, 16.5mm, Tapered Head |
| Switch | Bosch BRC3300 Bluetooth Remote 22.2mm Clamp |
| Motor | Bosch Performance Line SX, 600W, 55Nm torque, 20MPH Top Assisted Speed |
| Battery | Bosch 400 Wh Internal (Optional PowerMore 250 wh external battery using PowerMore 150mm cable EB12.120.036) |
| Display | Bosch BRC3100 Systems Controller |
| Charger | Bosch EB12.110.016; 2A Charger |
Range, Charging Time |
15-55 miles (Based on Rider Weight, Terrain, Climate and Level of Assist Used), 6 Hours (estimated, under ideal conditions) |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 618.74 | 632.33 | 641.4 | 645.93 |
| Reach | 430 | 460 | 490 | 520 |
| Headtube Angle | 65 | 65 | 65 | 65 |
| Headtube Length | 100 | 115 | 125 | 130 |
| Seattube Angle | 77 | 77 | 77 | 77 |
| Seattube Length | 400 | 420 | 430 | 460 |
| Toptube (Effective) | 572.85 | 605.99 | 638.08 | 669.12 |
| Chainstay Length | 440 | 440 | 440 | 440 |
| Wheelbase | 1188.81 | 1225.15 | 1259.38 | 1291.49 |
| BB Height | 342 | 342 | 342 | 342 |
| BB Drop | 36 | 36 | 36 | 36 |
| Standover | 674.75 | 687.74 | 691.98 | 699.2 |
| Fork Offset | 44 | 44 | 44 | 44 |
FRAME
Rift Zone EL models are built around our Series 4 aluminum frames, with detailed forgings, highly manipulated tubes and full internal cable routing, giving riders the highest-end alloy frame that Marin offers. 29” wheels roll at both ends of all three models in the Rift Zone EL collection.
MULTITRAC SUSPENSION
It wouldn’t be a Rifty without our much-heralded MultiTrac suspension that pairs an ideal leverage curve with a custom shock tune. The resulting 140mm of travel balances pedal efficiency and the ability to float over rocks and roots while delivering confidence-inspiring chassis control.
ADJUSTABLE HEADTUBE ANGLE
The headtube angles on the Rift Zone EL models can be fine-tuned via the proprietary headset cups and inserts, allowing for approximately +/- 0.50° of adjustability beyond the stock 65° headtube angle to best suit your riding style and local trails.
DRIVE UNIT
Packing 55Nm torque and up to 600W of power in a lightweight 4.4lbs/2kg drive unit, Bosch’s Performance Line CX drive unit delivers a silent riding experience with no motor noise and no drag at speed, for a very natural feeling power delivery.
BATTERY
The Bosch CompactTube 400Wh battery delivers from 15-55 miles (25-90km) of range (based on rider weight, terrain, climate and level of assist used) and fully charges in about six hours using the included 2A charger. It’s securely mounted in the downtube and is removable using common tools.
CONTROLLERS

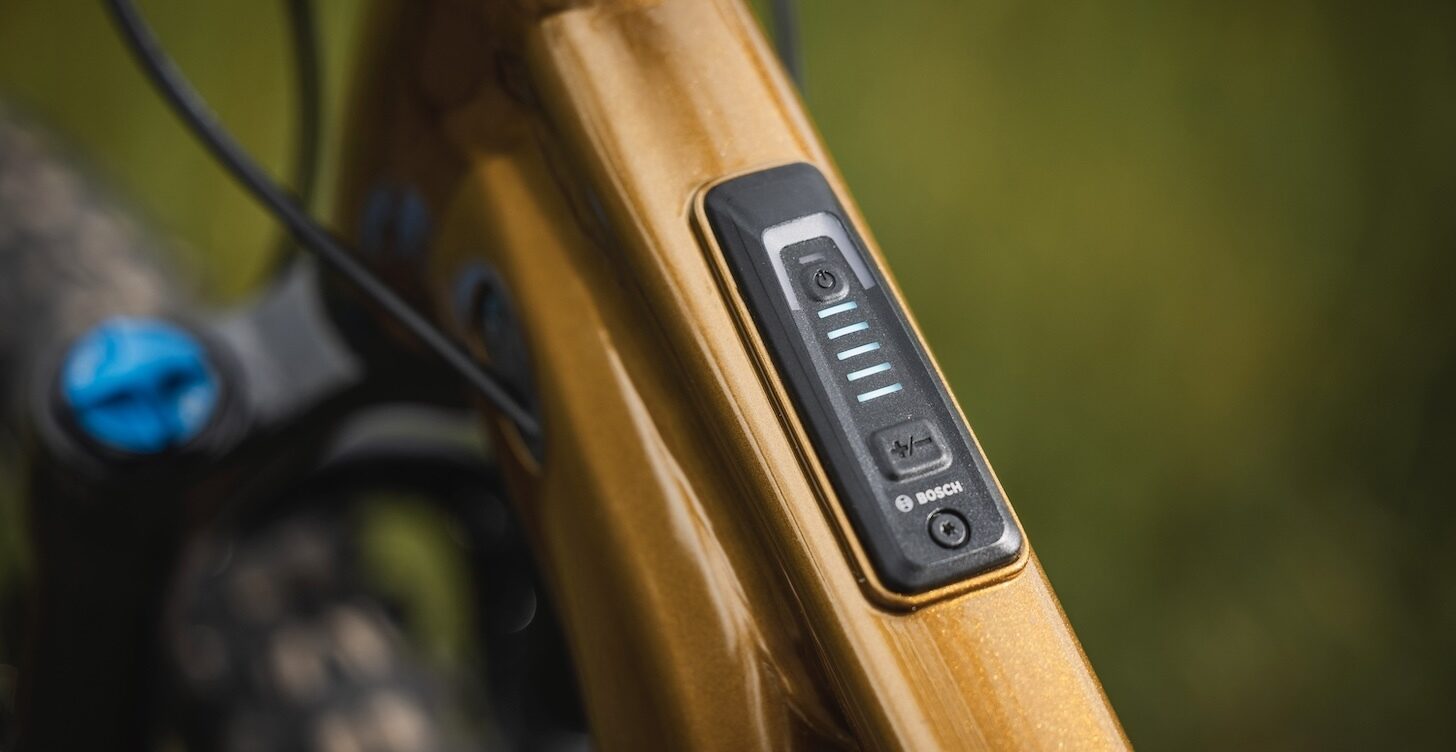

Bosch’s system controller is conveniently located on the top tube and includes the power switch and an LED-based mode/battery level indicator.
The wireless mini remote is within reach of the rider’s left thumb and controls the power assist mode, allowing the rider to make quick adjustments on the fly.
PROTECTION
Made from a 30% fiberglass-infused nylon, similar to what is used on safety and football helmets, the moto-inspired integrated downtube guard helps deflect errant rocks, logs, or anything else riders may encounter on the trail. This guard also includes drain ports to let moisture flow from the frame.
Chainstays and seatstays are protected with durable rubber guards that minimize noise and protect paint finishes. Cable ports are of an all-new design and keep the frame innards sealed. These ports use rubber membranes punctured during initial assembly and seal around the housing or hose once inserted.
EXTRAS
Bosch’s PowerMore range extending battery can be added to the downtube of Rift Zone EL models, giving the riders an additional 250Wh of power in a form factor not much larger than a water bottle. Available at extra cost from authorized Bosch ebike retailer.
