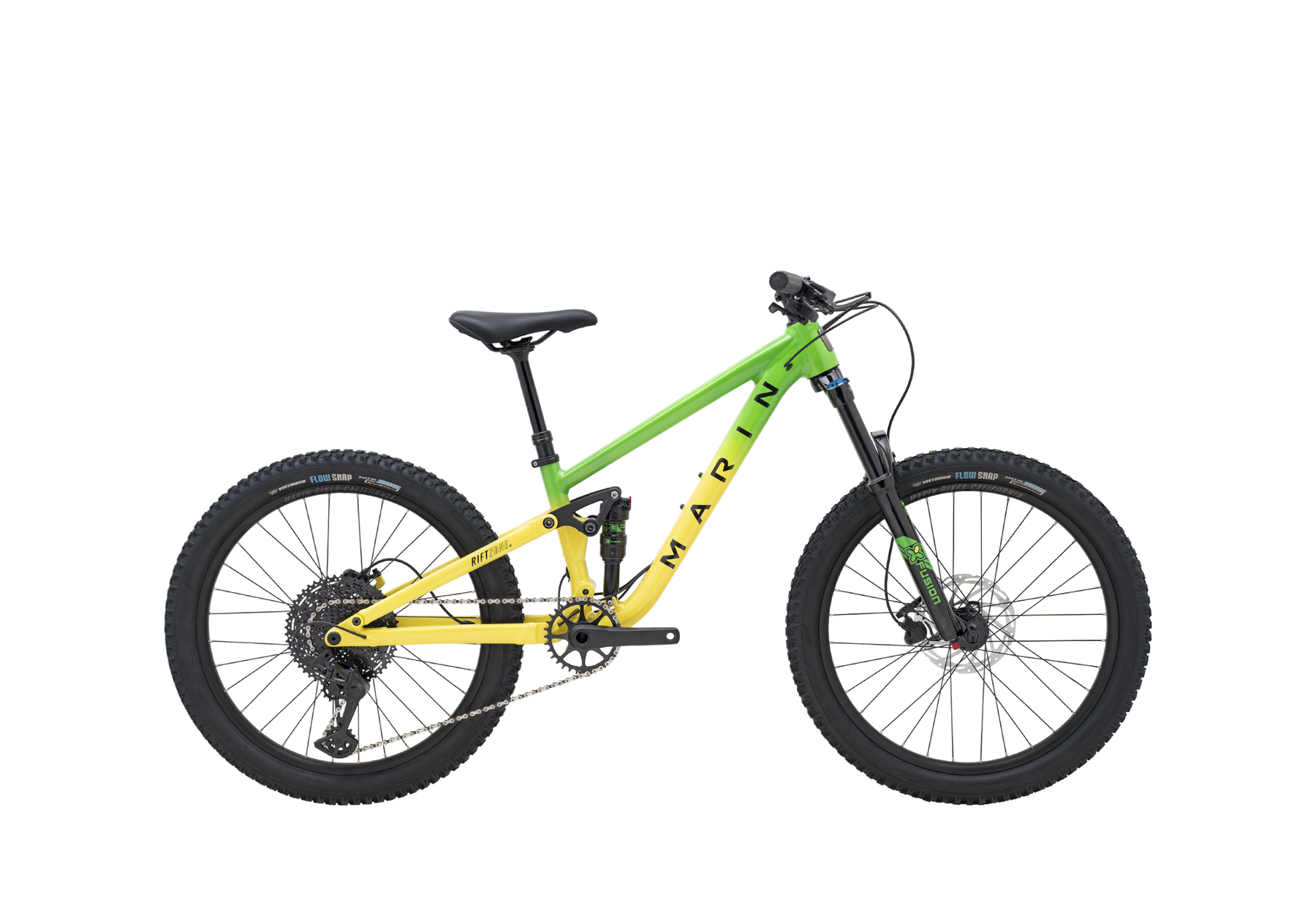

Marin Rift Zone 26" Full Suspension Mountain Bike 2026
Color
Availability
Click & Collect
Marin Rift Zone 26" Full Suspension Mountain Bike 2026
Green/ Yellow Fade
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Because young rippers need that Rifty Love too! Our take on the ultimate do-it-all trail bike, bringing big-bike performance for younger riders.

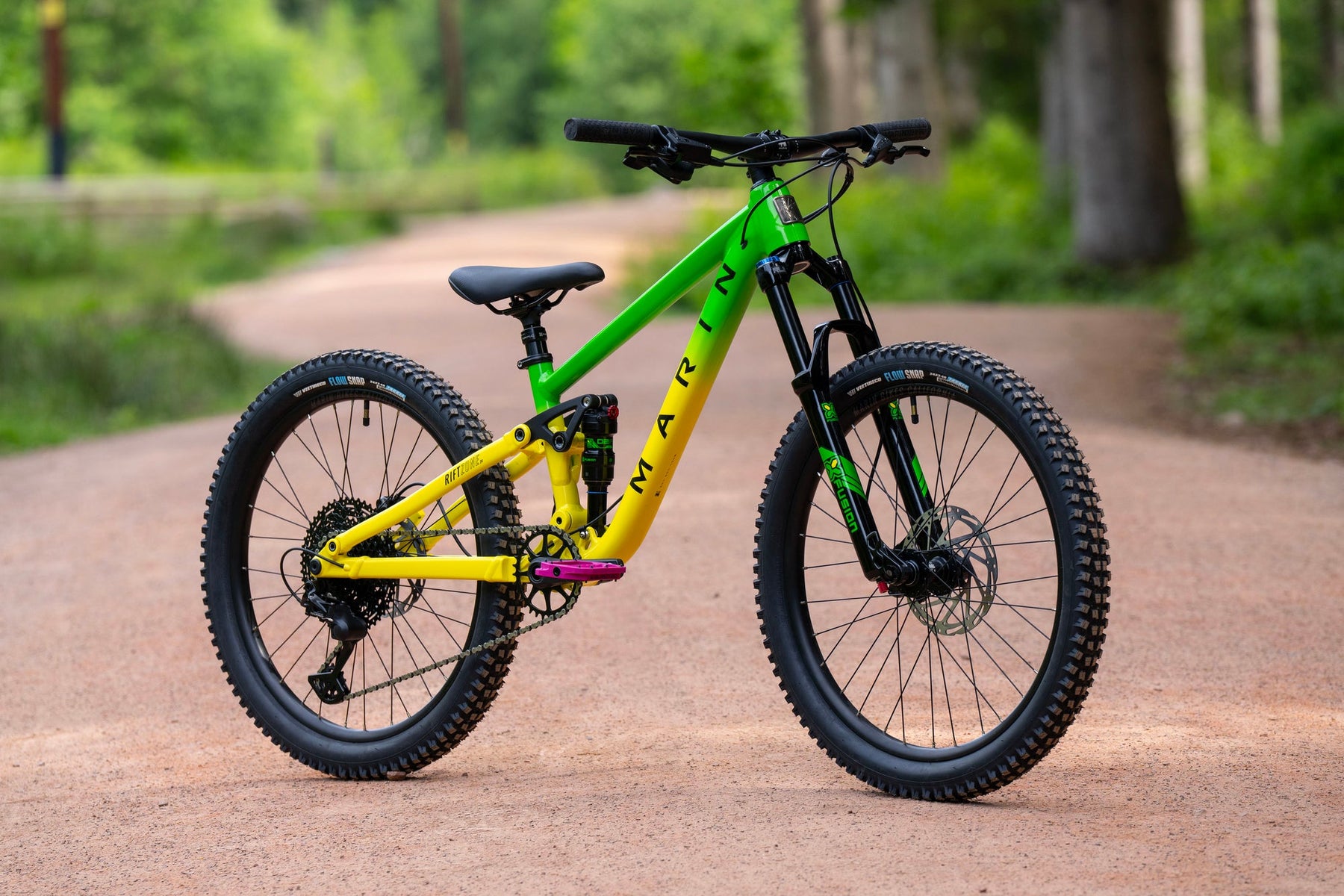

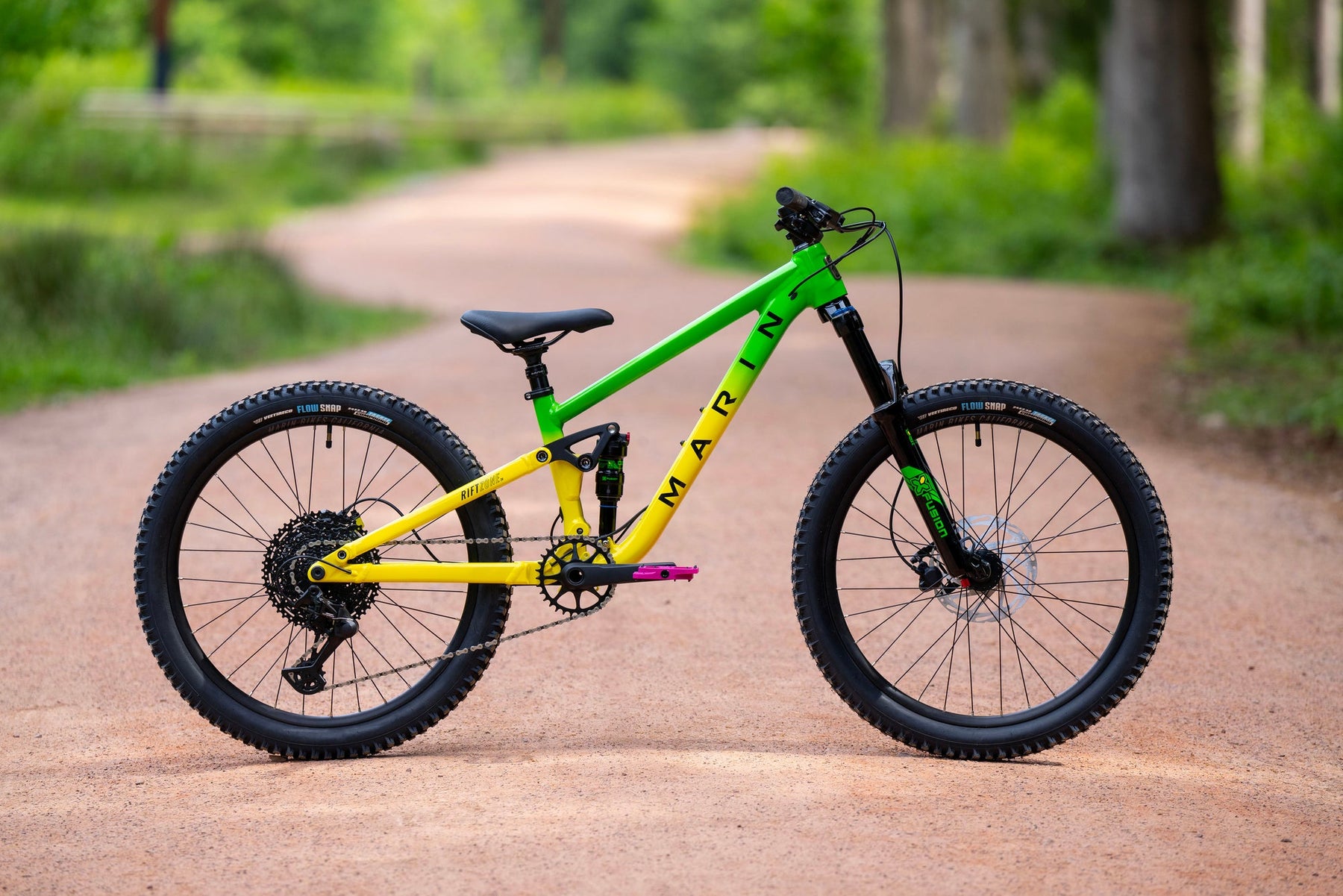

The Marin Rift Zone Jr is made to party, just like the full-sized Rifty. It has 26" wheels that are a little smaller than our full-sized bikes, making it the perfect gateway ride for tweeny riders. And just like the 'grown up' Rift Zone, it has 130mm rear travel, a lightweight aluminum frame and our super-plush MultiTrac suspension platform for endless good times on the trails.
The Rift Zone 26 shares the same frame, fork and shock as the Rift Zone 24. Simply swap the wheels and cranks to downsize it to 24"" as the perfect hand-me-down.
| Frame | Series 3 6061 Aluminum, 26” Wheels, 130mm Travel, MultiTrac Suspension Platform, 148x12mm Boost Thru-Axle, 73mm Threaded BB w/ ISCG05 Tabs |
| Front Suspension | X-Fusion Velvet RLC 26", 130mm Travel, Compression and Rebound Adjustment, 100x15mm Thru-Axle |
| Rear Suspension | X-Fusion O2 Pro R, 190x45mm, Custom Tune, M8x22.2mm Hardware |
| Rim | Marin, Double Wall Alloy, 27mm Inner, Pinned Joint, Disc Specific, Tubeless Compatible |
| Hub Rear | Joytech 141 QR, Standard Freehub Body |
| Hub Front | Joytech, 100x15mm |
| Spokes | 14g Stainless Steel |
| Tires | Vee Tire Co, Flow Snap 26x2.4", Tackee Compound, Wire Bead |
| Derailleur Rear | Shimano RD-U6000, 11-Speed GS |
| Shift Lever | Shimano, SL-U6000-11R, 11-Speed |
| Crankset | Marin Forged Alloy, Integrated Steel 32T Narrow Wide Chainring, 170mm Crank Length, Boost Spacing |
| Bottom Bracket | External Sealed Cartridge Bearing |
| Chain | Shimano LG-500 11-Speed |
| Cassette | Shimano CS-LG400-11, 11-Speed, 11-50T |
| Brakes Front | Tektro HD-M280 Hydraulic Disc, 180mm Rotor |

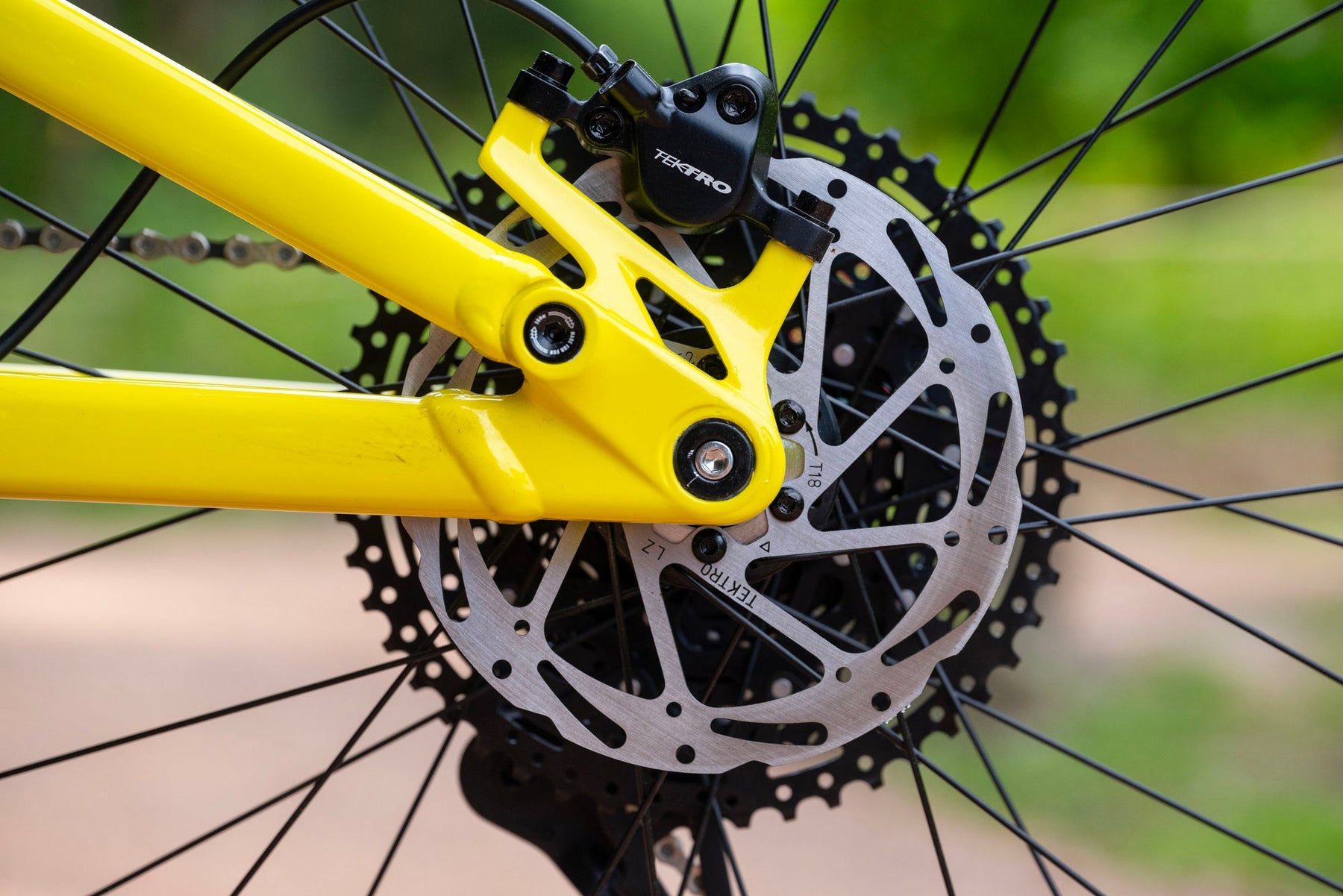

| Brakes Rear | Tektro HD-M280 Hydraulic Disc, 180mm Rotor |
| Brake Levers | Tektro HD-M280 |
| Handlebar | Marin Mini-Riser, 6061 Double Butted Aluminum, 12mm Rise, 720mm Width, 4º Up, 9º Back |
| Stem | Marin 3D Forged Alloy, 35mm |
| Grips | Marin MTN, Closed End |
| Headset | FSA No 57E, Semi-Sealed Cartridge Bearings, 1 1/8" x 1 1/2” |

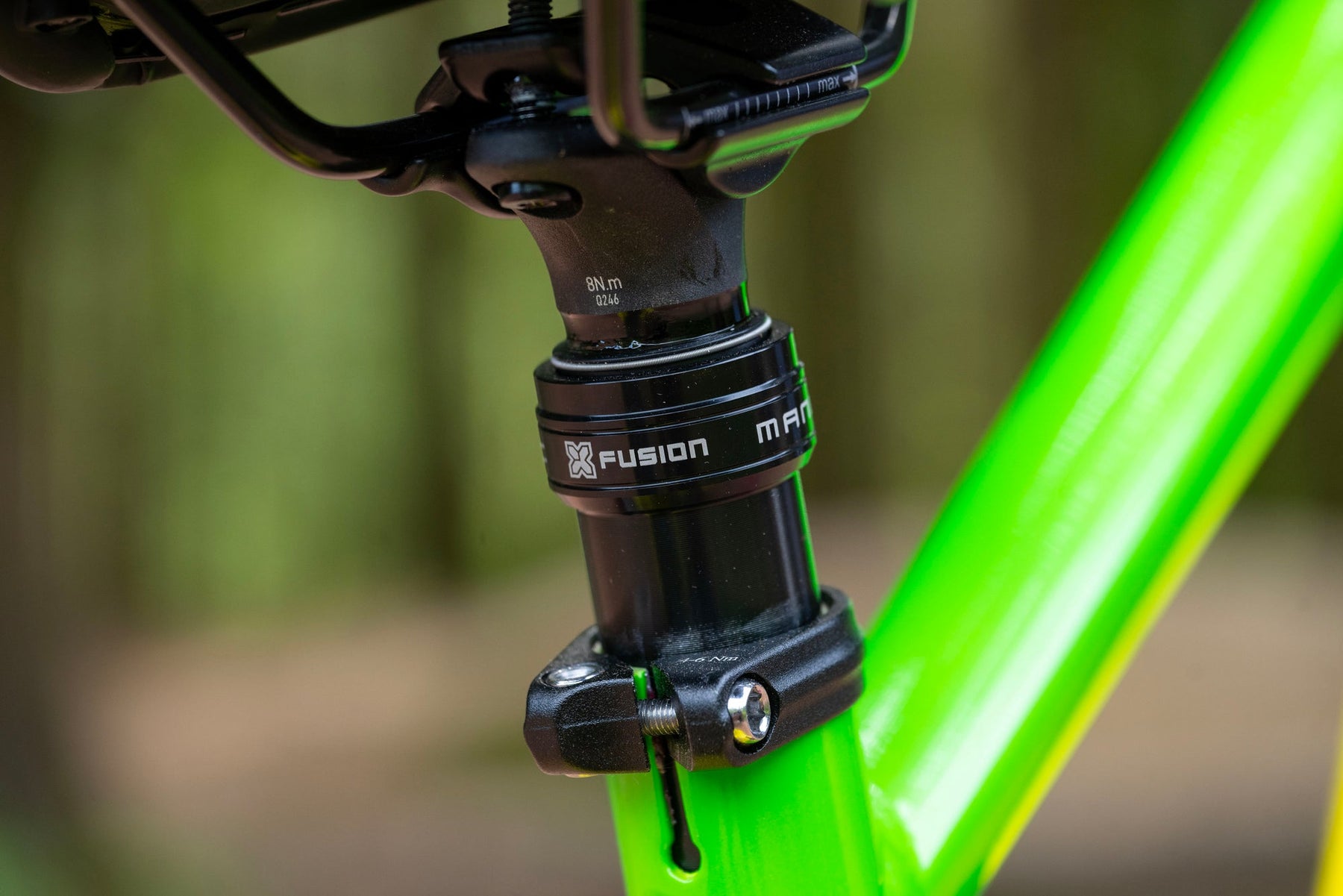

| Seatpost | X-Fusion Manic LC, 1x Composite Remote, 100mm |
| Saddle | Marin Speed Concept |
| Extras | Closed 9-12 Thru-Axle Bolt On System |
Geometry
| One Size | |
|---|---|
| Stack | 537.57 |
| Reach | 380 |
| Headtube Angle | 65.5 |
| Headtube Length | 95 |
| Seattube Angle | 76 |
| Seattube Length | 315 |
| Toptube (Effective) | 515.17 |
| Chainstay Length | 425 |
| Wheelbase | 1089.28 |
| BB Height | 332 |
| BB Drop | 10 |
| Standover | 637.5 |
| Fork Offset | 42 |
| Stem Length | 45 |
| Crank Length | 170 |
| Seatpost Diameter | 30.9 |
