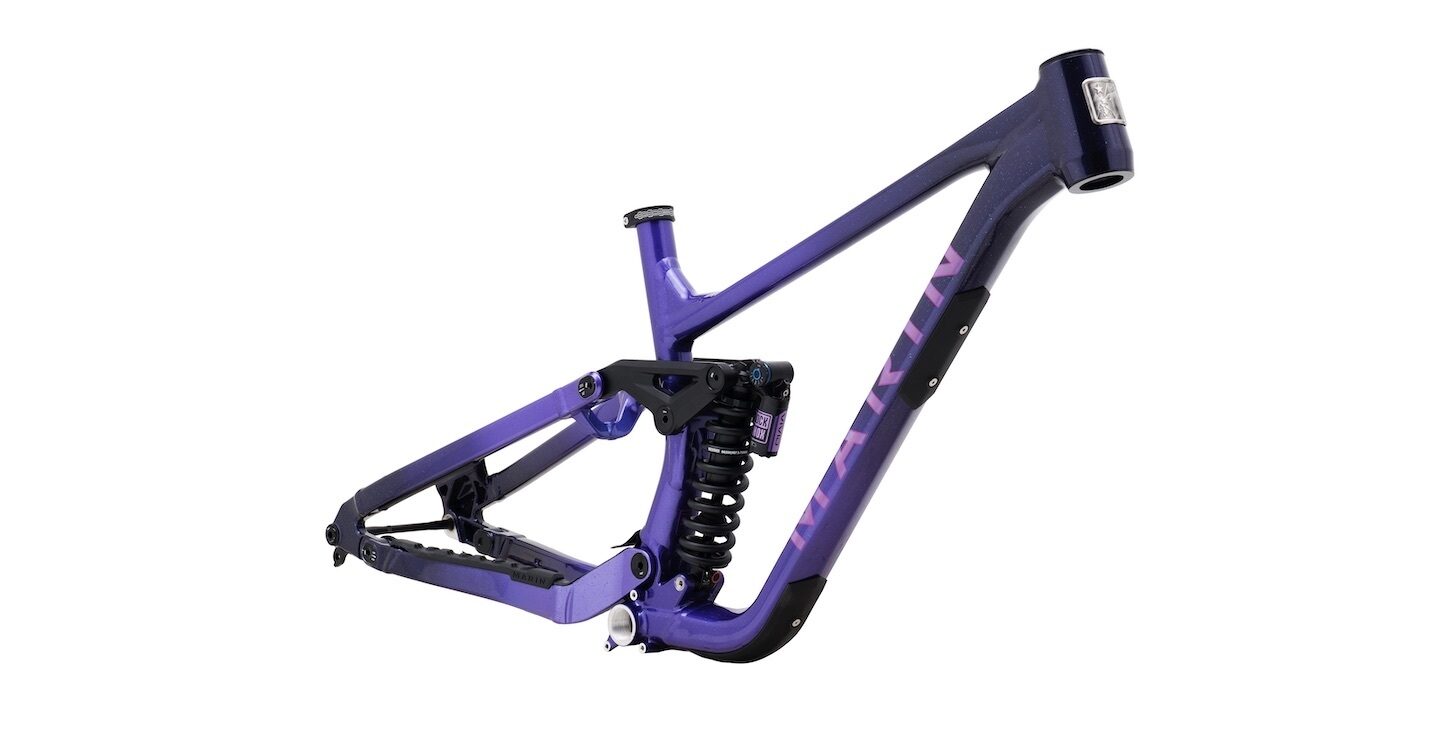

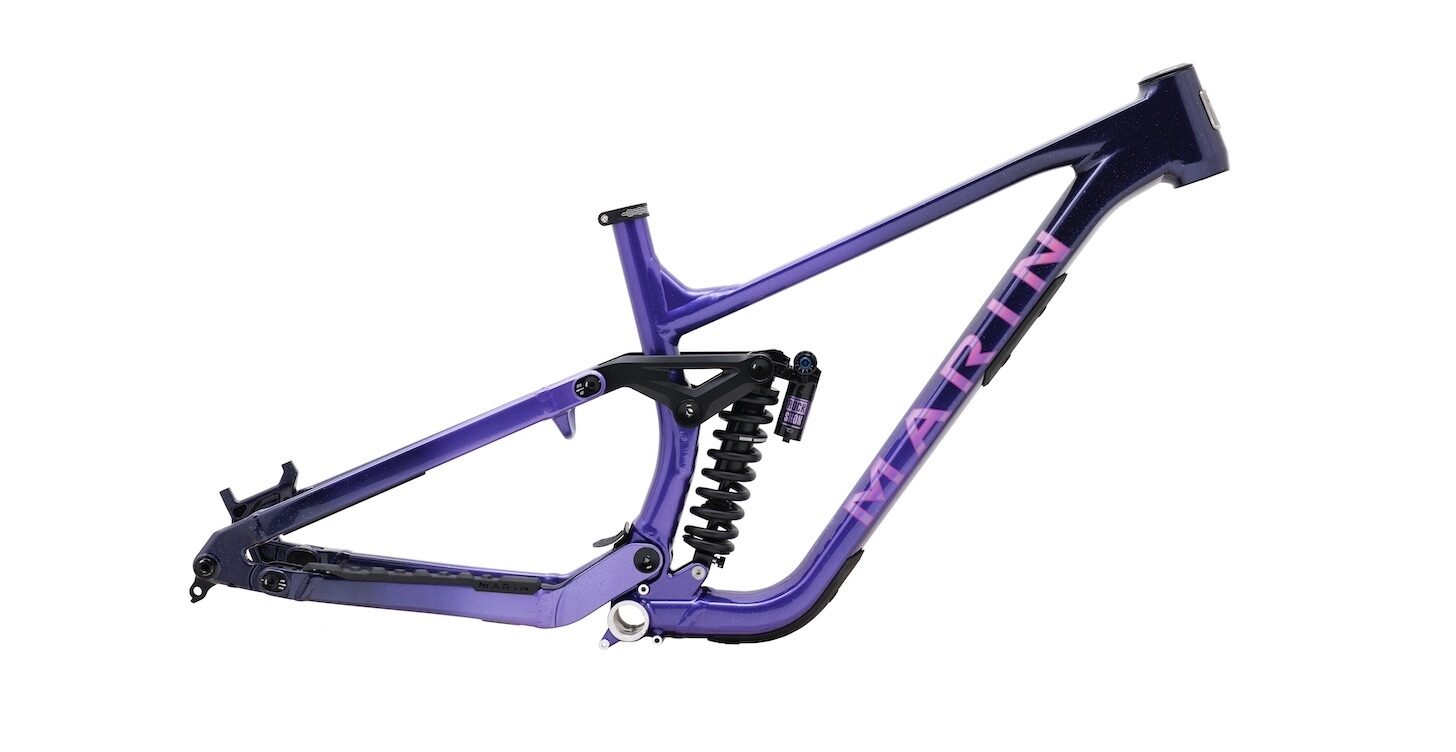

Marin Quake Downhill Frameset
Purple Fade / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609Designed for bike park laps and the DH course, the all-new Quake has benefited from an immersive development cycle where top riders have provided invaluable feedback over multiple generations of development samples. During this time, it was proven both strong and capable by some of the best riders in the sport, including Matt Jones, Mark Matthews, and Vinnie Moonen at some of the most demanding events, including Darkfest and Hardline, along with some of the steepest and most challenging tracks on earth
An all-new Series 4 MultiTrac 2 frame features 180mm rear wheel travel and flip chips that allow the rider to select the bottom bracket height and chainstay length, along with the ability to run a 29" rear wheel. Out back, the shock has hydraulic bottom out and adjustable low and high-speed compression damping to dial in the perfect ride.
Specifications
| Frame | All New Series 4 Alloy, 180mm travel MultiTrac LT Suspension, Adjustable CS Length/BB Height, 27.5" or 29" compatible, 148mm Rear Thru-Axle, & frame protection, UDH |
|---|---|
| Rear Shock | RockShox Vivid Coil Ultimate DH, 225x75mm Trunnion Upper Mount, 30xM8 Lower Mount, Custom Tune |
| Headset | FSA No 74 |
| Extras | Downtube & Shuttle Guards |
Geometry
| S | M | L | |
|---|---|---|---|
| Stack | 630 | 639 | 639 |
| Reach | 418 | 438 | 478 |
| Headtube Angle | 62.3 | 62.3 | 62.3 |
| Headtube Length | 100 | 110 | 110 |
| Seattube Angle | 75.8 | 75.8 | 75.8 |
| Seattube Length | 390 | 415 | 430 |
| Toptube (Effective) | 577 | 599 | 639 |
| Chainstay Length | 440 | 440 | 440 |
| Wheelbase | 1230 | 1255 | 1295 |
| BB Height | 353 | 353 | 353 |
| BB Drop | 264 | 264 | 264 |
| Standover | 683 | 690 | 695 |
| Fork Offset | 52 | 52 | 52 |
| Stem Length | 50 | 50 | 50 |
| Crank Length | 165 | 165 | 165 |
Sizing
| Size | Rider Height |
|---|---|
| S | 155cm - 165cm |
| M | 165cm - 182cm |
| L | 182cm - 193cm |
