Marin
Marin Nicasio + Gravel Bike
Color:
Color
Size:
Size
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Marin Nicasio + Gravel Bike
Grey / 50cm
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609ADVENTURE ROAD AND OFF-ROAD RIDING
LONG DISTANCE COMMUTING
ENDURANCE AND ALL-WEATHER PAVEMENT
The Marin Nicasio+ is our Nic’ with a modern twist, switching in big-volume 47mm rubber, 650b wheels and a sleek and straightforward 1X drivetrain. We also specced a microSHIFT Sword Black 1x9 drivetrain, powerful Tektro mechanical discs and plenty of Marin components. Those WTB Horizon 650Bx47mm tires not only provide a cloud-like ride, but also look super dreamy with tan sidewalls.
Specifications
| Frame | Steezy Double Butted CrMo Beyond Road, 650B Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount |
|---|---|
| Fork | CrMo, Fender and Rack Eyelets, IS Disc Mount |
| Headset | FSA ORBIT CE No.8B, Sealed Cartridge Bearings |
| Stem | Marin 3D Forged Alloy |
| Handlebars | Marin Butted Alloy, Compact 16º Flared Drop |
| Grips | Marin Comfort Tape |
| Rims | Marin Aluminum Double Wall, 25mm Inner, Disc Specific |
| Spokes | 14g Black Stainless Steel |
| Tyres | WTB Horizon, 650Bx47mm |
| Shifter | microSHIFT SWORD Black, 1x9 Specific |

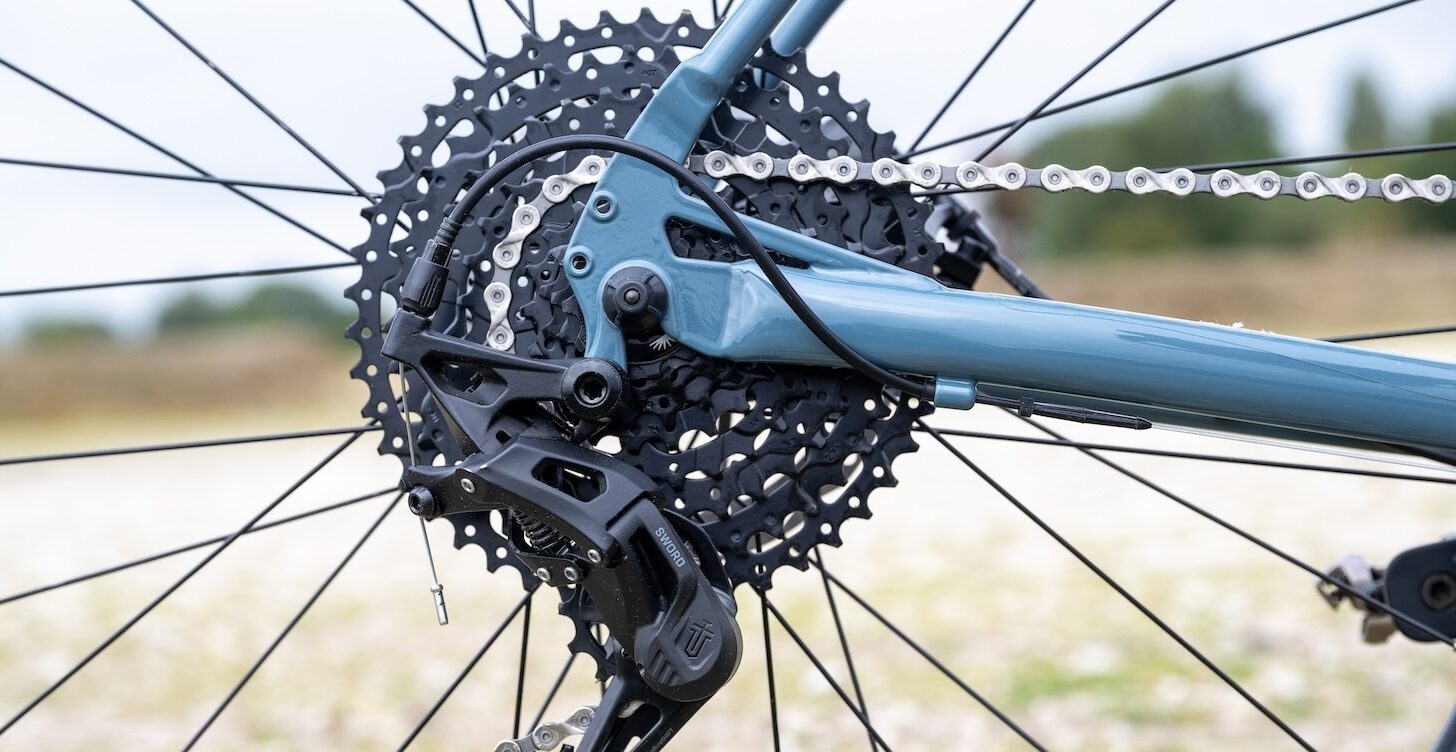

| Rear Derailleur | microSHIFT SWORD Black, 1x9 w/ Clutch Mech |
| Crankset | FSA Vero Pro, Narrow Wide, 42T |
| Cassette | microSHIFT 9-Speed, 11-46T |
| Chain | KMC X9 |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
| Front Brake | Tektro MDC400, Road Mechanical, 160mm Rotor |
| Rear Brake | Tektro MDC400, Road Mechanical, 160mm Rotor |

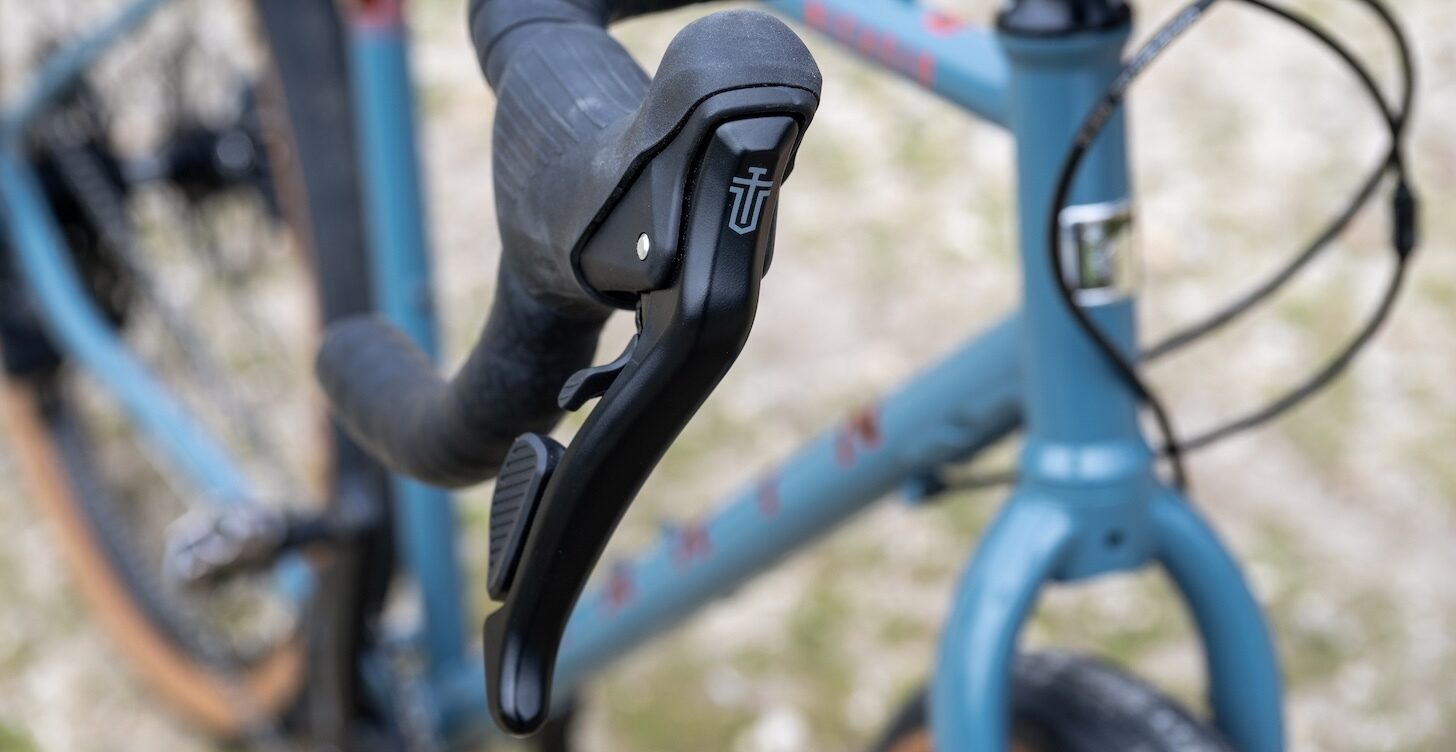

| Brake Levers | microSHIFT SWORD Black |
| Seatpost | Marin Alloy, 27.2mm |
| Saddle | Marin Beyond Road Concept |
| Pedals | Commute Platform |
| Extras |
Geometry
| 50 | 52 | 54 | 56 | 58 | 60 | |
|---|---|---|---|---|---|---|
| Stack | 546 | 564 | 578 | 592 | 606 | 620 |
| Reach | 375 | 375 | 380 | 390 | 402 | 415 |
| Headtube Angle | 70.5 | 71.5 | 71.5 | 71.5 | 71.5 | 71.5 |
| Headtube Length | 105 | 120 | 135 | 150 | 165 | 180 |
| Seattube Angle | 74.5 | 74 | 74 | 74 | 74 | 73.5 |
| Seattube Length | 460 | 480 | 500 | 520 | 540 | 560 |
| Toptube (Effective) | 526 | 537 | 546 | 560 | 575 | 599 |
| Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1017 | 1014 | 1024 | 1039 | 1055 | 1073 |
| BB Height | 269 | 269 | 269 | 269 | 269 | 269 |
| BB Drop | 76 | 76 | 76 | 76 | 76 | 76 |
| Standover | 713 | 733 | 752 | 770 | 788 | 806 |
| Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
