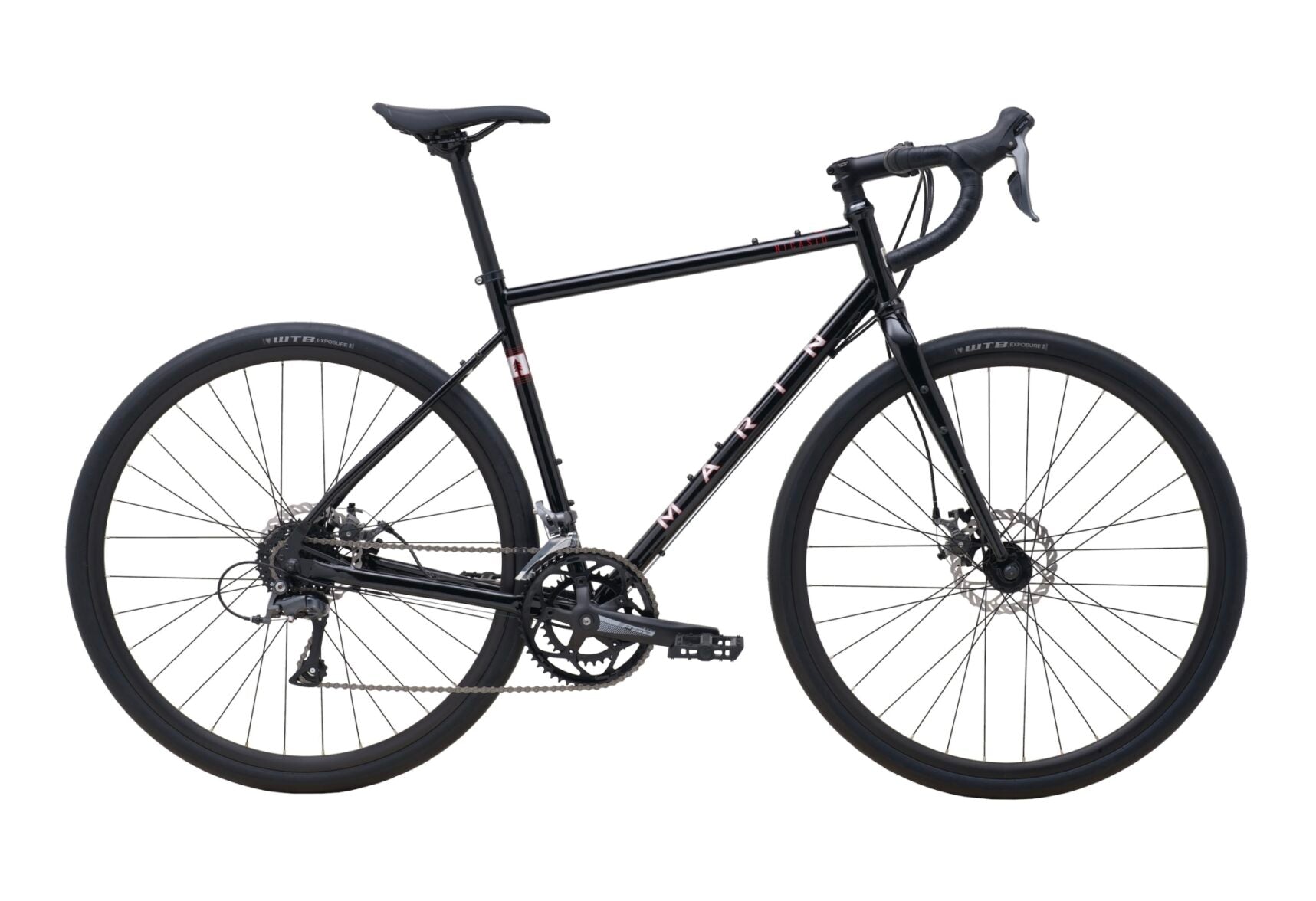

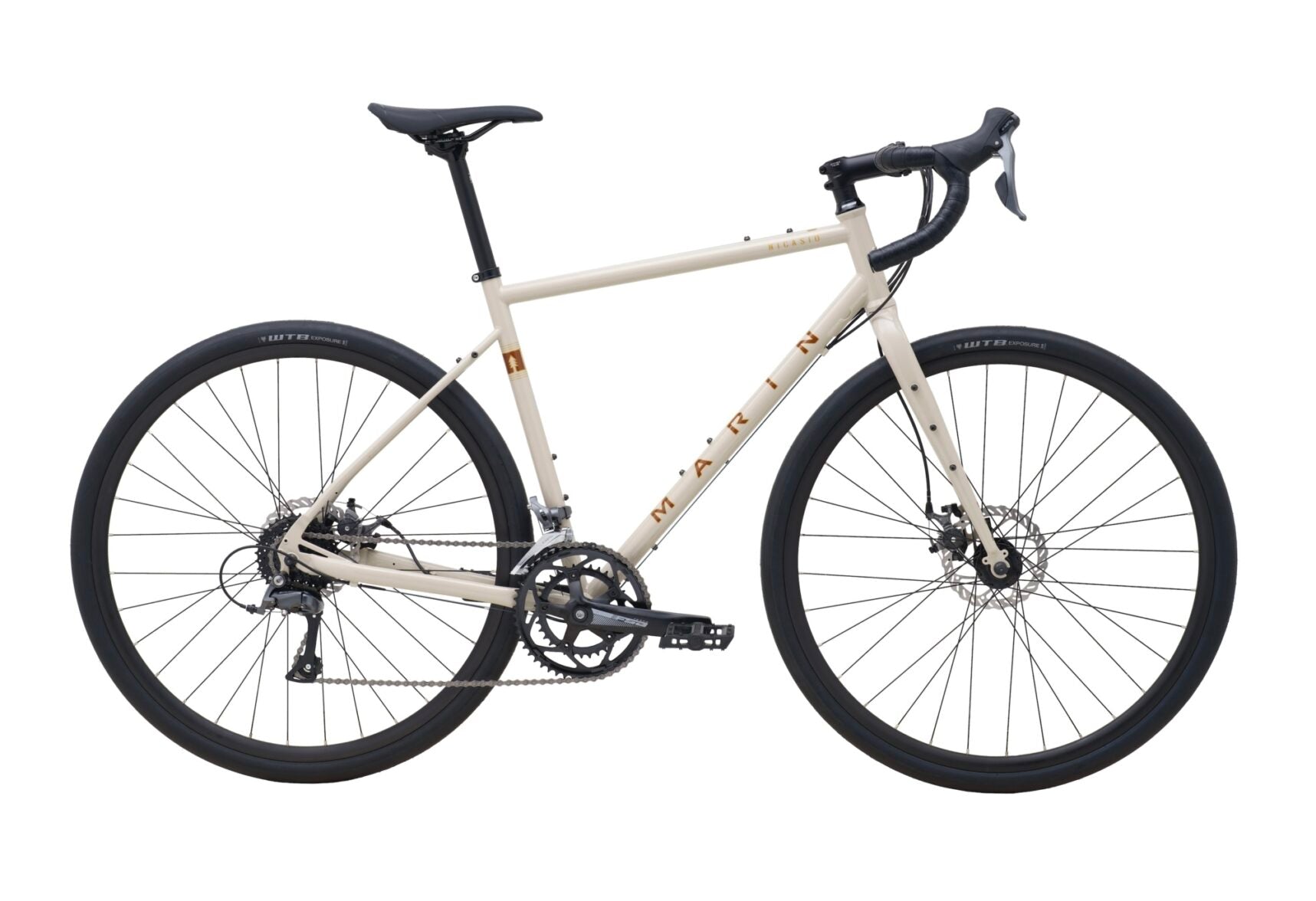

The most affordable model in the family, the base-spec Marin Nicasio is built around a smooth-riding and stylish Series 1 double-butted CrMo frame and fork and zippy 700C wheels, with room for up to 45mm tires. We’ve specced a 2x8-speed Shimano Claris drivetrain, wide WTB rubber, powerful Tektro mechanical discs and plenty of Marin components.
Specifications
| Frame | Steezy Double Butted CrMo Beyond Road, 700C Wheels, Beyond Road Geometry, Fender and Rack Mounts, Disc Mount |
|---|---|
| Fork | CrMo, Fender and Rack Eyelets, IS Disc Mount |
| Headset | FSA No.8D, Sealed Cartridge Bearings |
| Stem | Marin 3D Forged Alloy |
| Handlebars | Marin Butted Alloy, Compact 16º Flared Drop |
| Bartape | Marin Comfort Tape |
| Rims | Marin Aluminum Double Wall, 19mm Inner, Disc Specific |
| Spokes | 14g Black Stainless Steel |
| Front Hub | Forged Aluminum Alloy, Disc, 32H |
| Rear Hub | Forged Aluminum Alloy, Disc, 32H |
| Tyres | WTB Exposure, 700Cx36, Wire Bead |
| Shifter | Shimano Claris 2x8-Speed |
| Rear Derailleur | Shimano Claris 8-Speed |
| Front Derailleur | Shimano Claris |
| Crankset | FSA Tempo Compact, 50/34T |
| Cassette | SunRace 8-Speed, 11-32T |
| Chain | KMC Z8 |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
| Front Brake | Tektro MDC400, Road Mechanical, 160mm Rotor |
| Rear Brake | Tektro MDC400, Road Mechanical, 160mm Rotor |
| Seatpost | Marin Alloy, 27.2mm |
| Saddle | Marin Beyond Road Concept |
| Pedals | Nylon Platform |
| Extras |
Geometry
| 50 | 52 | 54 | 56 | 58 | 60 | |
|---|---|---|---|---|---|---|
| Stack | 546 | 564 | 578 | 592 | 606 | 620 |
| Reach | 375 | 375 | 380 | 390 | 402 | 415 |
| Headtube Angle | 70.5 | 71.5 | 71.5 | 71.5 | 71.5 | 71.5 |
| Headtube Length | 105 | 120 | 135 | 150 | 165 | 190 |
| Seattube Angle | 74.5 | 74 | 74 | 74 | 74 | 73.5 |
| Seattube Length | 460 | 480 | 500 | 520 | 540 | 560 |
| Toptube (Effective) | 526 | 537 | 546 | 560 | 575 | 599 |
| Chainstay Length | 430 | 430 | 430 | 430 | 430 | 430 |
| Wheelbase | 1017 | 1014 | 1024 | 1039 | 1055 | 1073 |
| BB Height | 274 | 274 | 274 | 274 | 274 | 274 |
| BB Drop | 76 | 76 | 76 | 76 | 76 | 76 |
| Standover | 718 | 738 | 757 | 775 | 793 | 811 |
| Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
BEYOND ROAD GEOMETRY
Beyond Road Geometry offers a blend of endurance road handling with enhanced stability for off pavement use.
STEEL FRAME CONSTRUCTION
The Nicasio uses a Series 2 or Series 1 butted 4130 CrMo frame with disc brakes, full fender and rack mounts, and two to three bottle bosses.
DISC BRAKES
Disc brakes provide smooth, controlled stopping in all conditions with minimal maintenance.
TIRE CLEARANCE
The Nicasio frame and fork has clearance for up to 700C x 35mm or 650B x 47mm tires.
