Marin Lombard E2 (Bosch Sx) Electric Gravel Bike 2026
Color:
Color
Size:
Size
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Marin Lombard E2 (Bosch Sx) Electric Gravel Bike 2026
Off White / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609The Lombard E2 is our flagship Lombard offering. With a Bosch SX Drive Unit as the beating heart, powerful all-weather hydraulic disc brakes and the new Shimano GRX Wireless transmission, the Lombard E2 is ready for daily use on or off the tarmac.

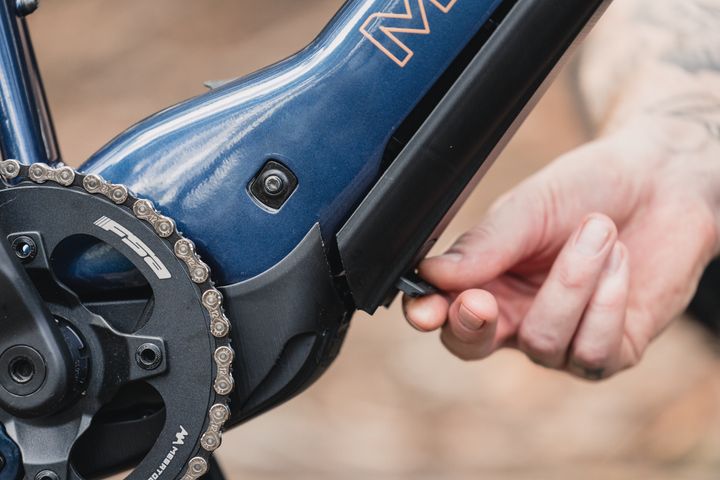

High volume tyres, a Trans X dropper seat post and the fully integrated 400w/h Powertube battery, make the Lombard E a steadfast companion whether commuting daily in the city, or spinning for hours in the country.
Range: 22-137km
Specifications
| Frame | All-New Series 4 Beyond Road E, 6061 Aluminum, One-Piece Hydroformed Downtube & Motor Mount, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
|---|---|
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Headset | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Stem | Marin 3D Forged Alloy |
| Handlebars | Marin Butted Alloy, Compact 16º Flared Drop |
| Bartape | Marin Adventure Tape |
| Rims | Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible |
| Spokes | 14g Black Stainless Steel |
| Front Hub | Forged Aluminum Alloy, 100x12mm, Disc, 32H |
| Rear Hub | Forged Aluminum Alloy, 142x12mm, Disc, 32H |
| Tyres | Vee Tire Co., G-Sport, 700x44, Tubeless Compatible |
| Shifter | Shimano GRX Di2, STRX825, 12-speed, Wireless |
| Rear Derailleur | |
| Crankset | e*thirteen e*Spec Plus, Forged Arm, 42T Steel Chainring |
| Cassette | Shimano SLX CSM7100, 10-51T |
| Chain | KMC E12S |
| Brakes | Shimano GRX RX820, Flat-Mount Hydraulic Disc, 160mm Rotor |
| Brake Levers | Shimano GRX Di2, STRX825, 12-speed, Wireless |
| Seatpost | TranzX YSP38J, Size S-M 70mm, Size L-XL 110mm Travel, 27.2mm |
| Saddle | Marin Beyond Road Concept Elite |
| Pedals | Nylon Platform |
| Motor | Bosch SX Sprint, 250W, 55Nm, ( USA/NZ Class 3 28mph, 45Km/h) (EU/Global Class 1 25km/h) |
| Battery | Bosch Compact Power Tube 400, 400Wh |
| Display | Bosch Purion 400 |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 564.7 | 583.5 | 607 | 639.9 |
| Reach | 385 | 405 | 415 | 425 |
| Headtube Angle | 70 | 70 | 70 | 70 |
| Headtube Length | 130 | 150 | 175 | 210 |
| Seattube Angle | 73.5 | 73.5 | 73.5 | 73.5 |
| Seattube Length | 460 | 485 | 505 | 530 |
| Toptube (Effective) | 552.2 | 577.8 | 594.8 | 614.5 |
| Chainstay Length | 435 | 435 | 435 | 435 |
| Wheelbase | 1042.2 | 1069 | 1087.6 | 1109.6 |
| BB Height | 282 | 282 | 282 | 282 |
| BB Drop | 80 | 80 | 80 | 80 |
| Standover | 686.7 | 702 | 714.5 | 741.7 |
| Fork Offset | 50 | 50 | 50 | 50 |
| Stem Length | 70 | 70 | 70 | 70 |
| Handlebar Width | 440 | 460 | 460 | 480 |
| Crank Length | 170 | 170 | 175 | 175 |
Sizing
| S | M | L | XL | |
|---|---|---|---|---|
| Rider Height (cm) | 160-168 | 168-178 | 178-187 | 188-193 |
