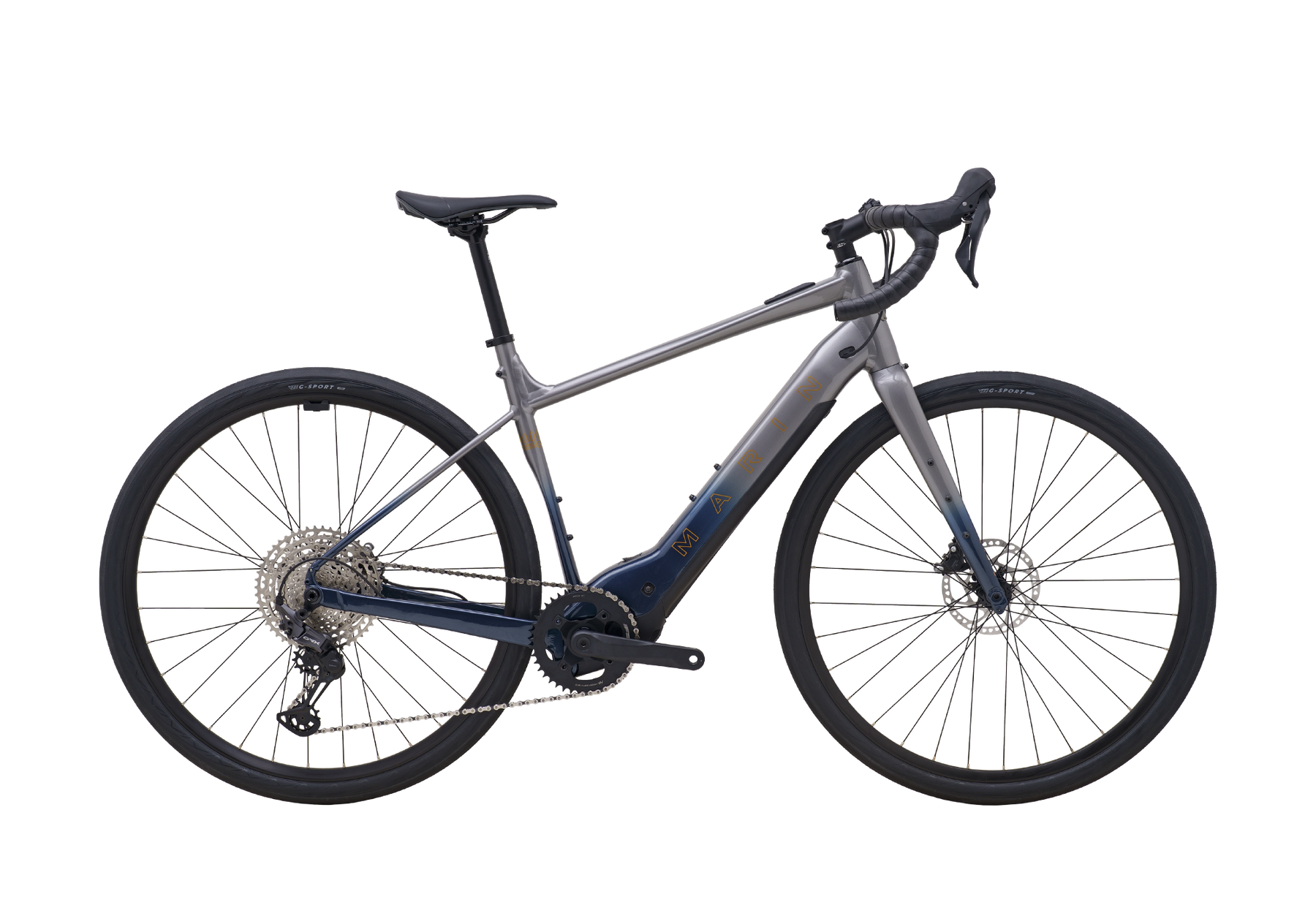

Marin Lombard E1 (Bosch Sx) Electric Gravel Bike 2026
Color:
Color
Size:
Size
Quantity:
Click & Collect
Pickup currently unavailable at Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Marin Lombard E1 (Bosch Sx) Electric Gravel Bike 2026
Blue Tan / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Pickup currently unavailable
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Pickup available, usually ready in 5+ days
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609With a Bosch SX Drive Unit as the beating heart and the consistent and all-weather power of hydraulic disc brakes and reliable shifting components make the Lombard E1 ready for daily use on or off the tarmac.
High volume tires and the option to run a dropper seat post make the Lombard E a steadfast companion whether commuting daily in the city, or spinning for hours in the country.
Range: 22-137km
Specifications
| Frame | All-New Series 4 Beyond Road E, 6061 Aluminum, One-Piece Hydroformed Downtube & Motor Mount, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
|---|---|
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Headset | FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Stem | Marin 3D Forged Alloy |
| Handlebars | Marin Butted Alloy, Compact 16º Flared Drop |
| Bartape |
Marin Shock Absorbing Perforated Tape |
| Rims | Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific, Tubeless Compatible |
| Spokes | 14g Black Stainless Steel |
| Front Hub | Forged Aluminum Alloy, 100x12mm, Disc, 32H |
| Rear Hub | Forged Aluminum Alloy, 142x12mm, Disc, 32H |
| Tyres | Vee Tire Co., G-Sport, 700x44, Tubeless Compatible |
| Shifter |
Shimano GRX STRX610, 12-speed |
| Rear Derailleur | |
| Crankset |
Forged Alloy, 42T Steel Chainring |
| Cassette |
Shimano CSM6100, 10-51T |
| Chain | KMC E12S |
| Brakes |
Shimano GRX RX400, Flat-Mount Hydraulic Disc, 160mm Rotor |
| Brake Levers |
Shimano GRX STRX610 |
| Seatpost |
Marin Alloy, 27.2 |
| Saddle | Marin Beyond Road Concept Elite |
| Pedals |
Flats |
| Motor | Bosch SX Sprint, 250W, 55Nm, ( USA/NZ Class 3 28mph, 45Km/h) (EU/Global Class 1 25km/h) |
| Battery | Bosch Compact Power Tube 400, 400Wh |

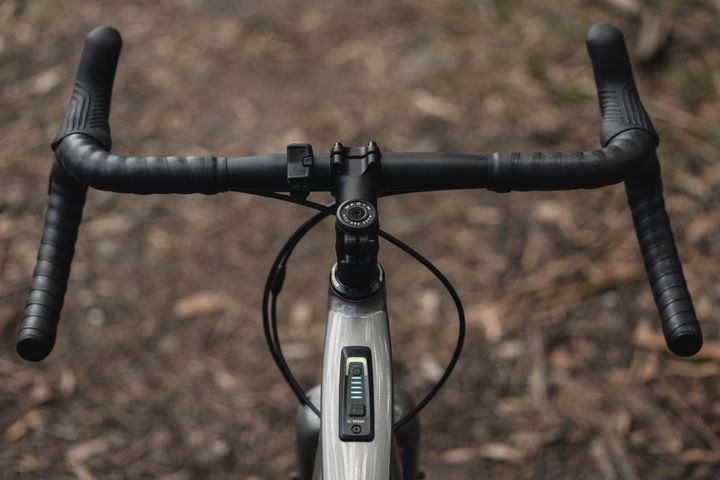

| Display | Bosch Purion 400 |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| Stack | 564.7 | 583.5 | 607 | 639.9 |
| Reach | 385 | 405 | 415 | 425 |
| Headtube Angle | 70 | 70 | 70 | 70 |
| Headtube Length | 130 | 150 | 175 | 210 |
| Seattube Angle | 73.5 | 73.5 | 73.5 | 73.5 |
| Seattube Length | 460 | 485 | 505 | 530 |
| Toptube (Effective) | 552.2 | 577.8 | 594.8 | 614.5 |
| Chainstay Length | 435 | 435 | 435 | 435 |
| Wheelbase | 1042.2 | 1069 | 1087.6 | 1109.6 |
| BB Height | 282 | 282 | 282 | 282 |
| BB Drop | 80 | 80 | 80 | 80 |
| Standover | 686.7 | 702 | 714.5 | 741.7 |
| Fork Offset | 50 | 50 | 50 | 50 |
| Stem Length | 70 | 70 | 70 | 70 |
| Handlebar Width | 440 | 460 | 460 | 480 |
| Crank Length | 170 | 170 | 175 | 175 |
Sizing
| S | M | L | XL | |
|---|---|---|---|---|
| Rider Height (cm) | 160-168 | 168-178 | 178-187 | 188-193 |
