+3532840609ADVENTURE ON AND OFF-ROAD RIDING
LONG DISTANCE COMMUTING
GRAVEL RIDING
Fully loaded bike-packing, fast and light off-road adventures, gravel and CX racing… or simply exploring your favorite tracks and trails. The Marin Headlands is a high-tech, high-spec carbon fiber gravel and adventure bike that’s made to be lightning-fast, confidence-inspiring and super comfortable on all surfaces.
We’ve taken our own unidirectional carbon fiber frame, added mountain bike-inspired geometry, loads of tire clearance and a whole heap of mounting points for gear and fenders to create a super versatile, super capable all-terrain dart of a bike. Go 700c with room for up to 45mm tires or 650b up to 47mm.
The Main Headlands 2 is our no-compromise, top-spec, top-performance gravel and adventure bike.
Gravel-specific Shimano GRX 800 groupset, GRX hydraulic brakes, Vee Tire Co tires and Marin wheels and finishing kit all add up to a whole mountain of fun and adventure. Last but not least, we’ve added a TranzX dropper seat post to really push you and your Headlands’ limits on the trails
Key upgrades over the Headlands 1:
- Shimano GRX RX810 drivetrain & FSA Gossamer Pro crankset
- TranzX dropper post
Specifications

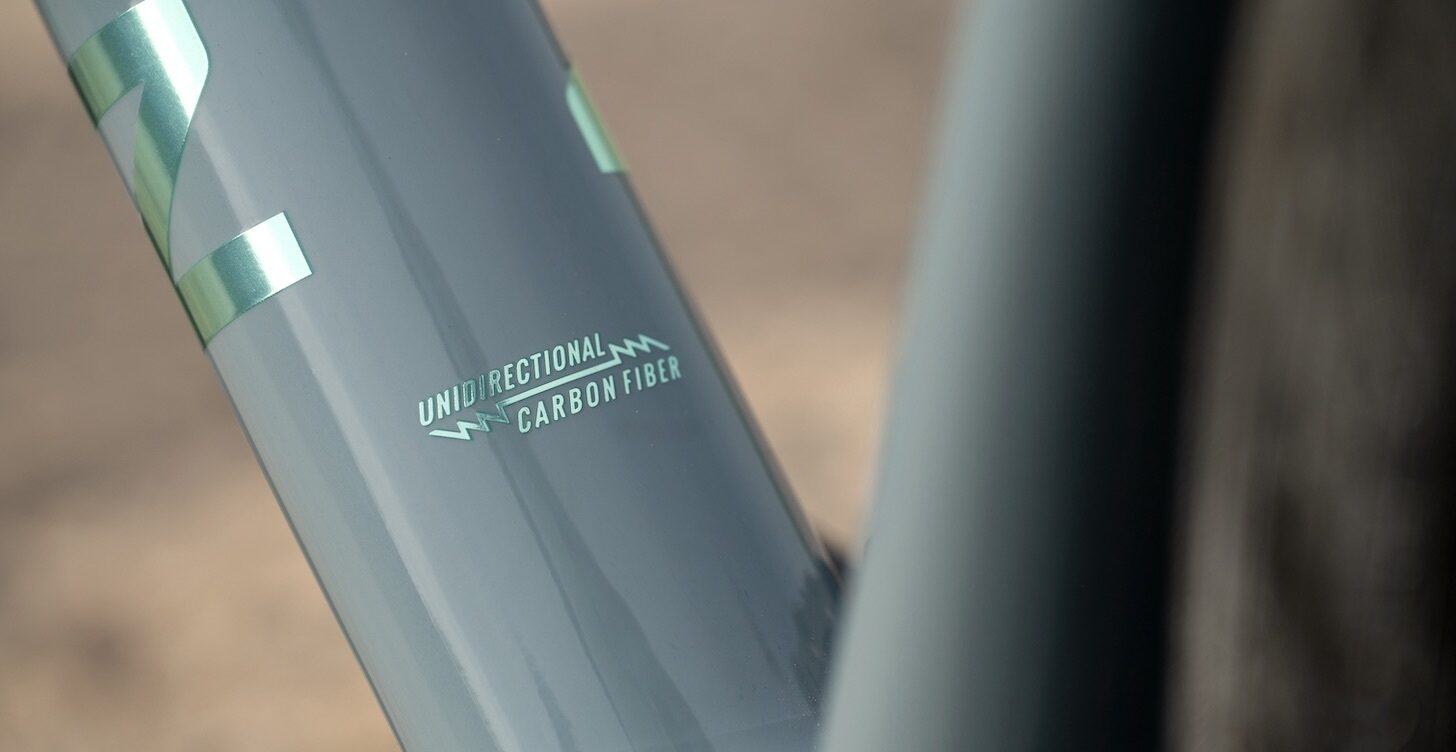

| Frame | Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 45mm/650B x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts |
|---|---|

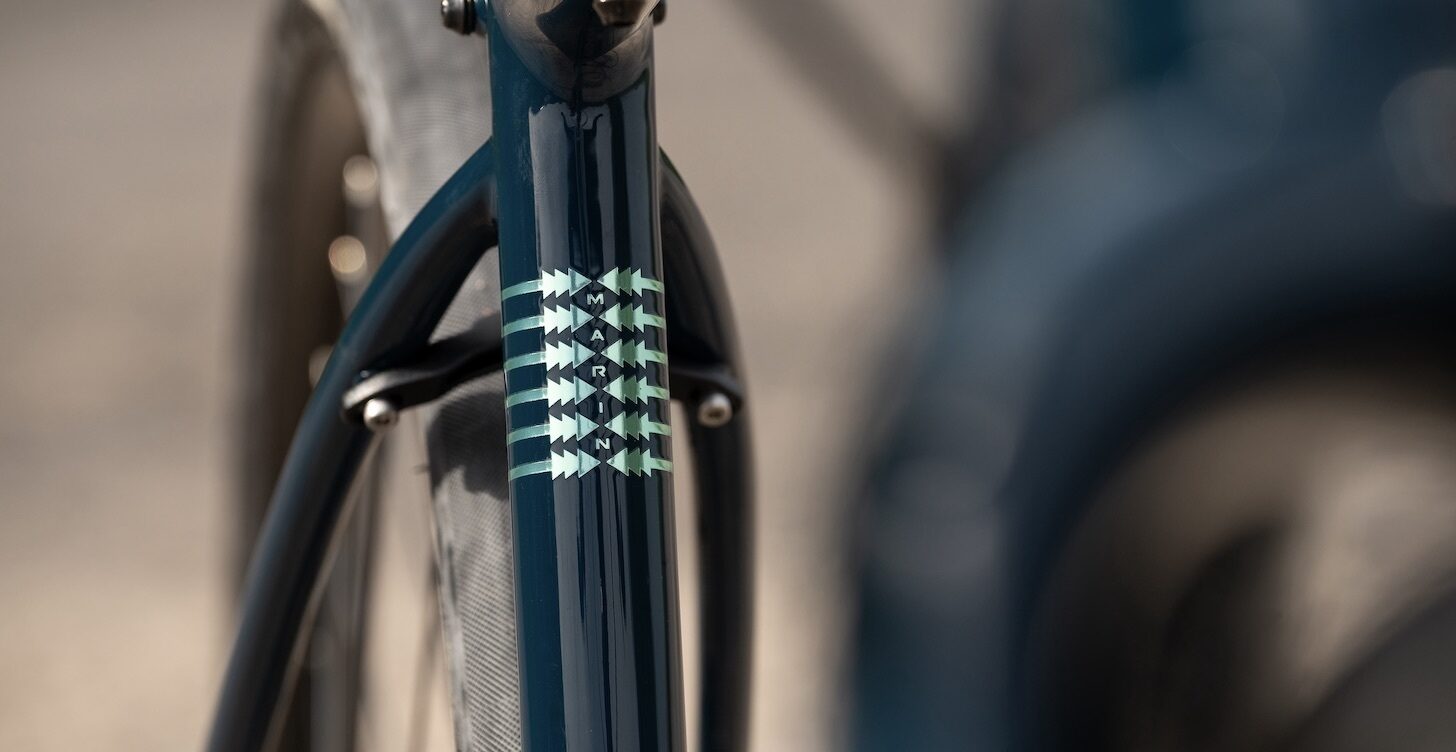

| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Headset | FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Stem | Marin 3D Forged Alloy |
| Handlebars | Marin Butted Alloy, Compact 16º Flared Drop |
| Grips | Marin Shock Absorbing Tape |
| Rims | Marin Aluminum Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible |
| Spokes | Double Butted Stainless |
| Tyres | Vee Tire Co., G-Sport, 700cx44, Tubeless Compatible |
| Shifter | Shimano GRX STX810, 1x11-Speed, Integrated Dropper Lever |
| Rear Derailleur | Shimano GRX RDX812 Shadow Plus w/ Clutch |
| Crankset | FSA Gossamer Pro, Megatooth 42T Chainring, BB386EVO Alloy Spindle |
| Cassette | Shimano, 11-Speed, 11/42T |
| Chain | KMC X11 |
| Bottom Bracket | FSA MegaExo Threaded |
| Front Brake | Shimano GRX Hydraulic Disc, 160mm Rotor |
| Rear Brake | Shimano GRX Hydraulic Disc, 160mm Rotor |

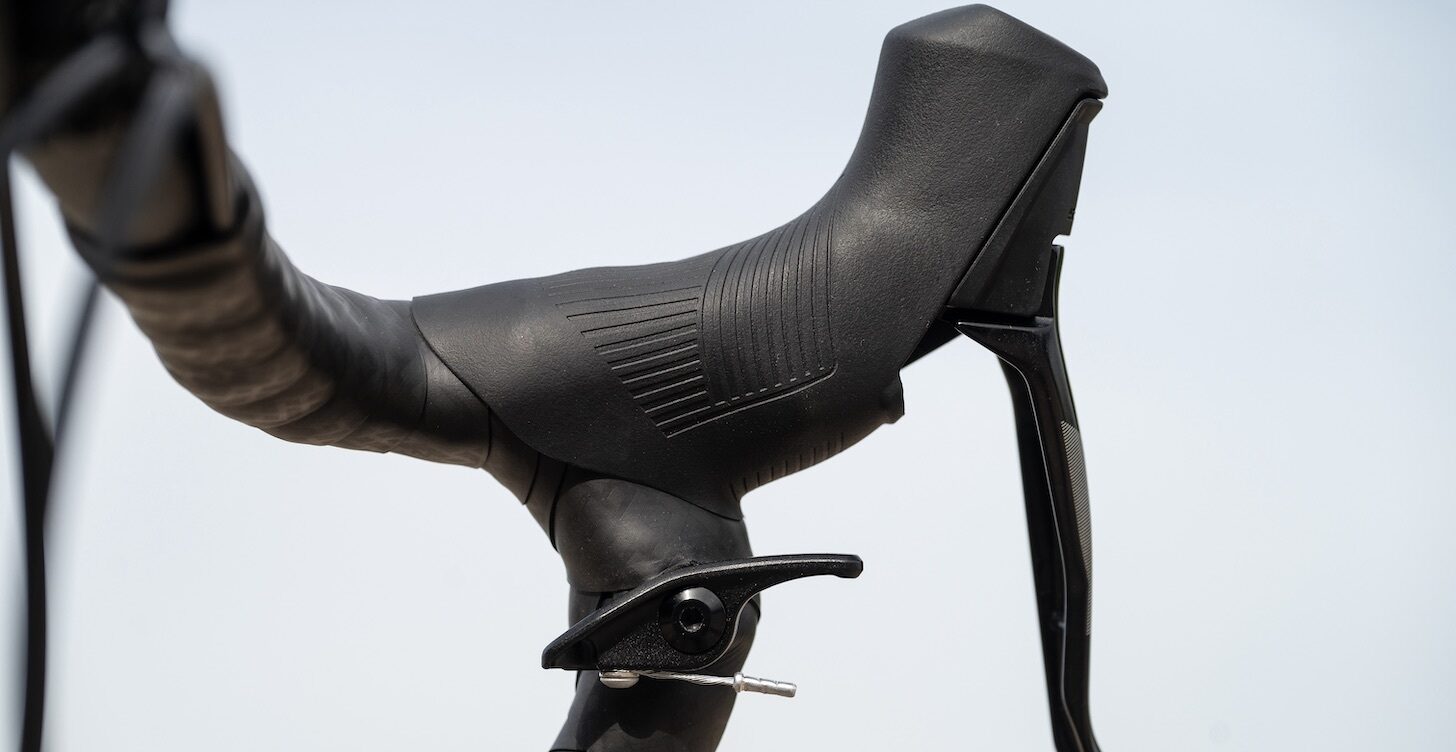

| Brake Levers | Shimano GRX Hydraulic w/ Shifter and Integrated Dropper Lever |
| Seatpost | TranzX YSP38J, Size 49-54 70mm, Size 56-60 110mm Travel, 27.2mm |
| Saddle | Marin Beyond Road Concept Elite |
| Pedals | - |
| Extras | Bolt-On Thru-Axles F and R |
Geometry
| 49 | 52 | 54 | 56 | 58 | 60 | |
|---|---|---|---|---|---|---|
| Stack | 550.3 | 565.7 | 581.8 | 600.8 | 619.7 | 638.7 |
| Reach | 370 | 372.8 | 372.7 | 386.4 | 411.4 | 425.8 |
| Headtube Angle | 70.5 | 71 | 71.5 | 71.5 | 71.5 | 71.5 |
| Headtube Length | 120 | 135 | 150 | 170 | 190 | 210 |
| Seattube Angle | 74.5 | 74 | 73.5 | 73.5 | 73.5 | 73.5 |
| Seattube Length | 440 | 470 | 490 | 510 | 530 | 550 |
| Toptube (Effective) | 522 | 535 | 545 | 565 | 595 | 615 |
| Chainstay Length | 420 | 420 | 420 | 420 | 420 | 420 |
| Wheelbase | 1010.2 | 1007.4 | 1007.7 | 1028.5 | 1059.2 | 1079.9 |
| BB Height | 283.5 | 272 | 272 | 272 | 272 | 272 |
| BB Drop | 76 | 76 | 76 | 76 | 76 | 76 |
| Standover | 711 | 725 | 741 | 758 | 775 | 792 |
| Fork Offset | 50 | 50 | 50 | 50 | 50 | 50 |
