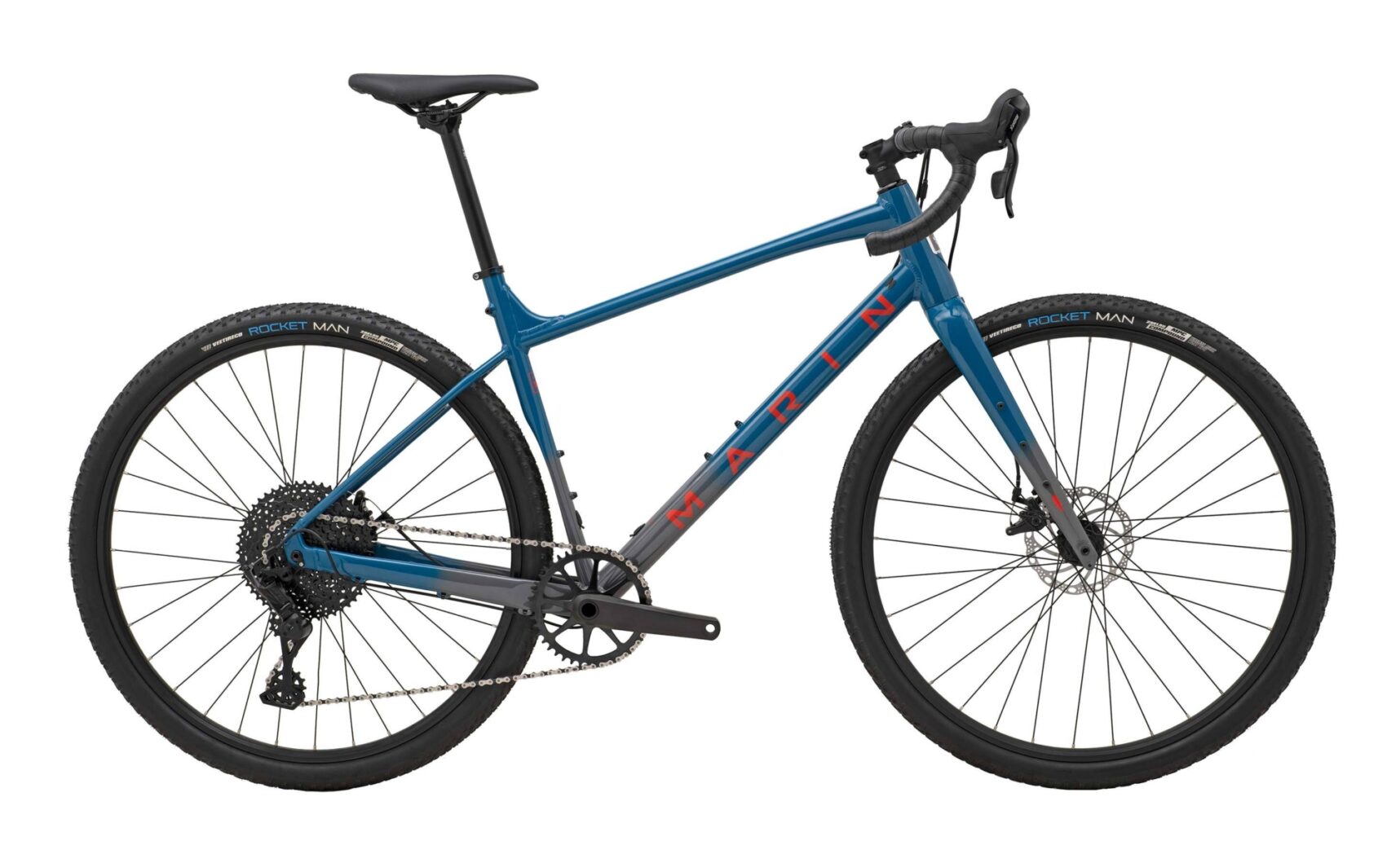

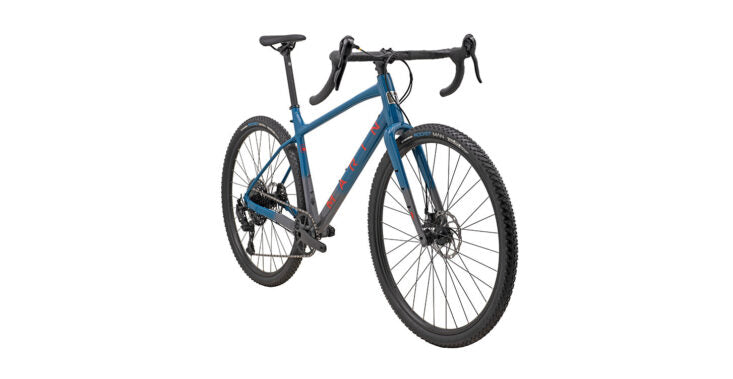

Marin Gestalt X10 Gravel Bike
Color
Size
Click & Collect
Marin Gestalt X10 Gravel Bike
Gloss Blue / S
Unit 9, Hills Hire Centre, Johnstown Rd, Dún Laoghaire, Co. Dublin
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
012840609Warehouse
Unit 9, Hills Hire Centre,Johnstown Rd,Dún Laoghaire,Co. Dublin
+3532840609ADVENTURE ON AND OFF-ROAD RIDING
LONG DISTANCE COMMUTING
GRAVEL RIDING
The Gestalt X is the mountain biker’s dropbar bike with reliable and simple 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
Updated for 2023 with an all-new frame, with mountain bike inspired geometry, featuring 10mm longer chainstays and a 67.5° headtube angle for a more stable ride when getting off the beaten path. Tire clearance is increased, and the frame will now accommodate tires up to 700x50mm or 27.5 x 2.1".
Specifications
| Frame | Series 3 Beyond Road, 6061 Aluminum, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle |
|---|---|
| Fork | Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets |
| Headset | FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2” |
| Rims | Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific |
| Rear Hub | Forged Aluminum Alloy, Disc, 32H |
| Front Hub | Forged Aluminum Alloy, Disc, 32H |
| Spokes | 14g Black Stainless Steel |
| Tyres | Vee Tire Co., Rocket Man, 700x44, Tubeless Compatible |
| Rear Derailleur | MicroSHIFT Advent X 10-Speed Wide-Range |
| Shifters | MicroSHIFT Advent X 10-Speed |
| Crankset | Forged Alloy 1x10, Hollow CrMo Spindle, Narrow Wide 42T |
| Bottom Bracket | External Sealed Cartridge Bearings |
| Chain | KMC X10 |
| Cassette | SunRace 10-Speed, 11-51T |
| Front Brake | Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor |
| Rear Brake | Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor |
| Handlebar | Marin Butted Alloy, Compact 16º Flared Drop |
| Stem | Marin 3D Forged Alloy |
| Grips | Marin Shock Absorbing Perforated Tape |
| Seatpost | Marin Alloy, 27.2mm |
| Saddle | Marin Beyond Road Concept |
| Extras | Bolt-On Thru-Axles F an |
Geometry
| S | M | L | XL | |
|---|---|---|---|---|
| A. Stack | 547.6 | 566 | 589.1 | 621.5 |
| B. Reach | 400 | 420 | 440 | 460 |
| Headtube Angle | 67.5 | 67.5 | 67.5 | 67.5 |
| Headtube Length | 130 | 150 | 175 | 210 |
| Seattube Angle | 75 | 74 | 74 | 74 |
| Seattube Length | 460 | 485 | 505 | 530 |
| Toptube Effective | 546.7 | 582.3 | 608.9 | 638.2 |
| BB Height | 282.5 | 282.5 | 282.5 | 282.5 |
| BB Drop | 80 | 80 | 80 | 80 |
| Chainstay | 425 | 425 | 425 | 425 |
| Wheelbase | 1065.2 | 1092.8 | 1122.4 | 1155.6 |
| Standover Height | 678.6 | 687.7 | 708.6 | 734.5 |
| Fork Offset | 50 | 50 | 50 | 50 |
| Seatpost Diameter | 27.2 | 27.2 | 27.2 | 27.2 |
| Handlebar Width | 440 | 460 | 480 | 480 |
| Stem Length | 50 | 50 | 50 | 50 |
| Crank Length | 170 | 170 | 175 | 175 |
